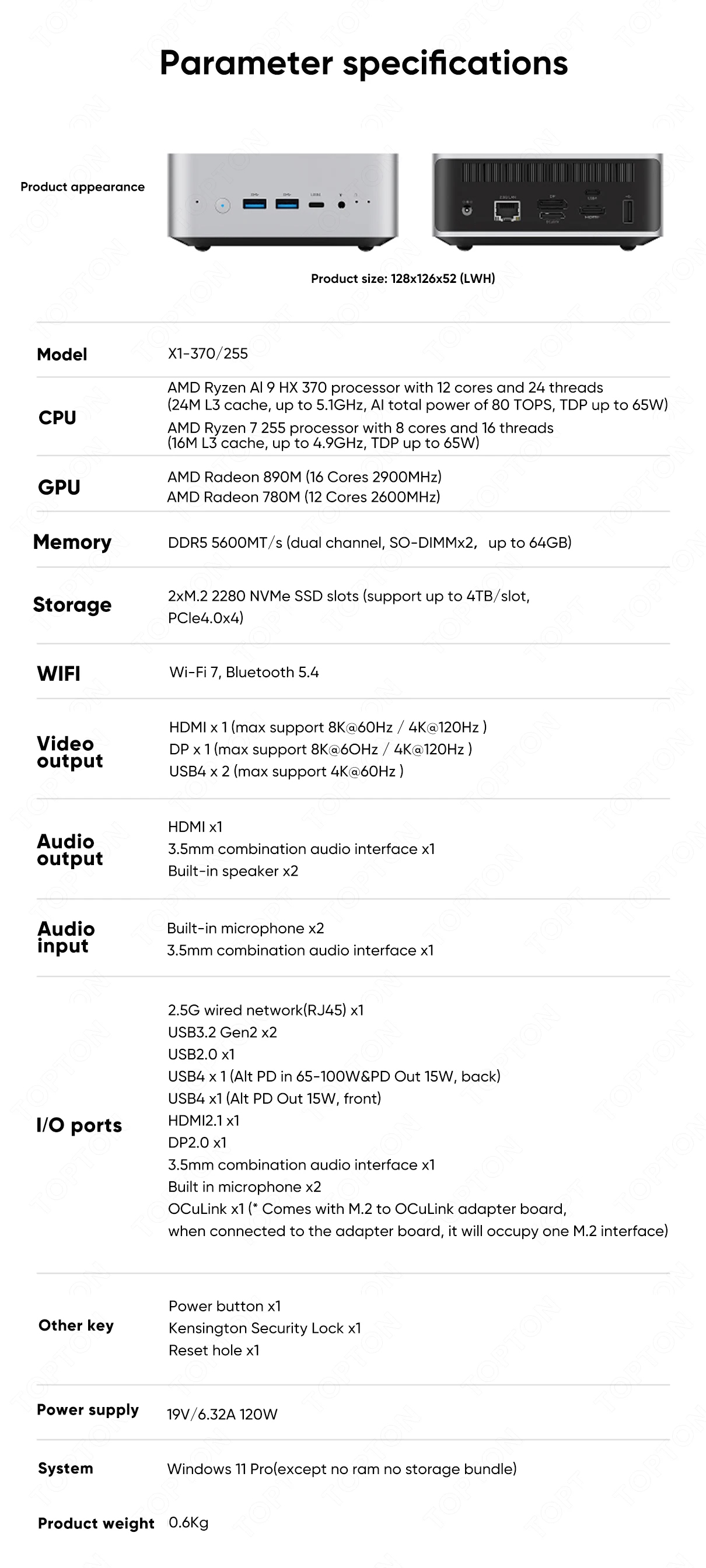

MINISFORUM X1-370 Mini PC – Full Specifications

---

Processor & AI

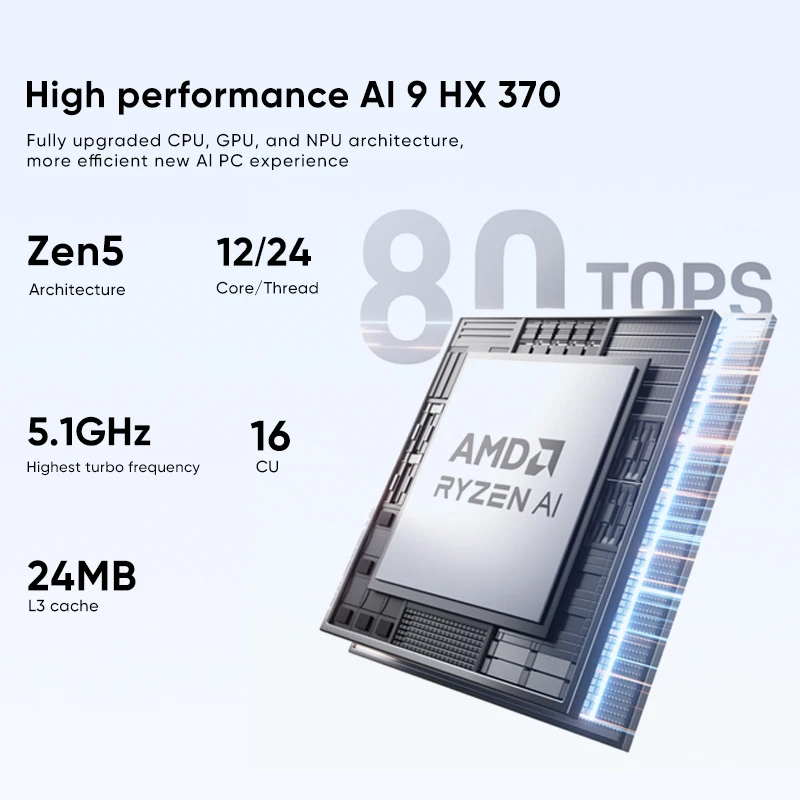

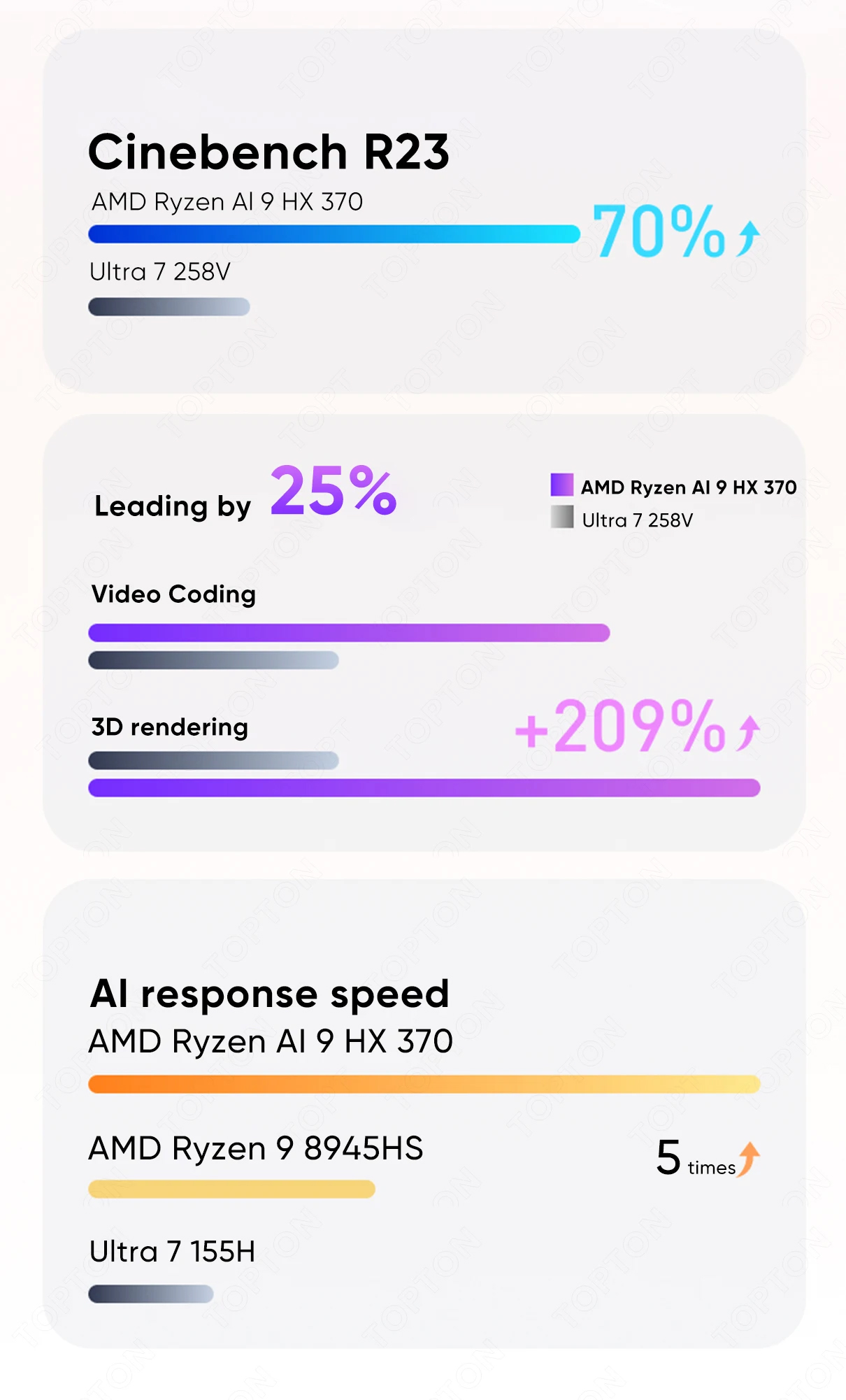

• CPU: AMD Ryzen™ AI 9 HX 370 (12 cores, 24 threads, up to 5.1GHz Max Boost)

• NPU: Integrated AMD XDNA™2 architecture, delivering 80 TOPS AI performance

• GPU: AMD Radeon™ 890M Graphics (12 CUs, up to 2.9GHz)

---

Memory & Storage

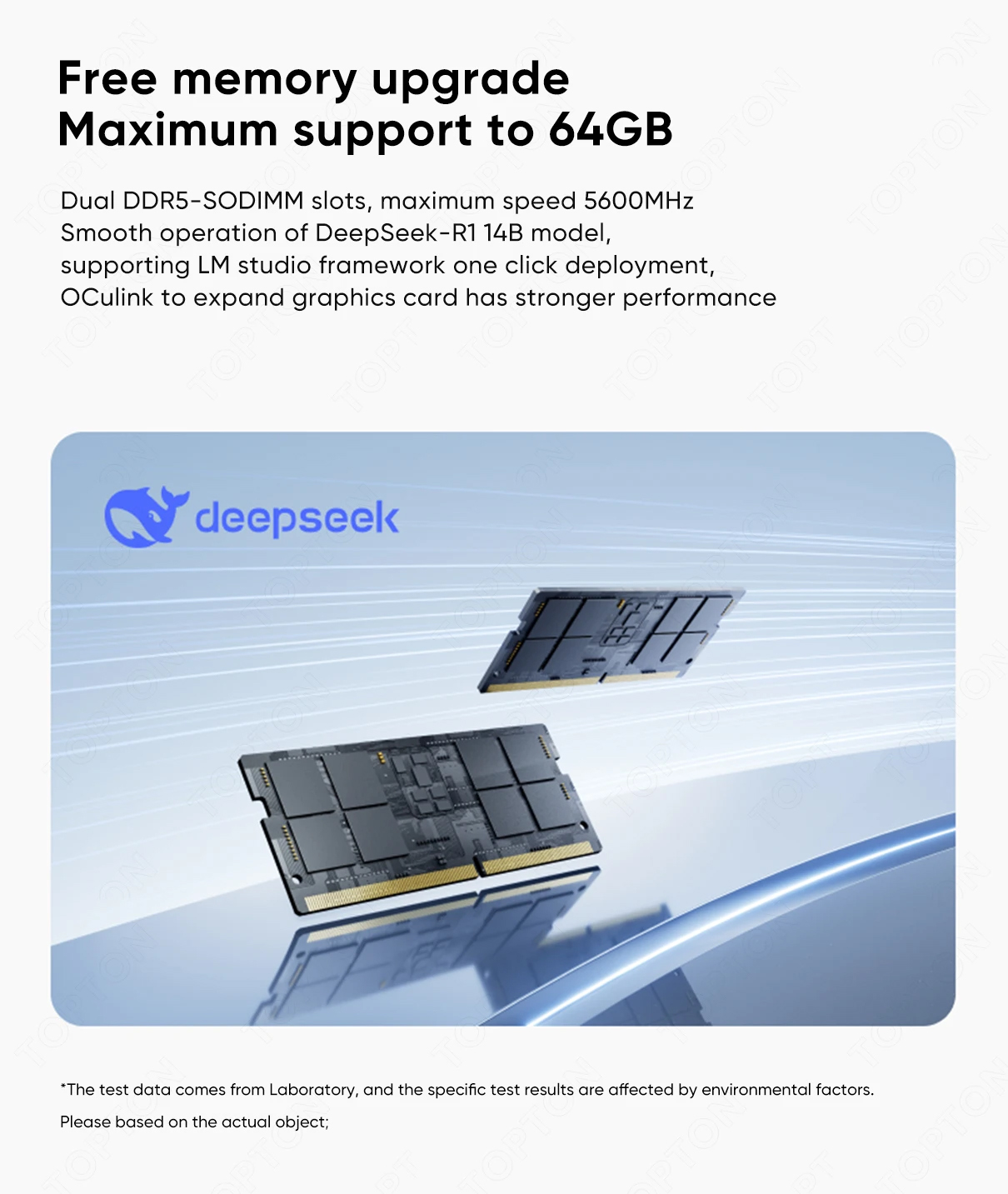

• RAM: 2× DDR5 SO-DIMM slots, support up to 128GB DDR5-5600MHz

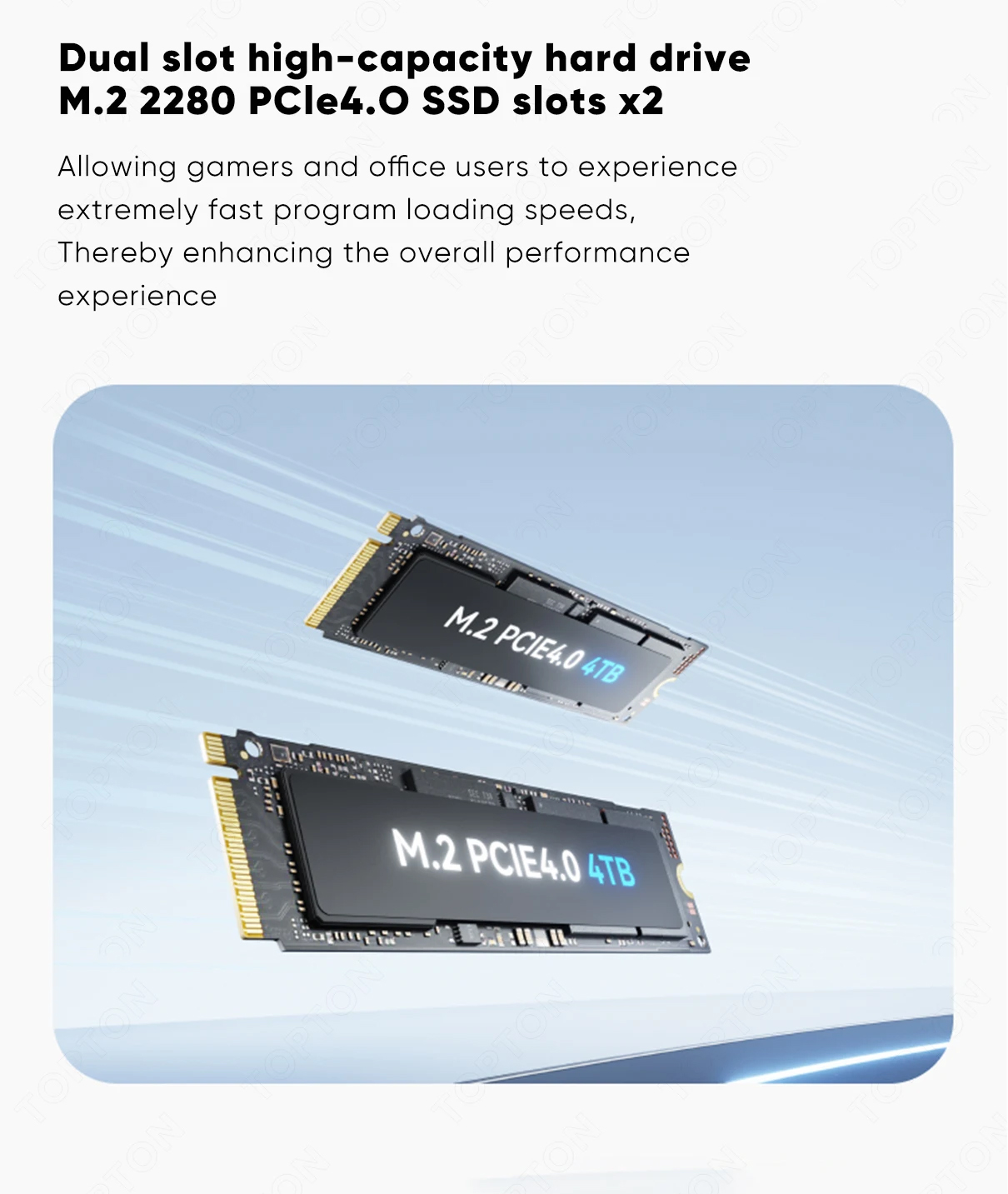

• Storage: 2× M.2 2280 PCIe 4.0 NVMe SSD slots (max 8TB total)

---

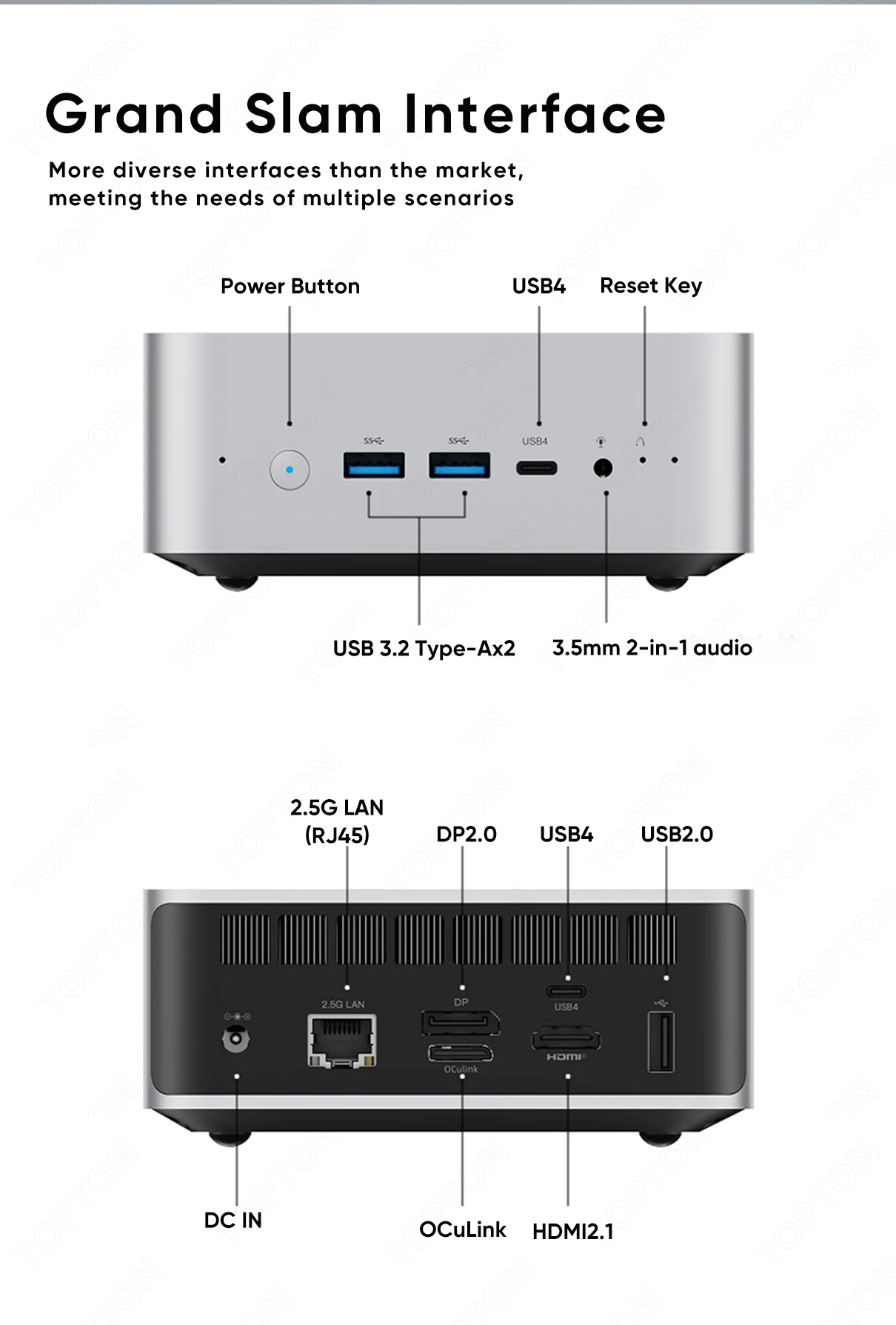

Ports & Connectivity

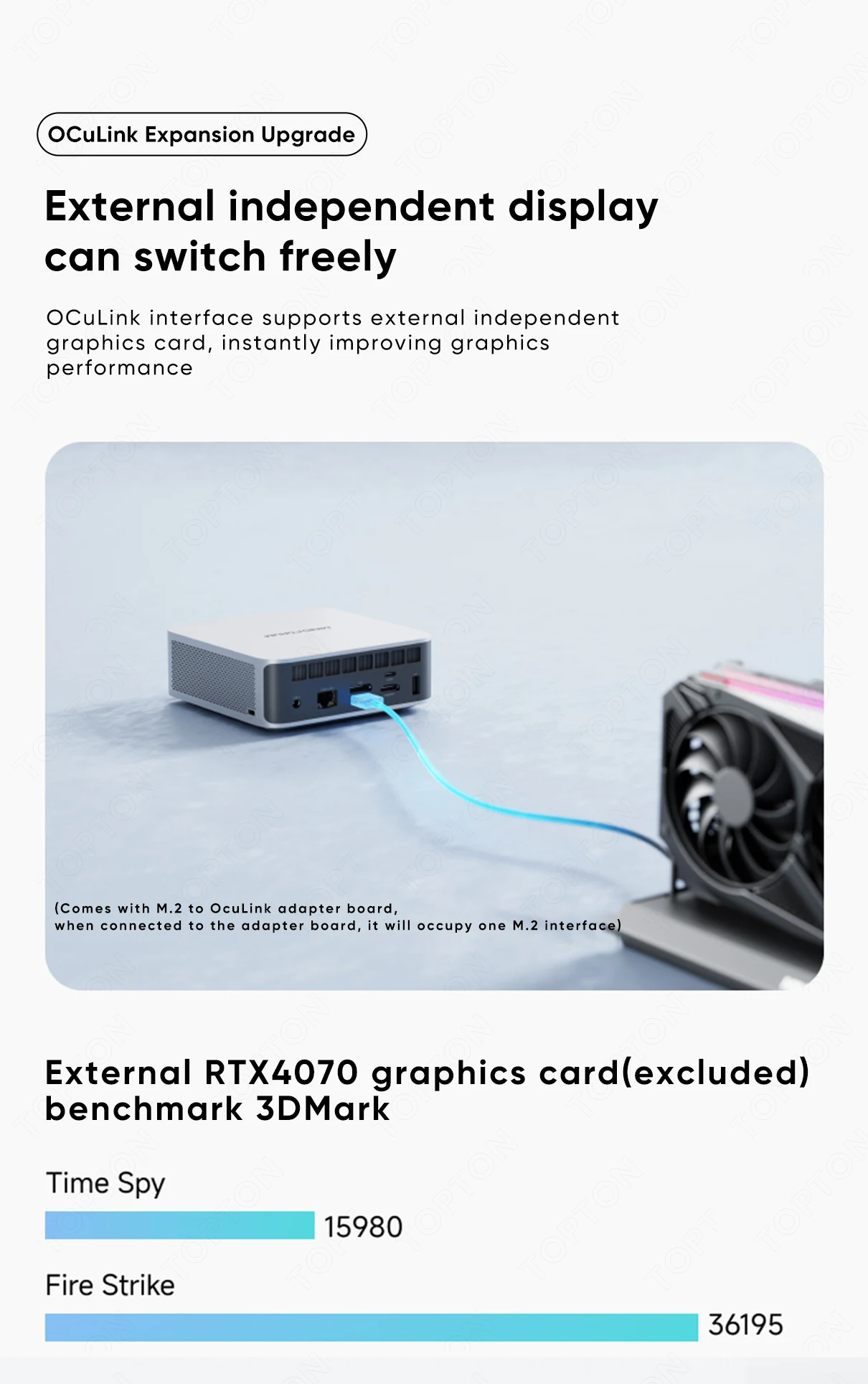

• OCuLink: 1× OCuLink (SFF-8612) port for eGPU connection

• USB4: 2× USB4 Type-C (40Gbps, DP Alt Mode, PD 100W charging support)

• Video Out: 1× HDMI 2.1, 1× DisplayPort 2.0

• USB Ports: 3× USB-A 3.2 Gen 2 (10Gbps), 1× USB-A 2.0

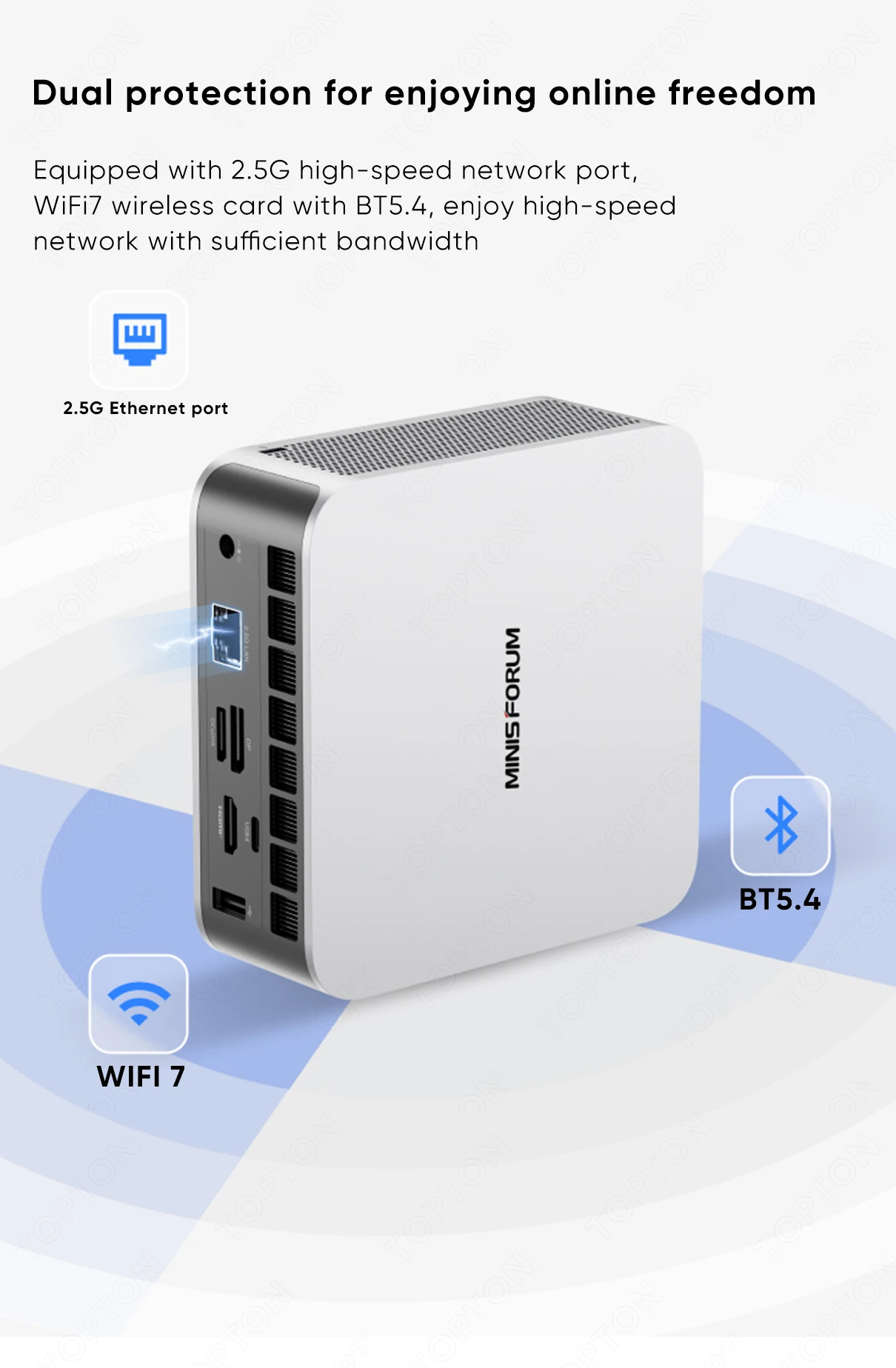

• Network: 1× 2.5G Ethernet (RTL8125BG)

• Wireless: Wi-Fi 7 + Bluetooth 5.4

• Audio: 3.5mm combo audio jack

---

Cooling & Power

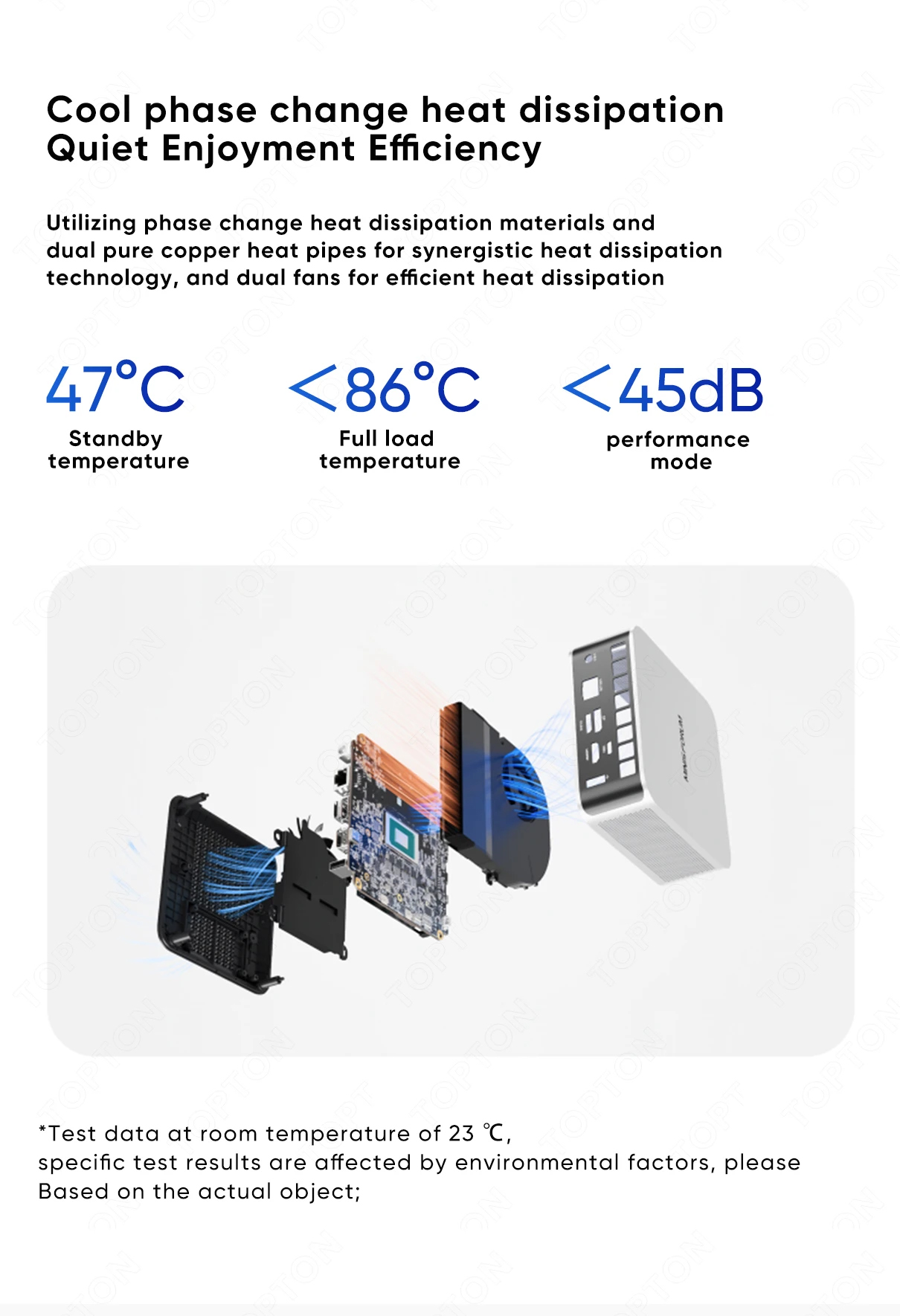

• Cooling System: Dual-fan + dual heat-pipe cooling with phase-change thermal material

• Max Temperature: CPU temperature under 83°C in stress tests

• Noise Level: <45dB under full load

• Power Supply: 120W adapter (included, region-specific power cord provided)

---

Physical Design

• Material: Aerospace-grade aluminum unibody

• Dimensions: 128mm × 126mm × 52.5mm (0.8L volume)

• Orientation: Vertical stand included (can be placed horizontally)

---

Additional Features

• Microphone & Speakers: Built-in dual digital microphones with AI noise reduction + stereo speakers

• OS Support: Pre-installed Windows 11 Pro (activated) + supports Linux

• Display Support: Quad 4K display output

---

Included Accessories

• Power adapter (120W)

• Regional power cord (UK 3-pin / US / EU based on shipment region)

• VESA mount bracket

• HDMI cable

• Vertical stand




•
