Fanuc A06B-0162-B175#0006 AC Servo Motor 1.4kW 144V 3000RPM 4.5Nm Brake
- In Stock: 2
- Brand: Fanuc
- Condition: Used
- Notes: Previously used item in good condition. Tested and fully functional. May show normal signs of wear from use. We warranty all items for 30 days.
- Model: A06B-0162-B175#0006
- Type: AC Servo Motor
- Other: aM6/3000
- Voltage: 200
- Shelf: H-3
- R/Min: 3000
- Hz: 200Hz
- Nm: 6
- RPM: 3000
- Part Number: aM6/3000
- Phase: 3
- Amperage: 6.0A
- Shaft Diameter: 7/8 in
- Manufacturer: Fanuc
- KW: 1.4
- MPN: A06B-0162-B175#0006

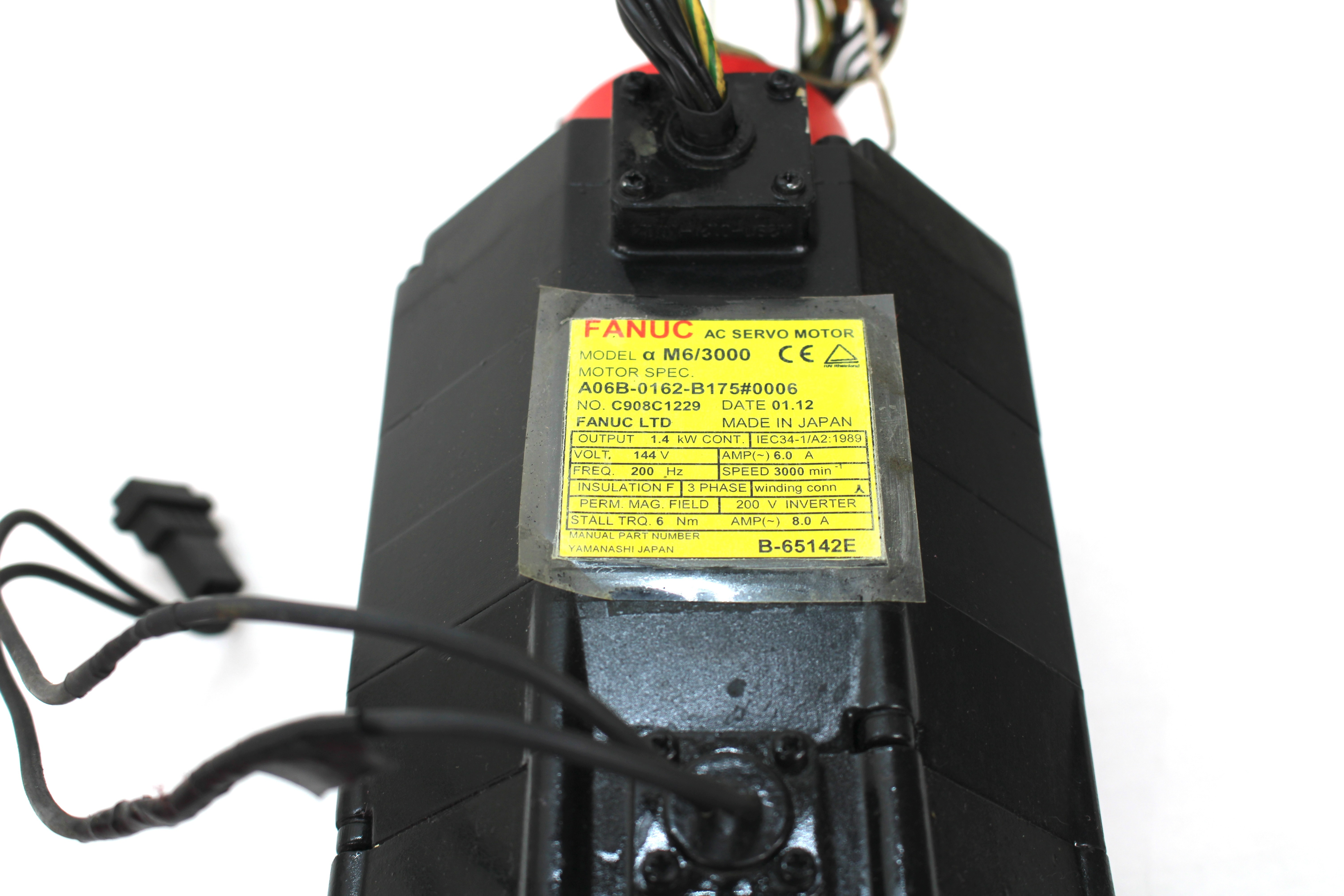

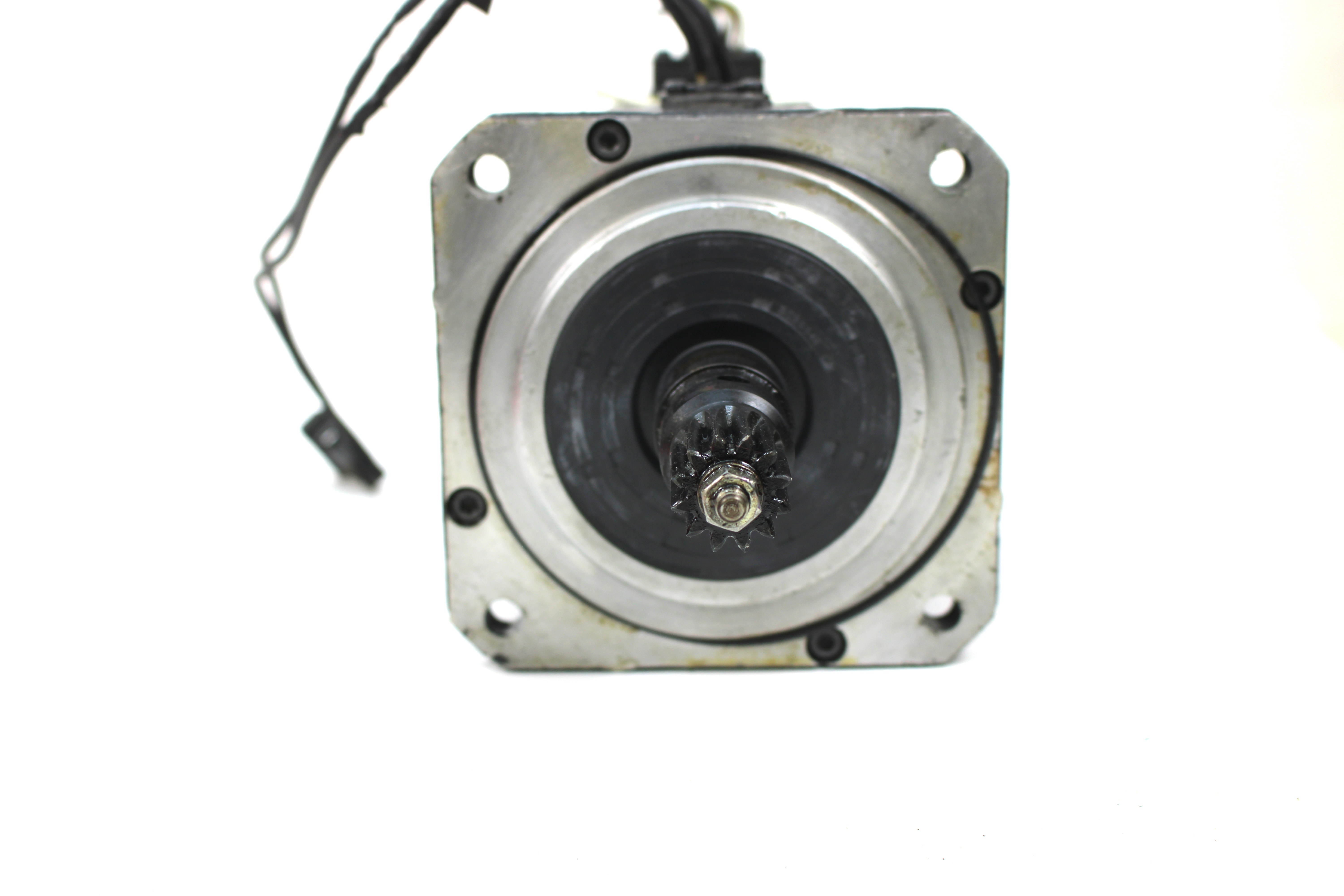

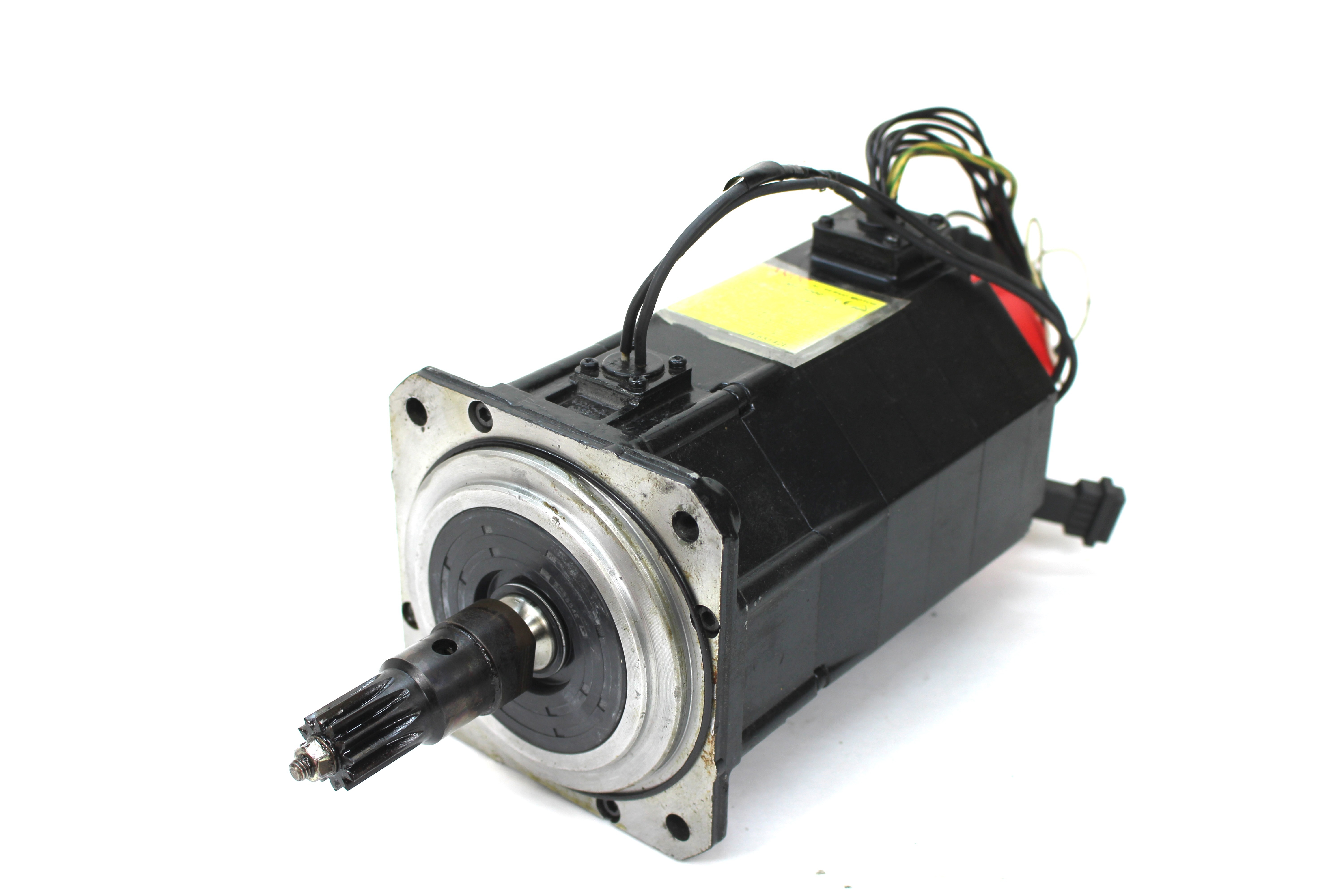

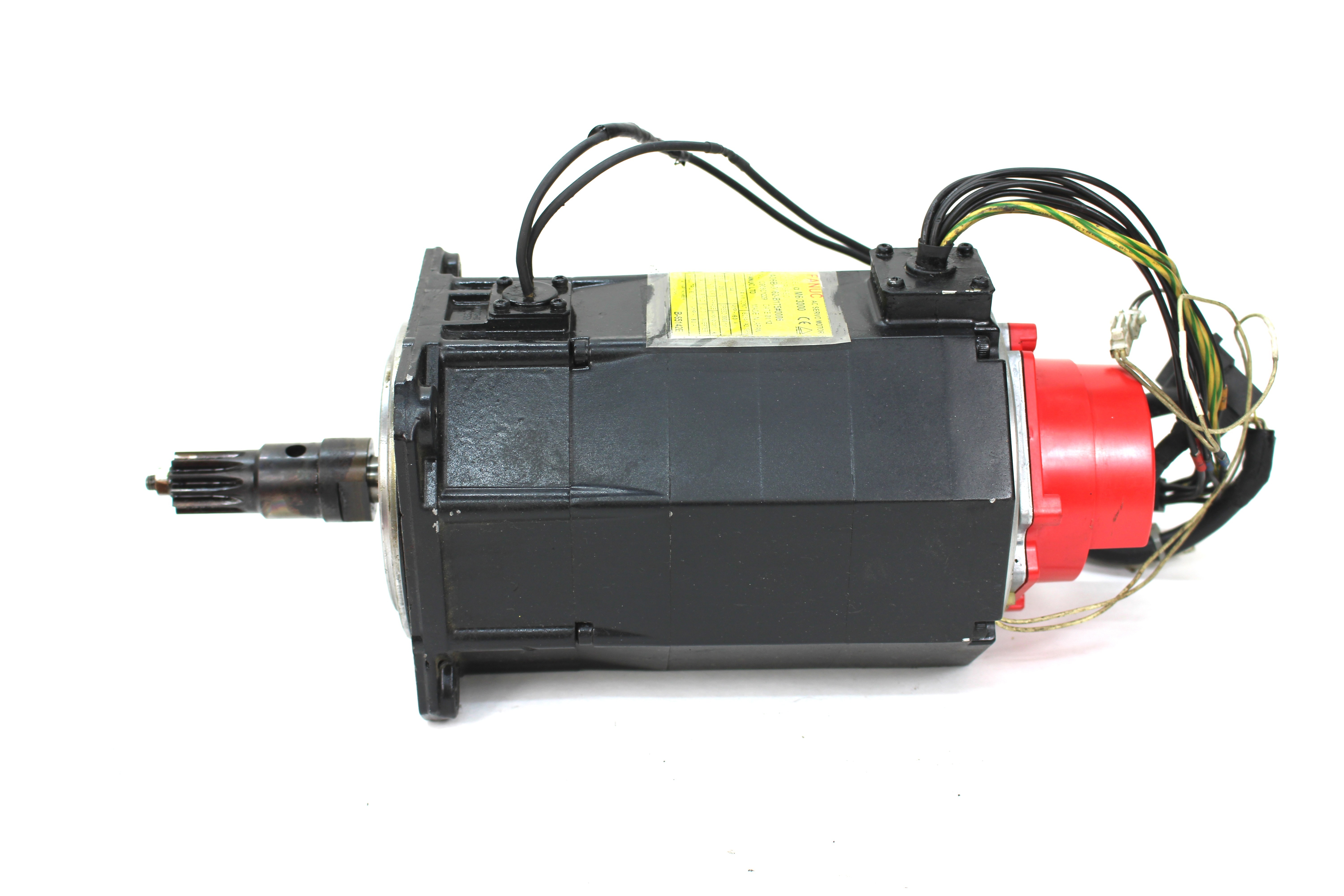

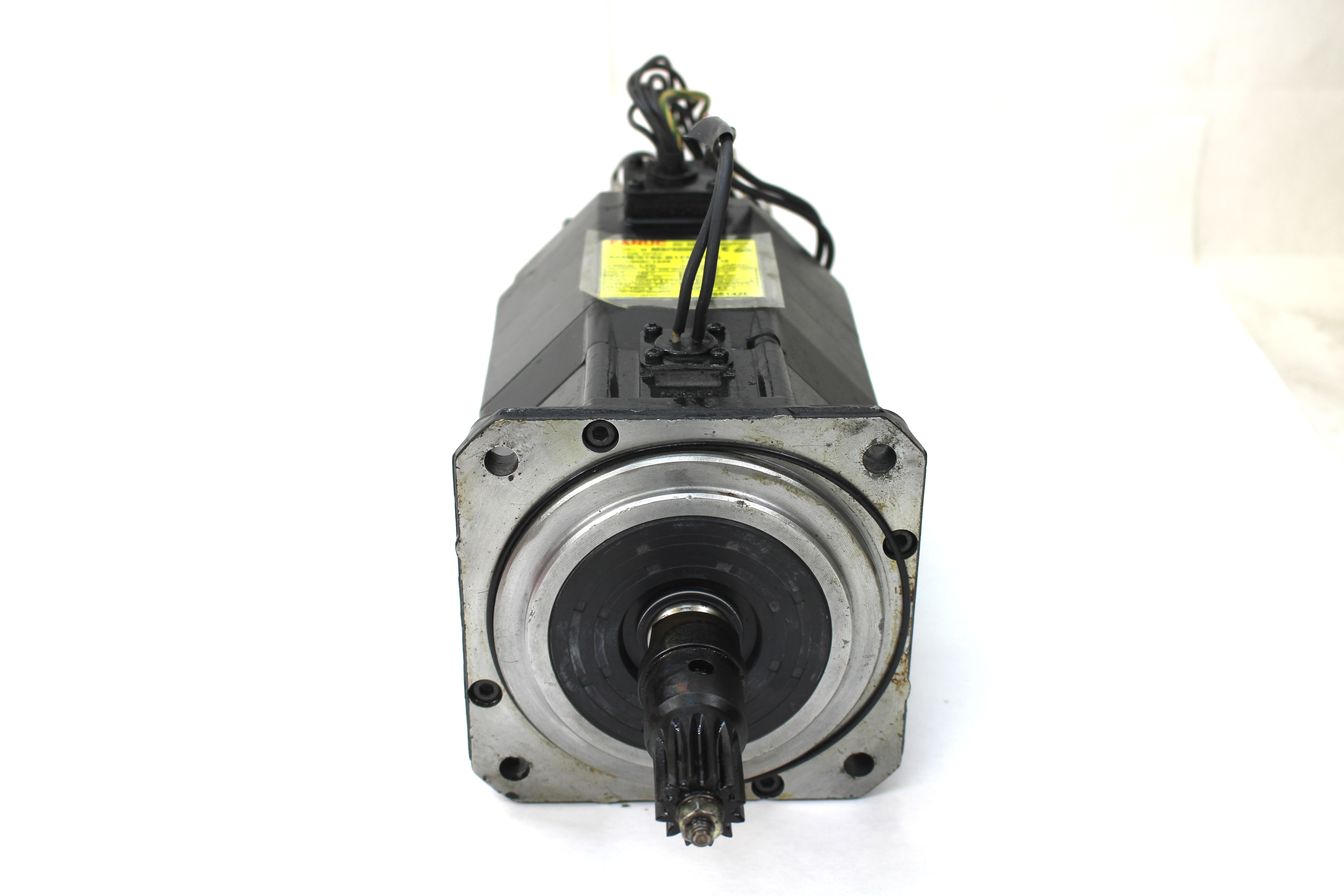

- Media 1 Description: Fanuc A06B-0162-B175#0006 Servo Motors - Photo 1
- Media 2 Description: Fanuc A06B-0162-B175#0006 Servo Motors Image 2
- Media 3 Description: Fanuc A06B-0162-B175#0006 Servo Motors View 3
- Media 4 Description: Fanuc A06B-0162-B175#0006 Servo Motors - Photo 4
- Media 5 Description: Fanuc A06B-0162-B175#0006 Servo Motors Image 5
- Actual Rated Input Voltage: 144 VAC
- No-Load RPM: 3000 RPM
- Stall Current: 6 A
- Insulation Class: Class F
- Pulses per Revolution: 16777216
- Country of Origin: Japan
The Fanuc A06B-0162-B175#0006 is a high-performance AC servo motor from the AM6/3000 series designed for demanding industrial automation applications. This motor features a tapered shaft design for secure connections, integrated brake system for precise control, and A64 encoder for accurate position feedback.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Fanuc |
| Model/Part Number | A06B-0162-B175#0006 |
| Motor Model | AM6/3000 |
| Motor Type | AC Servo Motor |
| Rated Power Output | 1.4 kW |
| Voltage | 144 VAC |
| Frequency | 200 Hz |
| Phase | 3 Phase |
| Current Rating | 6 Amps |
| Speed | 3000 RPM |
| Shaft Type | Tapered Shaft (TPR) |
| Shaft Diameter | 7/8" Splined |
| Brake | Yes (BRK) |
| Encoder | A64 Encoder |
| Connection Type | Flying Leads |
| Product Series | A06B-0162 |
| Weight | 11.5 kg |
