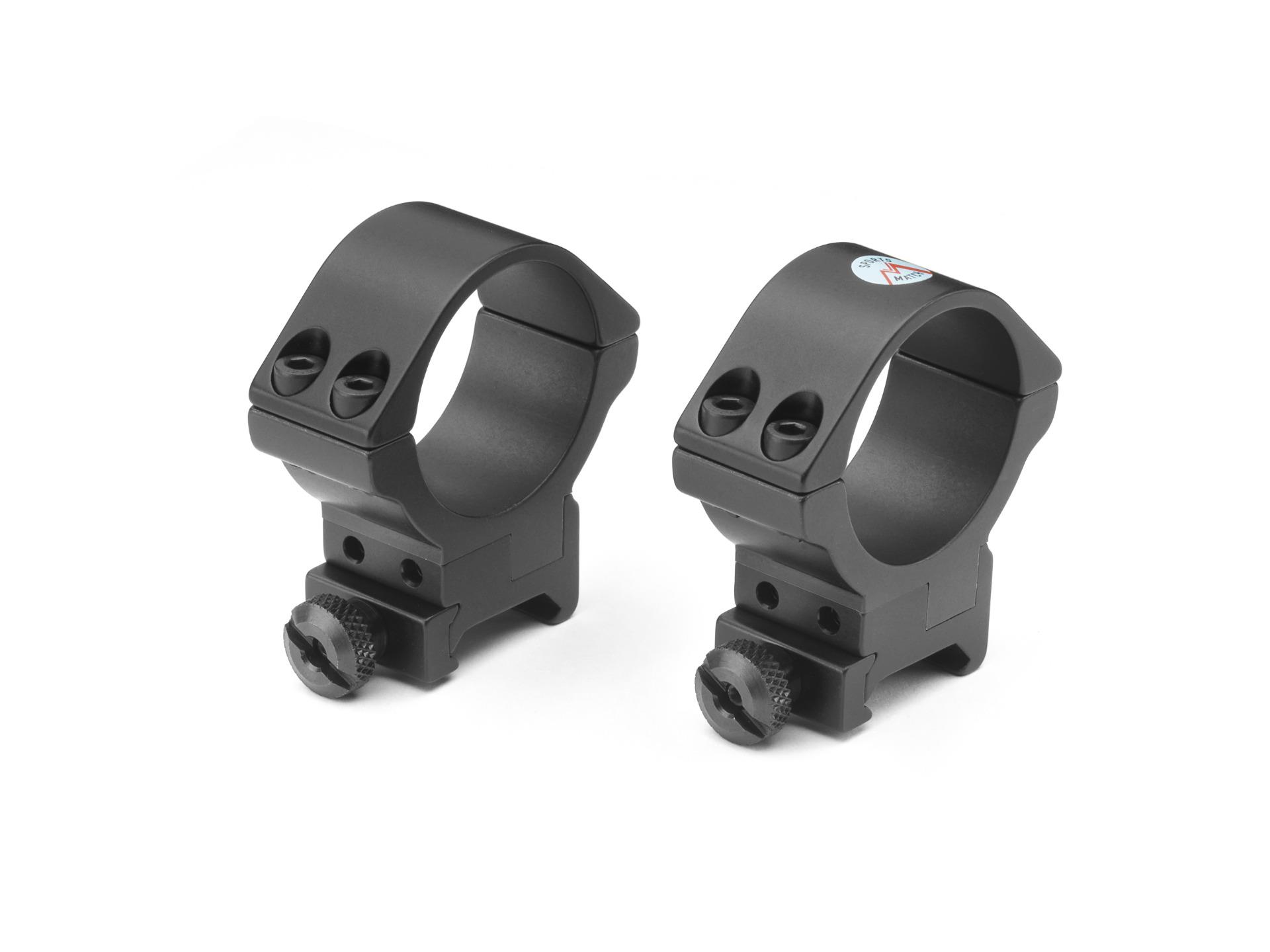

For 34mm diameter body tube scopes.

Adjustable for elevation upto 50 MOA & height. Ideal for long range shooting.

High tensile construction with a totally solid mechanism.

Elevation can be precisely adjusted using the enclosed allen key and then locked using the double screw clamp.

2 piece with 4 screw tops and large screw on base. Very strong.

For weaver/picatinny base rails - NOT airgun/rimfire 9-11mm / 3/8" or BSA 13mm etc. Please ask if unsure.

HIGH height profile - 20-21.5mm base to ring bottom height. For scopes with maximum OUTER lens case diameter 75mm

Includes square section hardened steel arrestor bolt.


A = 20-21.5mm
B = 21mm
C = NA
Weight = 130g

Calculating scope to rifle body clearance

The way you calculate the clearance is by halving the overall OUTSIDE diameter of your rifle scopes objective lens and then deducting half the rifle scopes body tube diameter.

For scopes with a 34mm diameter body tube this means deducting 17mm.

Note we say OUTSIDE diameter - this means NOT the lens diameter, you need to measure the whole outer casing diameter.

The result gives you the minimum "saddle" dimension required - the measure from base of mount to bottom of the ring - the 'A' dimension of 20-21.5mm

The amount the saddle dimension is greater than the figure you have calculated is the amount of clearance your scopes objective will be clear of your rifles body.

Worked Example -

1. A scope has an outer case measurement of 66mm
2. 66 divided by 2 = 33
3. 33 minus 17 = 16mm
4. So the mount must have a saddle measure (base of mount to bottom of the ring) greater than 16mm or else it will ground out on the rifle body.
5. So in this example, mounts have 20mm+ so there will be good clearance all other factors being equal.

Keep in mind that flip up lens caps may add 2mm or so.

Calculating your rifle scopes clearance assumes that:

• Your dovetail or base is not raised above or below your rifles barrel
• Some rifles with grooved receivers such as some models of airgun and .22 rimfire will mean the scope sits lower
• A raised dovetail base or Weaver/Picatinny base may add height

Note some rifles with high or adjustable cheek pieces may require higher scope mounts or risers so that your eye is in line with the rifle scope and your head is kept in an upright comfortable position.
