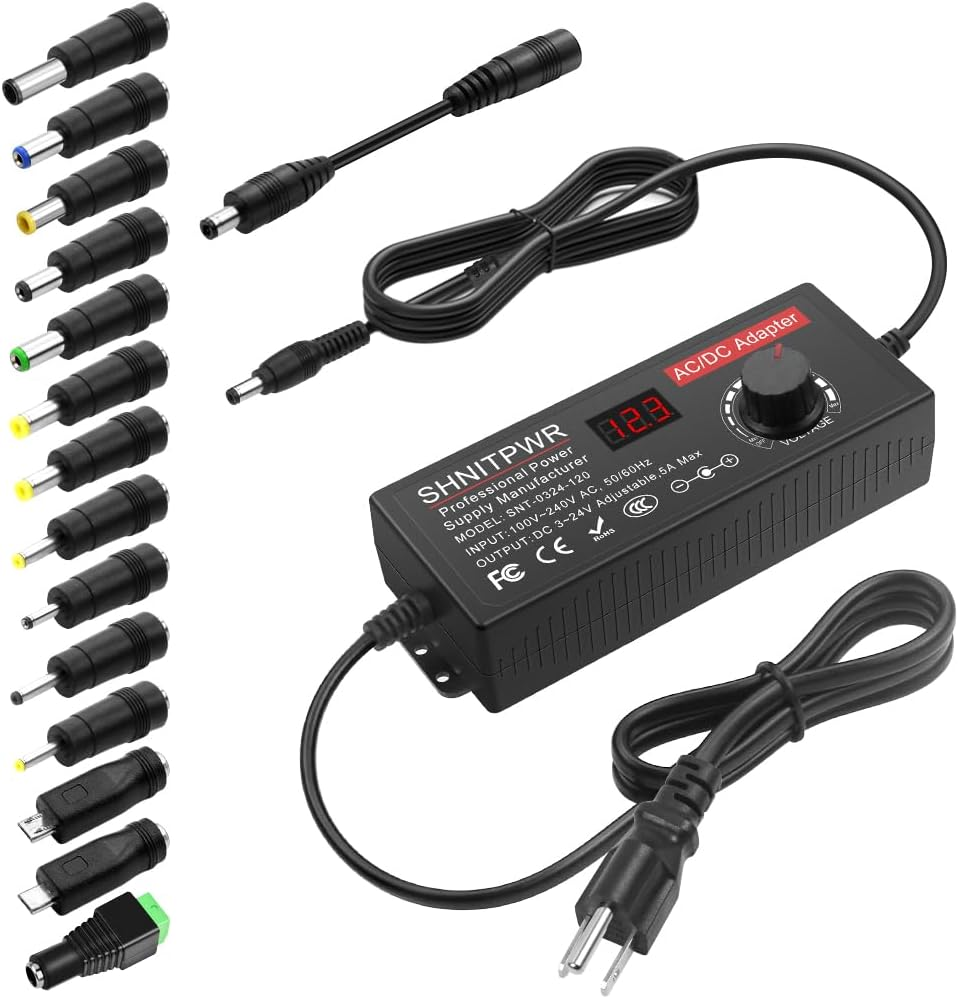

AC Adapter 120W Universal Power Adapter 4V 5V 6V 9V 12V 15V 18V 19V 20V 24V Adjustable Switching Power Supply 100V~240V AC to DC 4V ~ 24V 5A Converter with 14 Tips & Polarity Converter

Description

Item model number SNT-0324-120
Amperage 5 Amps
Mounting Type Wall Mount
Color Black
Country of Origin China
Connector Type barrel connector
Compatible Devices Laptops
Item Weight 1.1 pounds
Connectivity Technology USB
Input Voltage 240 Volts
Included Components cable
Special Feature Adjustable
Package Dimensions 8.27 x 3.31 x 2.72 inches
Size 120W

  • ๐ˆ๐ง๐ฉ๐ฎ๐ญ ๐š๐ง๐ ๐Ž๐ฎ๐ญ๐ฉ๐ฎ๐ญ: Input: AC 100~240V, 50/60Hz ; Output: DC 4~24V Adjustable, Max 5A 120W ; It can supply with any voltage between 4~24V,such as 4V 4.5V 5V 5.5V 6V 9V 12V 14V 15V 16V 18V 19V 19.5V 20V 22V 24V, etc and any amp less than 5A, such as such as 300mA, 500mA,1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 4.5A, 5A. LCD display will show the output voltage, in case that wrong voltage regulation damage your device.
  • ๐”๐ฉ๐ ๐ซ๐š๐๐ž๐ ๐•๐ž๐ซ๐ฌ๐ข๐จ๐ง ๐๐จ๐ฐ๐ž๐ซ ๐’๐ฎ๐ฉ๐ฉ๐ฅ๐ฒ: Based on hundreds of users feedback, we have made the following improvements: 1. The knob can be adjusted more evenly, and it can reach 13V ~ 14V by rotating 50%. 2. Increase the off gear to turn off the power without pulling the plug. 3.Add a polarity converter cable, which make it compatible with more devices๏ผŒdoubles its range of application.
  • ๐Ÿ๐Ÿ’๐ฉ๐œ๐ฌ ๐…๐ซ๐ž๐ช๐ฎ๐ž๐ง๐ญ๐ฅ๐ฒ ๐”๐ฌ๐ž๐ ๐“๐ข๐ฉ๐ฌ: It comes with an original 5.5x2.5mm tip and 14pcs frequently used tips: 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C and DC terminal connector. Can be applied to almost all commonly used electronic devices. You can screw wires onto it easily, perfect for DIY projects.
  • ๐–๐ข๐๐ž ๐‘๐š๐ง๐ ๐ž ๐จ๐Ÿ ๐€๐ฉ๐ฉ๐ฅ๐ข๐œ๐š๐ญ๐ข๐จ๐ง๐ฌ: The 120W all-in-one multipurpose AC/DC adapter fit for many 4~24V small household electronics such as LED strips, under-cabinet light, TV Box, smart speaks, wireless routers, essential oil diffuser humidifier, USB fan, Wifi camera, USB Hub, hard disk box, DC motor, DC pump, digital photo frame, DVR NVR surveillance system etc.For indoor use only.
  • ๐’๐š๐Ÿ๐ž๐ญ๐ฒ ๐๐ซ๐จ๐ญ๐ž๐œ๐ญ๐ข๐จ๐ง ๐’๐ฒ๐ฌ๐ญ๐ž๐ฆ๐ฌ: Built-in multiple safety protection systems. Automatic over voltage cut-off, over current cut-off, over temperature cut-off, short circuit cut-off. We focus on producing premium quality and safety power adapters. No noise, no spontaneous combustion, no explosion, no fire hazard, safe to use. 6ft long power cable makes it convenient to use.
  • ๐Š๐ข๐ง๐๐ฅ๐ฒ ๐๐จ๐ญ๐ž: This product is an AC to DC adapter, NOT charger!!!It canโ€™t be used to charge electronic devices with batteries, such as laptops. Please choose correct voltage before plug it to your device. Wrong voltage may damage your device. We recommend to use less than 80% of the full load. We always stand behind our products. If there is any issue, please feel free to contact us.

Product Description

Parameter

  • Input: AC 100V~240V 50/60Hz
  • Output Voltage: DC 4V~24V Adjustable
  • Output Current: Max 5A
  • Output Wattage:Max 120W
  • Output DC connector:5.5mm x 2.5mm (inside"+", outside"-")
  • 14 Tips Size: 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C and DC terminal connector.
  • Reverse polarity converter: 5.5mm x 2.1mm
  • Power cable length: 6.9ft / 210cm
  • Safety Compliance: FCC / CE/ RoHS
  • Working Temperature: -20~50โ„ƒ
  • Ambient Humidity: 5~95% Non-Condensation
  • Weight: 1.1 lb / 500g

Package included

  • 1x 120W Universal Power Supply Adapter; 14x DC Tips; 1x Reverse polarity converter cable

Attention:

  • The power cord between power brick and DC plug will lead to 0.4V~0.6V voltage drop, so we designed the screen displayed voltage was 3.5V~24.5V. Only in this way can your device really get 3V~24V voltage. This is the reason why we advertise the power supply's voltage range is 3V~24V, not 3.5V~24.5V.

Caution:

  • The 4cm short black power cord is a reverse polarity converter, not extension wire. It is used to reverse the original polarity of the power supply output port ( reverse the internal positive pole to negative , and the external negative pole to positive). Please confirm the polarity of your devicesโ€™ power port before use. If the positive and negative poles are reversed, it will cause short circuit and damage your device.

Is this 4~24V 120W universal power supply (PS) compatible with your device?

1. Check Voltage

Please find the spec label of your device and check the working voltage. It should be among 4V~24V DC, not lower than 4V or higher than 24V DC. Otherwise, your device will not work or be damaged.

2. Check Current

Check the max current your device will draw. It should be equal to or less than 5A, such as 500mA, 1A, 2A, 3A, 4A, 5A. Otherwise, your device wonโ€™t work well and the PS will be damaged very soon.

3. Check Plugs

Check the power input port of your device. The PS is equipped with 14 pcs frequently-used DC tips. Please confirm wether it fits for your device before buy. If you can 't confirm, please measure it with a ruler.

4. Check Original PS

If you have a original power supply for reference, their output voltage, plug size, polarity should be the same . If our PSโ€™s current is equal to or higher than original oneโ€™s, then our PS will work with your device.

AC Adapter 120W Universal Power Adapter 4V 5V 6V 9V 12V 15V 18V 19V 20V 24V Adjustable Switching Power Supply 100V~240V AC to DC 4V ~ 24V 5A Converter with 14 Tips & Polarity Converter
