Features:

Multiple Voltage Measurements:

This power outlet tester measures voltage, including:

220V ± 20V RCD working voltage

90-250V voltage measurement range

0-99V leakage voltage range

It provides easy detection of various voltage data.

Wiring Condition Check:

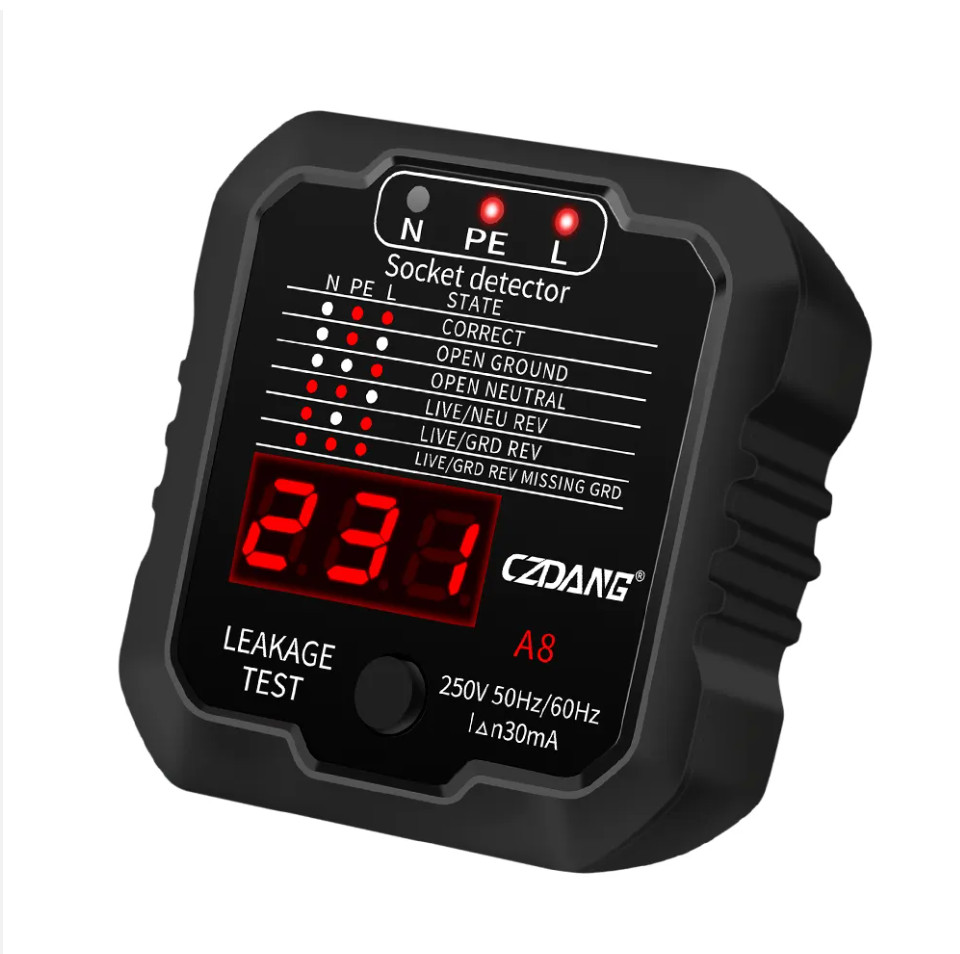

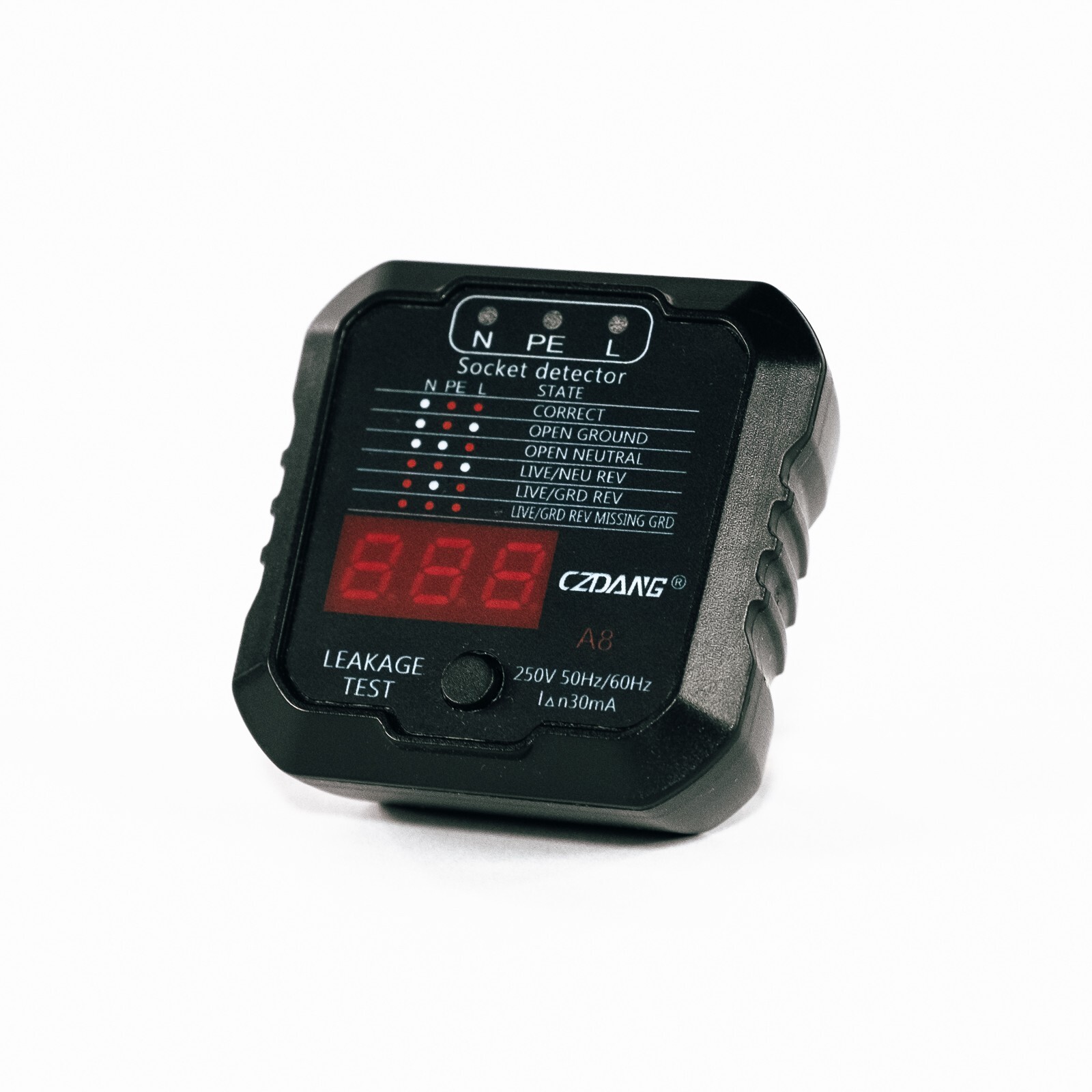

The tester detects the polarity of power socket wiring and can identify:

Correct wiring

Open Ground

Open Neutral

Live/Neutral Reverse

Live/Ground Reverse

Missing Ground

This feature helps quickly identify and troubleshoot common wiring issues.

Leakage Protector Test:

To test a leakage protector:

Insert the tester into a properly wired three-hole power socket.

Press the RCD button (hold for less than 3 seconds).

A normal leakage switch will trip. If it doesn't, the leakage switch is faulty, helping you identify potential leakage issues.

Practical Circuit Safety Testing Tool:

Ideal for:

Daily household circuit safety checks

Office and shopping mall circuit inspections

Factory equipment inspections

New house circuit acceptance

It meets various circuit and voltage detection needs.

Specifications:

Color: Black

Model: UK plug

Material: Flame-retardant ABS

Operating Voltage: 250V - 50Hz/60Hz

Phase Voltage: 250V - 50Hz/60Hz

Leakage Voltage: 250V - 50Hz/60Hz

Accuracy: ± (2.0%+2)

RCD Test: ＞30mA

RCD Working Voltage: 220V ± 20V

Working Environment: 0℃ ~ 40℃, 20% ~ 75%RH

Storage Environment: -10℃ ~ 50℃, 20% ~ 80%RH

Item Size: 68 x 65 x 60mm / 2.7 x 2.6 x 2.4in

Item Weight: 74g / 2.6oz

Note: The displayed voltage value is for reference only.

Package Includes:

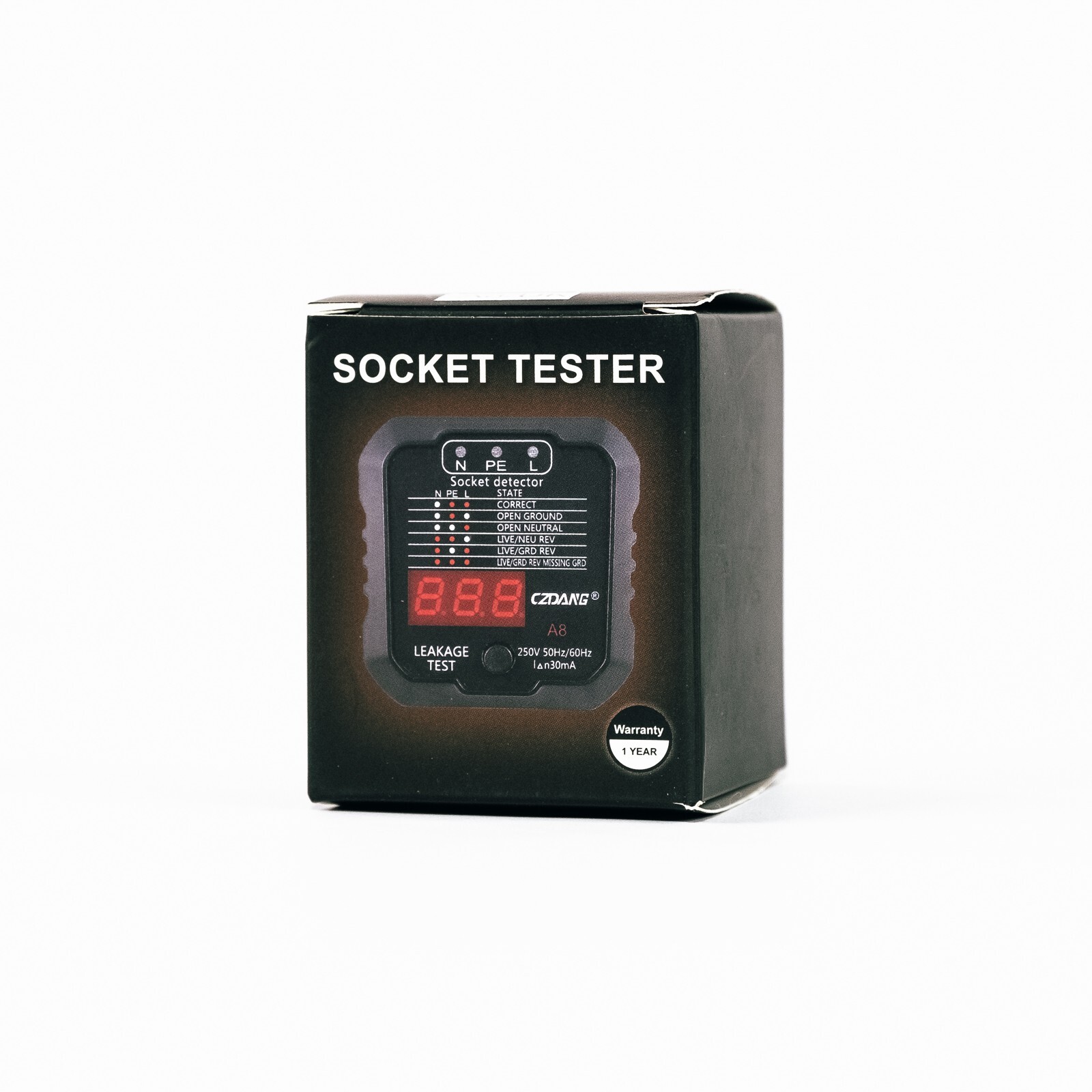

1 x Electric Socket Tester
