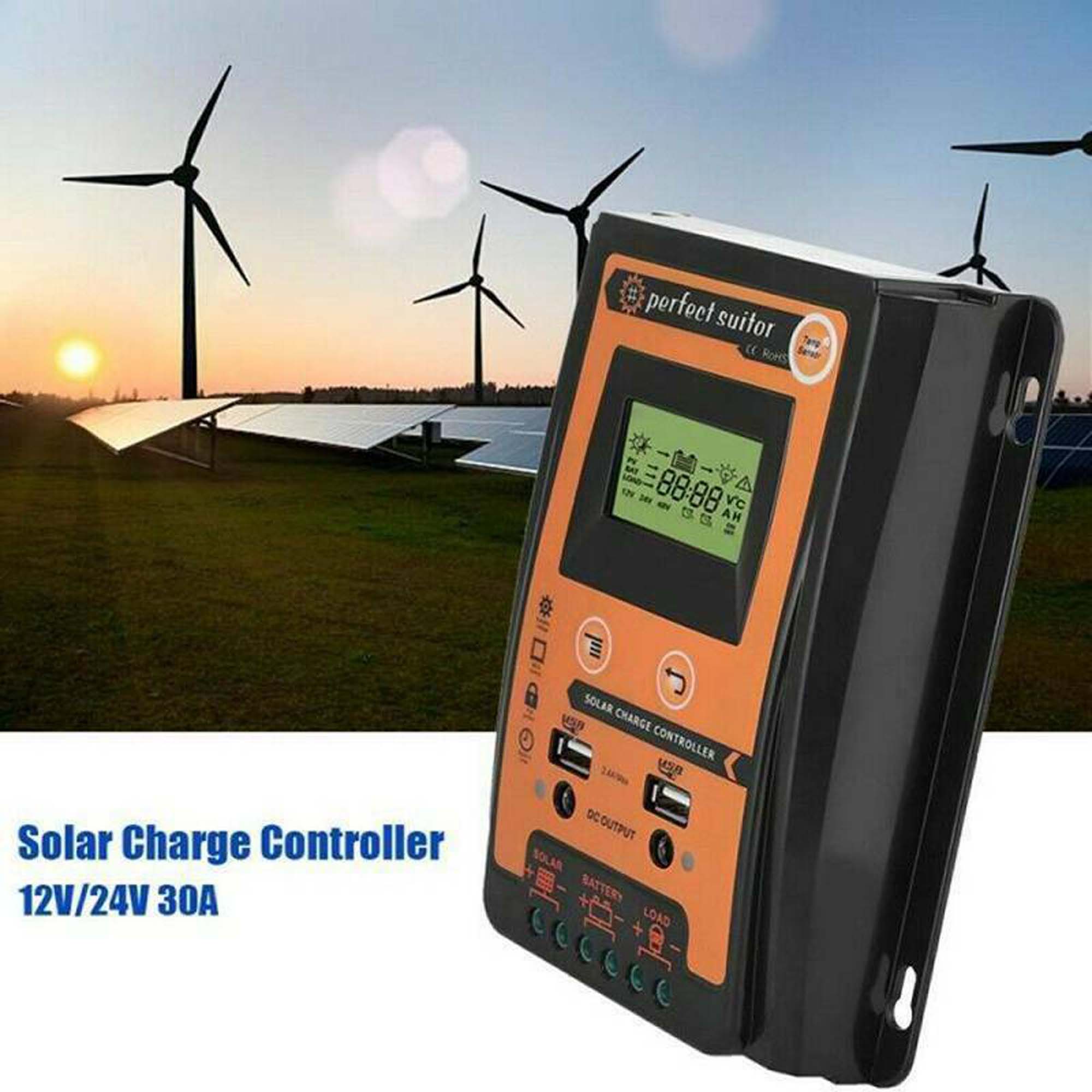

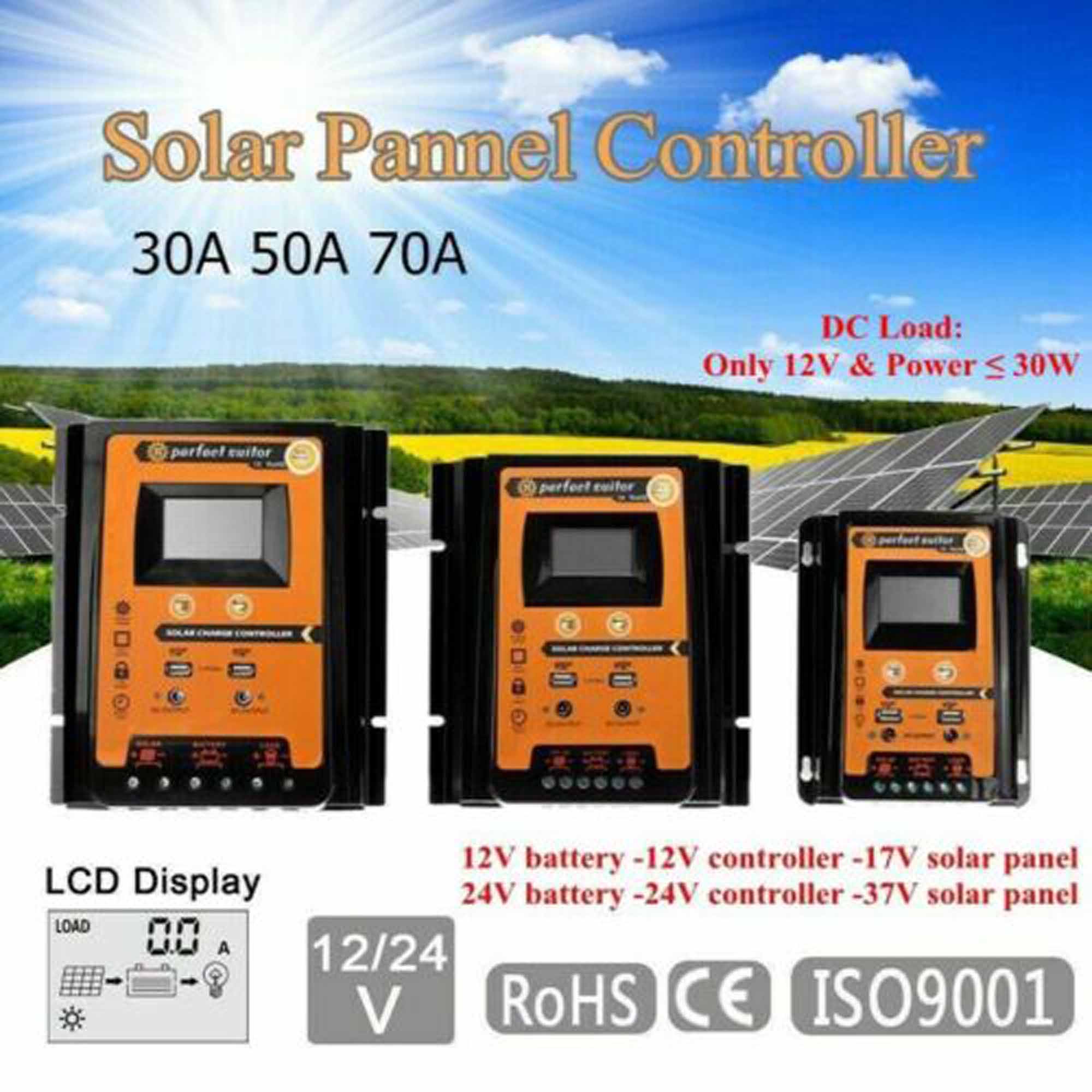

1 ,Orange 30A/50A/70A

-Automatic identification system voltage, 12/24V auto recognition.

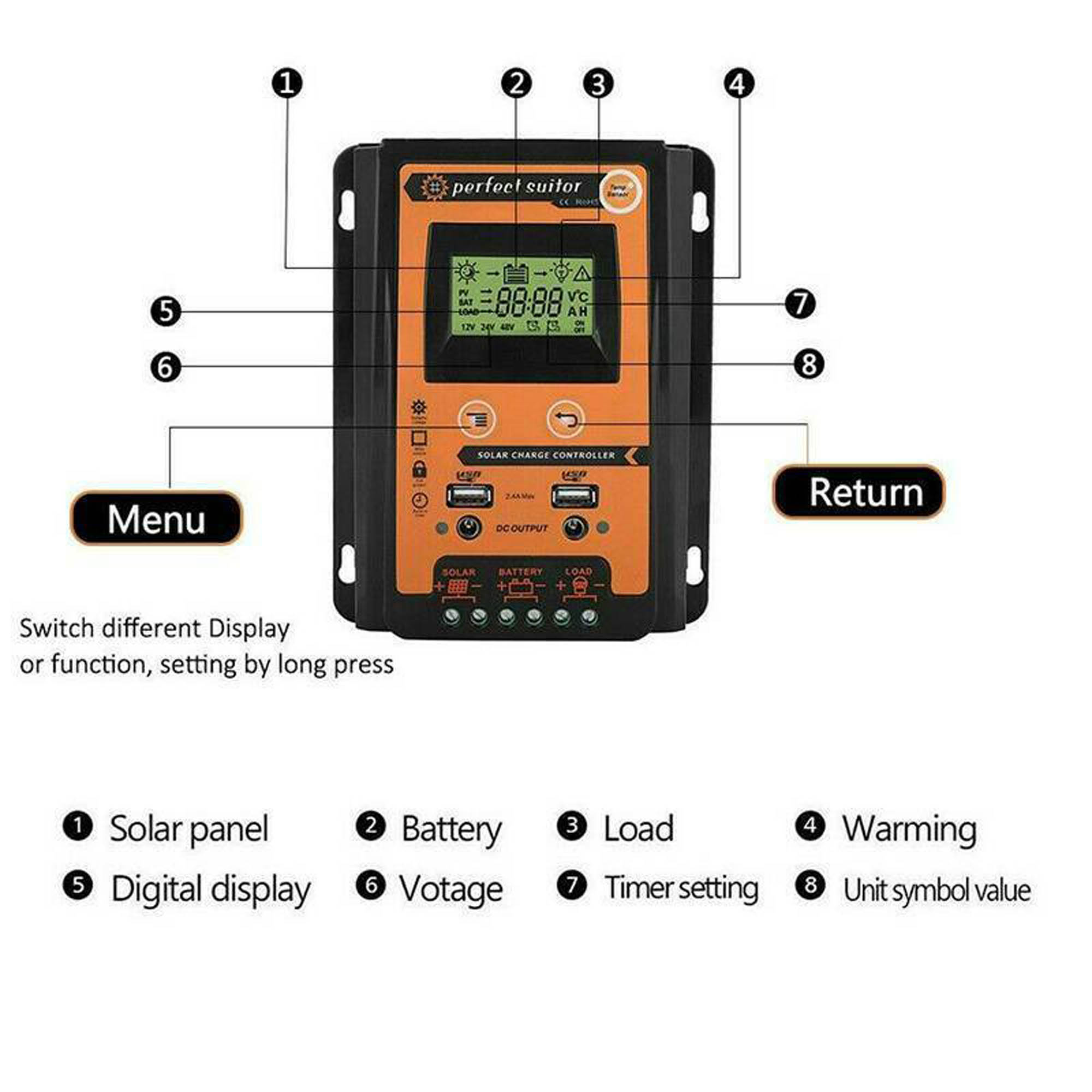

-Humanized LCD display and double button operation of man-machine interface.
-Completed technical data for setup and modify.
-The load control mode can be selected, the timer function can be reset for street light at night.
-Discharge capacity control.
-Discharge counter of ampere hour.
-Charge model: PWM
-Working storage function: record the total run time of system, record timers of error during running time, record times of full charged battery.

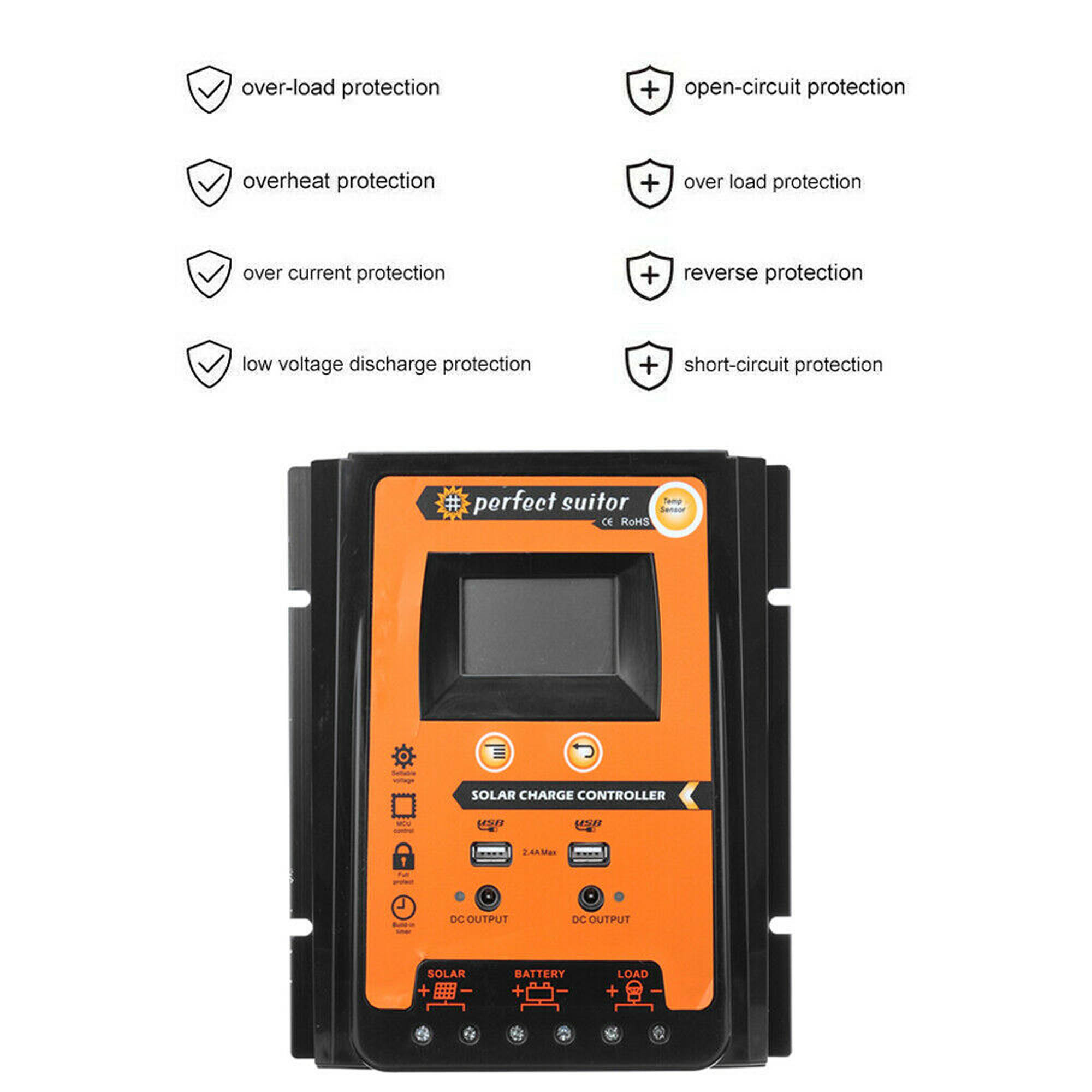

-Reliable over voltage protection, short circuit protection, over load protection, overcharge protection, over-discharge protection.
-Accurate temperature compensation, correcting the charging and discharging voltage automatically, improving the battery lifetime.
-Roundly reverse connected protection.

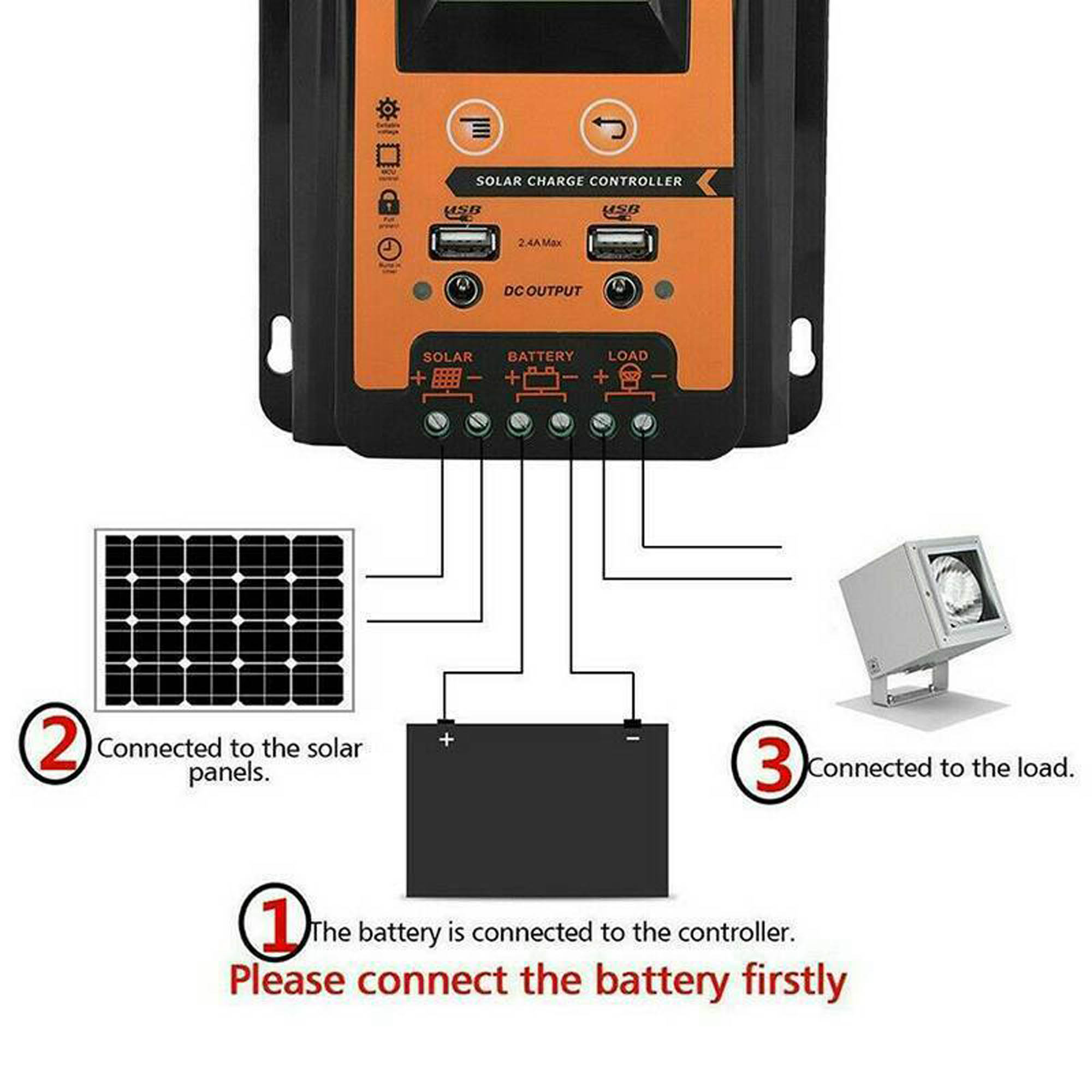

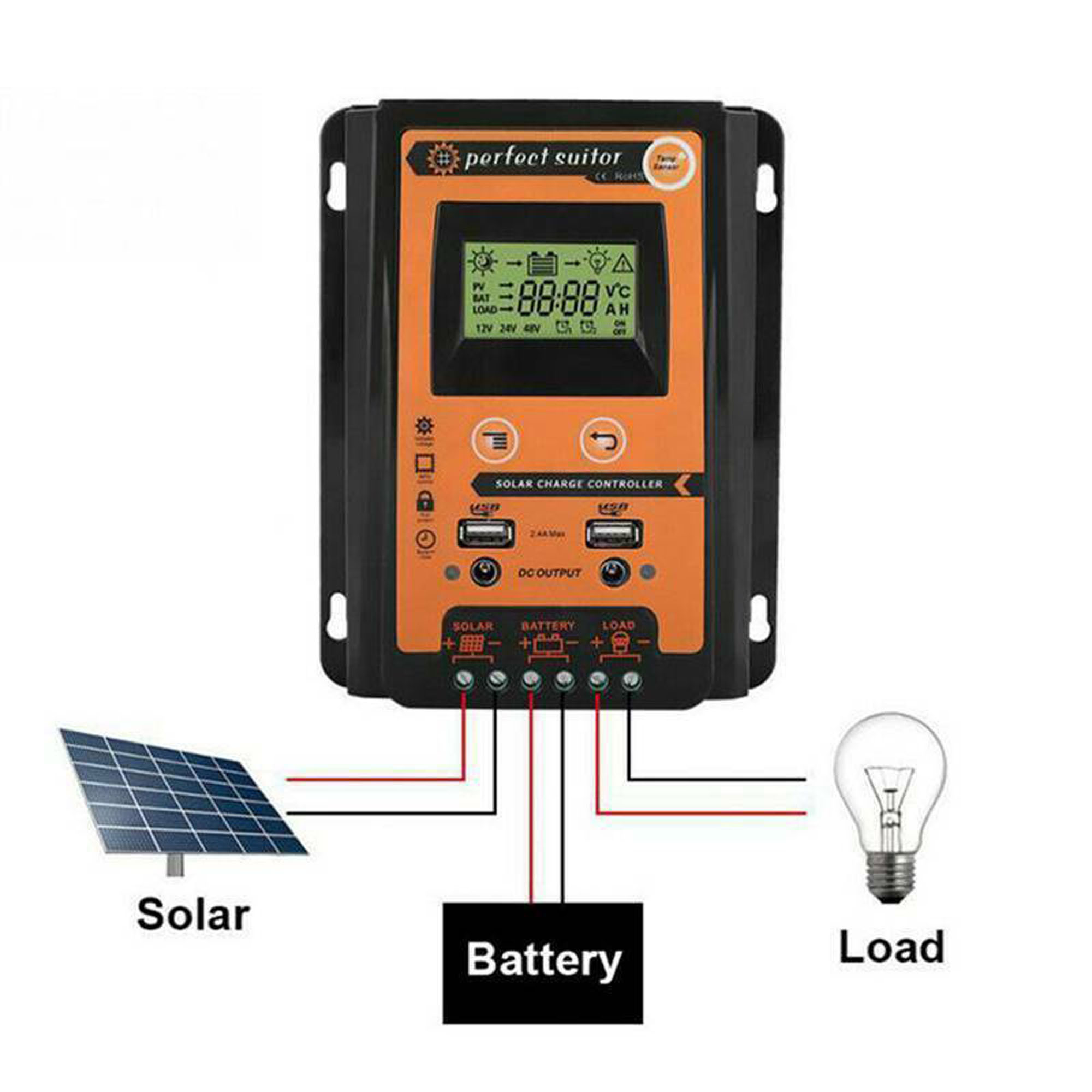

-Solar panels, battery, solar charge controller positive poles are all connected together, adopting negative MOSFET in series control circuit.


Specifications:

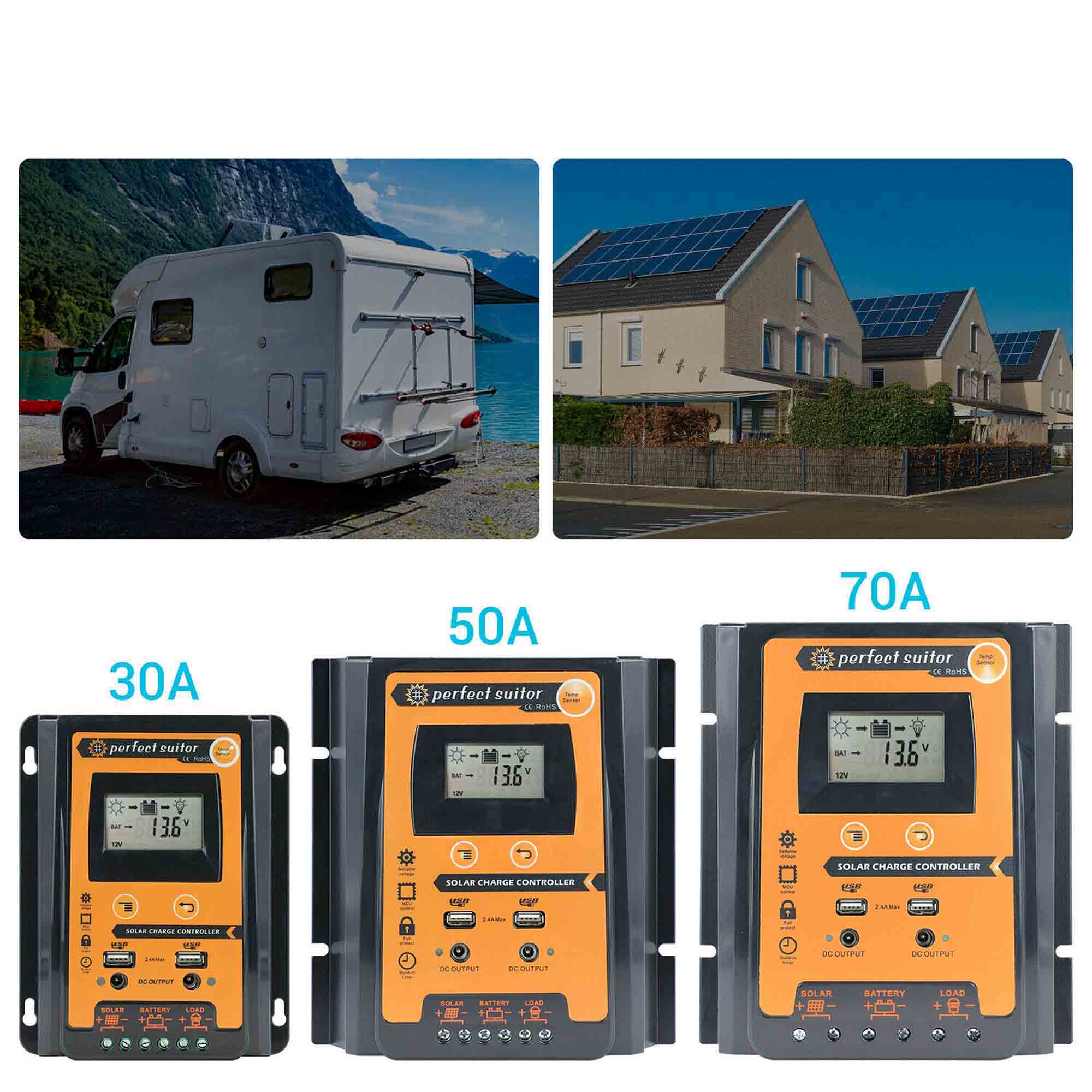

Current: 30A, 50A, 70A (optional)
Rated Voltage: 12/24V
Max.pv voltage: 50V

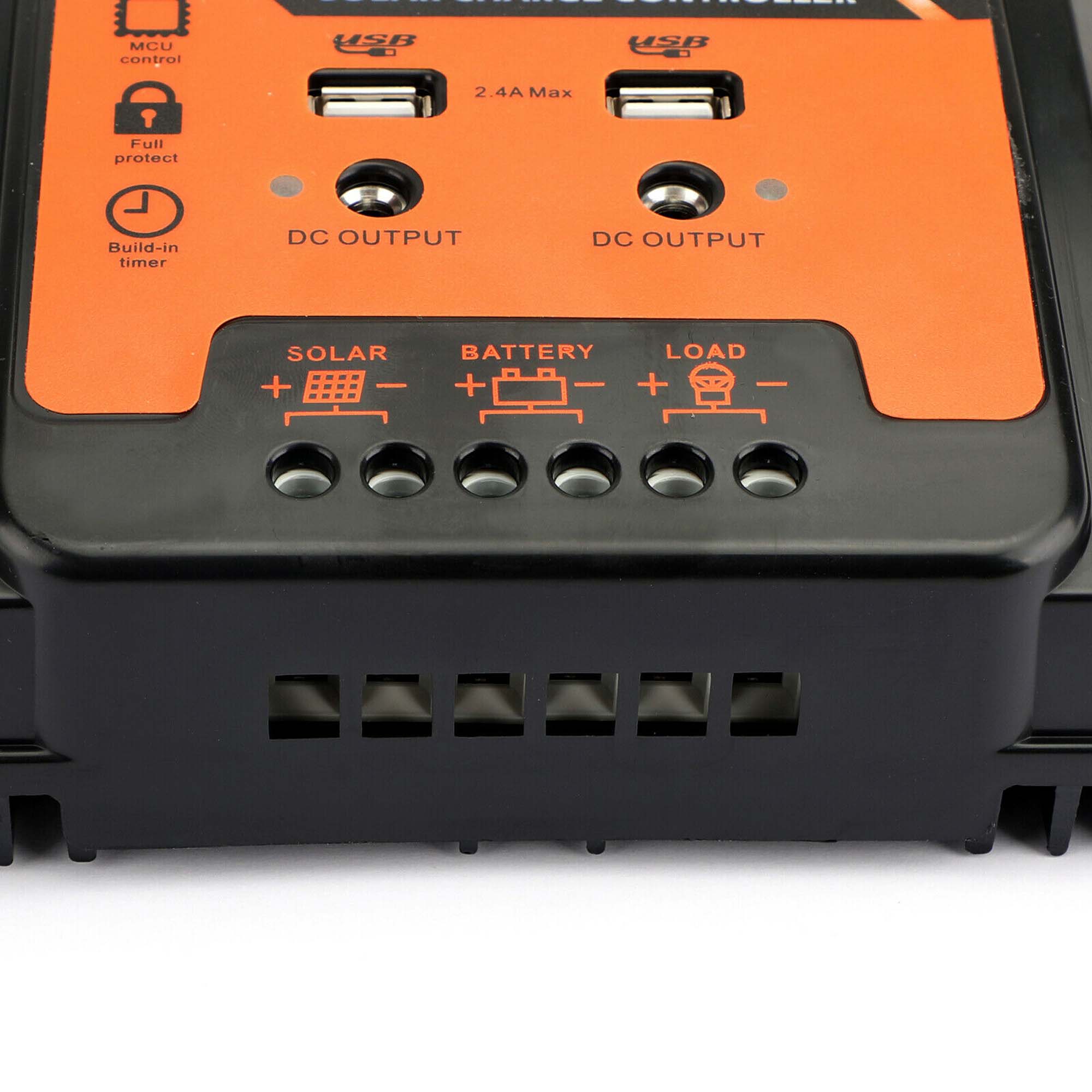

USB Output: 2.4A *2
Over Charge Current(V): 13.7V/*2 24V
Over Discharge Current(V): 10.5-11V/*2 24V
Temperature Compensation: -3mv/℃/cell
Empty Load Wastage: Loop Voltage Drop: Display: LCD Display
Charging Type: PWM
Waterproof Grade: IP32
Material: Plastic
Color: Black + Orange
Size: 17.5 * 14 * 3.5cm(30A), 21 * 19.2 * 4cm(50A), 22.6*20*4.8cm(70A)

Package include:
1 * Solar Charge Controller
1 * User Manual

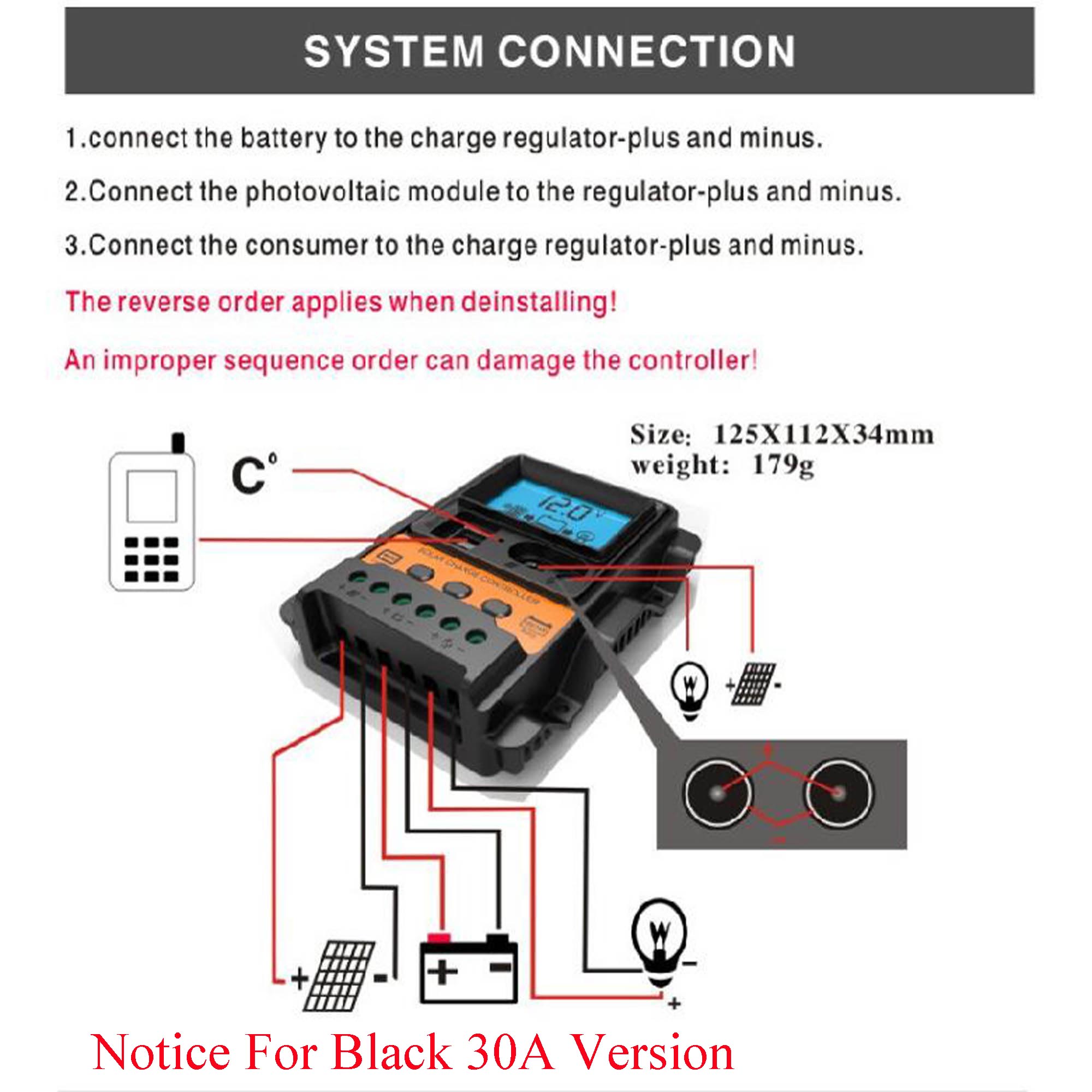

2, Black 30A
Specification:

Brand new and high quality

Self consume: ≤10mA

Working Temperature: -35°C to +60°C

Float Charge: 13.7 V(default,adjustable)

Discharge stop: 10.7V(default,adjustable)

Discharge reconnect: 12.6V(default,adjustable)

Size: Approx. 125x112x34mm

Auto & Charge Current: 30A

Discharge Current: 10A

Battery Voltage: 12V/24V

Features:

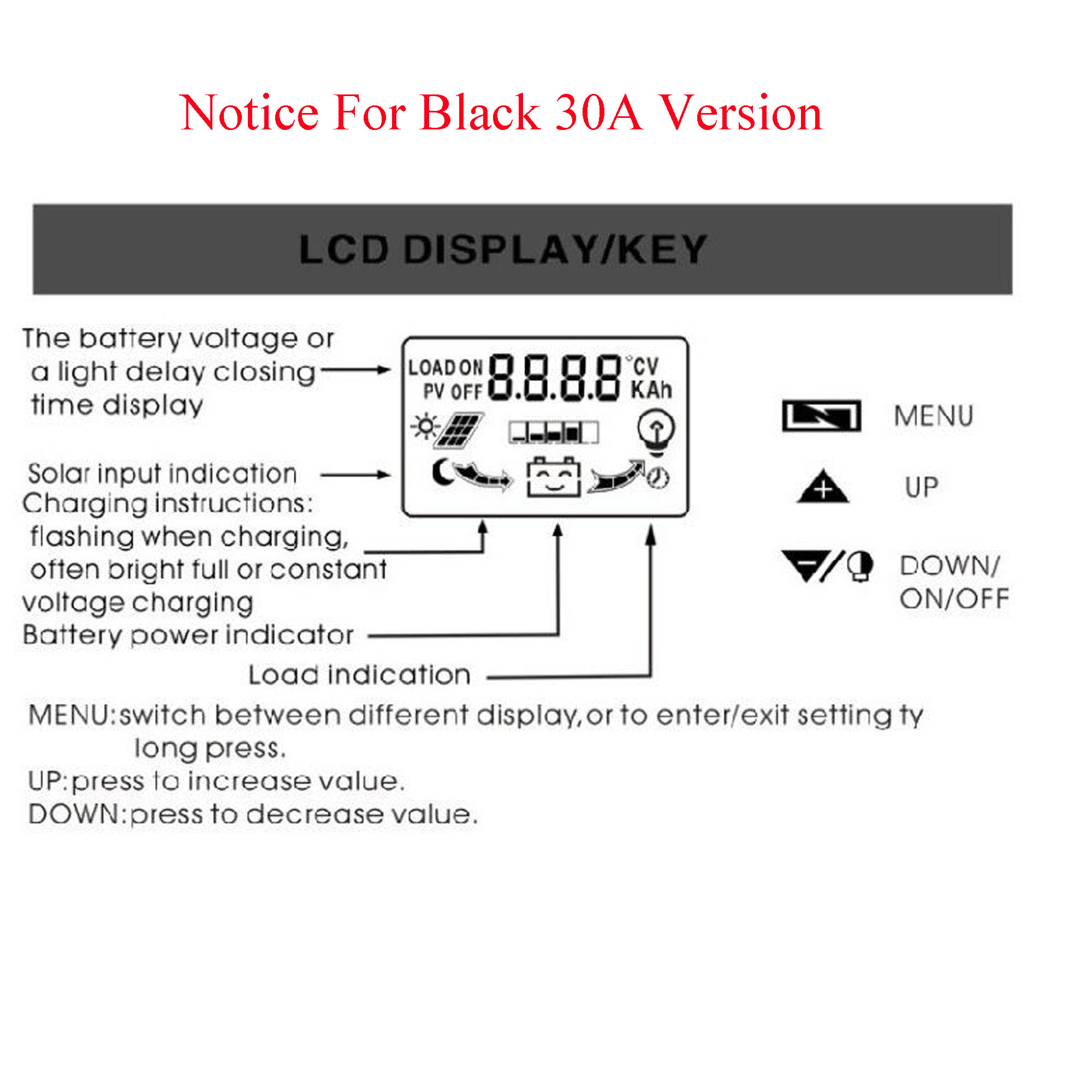

LCD display

All necessary protections equipped

Adjustable controlling parameter of the system

Suitable for Home, Industrial, Commercial etc

Package included:

1 x Solar Charge Controller
1 x User Manual
