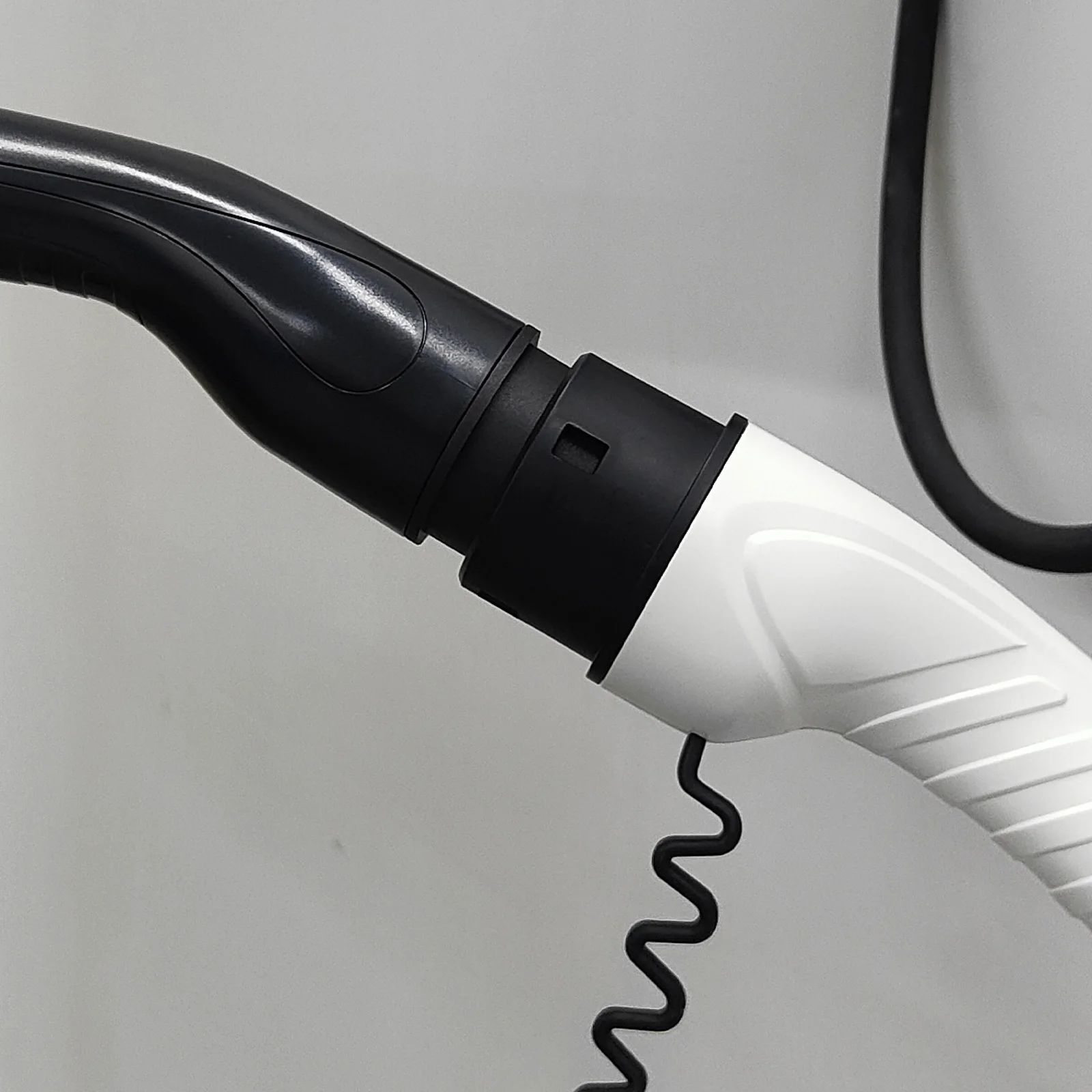

The PM701 series EVSE adapters are professional tools designed for electric vehicle charging stations, offering broad compatibility with international standards such as SAE J1772, European Standard, and NACS. With comprehensive testing capabilities, exceptional safety features, and a robust design, these adapters can effectively simulate charging states, detect electrical faults, and provide instant feedback. Whether for installation, maintenance, or troubleshooting, the PM701 series is the ideal choice to ensure the safe and reliable operation of charging stations.
Product Description
|
Product Name
|
EVSE Adaptor
|
|
Function
|
NACS (Tesla) Standards/Pre-Testing Simulation/Error Simulation/Electrical Leakage Test/ Rated IP54/Single-Phase and Three-Phase Voltage Systems/10A/250V fuse
|
Simulate Charging States: Can simulate different charging states (A, B, C, or D) to provide thorough diagnostics.
Pre-Testing Functions: Includes PE (Protective Earth) and CP (Control Pilot) pre-testing to verify proper functionality before use.
Error Simulation: Capable of simulating cable resistance, CP errors, and PE errors to identify and troubleshoot potential issues.
Product Paramenters
|
Specifications
|
|
|
|
|||
|
Mode
|
PM701U
|
PM701E
|
PM701UT
|
|||
|
Test Object
|
AC charging station
|
AC charging station
|
AC charging station
|
|||
|
Test Interface
|
Complies with SAE J1772 stangard
|
Type2(European Standard)
|
NACS(Tesla)
|
|||
|
Simulate chargeing state
|
A、B、C or D
|
A、B、C或D
|
A、B、C或D
|
|||
|
PE pre testing
|
√
|
√
|
√
|
|||
|
CP pre testing
|
√
|
√
|
√
|
|||
|
Simulate cable resistance
|
√
|
√
|
√
|
|||
|
Simulated CP error
|
√
|
√
|
√
|
|||
|
Simulated PE error
|
√
|
√
|
√
|
|||
|
Leakage tripping test
|
≥6mA/110V
|
|
≥6mA/110V
|
|||
|
Charging output terminal
|
4mm port/American standard socket
|
4mm port/European standard socket
|
4mm port/American standard socket
|
|||
|
Support voltage types
|
Single phase or three-phase
|
Single phase or three-phase
|
Single phase or three-phase
|
|||
|
Indicator light
|
√
|
√
|
√
|
|||
|
Fuse
|
10A/250V
|
10A/250V
|
10A/250V
|
|||
|
General
|
|
|
|
|||
|
Protection grade
|
Case IP54
|
|
|
|||
|
Safety Rating
|
IEC/EN 61010-1、IEC/EN61010-2-030、CAT Ⅲ 600V
|
|
|
|||
|
Measurement Category
|
IEC/EN 61851-1、IEC/HD 60364-7-722
|
|
|
|||
