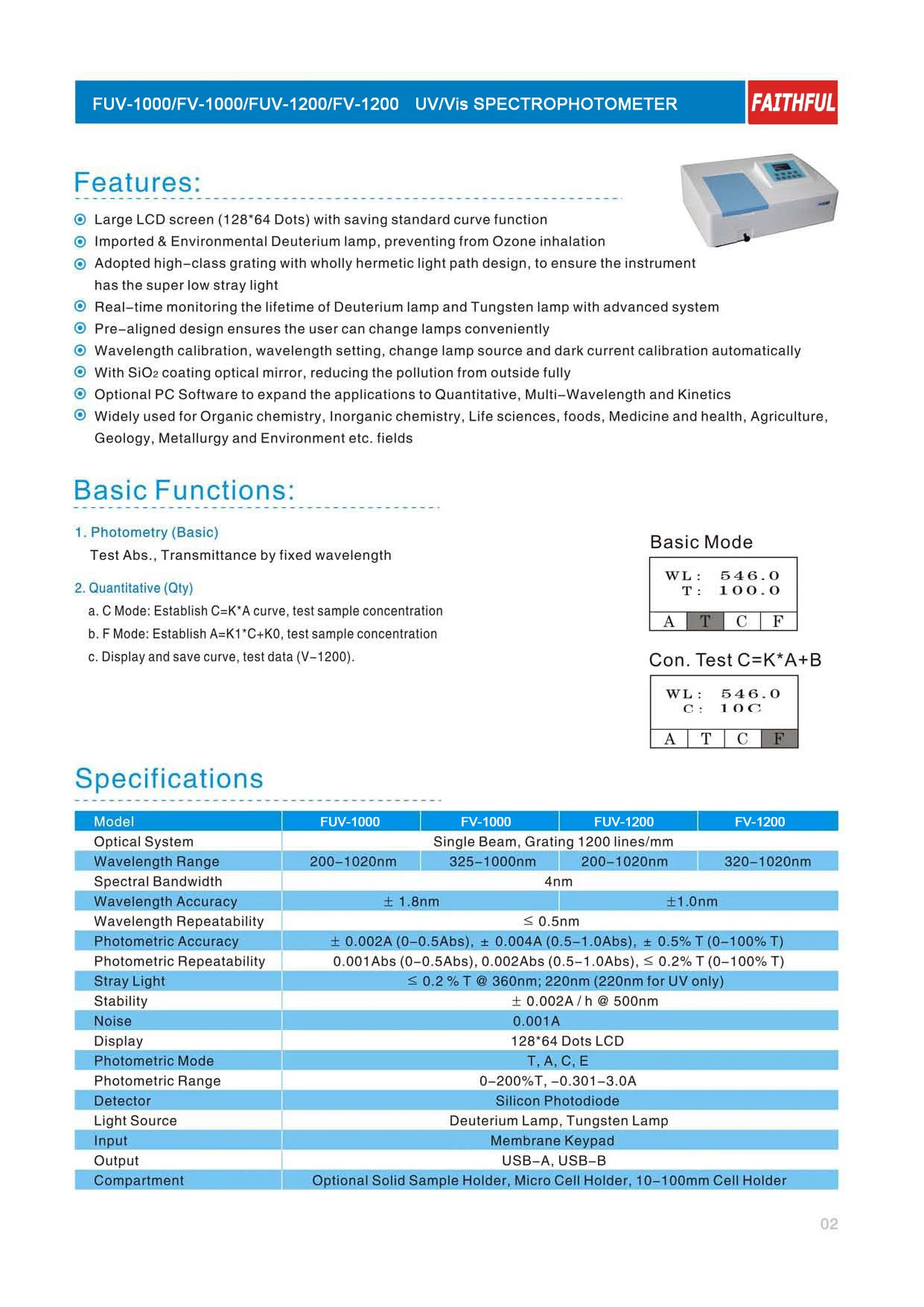

Model
|
FUV-1000
|
FV-1000
|
FUV-1200
|
FV-1200
|
|||
|
Optical System
|
Single Beam,Grating 1200 lines/mm
|
|
|
|
|||
|
Wavelength Range
|
200-1020nm
|
325-1000nm
|
200-1020nm
|
320-1020nm
|
|||
|
Spectral Bandwidth
|
4nm
|
|
|
|
|||
|
Wavelength Accuracy
|
±1.8nm
|
|
±1.0nm
|
|
|||
|
Wavelength Repeatability
|
≤0.5nm
|
|
|
|
|||
|
Photometric Accuracy
|
±0.002A(0-0.5Abs),
±0.004A(0.5-1.0Abs),
±0.5%T(0-100% T)
|
|
|
|
|||
|
Photometric Repeatability
|
0.001Abs(0-0.5Abs),
0.002Abs(0.5-1.0Abs),
≤0.2%T（0-100% T）
|
|
|
|
|||
|
Stray Light
|
≤0.2%T@360nm;
220nm (220nm for UV only)
|
|
|
|
|||
|
Stability
|
±0.002A/h@500nm
|
|
|
|
|||
|
Noise
|
0.001A
|
|
|
|
|||
|

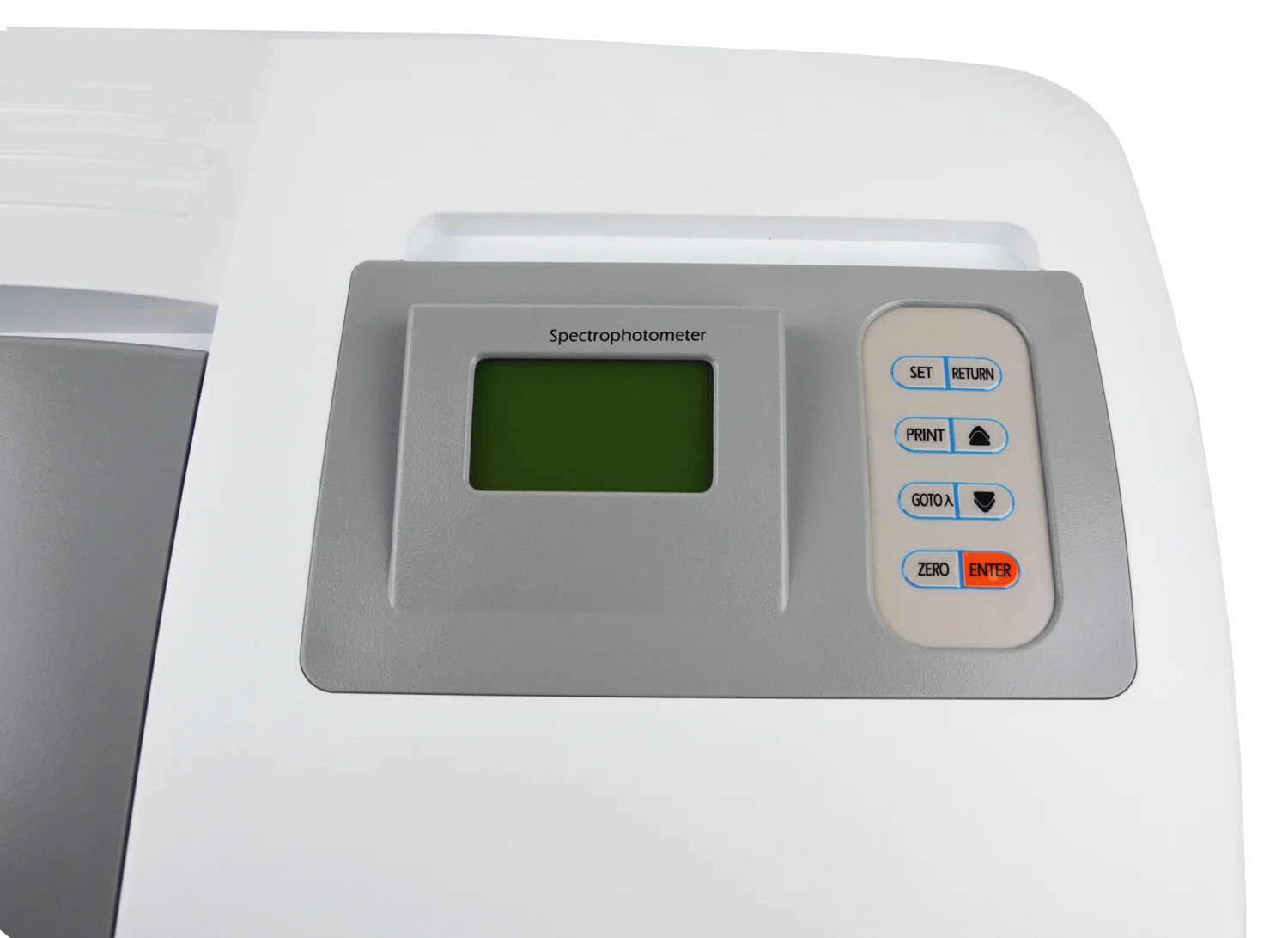

Display
|
128*64 Dots LCD
|
|
|
|
|||
|
Photometric Mode
|
T,A,C,E
|
|
|
|
|||
|
Photometric Range
|
0-200% T,-0.301-3.0A
|
|
|
|
|||
|
Detector
|
Silicon Photodiode
|
|
|
|
|||
|
Light Source
|
Deuterium Lamp,Tungsten Lamp
|
|
|
|
|||
|
Input
|
Membrane Keypad
|
|
|
|
|||
|

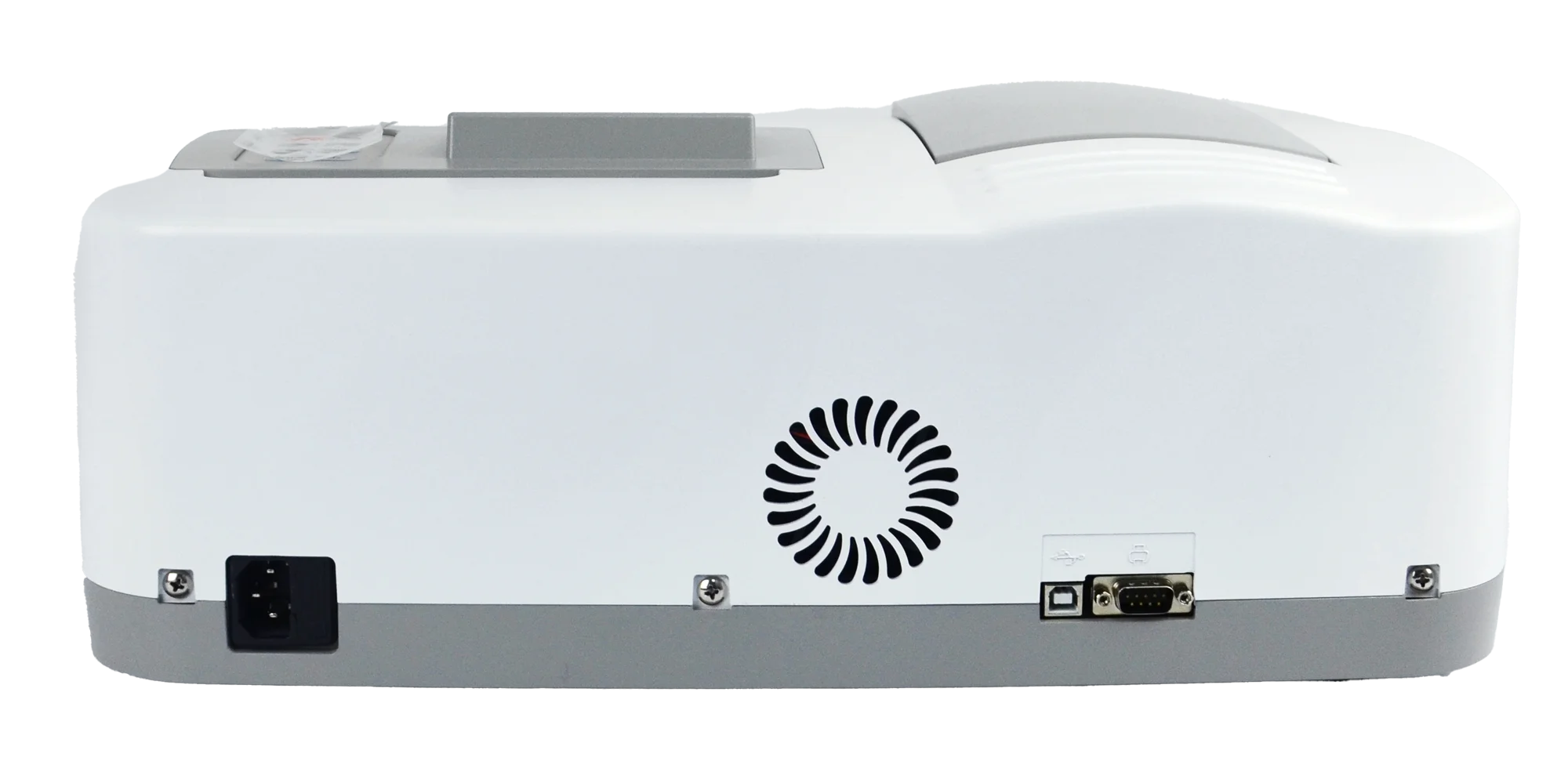

Output
|
USB-A,USB-B
|
|
|
|
|||
|

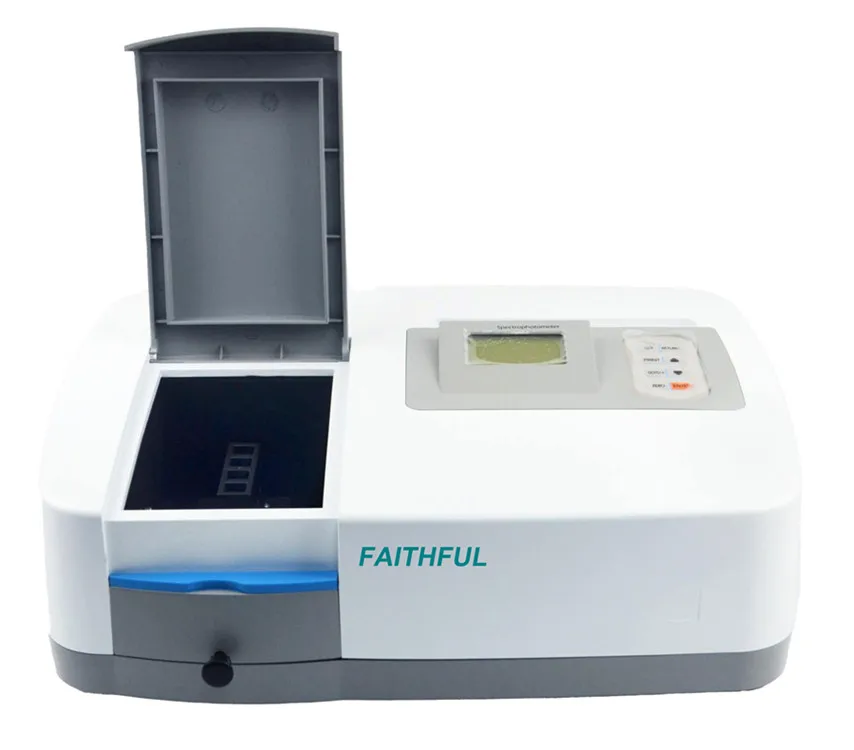

Compartment
|
Optional Solid Sample Holder,
Micro Cell Holder,
100-100mm Cell Holder
|
|
|
|
|||
