This 2.4G RF remote dimmer controller works together with LED strip.

5 in 1 function, used for control RGB, RGBW, RGB+CCT, color temperature or single color LED strip.

Note: LED controller and Remote Control are sold seperately. Freely choose any combination to your choice.

If you use cellphone APP for controlling, remote is not a must.



LED controller

Features:

1) DC power socket input and 5 channel constant voltage output.

2) Tuya APP Smart Life cloud control, support on/off, RGB color, color temperature and brightness adjust, delay turn on/off light,

timer run, scene and music play function.

3) Voice control, works with amazon ECHO smart speaker.

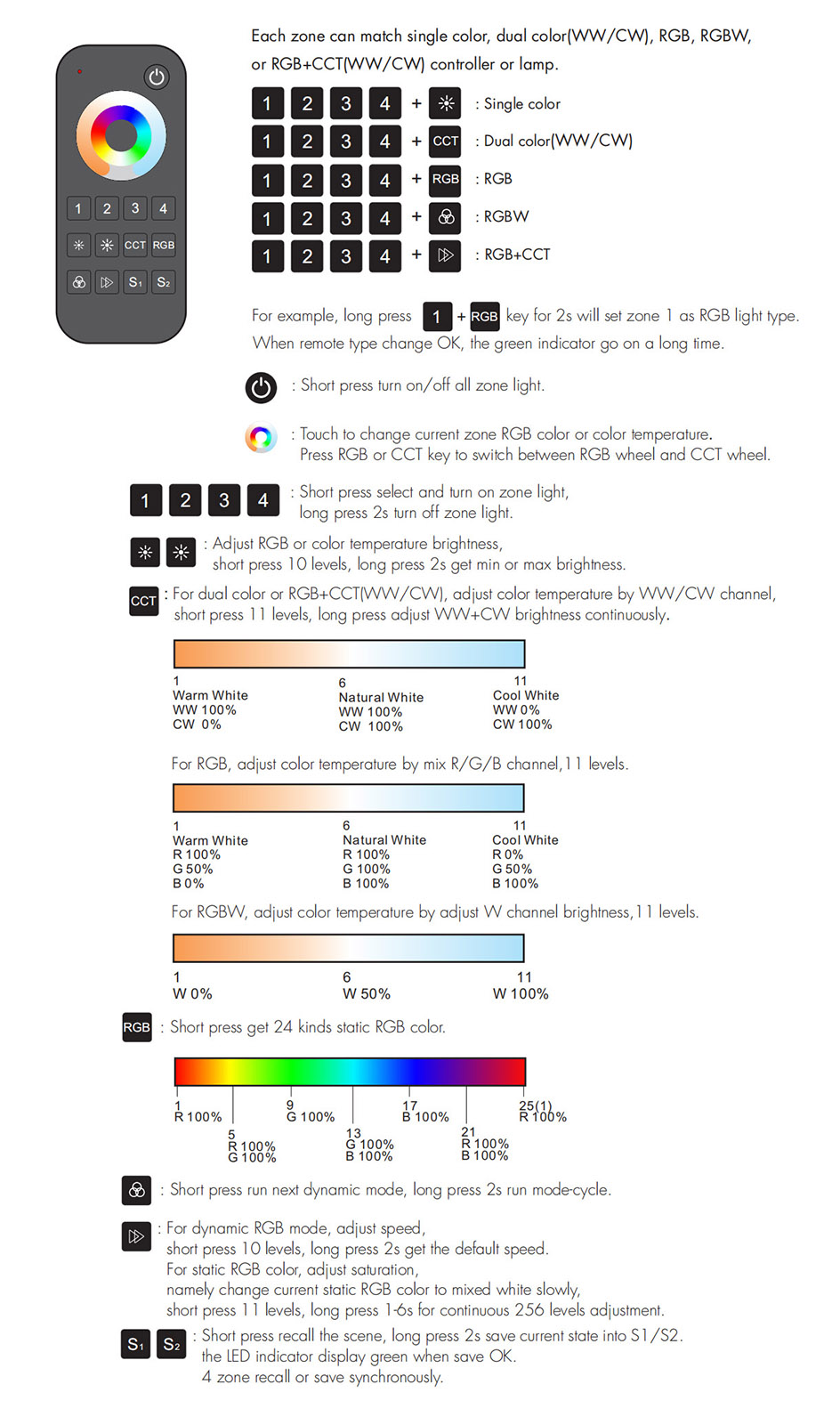

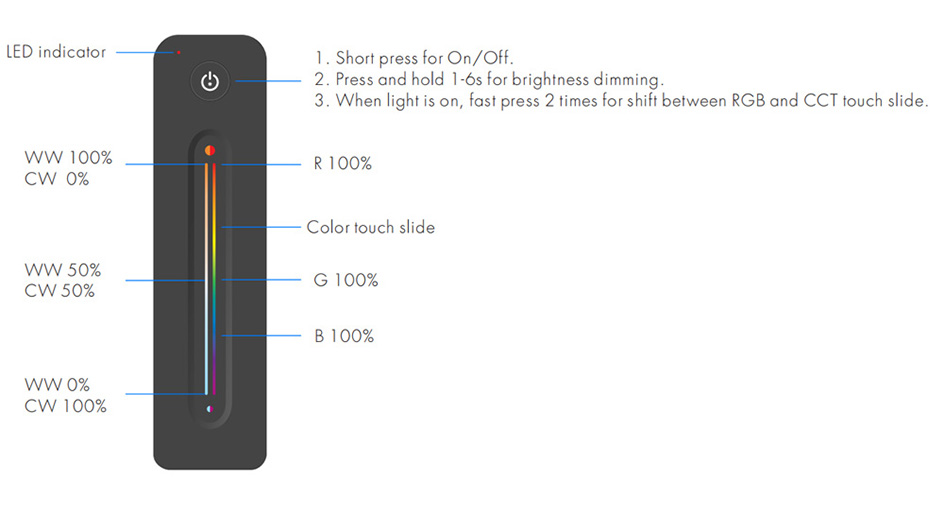

4) Match with RF 2.4G remote control optional.

5) User need set light type by press key before Tuya APP network connection and match RF remote of the same light type.

6) Each LED controller can also work as WiFi-RF converter, then use Tuya APP to control one or more RF LED controller or RF LED dimming driver synchronously.





Parameter:

Working Voltage: DC12V~24V (never connect to others or AC220V)

Body material: Plastic

Output type: Constant voltage

Max Output Voltage: 5*(12-24)V DC

Max Output Current: 5 Channel, 3A/Channel

Max Output Power: 5*(36-72)W DC

Work temperature: -30~55°C

Not waterproof

Input signal: RF 2.4GHz + Tuya APP

Control distance: 30m(Barrier-free space)

Dimming gray scale: 4096 (2^12) levels

Dimming range: 0 -100%

Dimming curve: Logarithmic

PWM Frequency: 500Hz (default)

EMC standard (EMC): EN55015, EN 61547

Safety standard(LVD): EN61347, EN62493

Radio Equipment(RED): EN300 440, EN50663, EN301 489

Certification: CE, Satety + EMC + RF

Protection: Reverse polarity, Over-Heat
