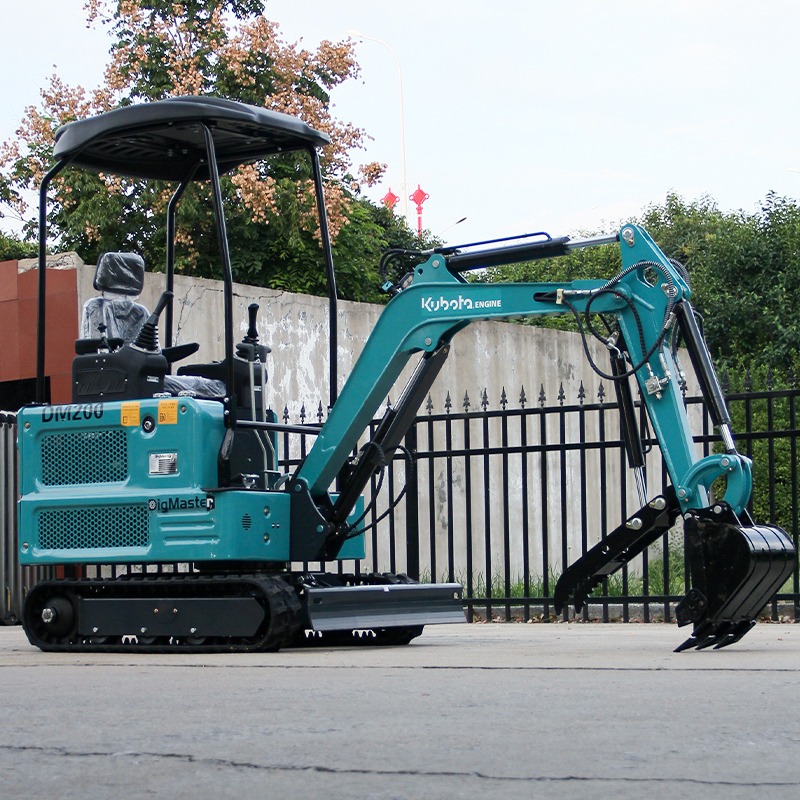

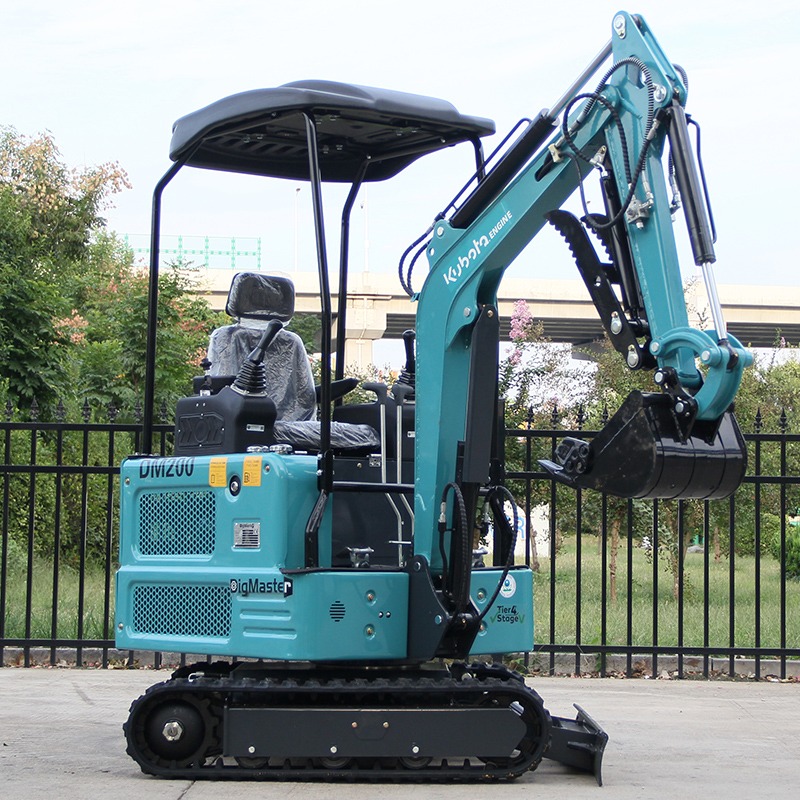

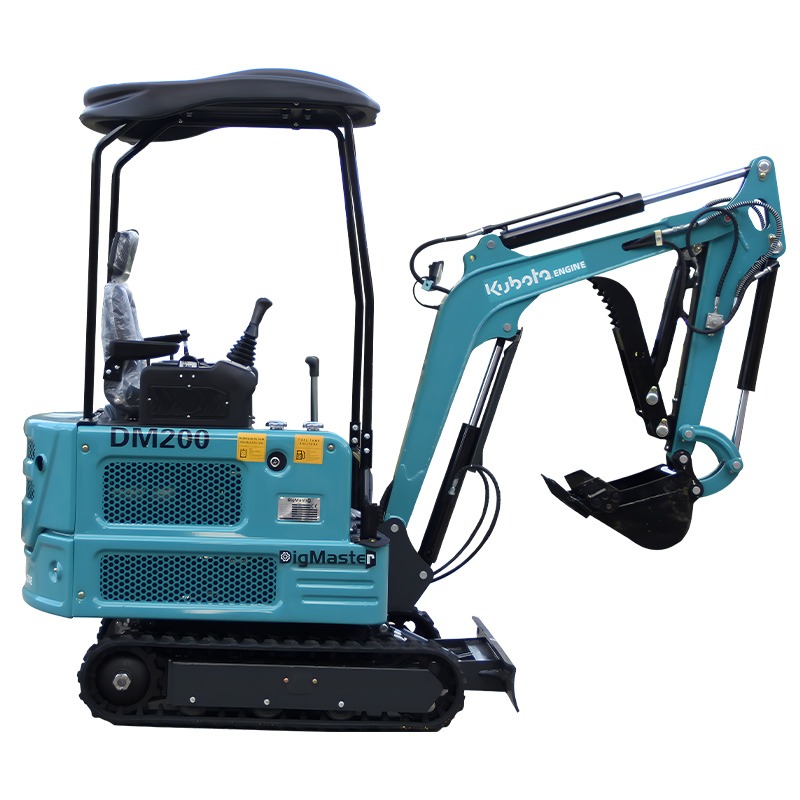

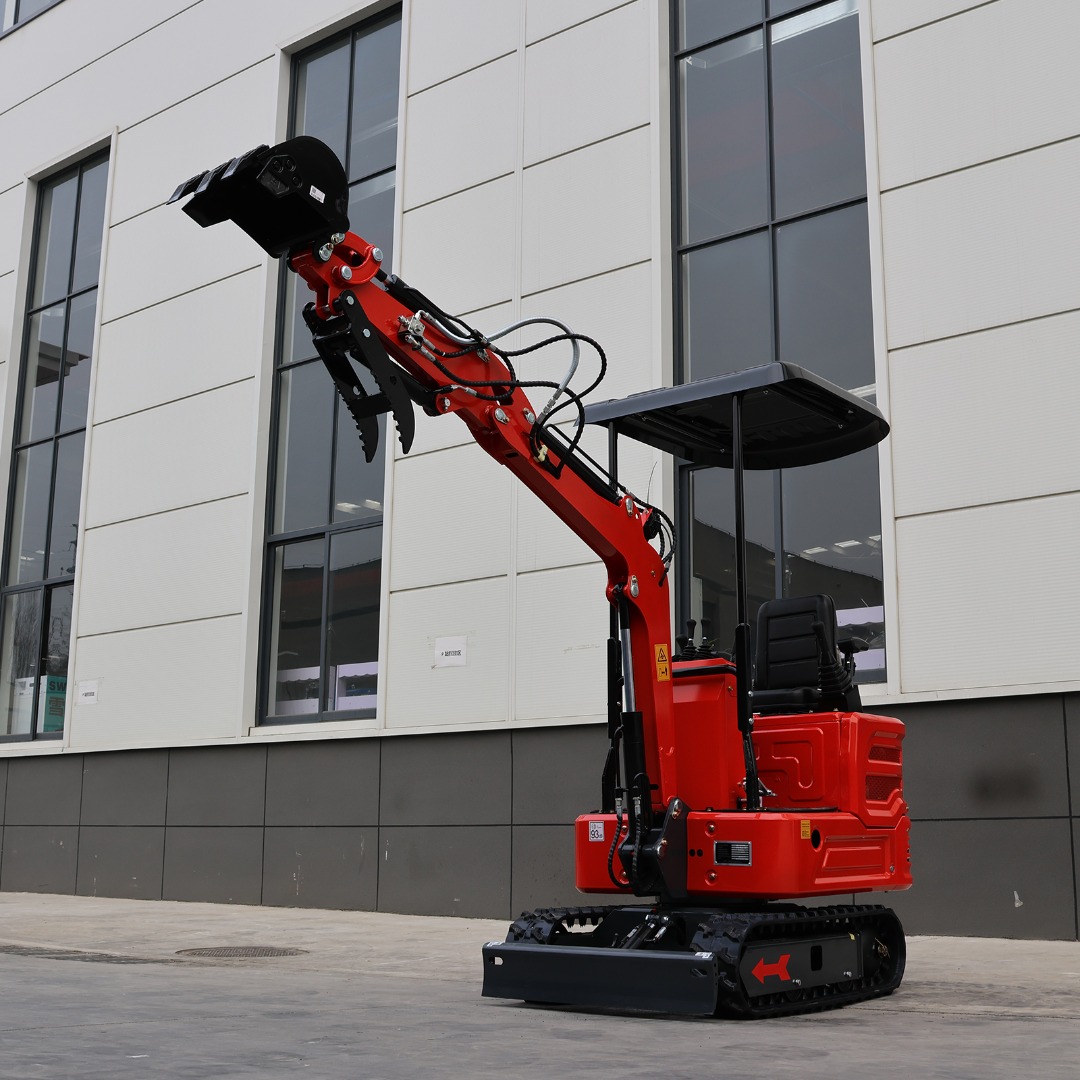

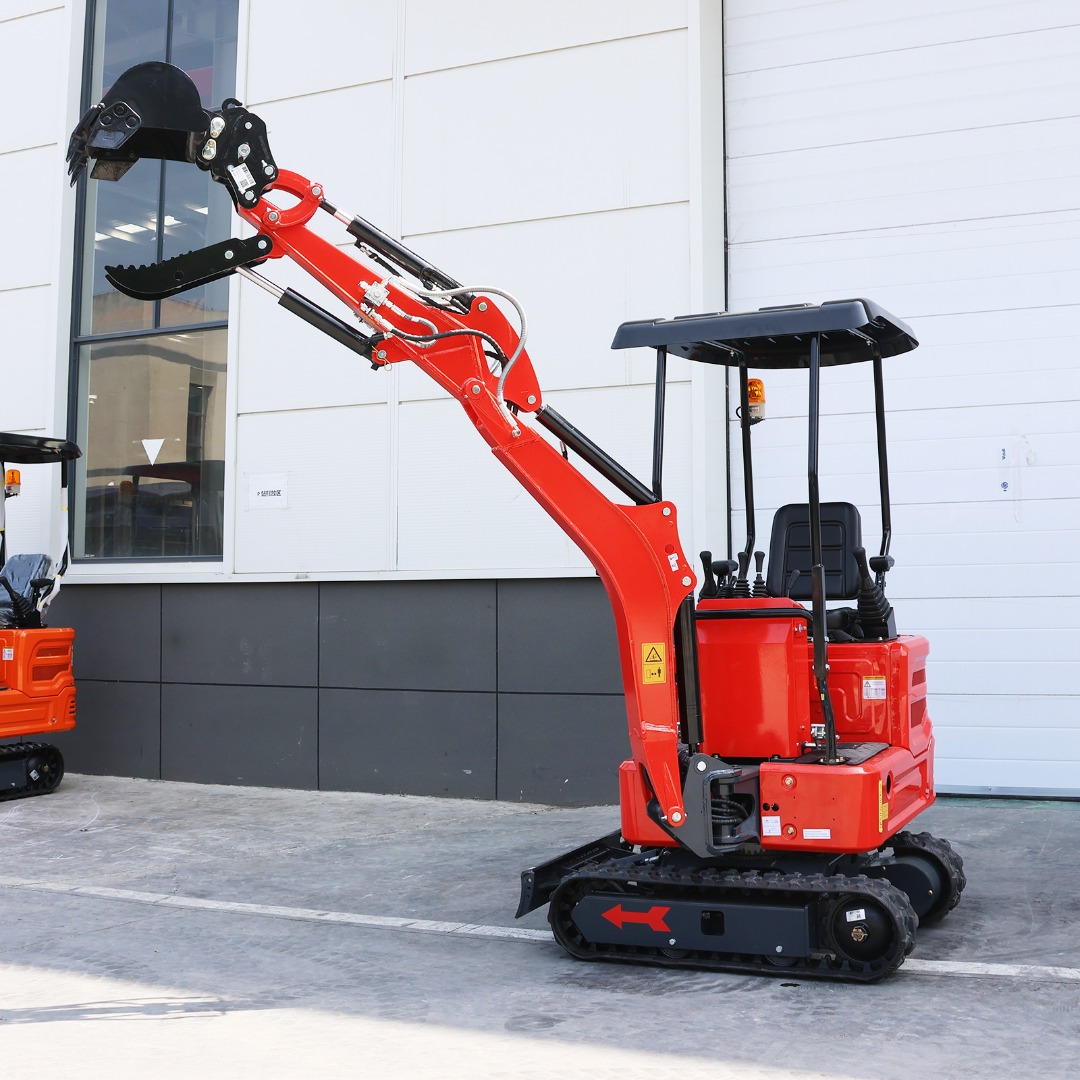

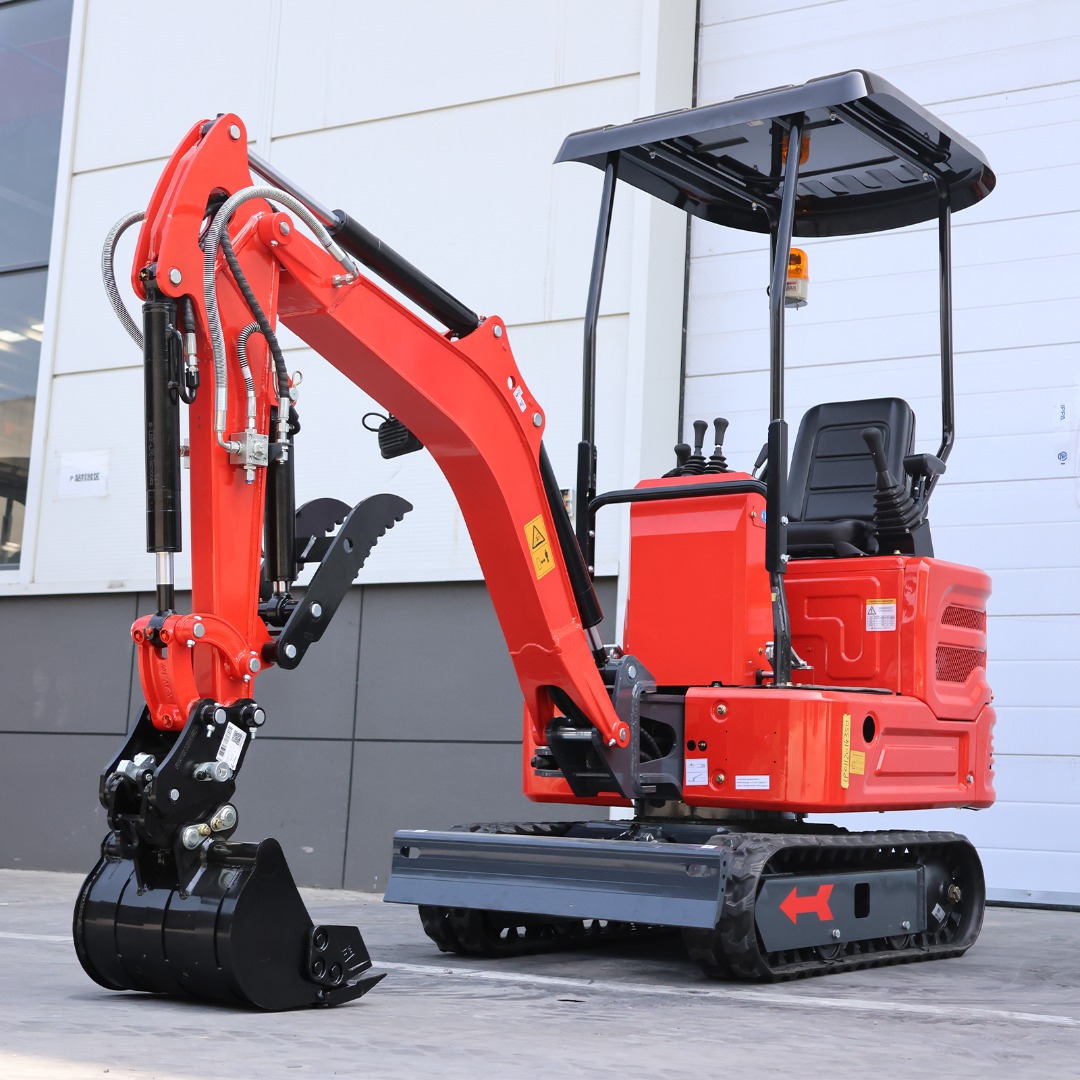

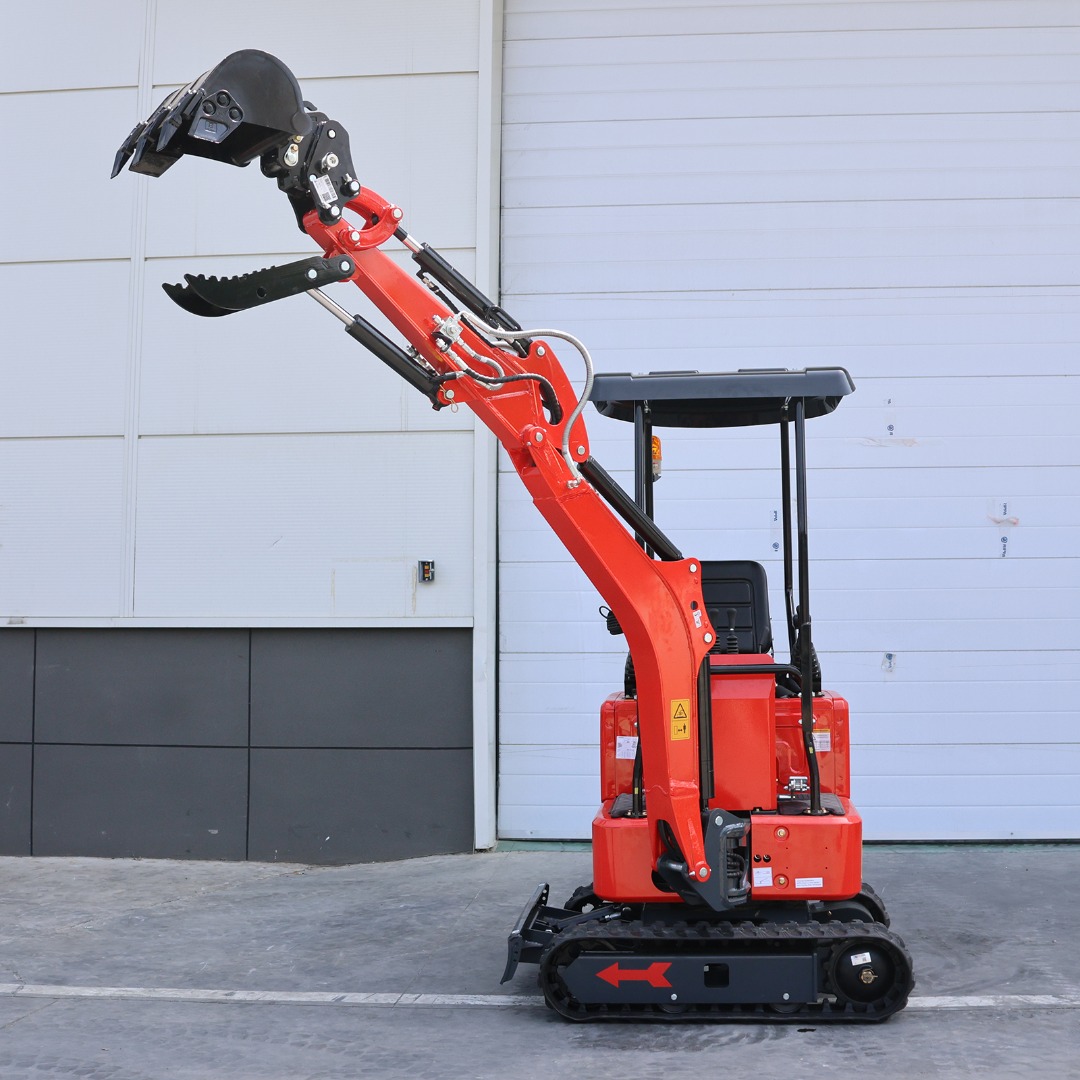

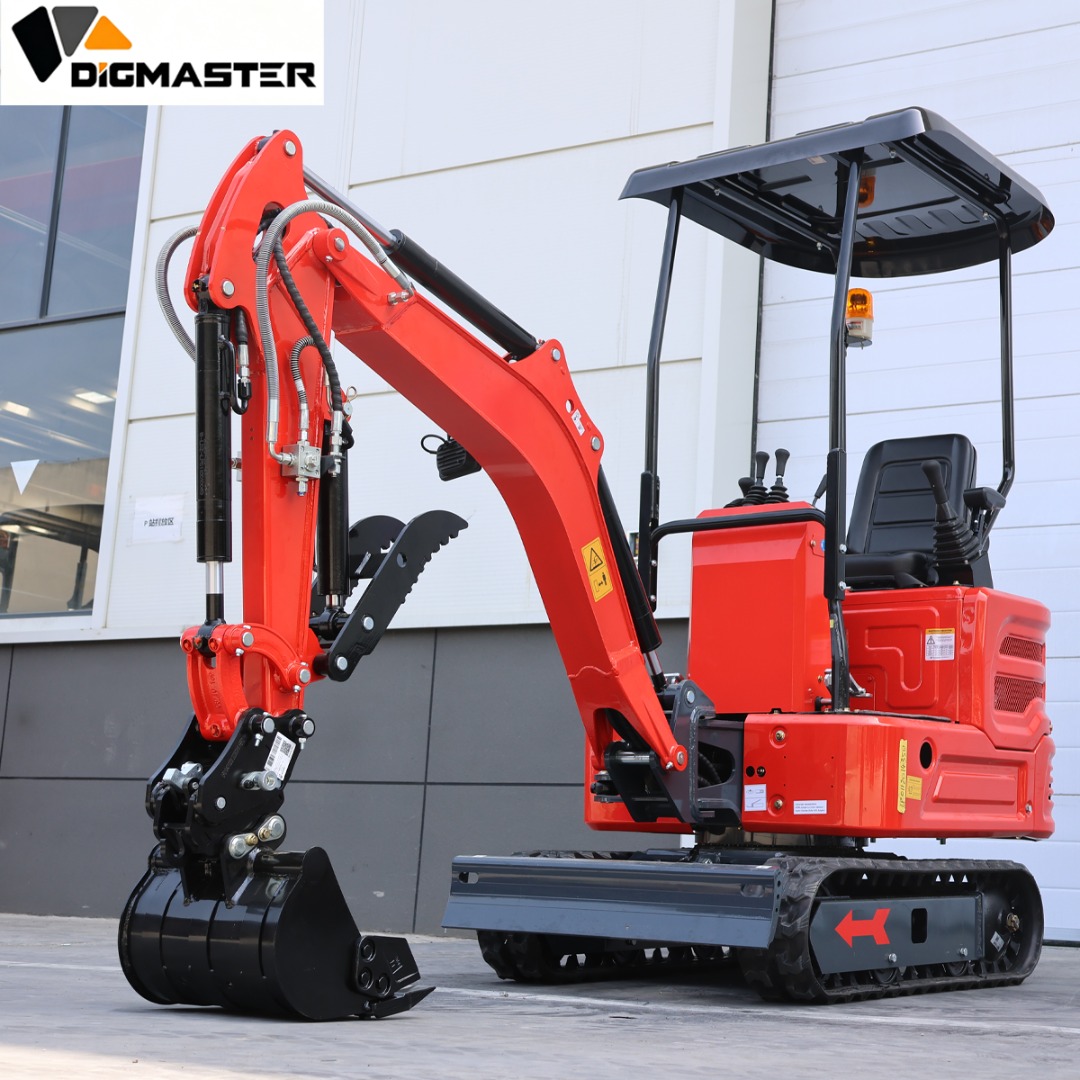

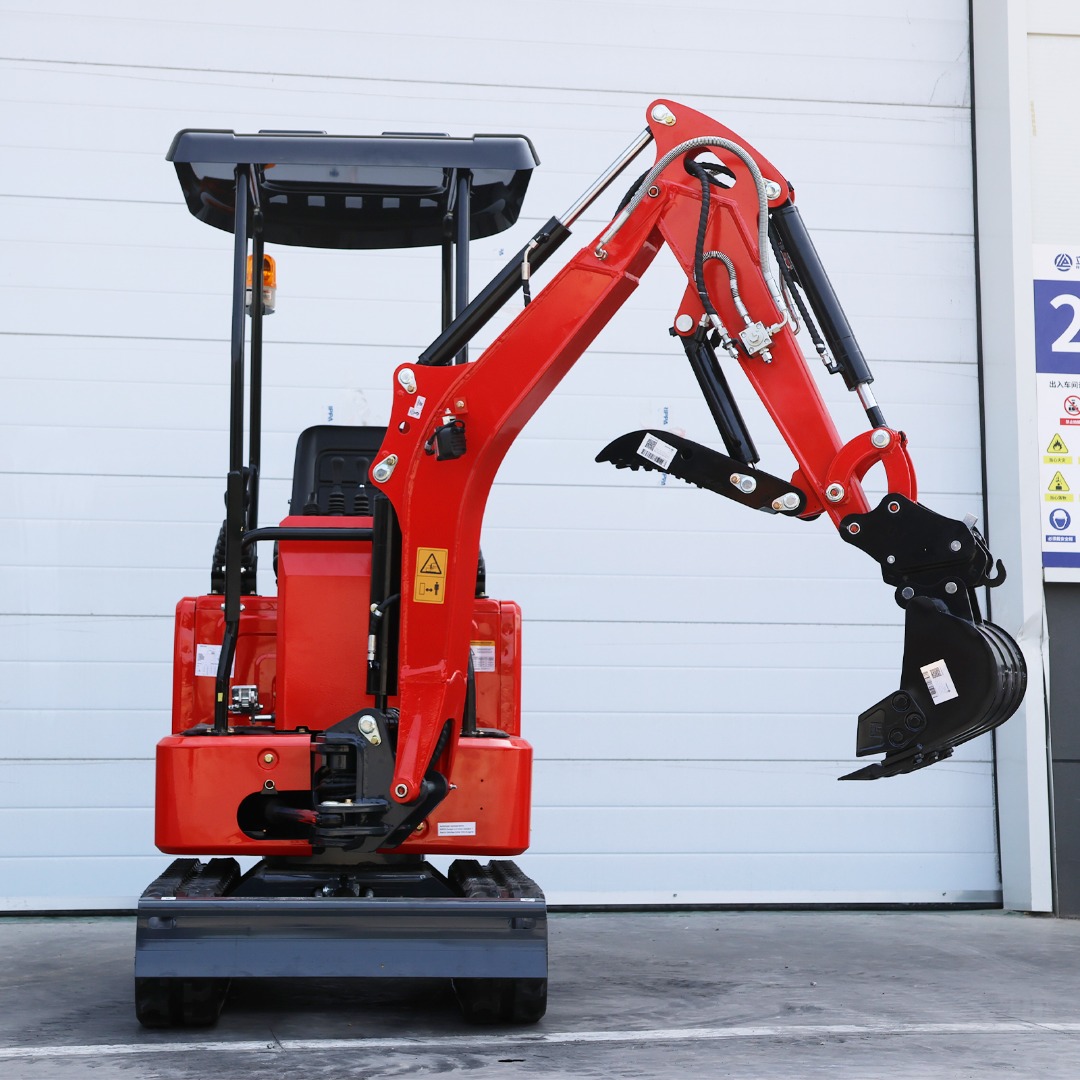

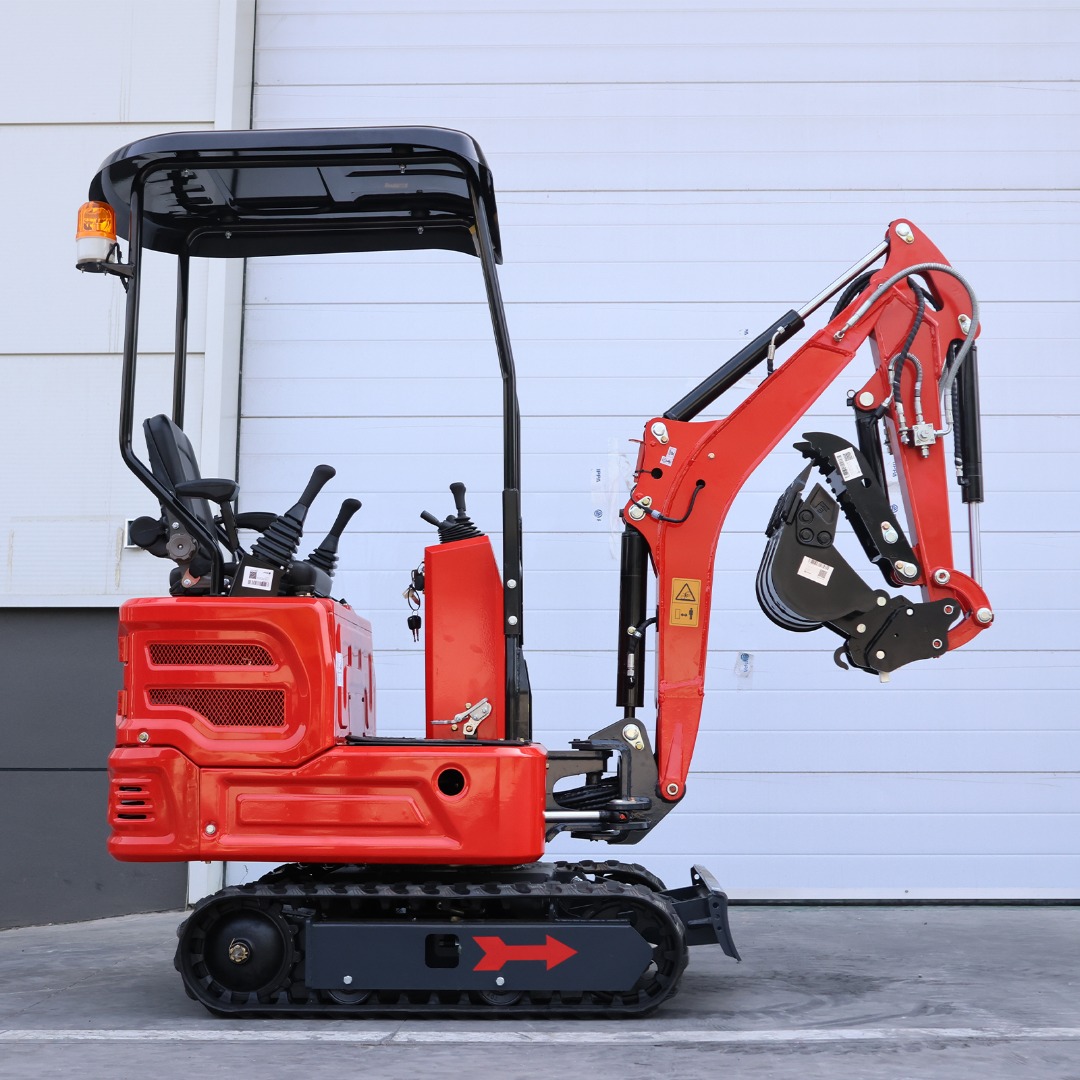

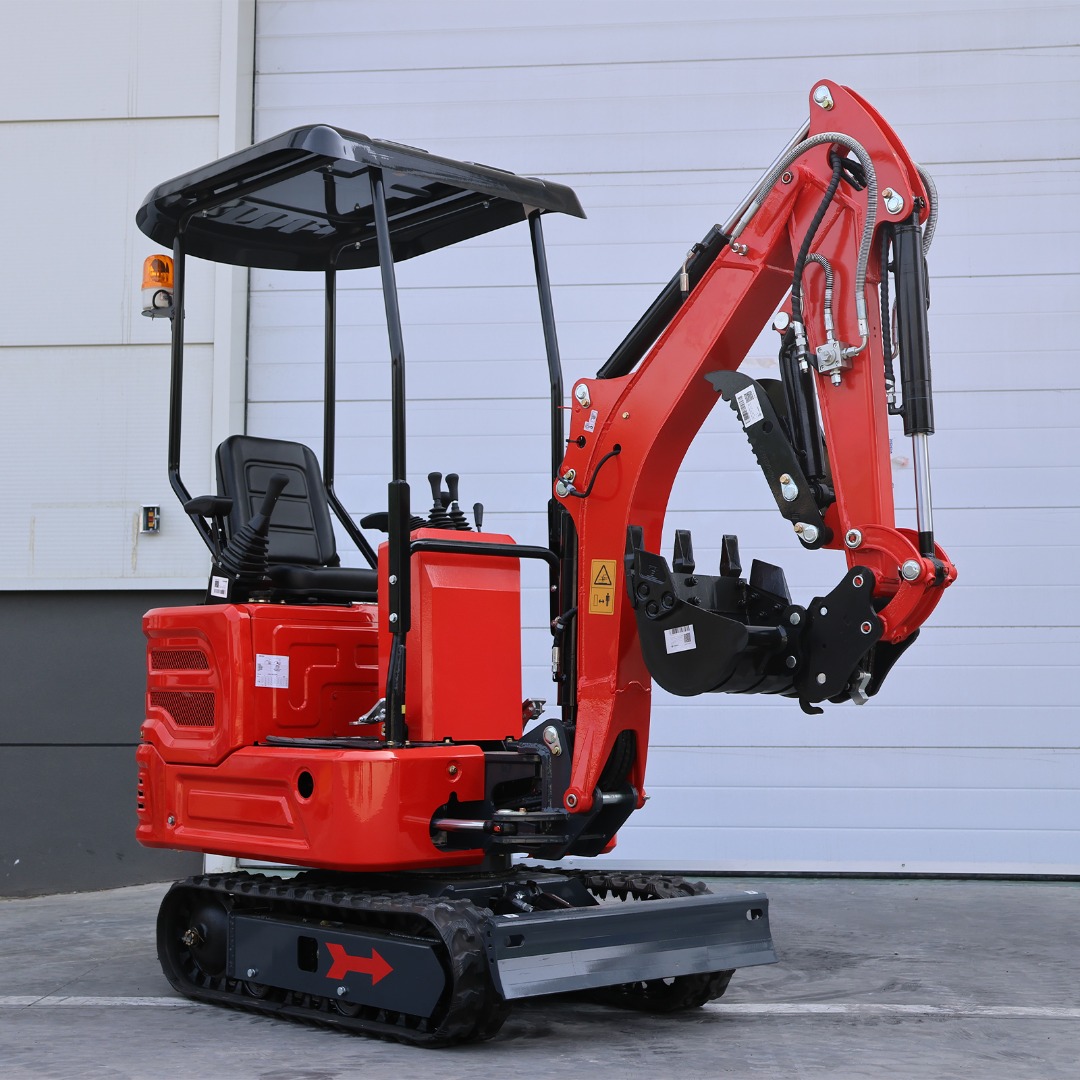

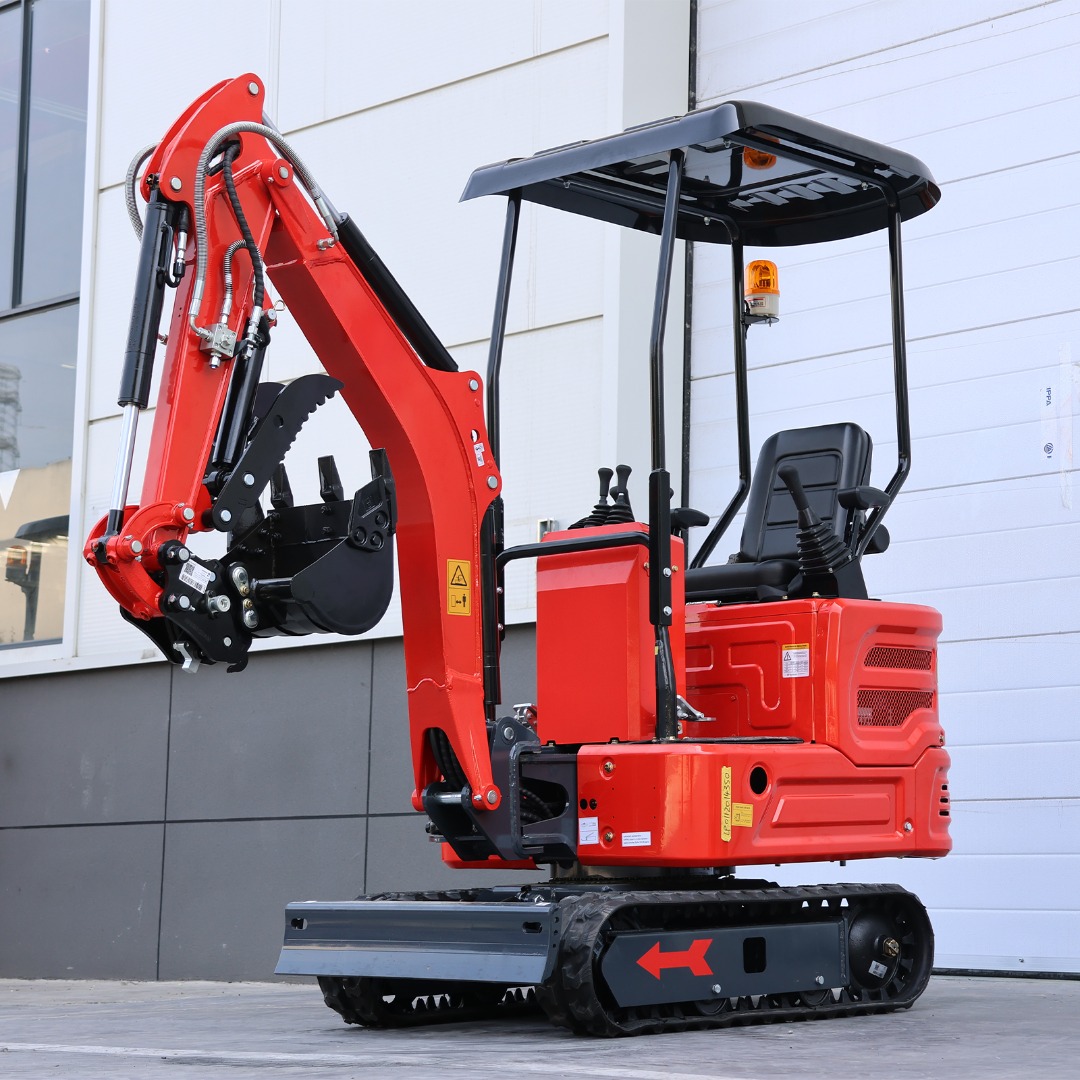

1.4Ton Mini Excavator Side Swing Pilot Control Kubota Diesel Engine

• Specification:

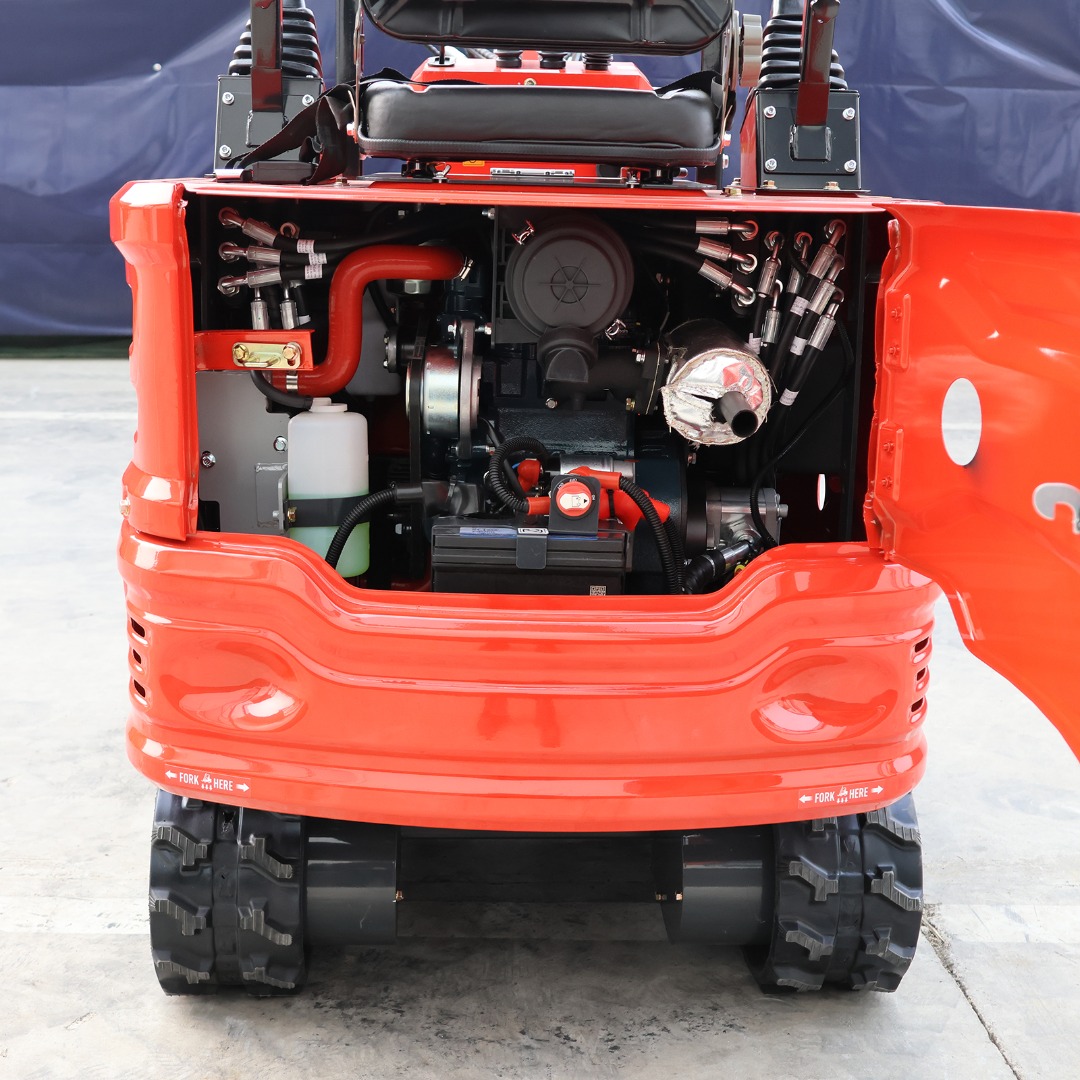

  1. Reliable Kubota Z482 Water-Cooled Diesel Engine
     Powered by authentic Kubota Z482 twin-cylinder water-cooled diesel engine, max output 8.2kW (11.234 PS), rated speed up to 3000 RPM. Theoretical fuel consumption only 0.8–1.2 L/h. Excellent torque performance, low vibration, long service life, works steadily under continuous heavy-duty conditions.

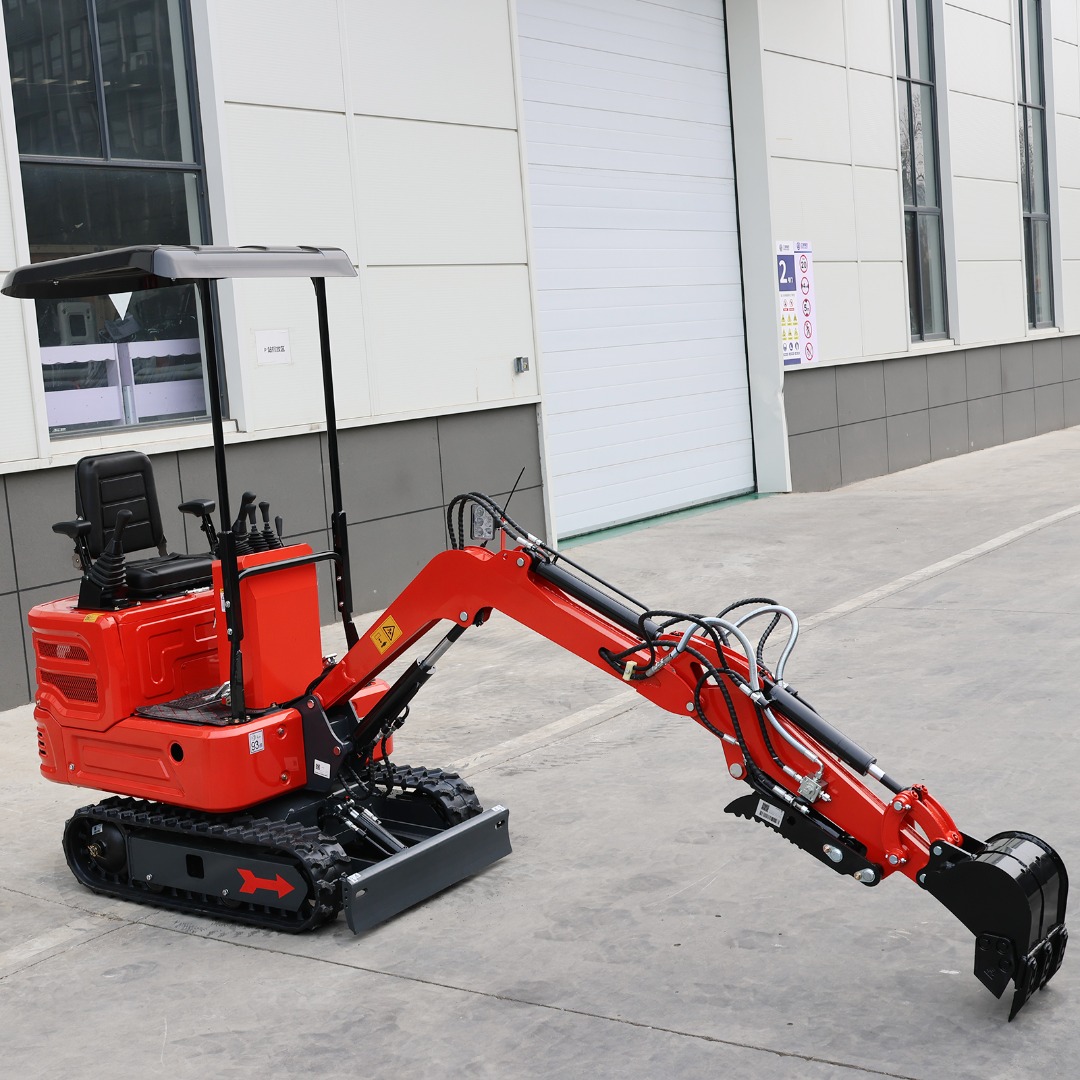

  2. 115° Large Swing Angle for Flexible Side Digging
     Equipped with a 115° maximum boom swing angle. The arm can offset to the left and right freely, enabling side excavation next to walls, fences and foundations. No need to frequently reposition the whole machine, greatly improving working efficiency in narrow sites such as trenches and building edges.
  3. Stable & Durable Full Reinforced Construction

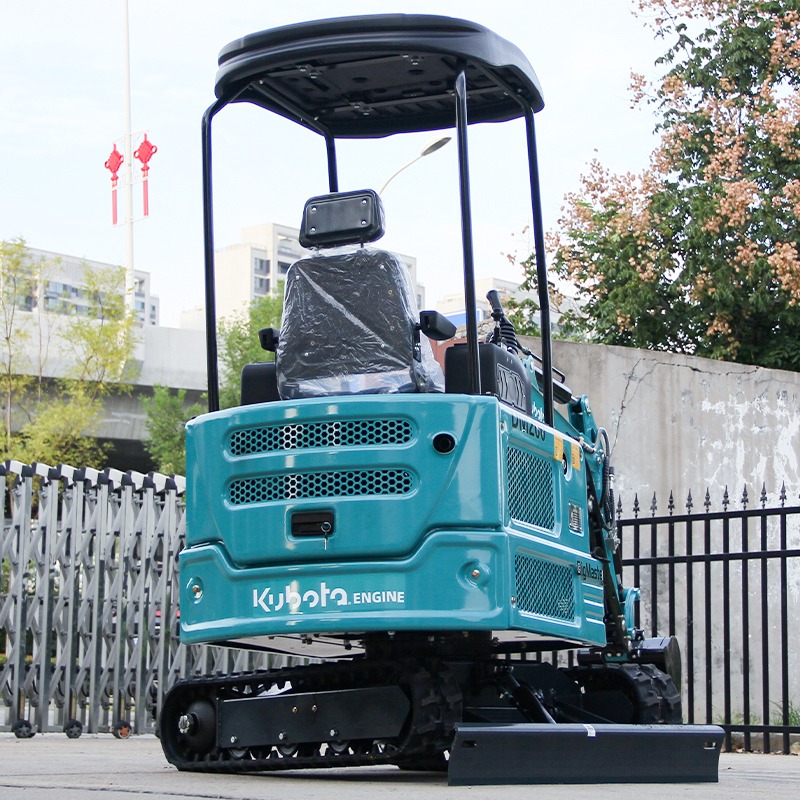

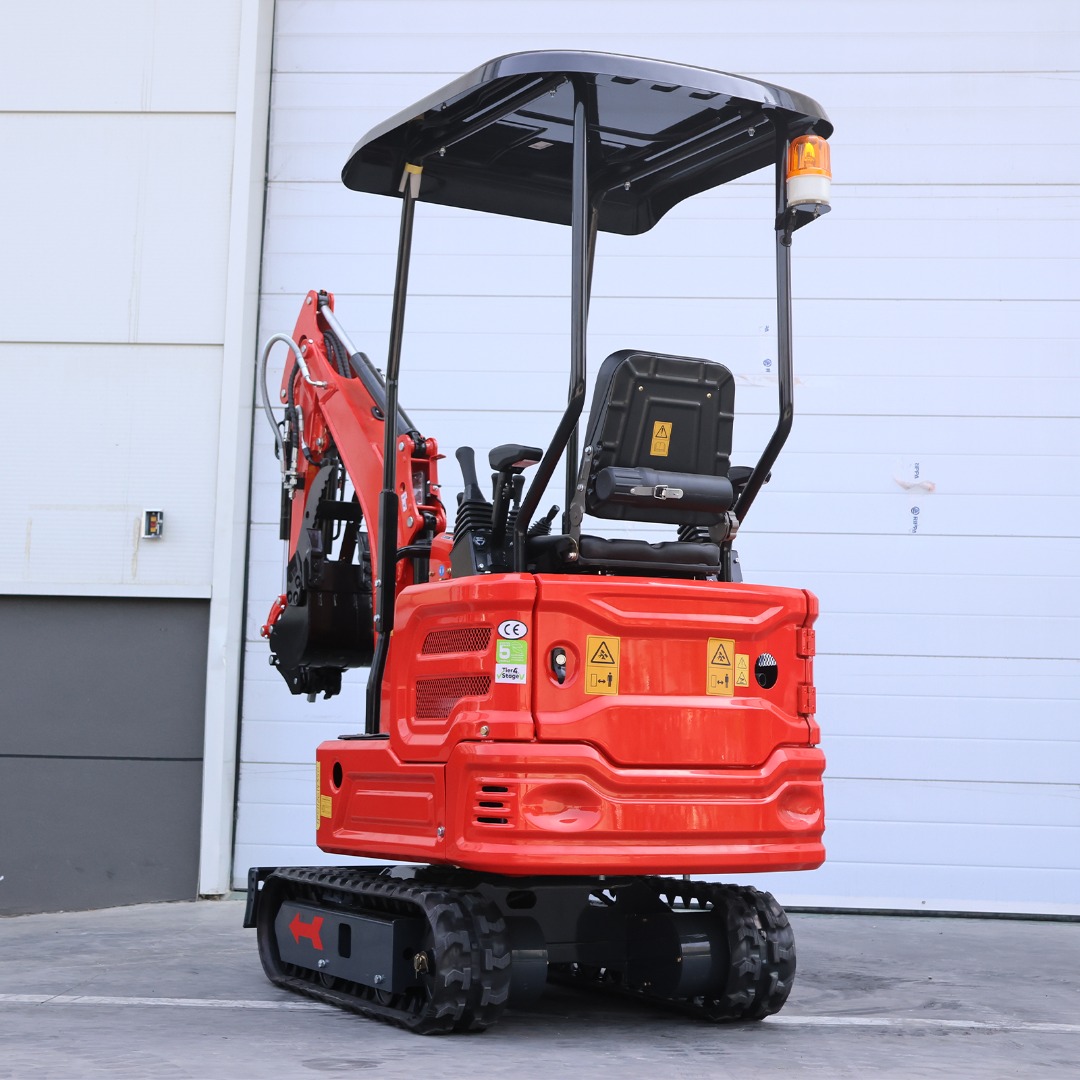

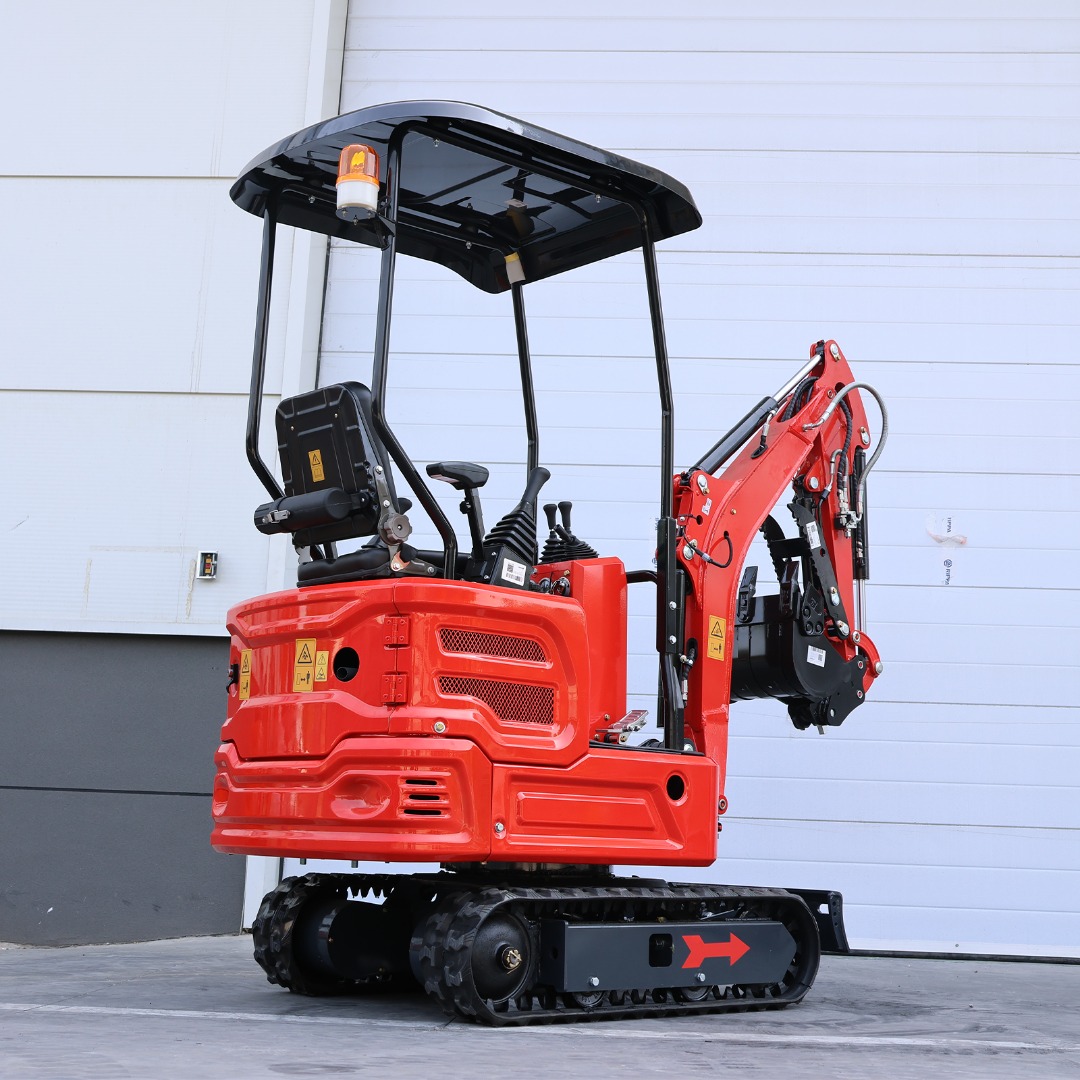

     Heavy-duty rear counterweight balances frame loads, enhances traction for deep digging & heavy lifting. Integrated reinforced chassis, thick hydraulic cylinders with reinforced sealing, four-pillar anti-wobble sun canopy, shockproof LED work light and wear-resistant rubber tracks adapt to lawn, mud, gravel and uneven terrain with low ground pressure.

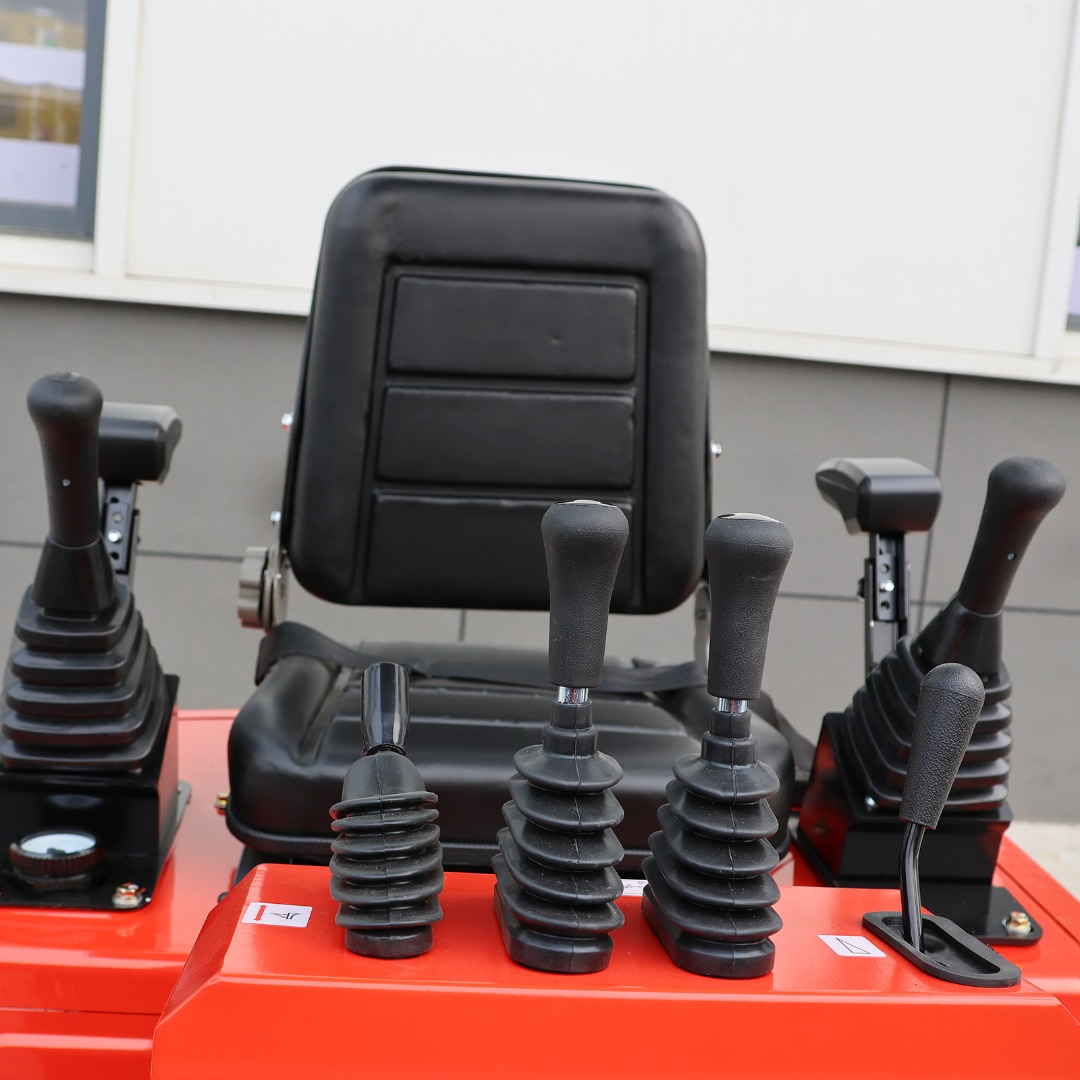

  4. User-Friendly Mechanical Control & Humanized Cab Design

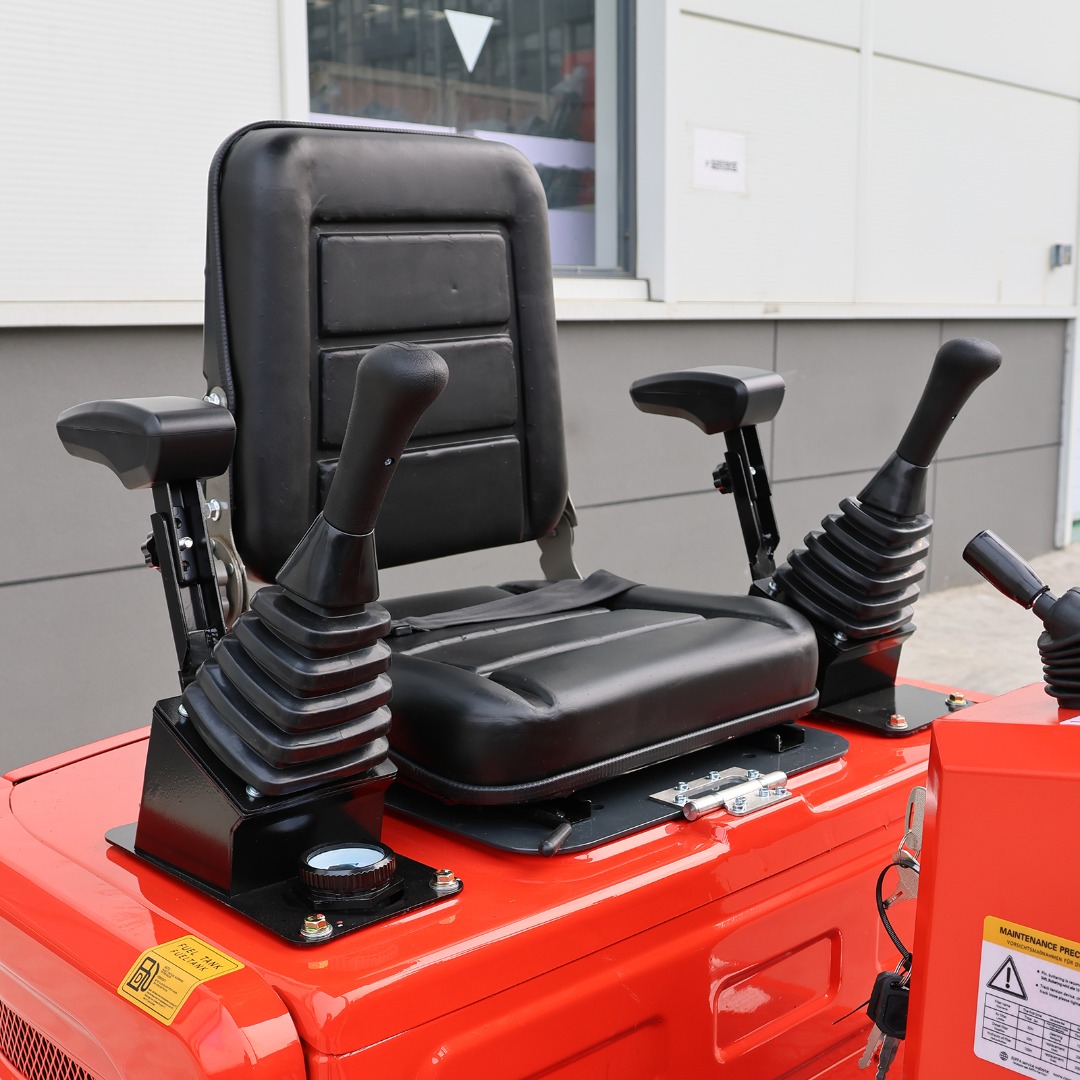

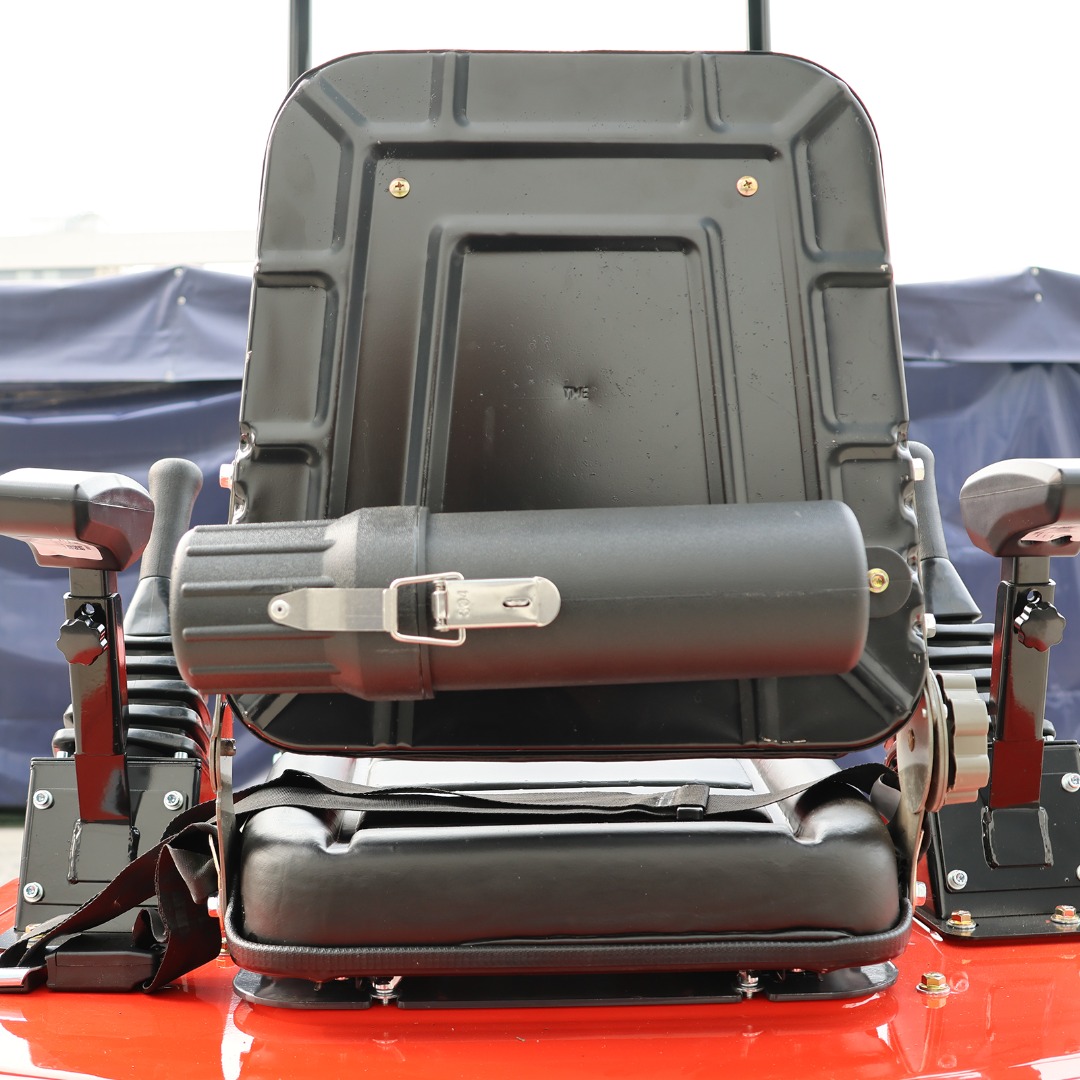

     Dual ergonomic joystick mechanical operation system, simple structure & easy learning curve for new operators. Forward/backward adjustable padded seat reduces fatigue during long shifts. Full engine heat insulation blocks high temperature, noise and flame risk to keep a comfortable operating environment.
  5. Strong & Balanced Comprehensive Digging Performance

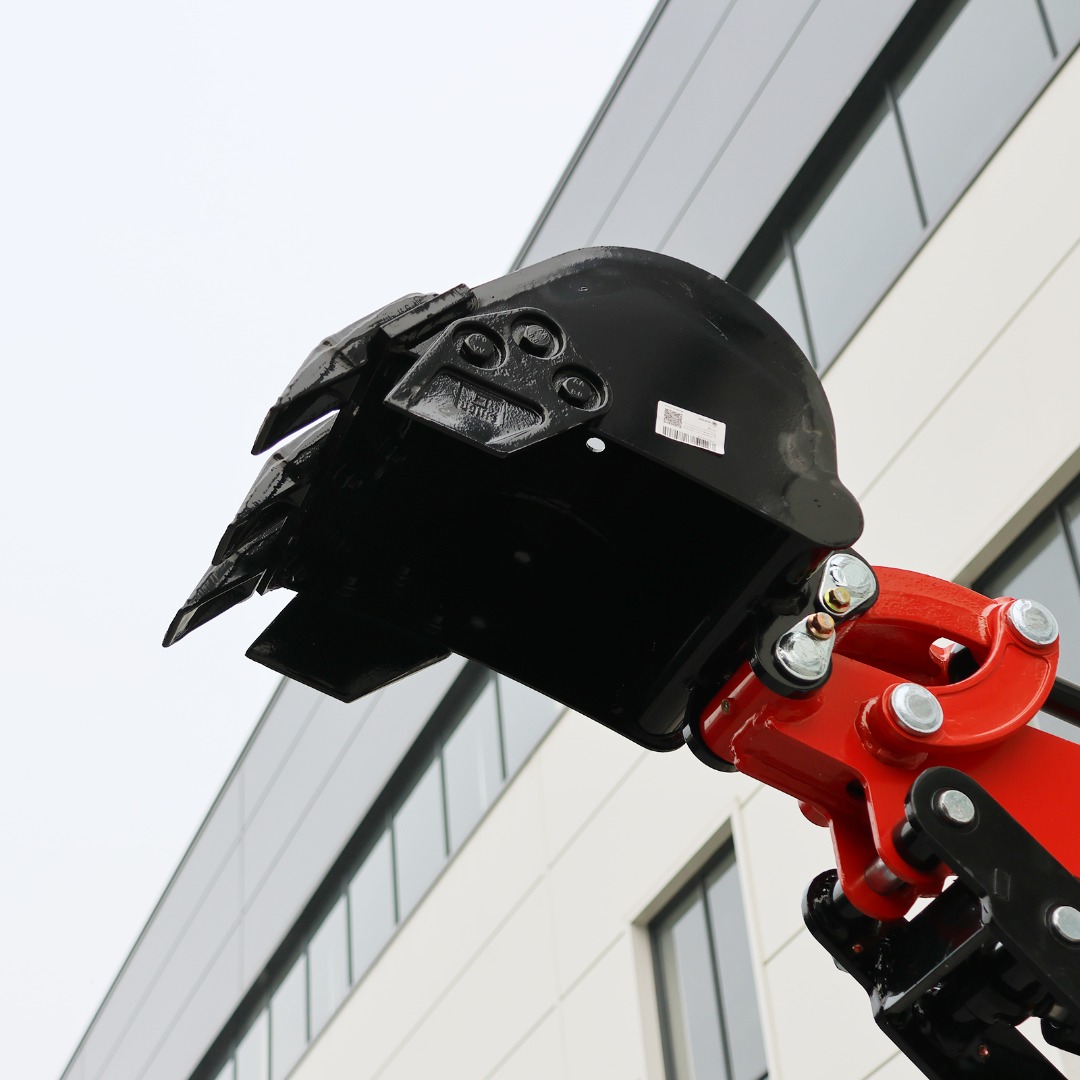

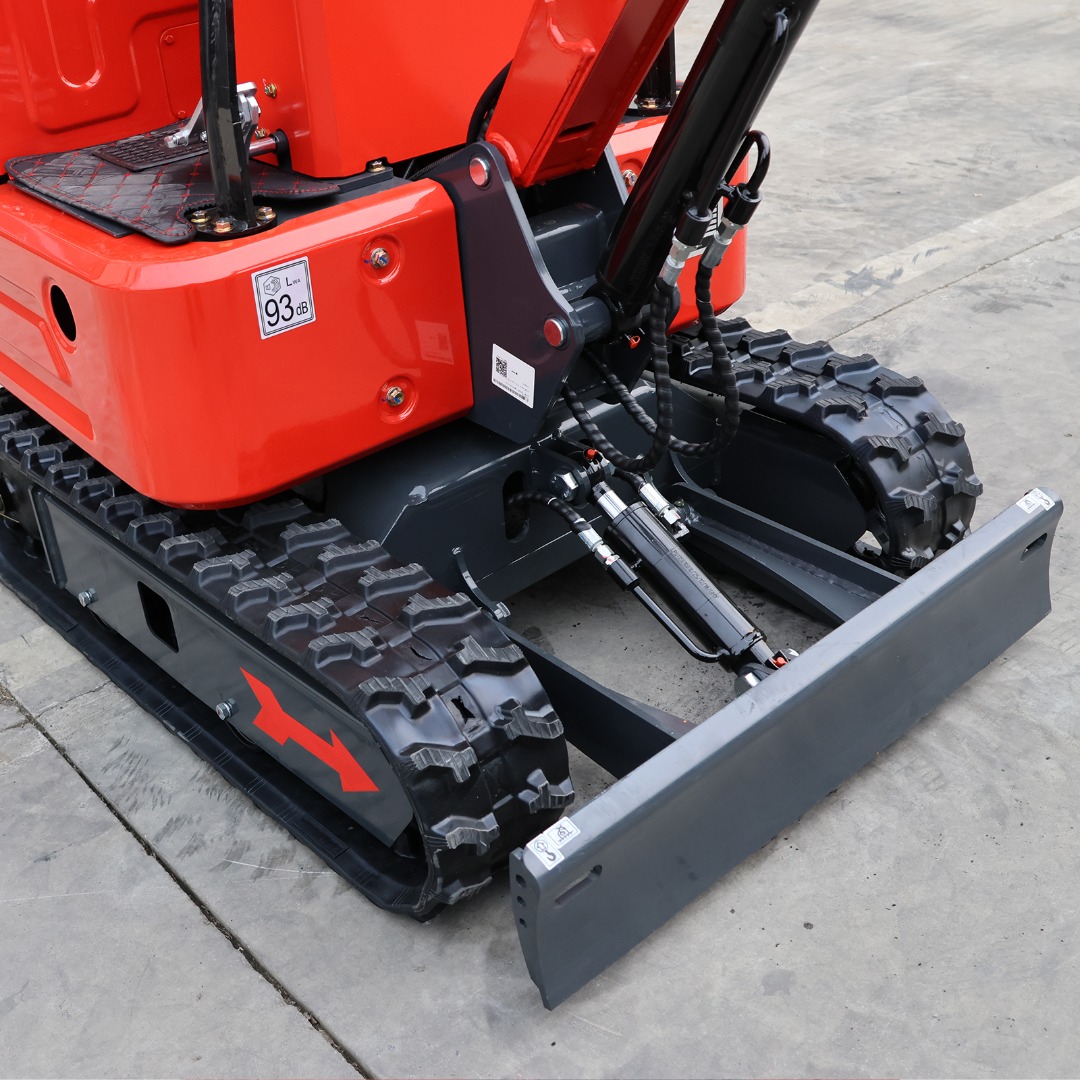

     Operating weight reaches 1400kg with 9.2kN maximum digging force. Max digging depth: 2044 mm, max digging radius: 3364 mm, max dumping height: 1922 mm. Standard 400mm width bucket together with an 885mm dozer blade supports excavation, backfilling and ground leveling to meet multiple earthmoving demands.
  6. Wide Compatibility with Multiple Optional Attachments
     Standard quick hitch enables fast tool replacement without exiting the machine. Compatible with ripper, rake, rotary drill, hydraulic breaker, grapper, inclined mud bucket and more (accessories sold separately). Ideal for residential construction, garden digging, farm land clearing, pool excavation and municipal small engineering.
