LM091 Basic Parameters

Voltage: 3V(2xAAA Battery)

RF:2.4GHz

Modulation Method:GFSK

Transmitting Power Consumption: 20uA

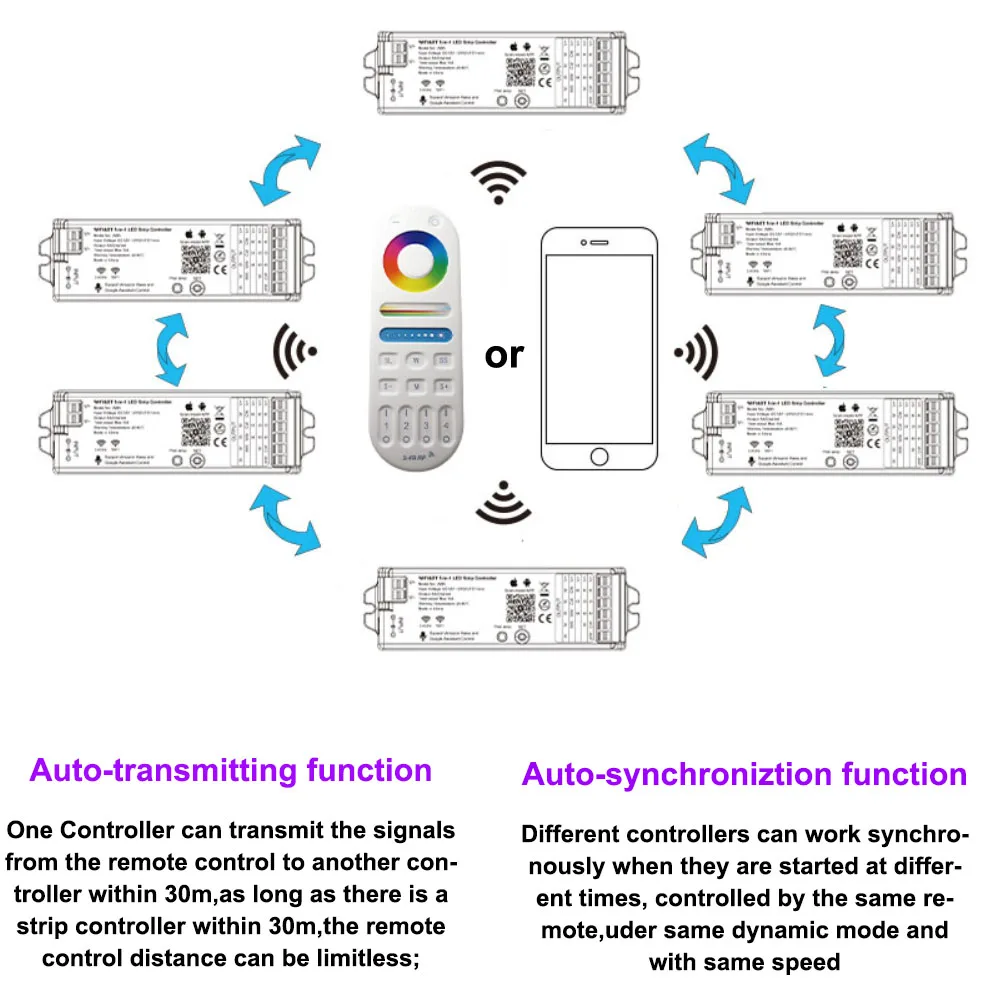

Control Distance:30m

Size:150mm*51mm*18mm

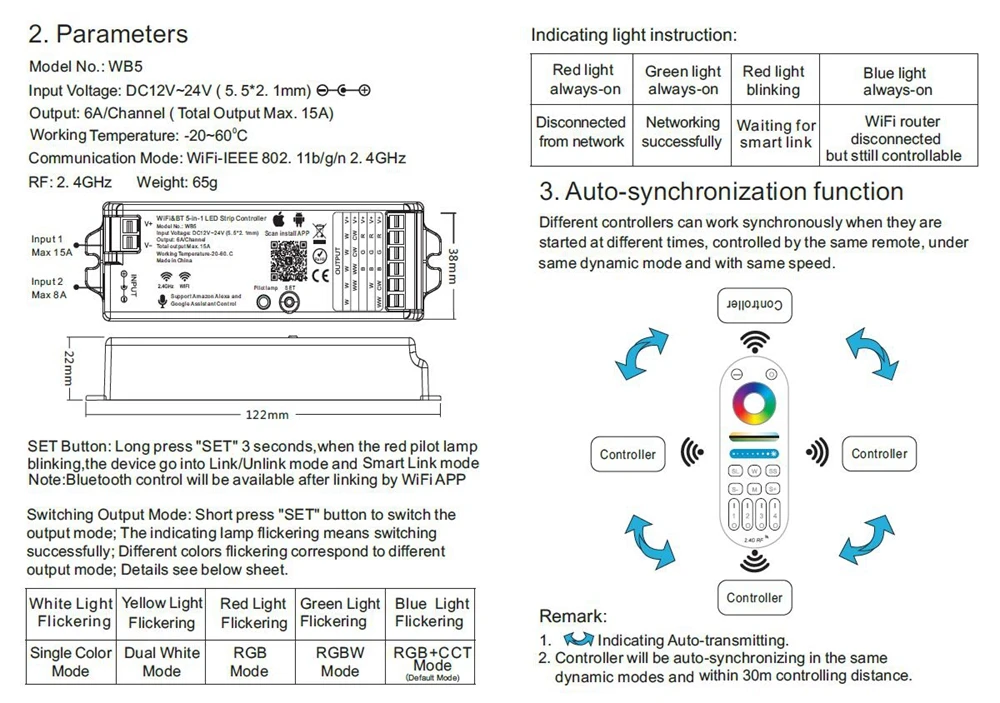

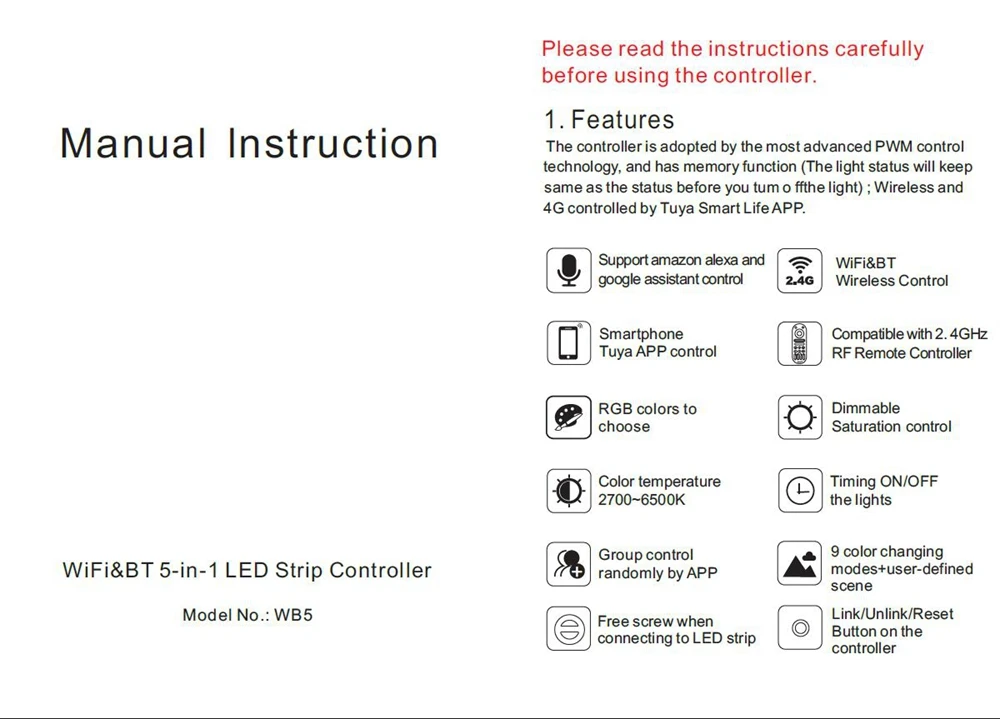

WB5 Basic Parameters

Model No.:WB5

Input Voltage:DC12-24V(5.5*2.1mm)

Output:6A/Channel(Total Output Max.15A)

Working Temperature:-20~60C

Communication Mode:WIFI-IEEE 802.11b/g/n 2.4Ghz

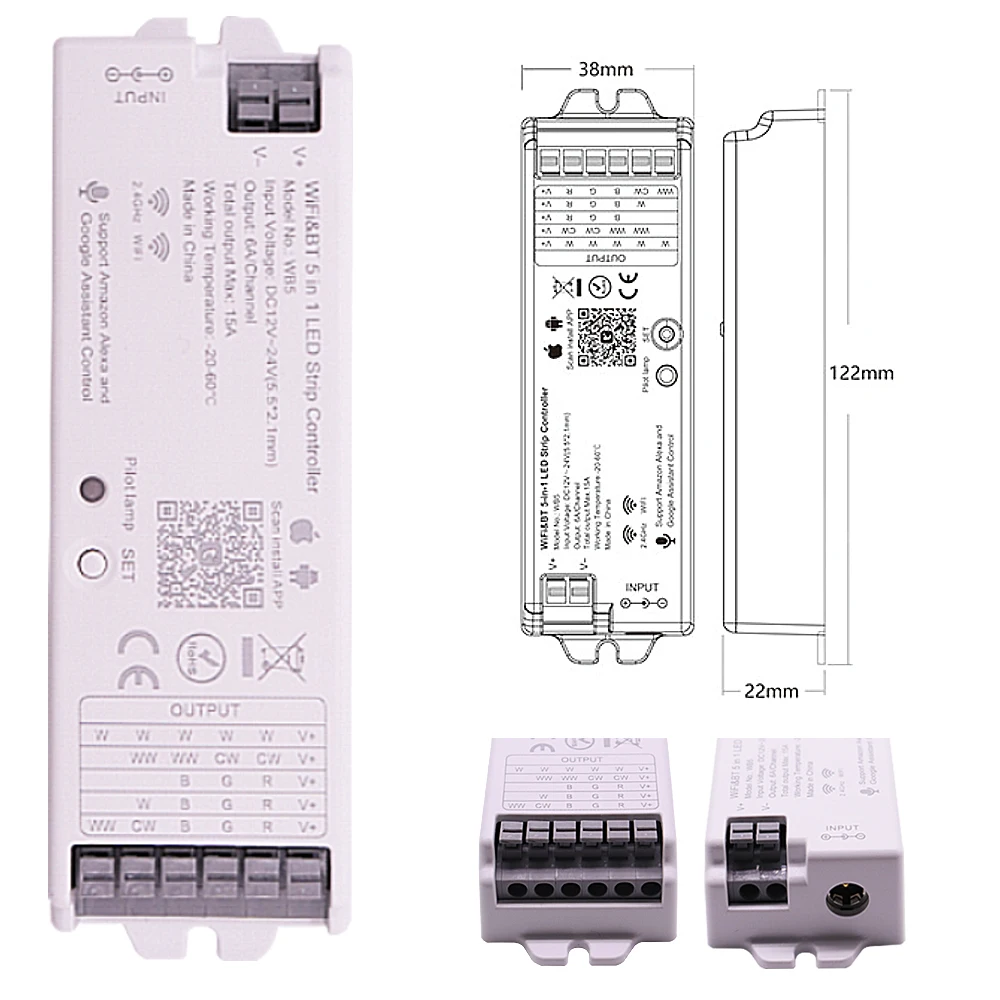

RF2.4Ghz Weight:65g
