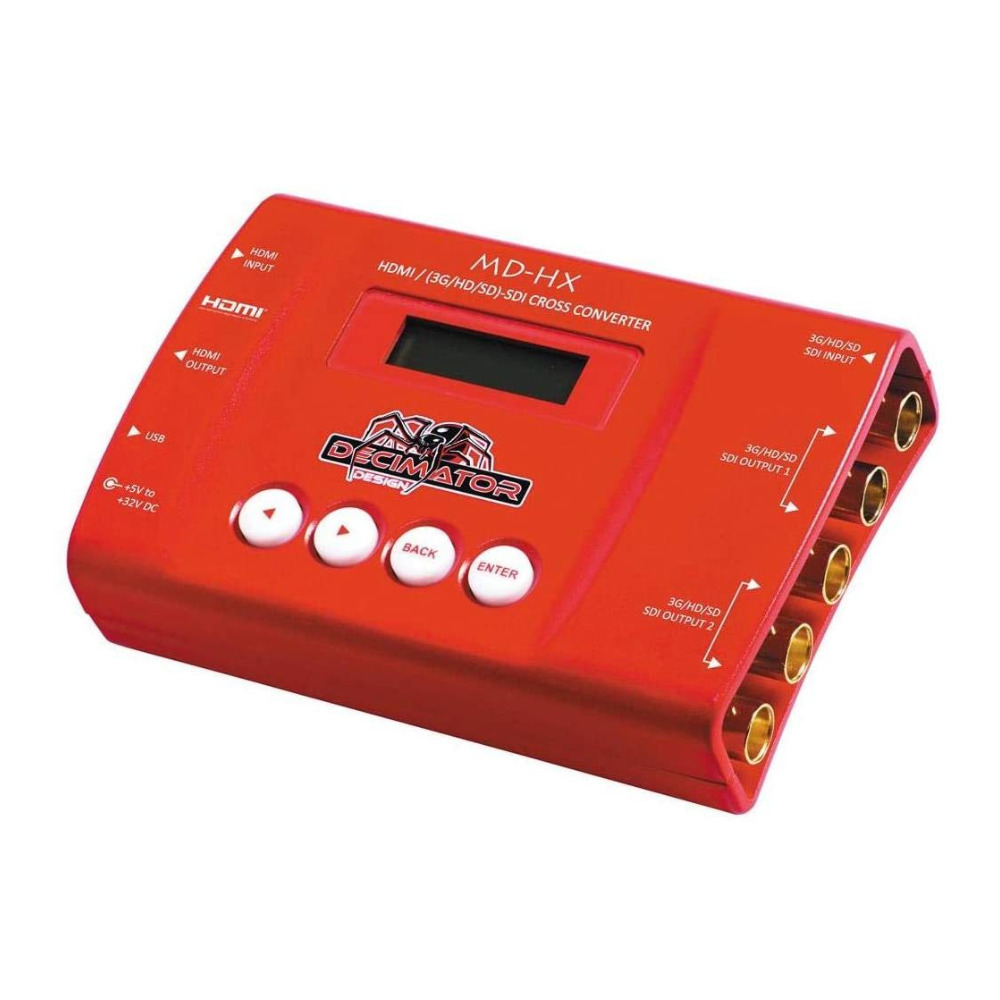

Decimator MD-HX HDMI and SDI Cross Converter w/ Scaling & Frame Rate Conversion
Decimator MD-HX HDMI and SDI Cross Converter w/ Scaling & Frame Rate Conversion
- Support for both 3G level A and B on input and output
- Horizontal and/or vertical image flipping via the scaler
- 1 x HDMI and 1 x (3G/HD/SD)-SDI input
- 1 x HDMI and 2 x (3G/HD/SD)-SDI outputs
- 2 x (3G/HD/SD)-SDI Active Loop-through
- Audio pair rearrangement
- USB port for control and firmware updates
- Metal thread locking DC power socket
- Robust aluminum case
- Includes a power supply
- Decimator MD-HX HDMI and SDI Cross Converter with Scaling and Frame Rate Conversion
- Universal Power Supply
- HDMI Cable
- USB Cable
- Limited 3-Year Warranty
The Decimator MD-HX is a truly portable converter, which incorporates an easy-to-use LCD and button control system. This gives you easy access to all of the amazing features that have been unavailable without a computer until now. The days of having to play with complicated dip switches or having to carry around a computer to change a simple setting are gone.
Cross Converter
The Decimator MD-HX HDMI and SDI Cross Converter supports both 3G level A and B on the input and output, allowing conversions between A and B. It offers four (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier. Output pair 1 can either be a copy of the SDI input (default) or the same as pair 2. The audio pairs in the SDI and HDMI outputs can be rearranged as required.
Additional Features
Horizontal and/or vertical image flipping is possible via the built-in scaler. It also includes a down/up cross converter that allows either the HDMI or SDI input to be scaled and/or frame rate converted to the required standard. The converter features a robust aluminum case with easy-to-use LCD and button control system.
Specifications
Decimator MD-HX HDMI and SDI Cross Converter with Scaling and Frame Rate Conversion
- Inputs:
- 1 x HDMI input
- 1 x (3G/HD/SD)-SDI input
- Outputs:
- 1 x HDMI output
- 2 x (3G/HD/SD)-SDI Active Loop-through or addition outputs
- 2 x (3G/HD/SD)-SDI outputs
- Modes offered:
- SDI in to HDMI and SDI out
- SDI in to SDI out and HDMI in to HDMI out
- SDI in to SDI out and Scaled SDI in to HDMI out
- SDI in to SDI out and Scaled HDMI in to HDMI out
- HDMI in to SDI out and SDI in to HDMI out
- HDMI in to HDMI and SDI out
- HDMI in to SDI out and Scaled SDI in to HDMI out
- HDMI in to SDI out and Scaled HDMI in to HDMI out
- Scaled SDI in to SDI out and SDI in to HDMI out
- Scaled SDI in to SDI out and HDMI in to HDMI out
- Scaled SDI in to HDMI and SDI out
- Scaled HDMI in to SDI out and SDI in to HDMI out
- Scaled HDMI in to SDI out and HDMI in to HDMI out
- Scaled HDMI in to HDMI and SDI out
- USB port: Control and firmware updates
- Power input: Metal thread locking DC power socket
- Dimensions: 3.1 x 4.8 x 1.2 inch (79.5 x 123 x 29.5 mm)
