Product Purchase Notes:

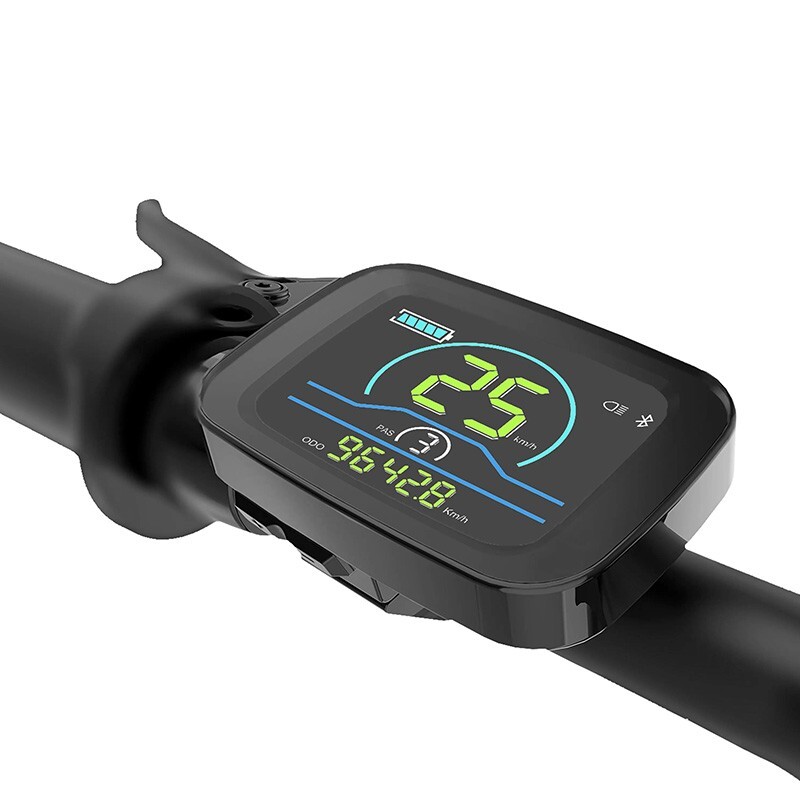

YL81C LCD display, there are different LCD Display protocols on different brands of ebikes, please contact our online customer service to determine the LCD Display protocol you need before you buy, if you don't determine the LCD Display protocol with our online customer service, your purchased display may not match your ebike! This is very important thing! Please contact us!
Description:
Origin: China
Brand Name: Yolin
Model No: YL-81C
Screen Type: LCD
Colour: Black
Voltage:36/48/52volts
Communication:UART/CAN
Support protocol:YL-01,YL-02,5s,KDS,J,Octagon
PAS level: 0-3/1-3/0-5/1-5
Mounting handlebar size: Φ22.2mm
Wire connector: waterproof wire (recommended)/regular wire
Certification: CE / EN15194 / ROHS
Waterproof: IP65
1.Product Features
● Battery level indicator
● Auxiliary level adjustment and indication
● Headlight indicator
● Speed indicator (including real-time speed, maximum speed (MAXS) and average speed (AVG))
● Distance indicator (including ODO and travelling distance (travel))
● Error code indicator
● Parameter setting function
2. Product Specifications
● 36V/48V power supply
● Rated operating current 15mA
● Maximum operating current 30mA
● Leakage current at power failure <1uA
● 50mA operating current at the power controller terminal
● Operating temperature -20 ~ 60 °C
● Storage temperature -30 ~ 70 °C
3. Wiring sequence definition
We have regular connection harnesses and waterproof connectors. According to customer's requirement, we can provide different connectors.
Our Advantages
Pre-sales service
1. Provide free consultation to solve customer's confusion and provide free technical support.
2. carefully study customer needs, according to the customer's actual installation situation to provide a detailed, suitable solution environment.
In-sale service
1. Try our best to meet the reasonable needs of customers.
2. 2. Keep close contact with customers during each business period.
3. Co-operate with customers in a friendly manner to meet their needs with the best quality products.
After-sales service
1. train customers how to install and use the e-bikes for free.
2. Provide one year free warranty for common products.
3. perfect after-sales service to help customers solve problems in the process of using.
4. Provide regular tracking service for customers.
Shipping
1. Depending on the location of the item, items will be shipped from CN stock or US stock within 1-3 business days. 2.
2. In some cases, the shipping date may be delayed due to out of stock. We will notify you by email.
3. Please leave a usable address and phone number in the shipping information. The seller is not responsible for incorrect addresses.
4. Please indicate your personal requirements such as colour, packaging etc. when making payment.
5. 5. We will not be responsible for any delays in the delivery process, including but not limited to customs postage checks, strikes, coercive measures etc.
Return Policy
1. Returned items must be unused and in the same condition and original packaging as when received.
2. 2. Once a return is approved, it is the buyer's responsibility to return the product and pack it properly to prevent any damage during shipping.
3. 3. If you receive an item and are not satisfied, please contact me before returning it. Then return it within 30 days for a replacement or refund. Postage will not be refunded.
