Product Type: Alternator |
Replaces: MIA13192 |
  • Amperage: 65 |
  • Fan: Internal |
  • Grooves: 4 |
  • Pulley: Serpentine |
  • Regulator: Internal |
  • Volts: 12 |
  • Source: Aftermarket
Over 30,000 aftermarket & original parts
Rare Electrical
Parts for all applications

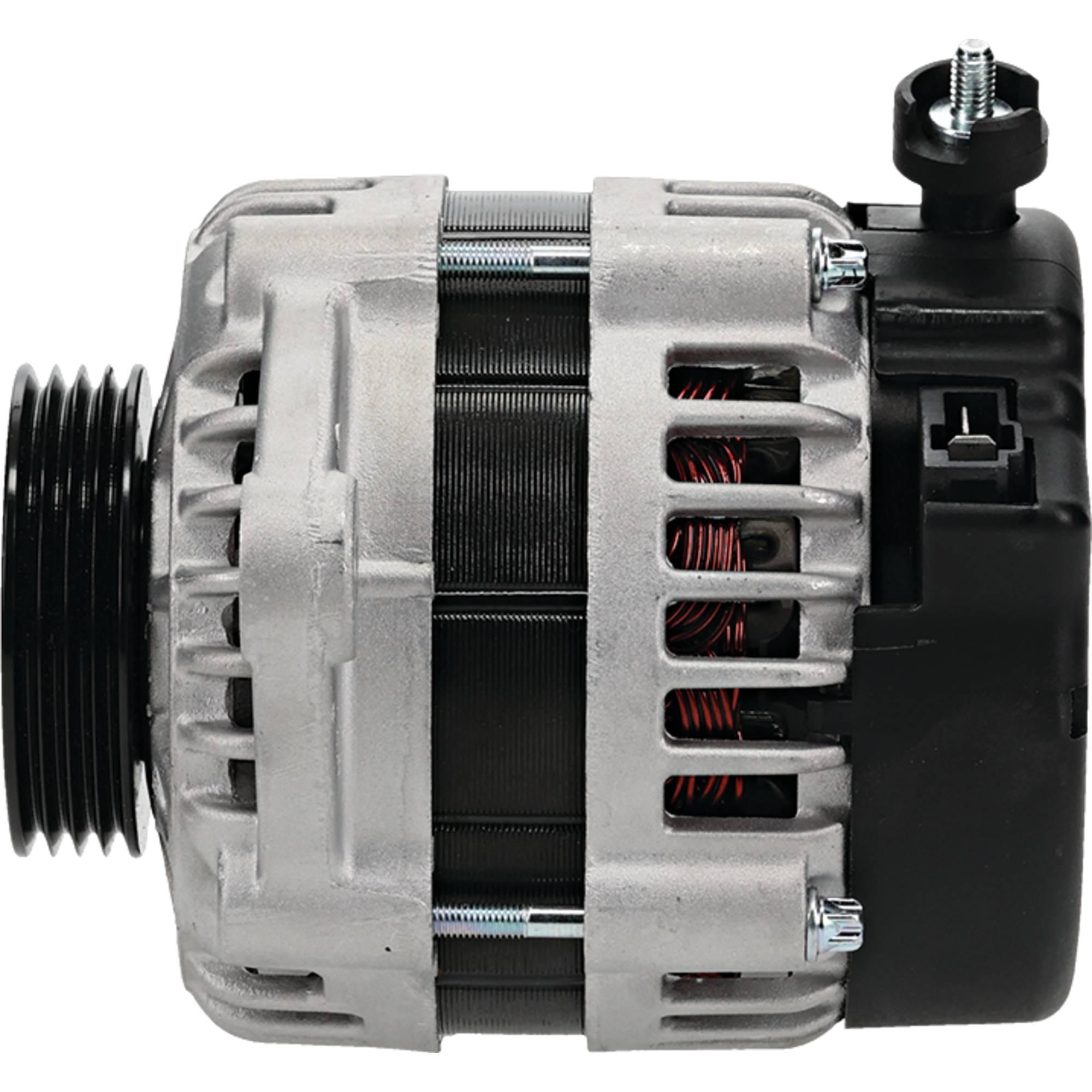

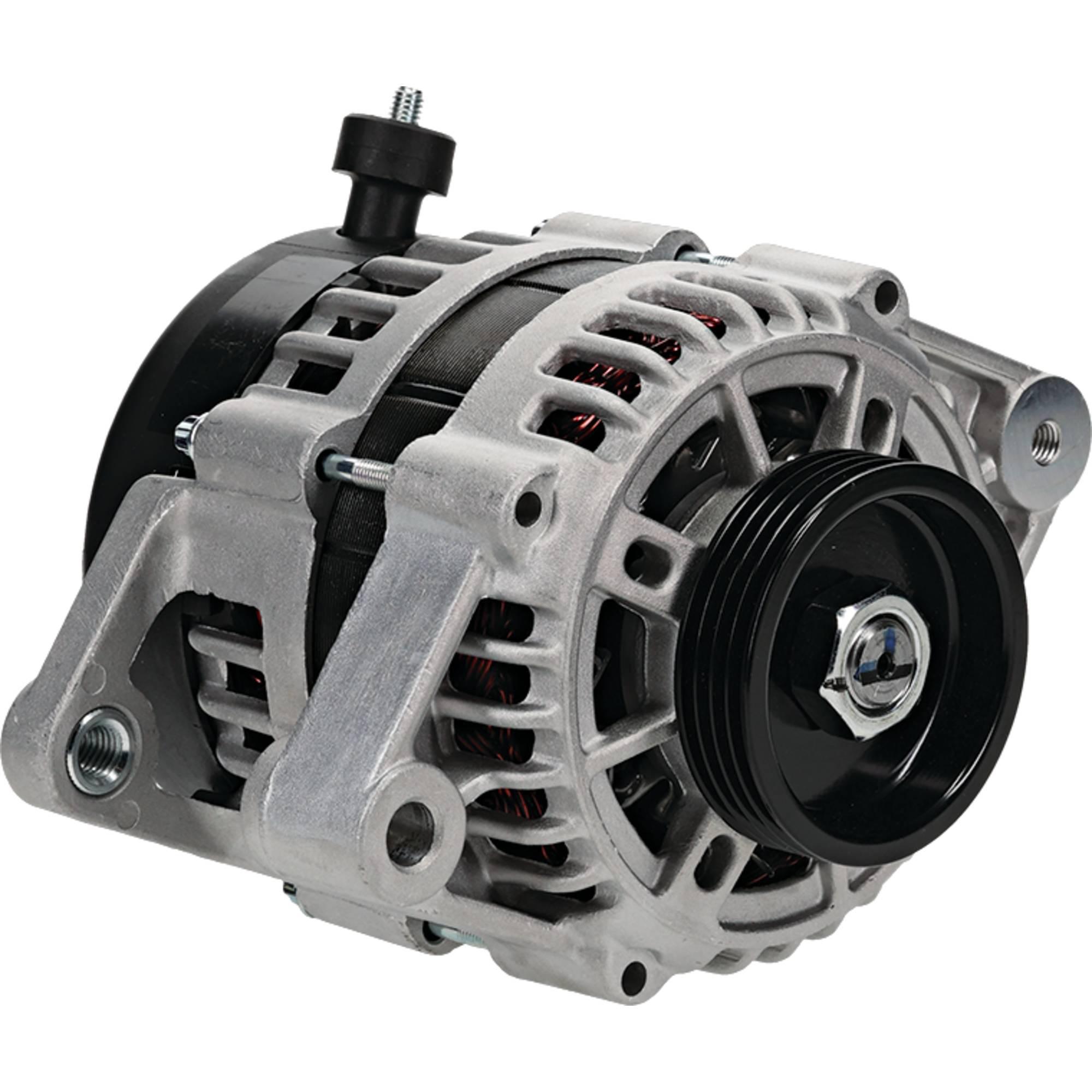

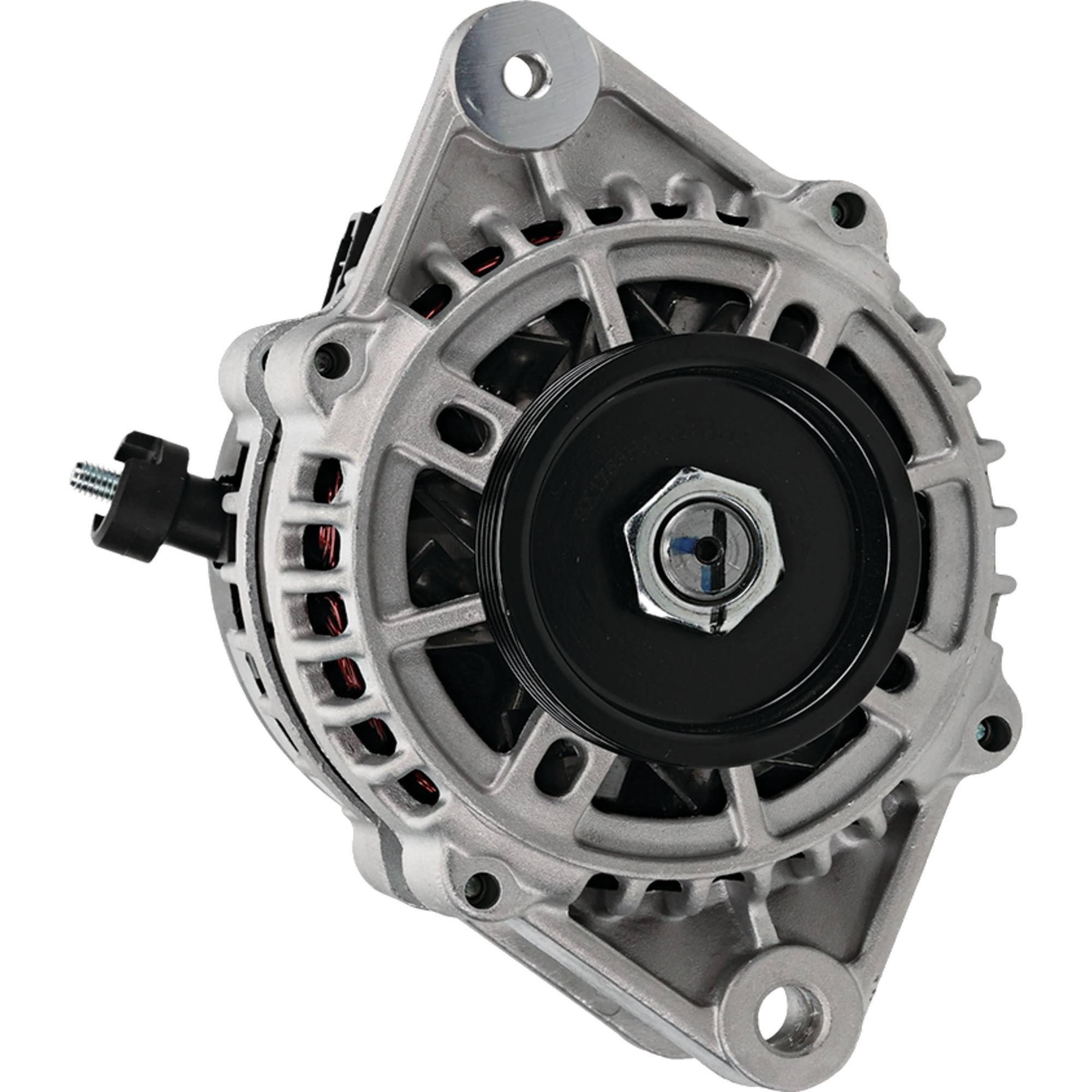

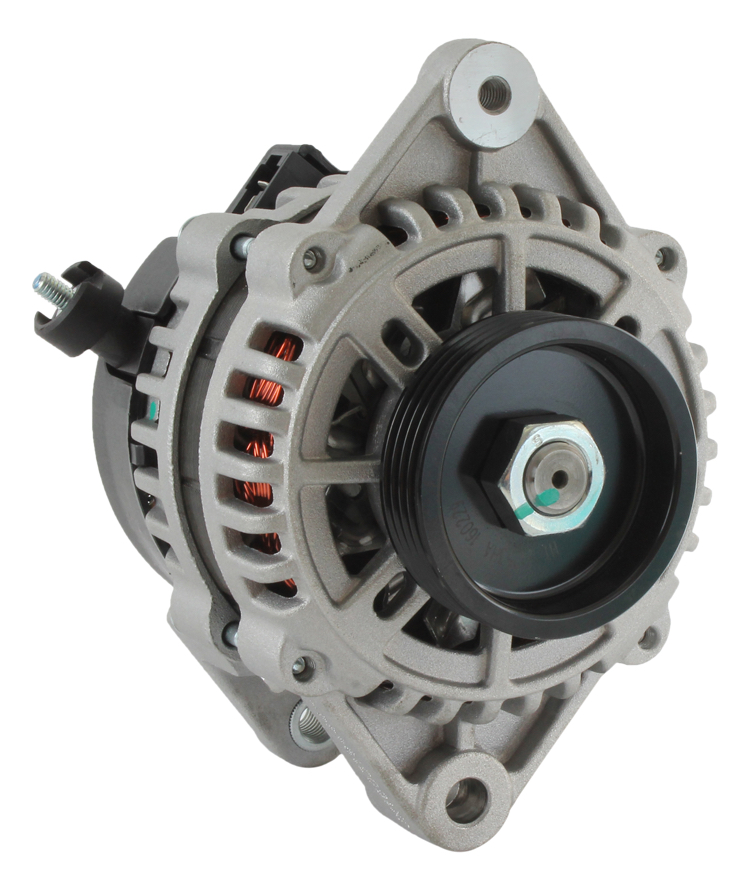

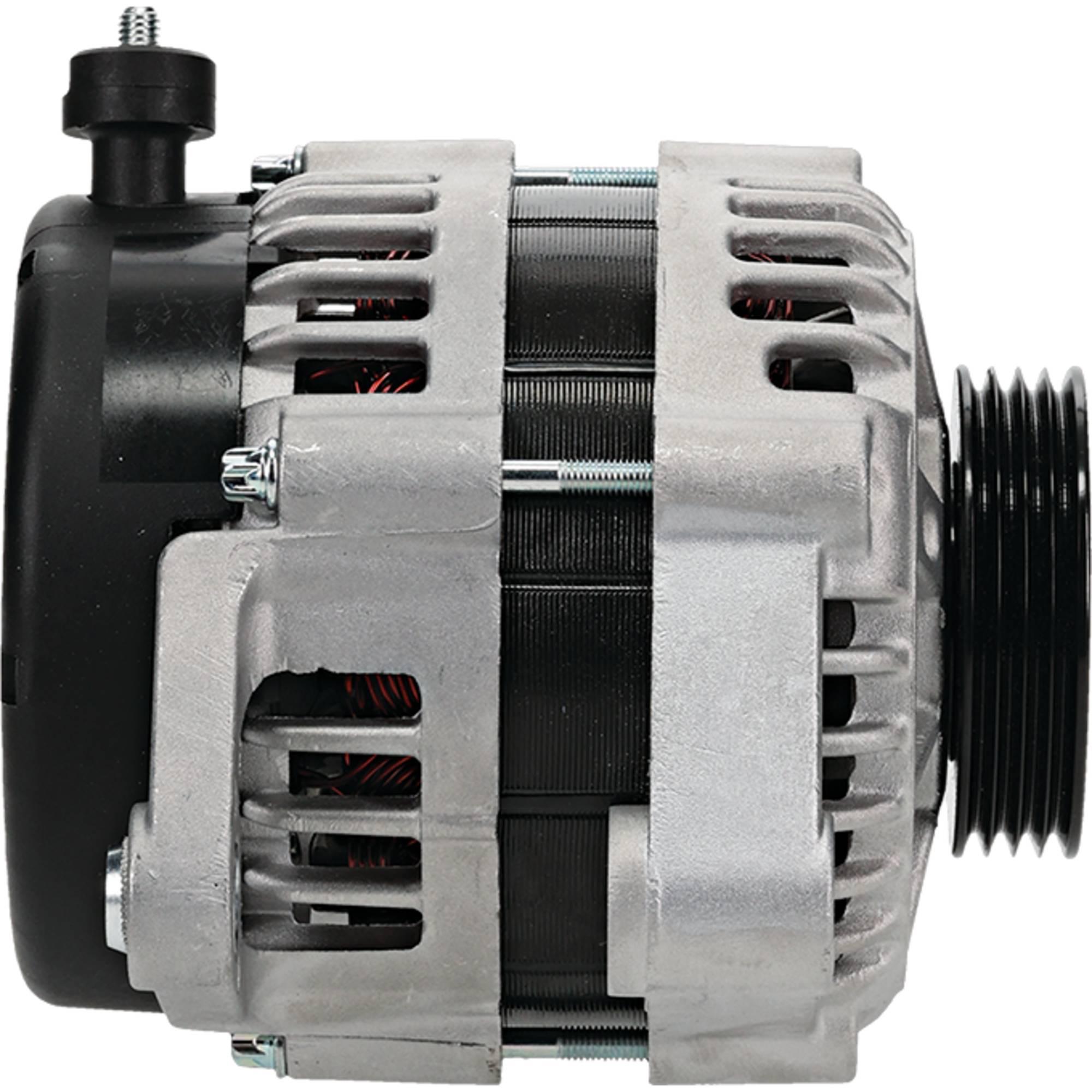

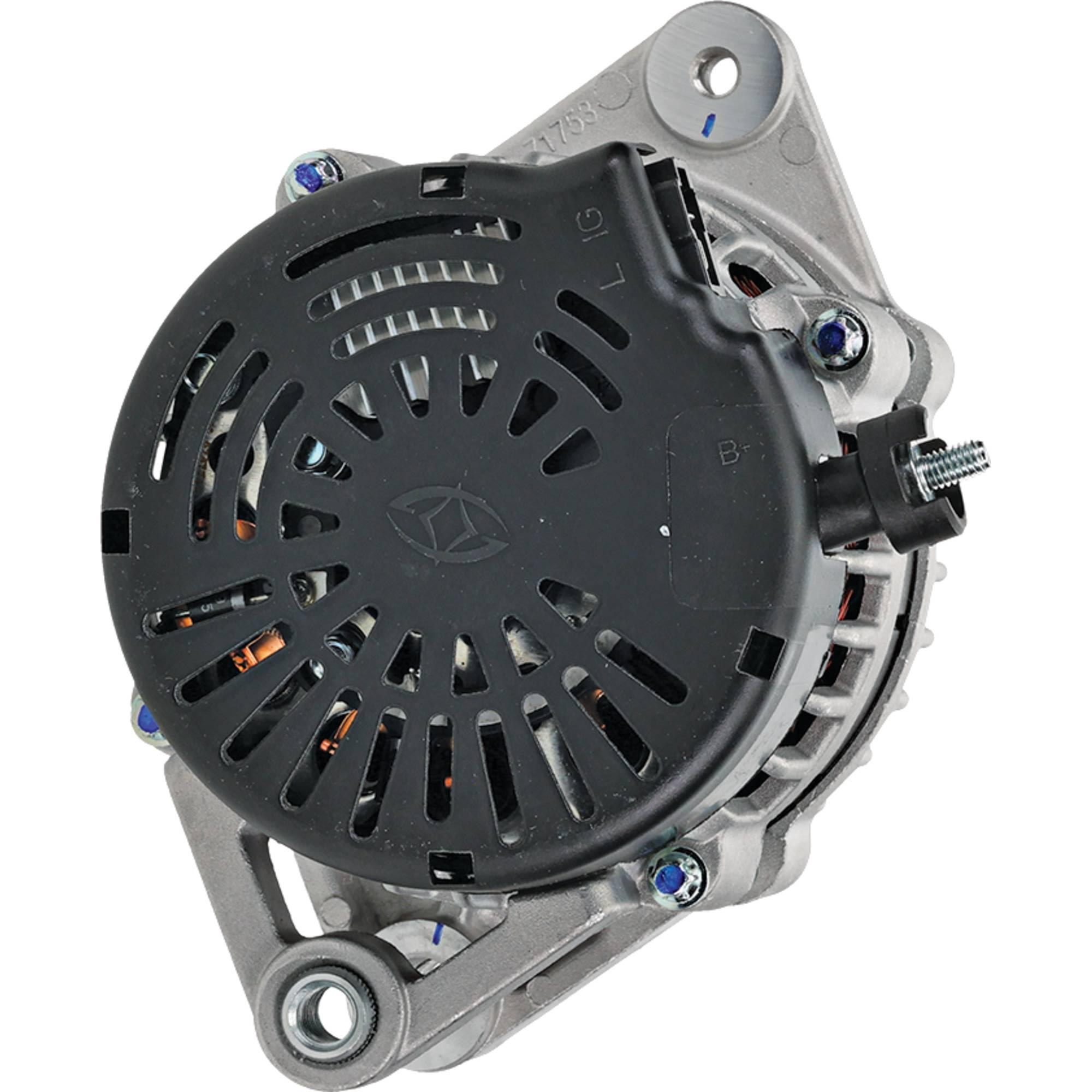

Alternator John Deere Gator XUV 590i 590i S4 590E 590M 586cc 65A 12V MIA13192

Replaces Part Numbers & Specifications

OEM PART NUMBERS:
• John Deere: MIA13192

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 65 Amp (875 Watt)
• Design: IR/IF (Internal Regulator / Internal Fan)
• Rotation: Clockwise (CW)
• Clock Position: 12:00
• Pulley: Serpentine 4-Groove
• Polarity: Negative Ground
• Weight: 12 lbs
• Condition: New

APPLICATIONS:
• John Deere Gator XUV 590i / 590i S4 (2016+)
• John Deere Gator XUV 590E / 590E S4 (2018+)
• John Deere Gator XUV 590M / 590M S4 (2019+)
• All w/Chery 586cc Inline Twin-Cyl 32HP EFI Gas Engine

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.



JOHN DEERE GATOR XUV 590 SERIES UTV:
• Gator XUV 590i — Chery 586cc (35.8 cu in) Inline Twin-Cyl EFI Gas 32HP (2016+)
• Gator XUV 590i S4 (4-Seat) — Chery 586cc Inline Twin-Cyl EFI Gas 32HP (2016+)
• Gator XUV 590E — Chery 586cc Inline Twin-Cyl EFI Gas 32HP (2018+)
• Gator XUV 590E S4 (4-Seat) — Chery 586cc Inline Twin-Cyl EFI Gas 32HP (2018+)
• Gator XUV 590M — Chery 586cc Inline Twin-Cyl EFI Gas 32HP (2019+)
• Gator XUV 590M S4 (4-Seat) — Chery 586cc Inline Twin-Cyl EFI Gas 32HP (2019+)

ENGINE SPECIFICATIONS:
• Chery 586cc (35.8 cu in) Horizontal Inline Twin-Cylinder
• 72mm Bore × 72mm Stroke / 9.5:1 Compression / OHV
• 32HP at 5600 RPM / 44.6 Nm (32.9 lb-ft) Torque at 3200 RPM
• Liquid-Cooled / Electronic Fuel Injection (EFI)
• 875-Watt (65 Amp Maximum) Charging System

NOTE: Verify OEM part number MIA13192 from your original unit. CVT transmission with On-Demand 4×4 driveline.
