MaxTow Match Quad Pillar Gauge Package for the 2003-2009 Dodge Ram Cummins
MaxTow Match Quad Pillar Gauge Package for the 2003-2009 Dodge Ram Cummins
Gauge Set for the 3rd Gen Cummins
Match your 3rd Gen Cummins Gauge Cluster with MaxTow Match 3rd Gen Cummins Quad Gauge Packages for any 2003-2009 Dodge Ram 2500 & 3500 24 Valve diesel truck. Experience full customization with a gauge package combining a factory fitted and color matched Taupe Quad Gauge Dodge Ram Pillar Pod and (4) 2-1/16 (52mm) MaxTow Match 3rd Gen Cummins Gauges. Monitor key readings and maximize performance with a 60 PSI Boost, 1500° Fahrenheit EGT Pyrometer, 30 PSI Fuel Pressure and Transmission Temperature Gauge. Adapters and wiring kits included for installation make the process even easier.
MaxTow Match Gauges for the 3rd Gen Cummins

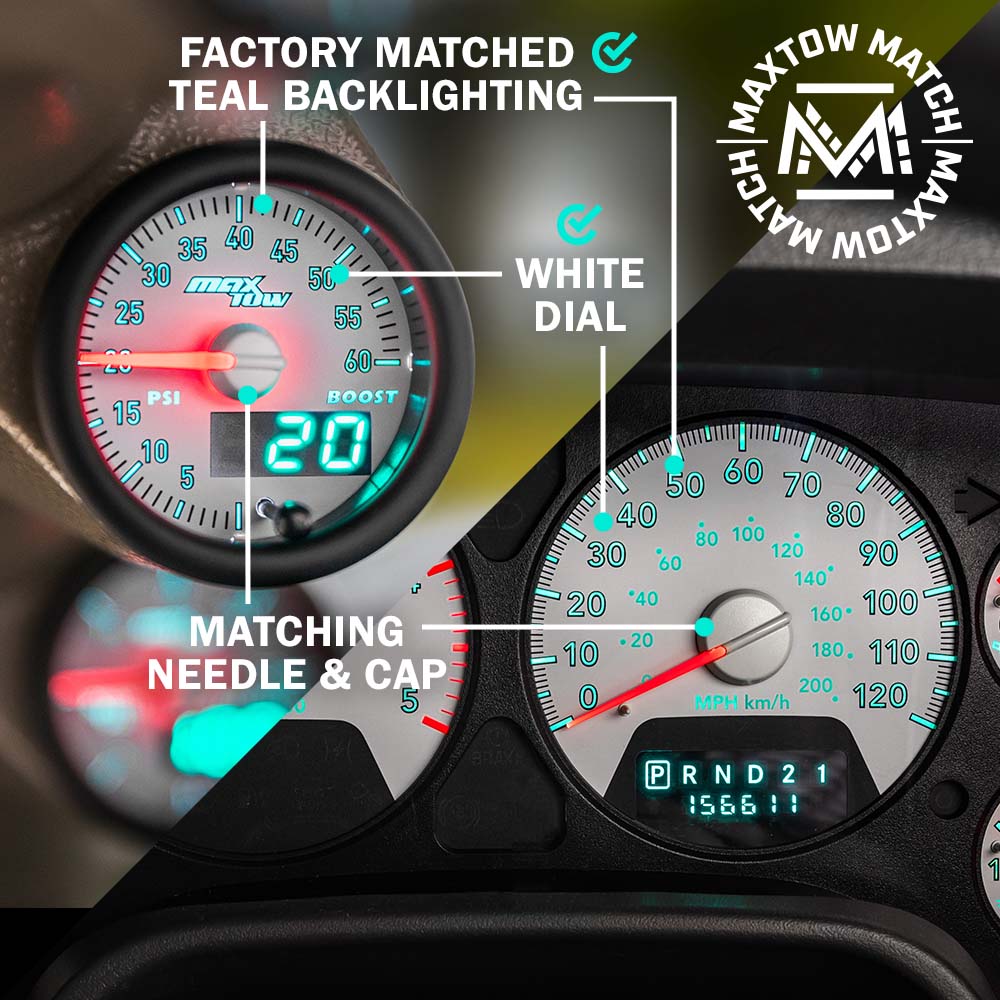

MaxTow Match 3rd Gen Cummins Series Gauges feature a white gauge dial, clear flat lens, and matching faceplate design including a matching needle cap like the factory 3rd Gen Cummins Gauge Cluster. View readings on an ultra-bright Double Vision analog and digital LED display. The analog display has factory matched teal backlighting and an illuminated red needle equipped for smooth needle movement and accurate readings. Take digital numerical readouts on the corresponding teal digital display at the same time. Get ready to hit the road and Tow to the Max®
MaxTow Guarantee
MaxTow includes a One Year Limited Warranty and Free Lifetime Tech Support with every purchase.

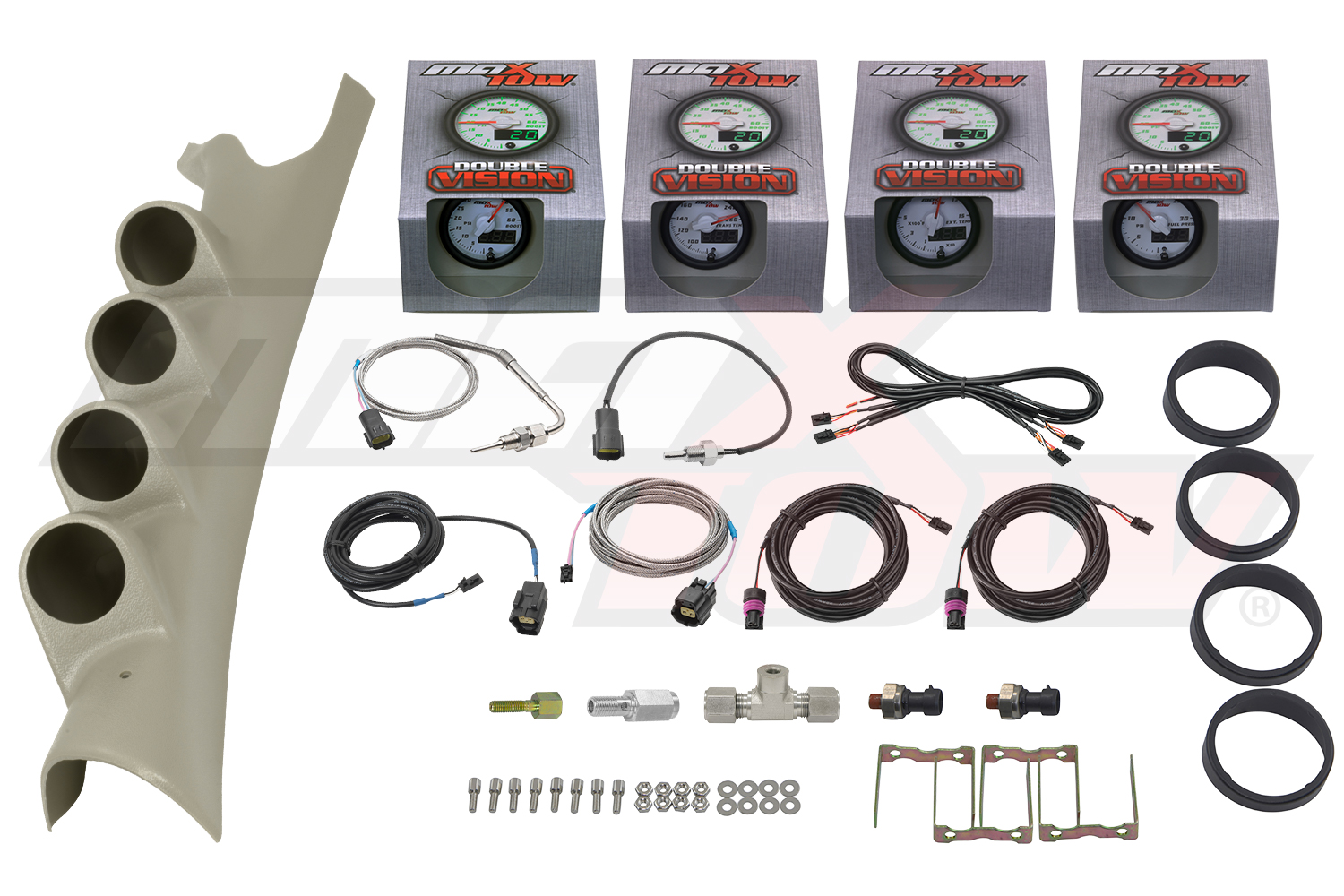

Included Parts with Gauge Package:
- Designed to Fit 2003-2009 Dodge Ram 2500 3500
- Factory Color Matched
- Replaces to the Factory A-Pillar
- Holds (4) 2-1/16" (52mm) Gauges
- Manufactured from ABS Plastic
- Includes Pod Mounting Hardware

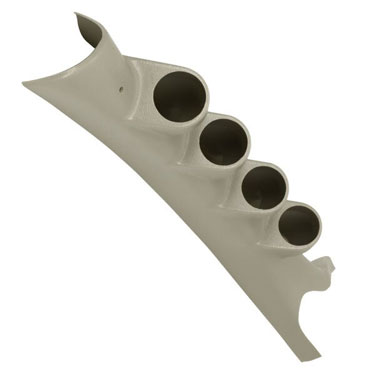

Taupe Quad Pillar Gauge Pod
- Matches the Look of 3rd Gen Cummins Factory Cluster Dash Gauges
- Boost Readings from 0 to 60 PSI
- 1/8-27 NPT Pressure Sensor
- 9 Pressure Sensor Harness
- 5 Power Harness
- Mounting Hardware

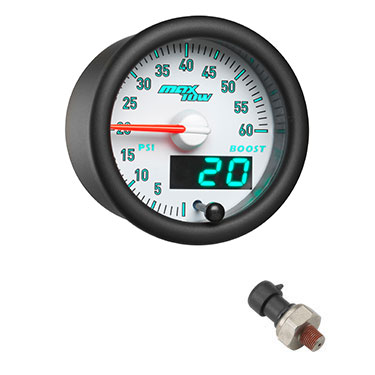

MaxTow Match 60 PSI Boost Gauge
- Matches the Look of 3rd Gen Cummins Factory Cluster Dash Gauges
- Exhaust Gas Temperature Readings from 0 to 1500° Fahrenheit
- 1/8-27 NPT Type K Thermocouple EGT Probe with Waterproof Connector
- Probe Includes 3 of Stainless Steel Braided Cable
- 6' Steel Braided Sensor Harness with Waterproof Connector
- 5' Power Harness
- Mounting Hardware
MaxTow Match 1500°F Exhaust Gas Temperature Gauge
- Matches the Look of 3rd Gen Cummins Factory Cluster Dash Gauges
- Fuel Pressure Readings from 0 to 30 PSI
- 1/8-27 NPT Pressure Sensor
- 9 Pressure Sensor Harness
- 5 Power Harness
- Mounting Hardware
MaxTow Match 30 PSI Fuel Pressure Gauge
- Matches the Look of 3rd Gen Cummins Factory Cluster Dash Gauges
- Transmission Temperature Readings from 80° to 260° Fahrenheit
- 1/8-27 NPT Temperature Sensor with Waterproof Connector
- 9 Sensor Wire Harness with Waterproof Connector
- 5 Power Wire Harness
- Mounting Hardware
MaxTow Match Transmission Temperature Gauge

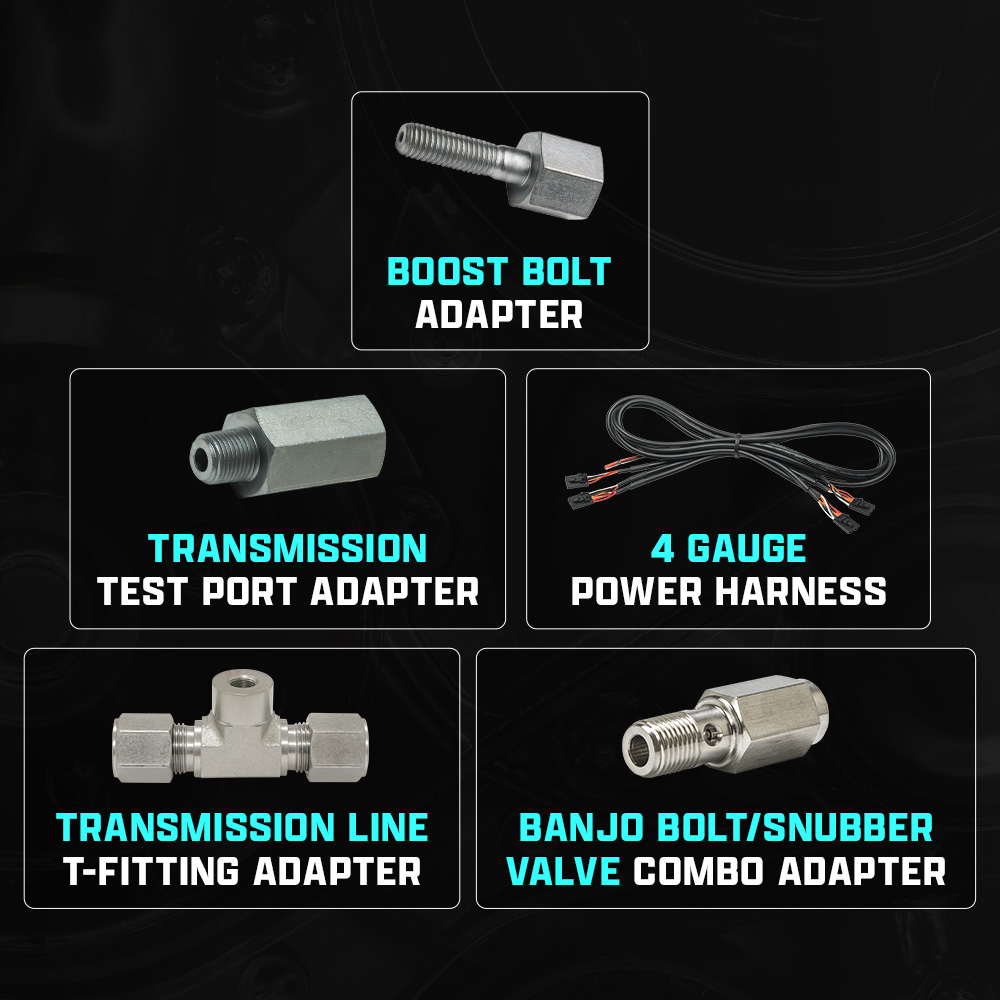

- Specifically Designed To Thread Directly Into Your Intake Manifold
- Provides Easy Installation For The 1/8-27 NPT Barbed Fitting That Comes Standard With 35 PSI & 60 PSI Boost Gauges
Boost Bolt Adapter
- Required For:
- 1998.5-2019 Dodge Cummins
- Installation:
- 1. Remove One Of The Bolts and Thread The New Boost Bolt In.
- 2. No Drilling or Tapping Required.
- Allows Installation of Temperature Sensor to the 1/2" Transmission Cooler Line
- Includes T-Fitting, Compression Nuts & Cutting Rings for Leak-Free Seal
- Female 1/8-27 NPT Thread on T-Fitting for Sensor
Transmission Cooler Line T-Fitting
- Required For:
- Installing Sensor to 2007.5+ Dodge Ram Cummins
- Installing Sensor to 68RE & 68RFE Transmissions
- Installation:
- 1. Remove the 1/2" Transmission Cooler Line.
- 2. Cut the Line and Attach the T-Fitting Adapter.
- 3. Install The Temperature Sensor Into The T-Fitting and Reattach the 1/2" Transmission Cooler Line.
- All-in-1 Design Replaces the Factory Banjo Bolt & Allows Installation of Pressure Sensor to Fuel Filter Housing
- Snubber Valve Used Protects Pressure Sensor from Spikes/Water Hammer Effect
- Includes 2 Crush Washers for Secure Fit
5.9L 24-Valve Cummins Banjo Bolt & Snubber Valve Combo Fitting
- Required For:
- 1998.5-2010 Dodge Cummins
- Installation:
- 1. Remove the Bottom Stock Banjo Bolt from the Fuel Filter Housing
- 2. Install the Banjo Bolt/Snubber Valve Combo Fitting & Crush Washers into the Housing
- 3. Install the Pressure Sensor onto the Snubber Valve
- Power All 4 Gauges from One Easy-to-Use Harness
- Prevents Wire Clutter in the Fuse Box, Under the Hood, or in the Pillar Pod
- Attach Wiring to the Power Source
- Plug-In Connectors for the Back of Each Gauge
- 6.5 Length for Added Flexibility During Installation
4 Gauge Power Wiring Harness
- Detailed Installation Instructions Made Specifically for the 2003-2009 Dodge Ram 24-Valve 5.9L/6.7L Cummins
- Features Full Color Instructions that Walk Users Through the Process of Installing the Sensors, Mounting the Pod & Powering the Gauges
Step by Step Installation Guide
