Product Description

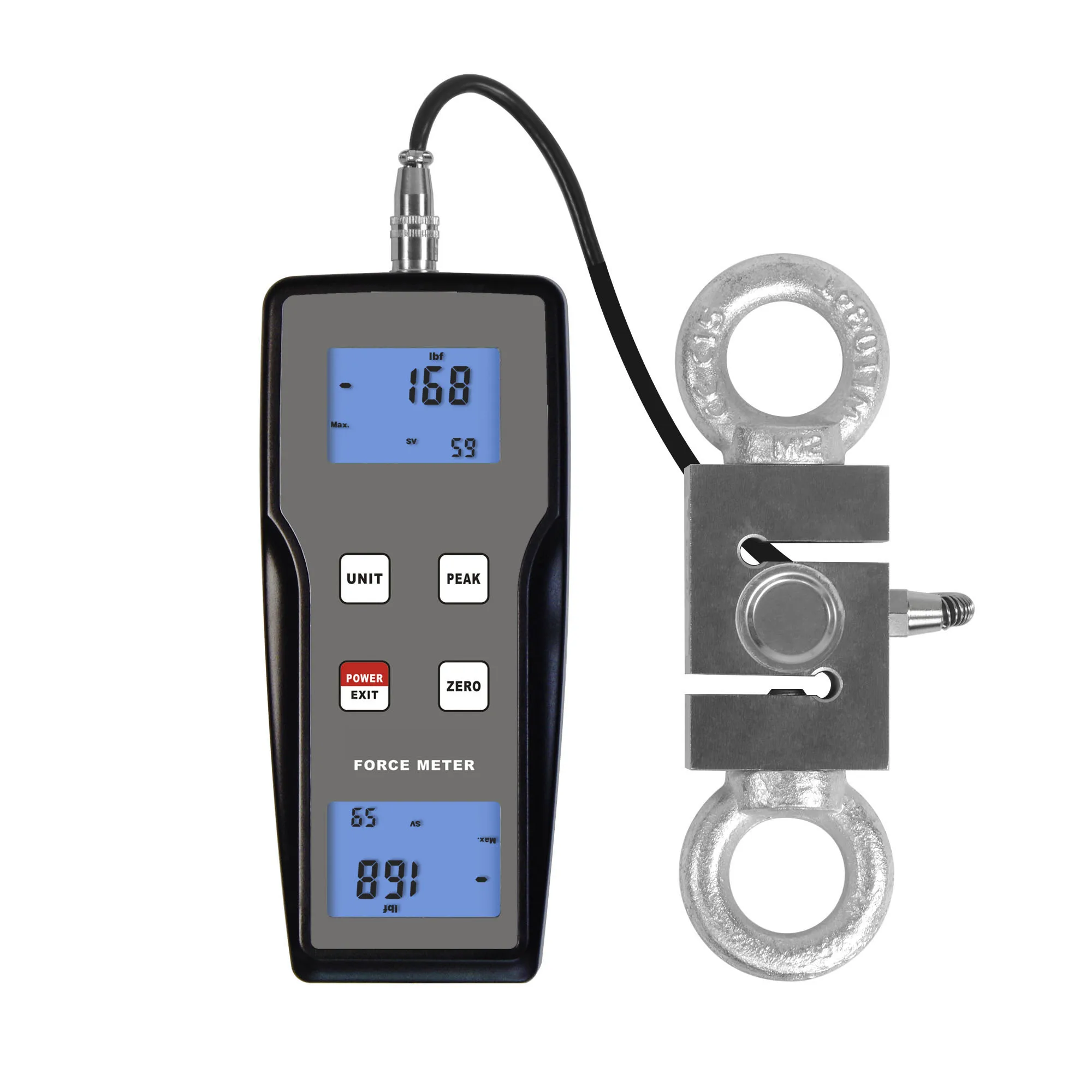

Push Pull Gauge FM-204-500K

Hand Held Force Series Dynamometers FM-204 500KG Digital Force Measuring Instruments

Applications:
The digital force gauge is a kind of simple and convenient functional instrument for high-accuracy push force and pull force test.It is widely used in electronics,building hardware,textile,auto parts.



Features:
*High accuracy and high resolution.
*Digital display with no guessing or errors.
*With 3 measurement unit for selection and conversion, N,kg,lb.
*With peak value hold function.
*With 10 minutes auto power off and manual power off.
*Either alkaline battery Power supply or 6V DC power.



Details:



Model:FM-204-500K
Force Range:±500 kgf//±4900 N//±1100 Lbf
Resolution:0.01 kgf (<100 kgf)//0.1 kgf (≥100 kgf)//0.1 N (<1000N)//1 N (≥1000 N)//0.1 Lbf (< 1000 Lbf)//1 Lbf (≥1000 Lbf)



Model:FM-204-1000K
Force Range:±1000 kgf//±9800 N//±2200 Lbf
Resolution:0.01 kgf//0.1 kgf//0.1 N//1 N//0.1 Lbf//1 Lbf



Accuracy	±0.5% FS ±1 Digit
Unit	kgf, N, Lbf
Measurement State	Peak Value, Real Time Measurement
Display	2 Reversed 4 Digit LCD
Power Off	10 Mins Auto Power Off, Manual Power Off
Backlight	Blue Backlight
Safe Load	150% FS ( Buzzer Alarm Over 110% FS )
Power Supply	2 x 1.5 AA ( UM-3 ) Battery or 6VDC Power
Operating	Temperature: 0 ~ 40°C
Conditions	Humidity: <80%
Surrounding	No Vibration Source or Corrosive Mwdium
Weight	1165 g
Case Size	175 x 80 x 36 mm
Senor Size	181 x 54 x 30 mm





Accessories:
Standard Accessories
Digital Force Gauge
Sensor (M12 Screw Hole)
2 Suspension Links
Manual
Carrying Case



Optional Accessories
Power Adapter



For digital dynamometer price ,please feel free to contact us.Thank you!
