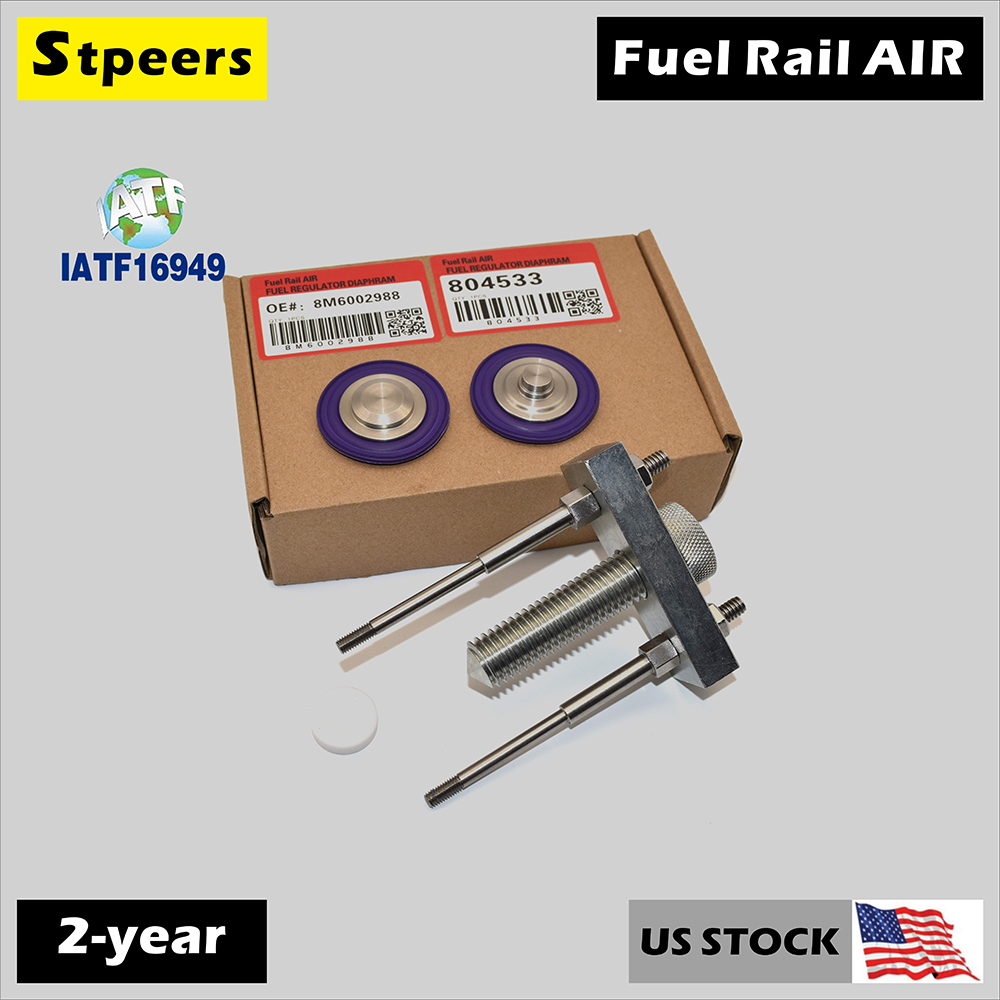

Fit For Mercury Optimax New Fuel Rail AIR and FUEL REGULATOR DIAPHRAGM, Tracker Diaphram, & Tool

Replaces Mercury Part #:

8M6002988

804533

889431

8M6002988:

You are bidding on one New - OEM Mercury Optimax DFI Regulator Diaphram. This diaphragm fits both the air and fuel regulator on all of the Optimax 3.0L Model Engines (200 - 300 HP).  Additionally, it is the same diaphragm used for the fuel diaphragm on the Optimax 2.5L Model Engines (135 - 175 HP).  This is the latest version from Mercury and they are identifiable by their purple color.  The previous models were either green or brown in color.  This diaphragm is used in either regulator (fuel or air) on the port side fuel rail for the 3.0L engines, and for the fuel regulator in the port side rail for the 2.5L engines.

The Air/Fuel diaphragm for sale is not the tracker diaphragm that is installed in the starboard fuel rail on either the 2.5L or 3.0L Optimax Engine.  This diaphragm is the flat top.

804533:

The tracker diaphragm is identified by a short knob at the top of the part. The tracker diaphragm that is installed in the starboard fuel rail on either the 2.5L (135 - 175 HP) or 3.0L (200-300 HP) Optimax Engines.

889431

For Mercury Air/ Fuel Regulator Installation Tool (Mercury Part #: 91-889431).
