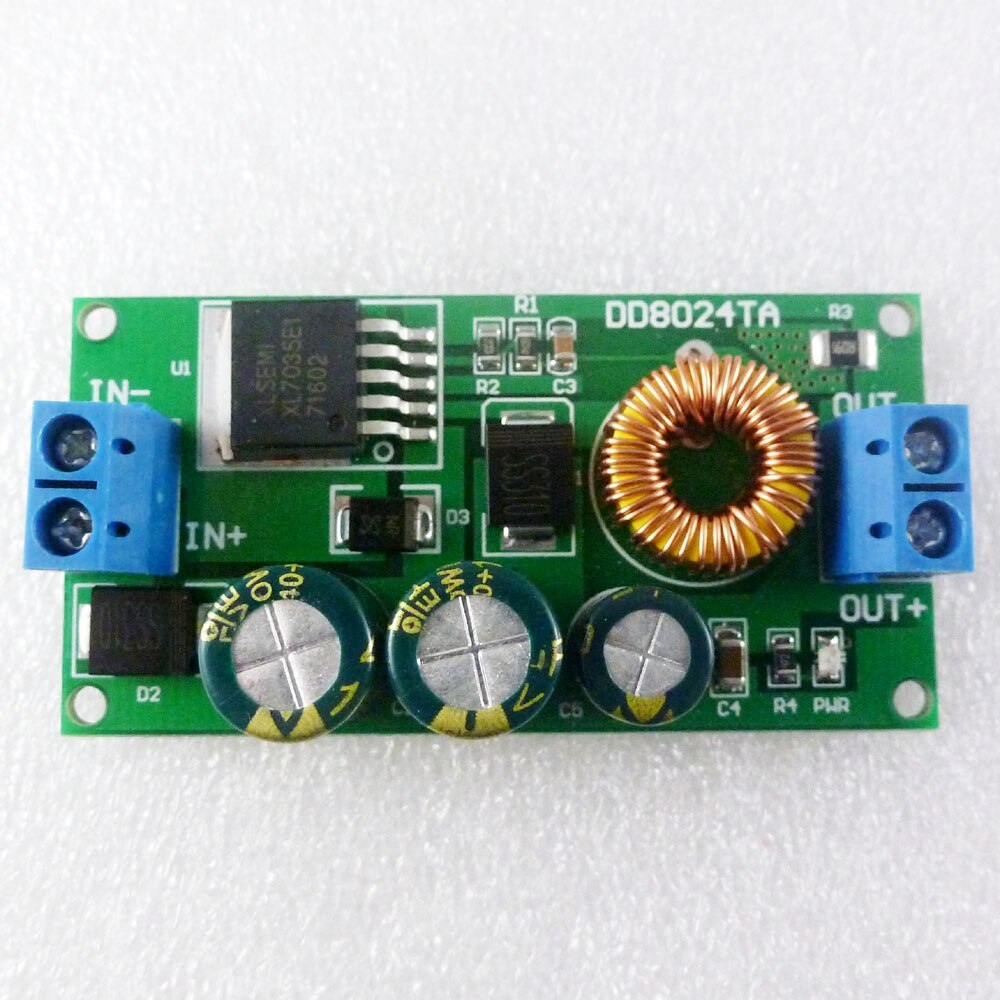

Product Name: 1 PCS DC-DC Converter High-Voltage EBike Step-Down Regulator Board 80V 72V 64V 60V 48V 36V 24V To 15V 12V 9V 6V 5V 3.3V

Packing list:
1 PCS  DC-DC Converter High-Voltage EBike Step-Down Regulator Board 80V 72V 64V 60V 48V 36V 24V To 15V 12V 9V 6V 5V 3.3V

(Please select the version you need)



Description:

 1、 input reverse polarity protection
 2、 TVS overvoltage protection
 3、 high frequency filter capacitor

4、 high Q value 100UH inductance

5、 Output overcurrent protection
6、 Over temperature protection
7 、Output short circuit protection





For high power versions, Please click on the image below.



3.3V :
 Input voltage 10~80V,output 3.3V
Maximum output current 1A
DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .
Quiescent current: about 2.5mA
 Operating Temperature : –40°C to +85°C
Size : 59 x 30 x 16mm
Weight : With terminal 19g;No terminal 15.5g




5V :
Input voltage 10~80V,output 5V
 Maximum output current 1A
DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .
Quiescent current: about 2.5mA
 Operating Temperature : –40°C to +85°C
Size : 59 x 30 x 16mm
Weight : With terminal 19g;No terminal 15.5g


  6V :
  Input voltage 10~80V,output 6V
  Maximum output current 1A
  DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
 Maximum conversion efficiency is 85% .
 Quiescent current: about 2.5mA
  Operating Temperature : –40°C to +85°C
  Size : 59 x 30 x 16mm
  Weight : With terminal 19g;No terminal 15.5g



9V :
Input voltage 10~80V,output 9V
  Maximum output current 0.75A
  DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .
Quiescent current: about 2.5mA
 Operating Temperature : –40°C to +85°C
  size : 59 x 30 x 16mm
  Weight : With terminal 19g;No terminal 15.5g


12V :
  Input voltage 14~80V,output 12V
  Maximum output current 0.75A
  DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
Maximum conversion efficiency is 85% .
 Quiescent current: about 2.5mA
  Operating Temperature : –40°C to +85°C
  Size : 59 x 30 x 16mm
  Weight : With terminal 19g;No terminal 15.5g

15V :

Input voltage 17~80V,output 15V
 Maximum output current 0.75A
 DC-DC high-voltage Step-Down Converter module working frequency 150KHz.
  Maximum conversion efficiency is 85% .
  Quiescent current: about 2.5mA
  Operating Temperature : –40°C to +85°C
  Size : 59 x 30 x 16mm
  Weight : With terminal 19g;No terminal 15.5g








Attention :

This is a DC-DC voltage converter module,Must be noted when using:

  1 Input voltage can not be greater than the maximum input range

2 Output power can not be greater than the maximum load for a long time

3 Input power must be greater than the output power, because the power consumption of the module itself





  Applications:
  Electric bicycle EBike motorcycle
  DC 80V 72V 64V 60V 48V 36V 24V
  CCTV camera
  RS485 Modbus equipment
  Motor ​Toy Wifi Router
  Network equipment
  Multimeter instrumentation
  Electric toys
  Smart home / home automation
  Battery powered equipment
