WB50/025D WB70/075 stainless steel centrifugal pump corrosion-resistant pressure cycle electric pressurization

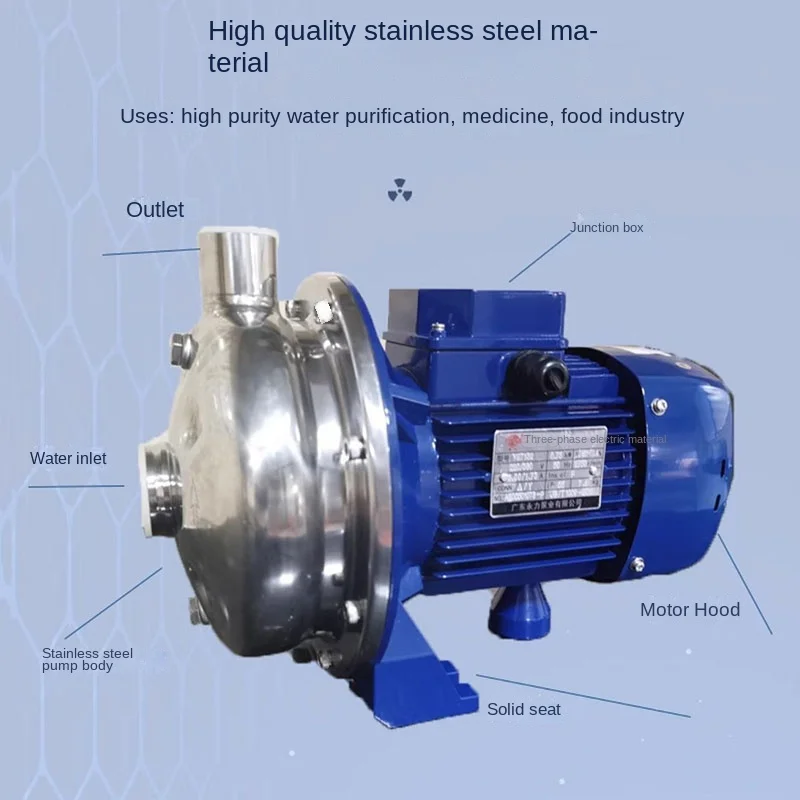

Name: Centrifugal pump
Model: 2WB70/075
use:
Water supply system, pressure boiler water supply, high-purity water purification system, medicine, food, fine chemical industry, flushing, spraying.
engine:
Fully enclosed air-cooled motor, insulation class F, anti-short circuit
Protection class IP54, IP55, continuous load.
Maximum ambient temperature: +40°C
Single-phase type: 220V, 50Hz, 2800RPM
Three-phase type: 380V, 50Hz Speed: 2800RPM
Inlet size: 1.2 inches
Outlet size: 1 inch
Maximum working pressure: 8bar
Liquid temperature: -15℃~+80℃
The picture is for reference only, please receive the actual subject
Name: Centrifugal pump
Model: 2WB70/075
use:
Water supply system, pressure boiler water supply, high-purity water purification system, medicine, food, fine chemical industry, flushing, spraying.
engine:
Fully enclosed air-cooled motor, insulation class F, anti-short circuit
Protection class IP54, IP55, continuous load.
Maximum ambient temperature: +40°C
Single-phase type: 220V, 50Hz, 2800RPM
Three-phase type: 380V, 50Hz Speed: 2800RPM
Inlet size: 1.2 inches
Outlet size: 1 inch
Maximum working pressure: 8bar
Liquid temperature: -15℃~+80℃
The picture is for reference only, please receive the actual subject
