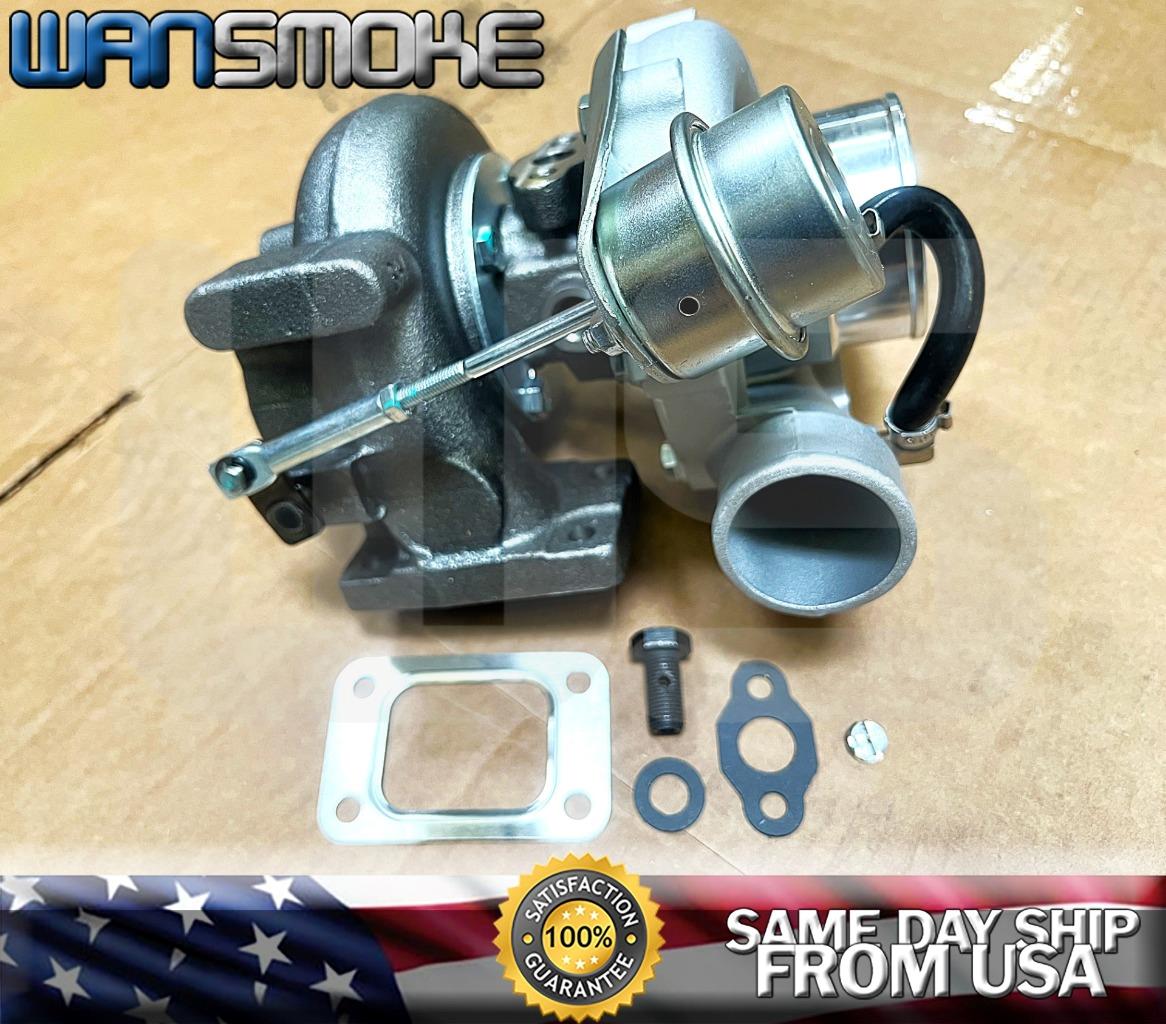

NEW UPGRADED GT28 GT2871 TURBO T2 TURBINE AR.64 WATER+OIL TURBOCHARGER 350BHP




~~~WANSMOKE~~~

Fast Shipping, 100% Customer Satisfaction !

     WANSMOKE has the best products with the best prices. We believe in Safety and Standards in both machining and manufacturing. Unlike our competitors who offer you low prices for inferior products, we build products that lift and level your vehicle without compromise. Cutting corners is awesome when driving your car but not when manufacturing, buy right, choose Supreme.

Feature:

    This GT28 Turbo is capable of generating up to 350 BHP, depending on application and with the correct tuning. The GT28 is generally used for the displacement engines of 1.5L ~ 2.0L or any 4 Cylinder engine. This is the Universal Application Turbo, Professional Installation is highly recommended; some modification may be required for individual vehicle, please consult professional turbo installer for details before purchasing.
  • 100% Brand New Never Used or installed.
  • High quality material, cast housing with durable steel
  • Exhaust (Turbo Manifold) Flange: T2 4 bolt pattern Flange
  • Exhaust (Downpipe) Flange: T25/T28 5 bolt pattern downpipe flange
  • Cooling Type: Water and Oil Cooled
  • Bearing Type: Floating Bearing
  • Oil Restrictor: Yes
  • Oil Thread Size: W12*1.25
  • Water Thread Size: W8*1.25
  • Dimensions(length width Height)：220*210*210mm
  • Horse Power: Boost Horse Power Range from 400hp to 600hp
  • Other Part Number: T25, T28, GT25, GT28, GT2871, GT2860
Spec:
  • Exhaust Inlet (Turbo Manifold) Flange: Standard T25 Flange
  • Exhaust Outlet Flange: 5-Bolt
  • Turbine Trim: 76
  • Turbine A/R: 0.64
  • Turbine Inducer Diameter: 53.8mm
  • Turbine Exducer Diameter: 47mm

  • Compressor Trim: 48
  • Compressor A/R: 0.60
  • Compressor Inducer Diameter: 49.2mm
  • Compressor Exducer Diameter: 71 mm
  • Compressor blades: 12

  • Oil Restrictor: Yes
  • Oil Restrictor Size: inside diameter 2mm
  • Oil Feed Size: 12mm
  • Oil Inlet: M12*1.25
  • Oil Drain Size: 14mm
  • Oil Outlet: M14 & 2*M8*1.25
  • Oil Drain Thread Pitch: 40mm

  • Water Thread Size: M14*1.5
  • Bearing Type: Wet Float
  • Cooling Type: Water + Oil
  • Wastegate: with 7psi internal Wastegate
Turbine:
  • Exhaust (Turbo Manifold) Flange: T25 4-Bolt Flange
  • Exhaust (Downpipe) Flange: 5-Bolt Flange
  • Trim: 76
  • Inducer Diameter: 53.8mm
  • Exducer Diameter: 47 mm
  • A/R: 0.64
Application:
  • Manifold with T2 flange, Perfect for 4 or 6 CYL, 1.5L-2.0L Engines
Notice:
  • This is universal application turbo, Fits any T2 Turbo Manifold(Header) only. modification might be required for some vehicles. Please check the specifications and verify compatibility prior to placing your order.
  • Make sure the oil drain line is lower than the turbo itself.
  • Replace or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
  • Gasoline car recommend to install a water cooling unit to avoid overheating.
  • Ensure exhaust outlet are well sealed by welding
    • Warranty: 1 Years
  • Your valid phone number is very necessary for the shipping, otherwise we can't guarantee that the package would safely arrive.
  • Installation instruction is not included. Professional installer is highly recommended!!
