Product Type: Starter |
Replaces: 58401910 333H5787 0-001-109-031 0-001-109-419 0-001-109-420 |
  • Starter Type: OSGR |
  • Volts: 12 |
  • Teeth On Drive: 9 |
  • Rotation: Clockwise |
  • Source: Aftermarket
Over 30,000 aftermarket & original parts
Open 24 Hours
8-6 EST SALE SUPPORT
English/Español/Call Us Today
Rare Electrical
Parts for all applications

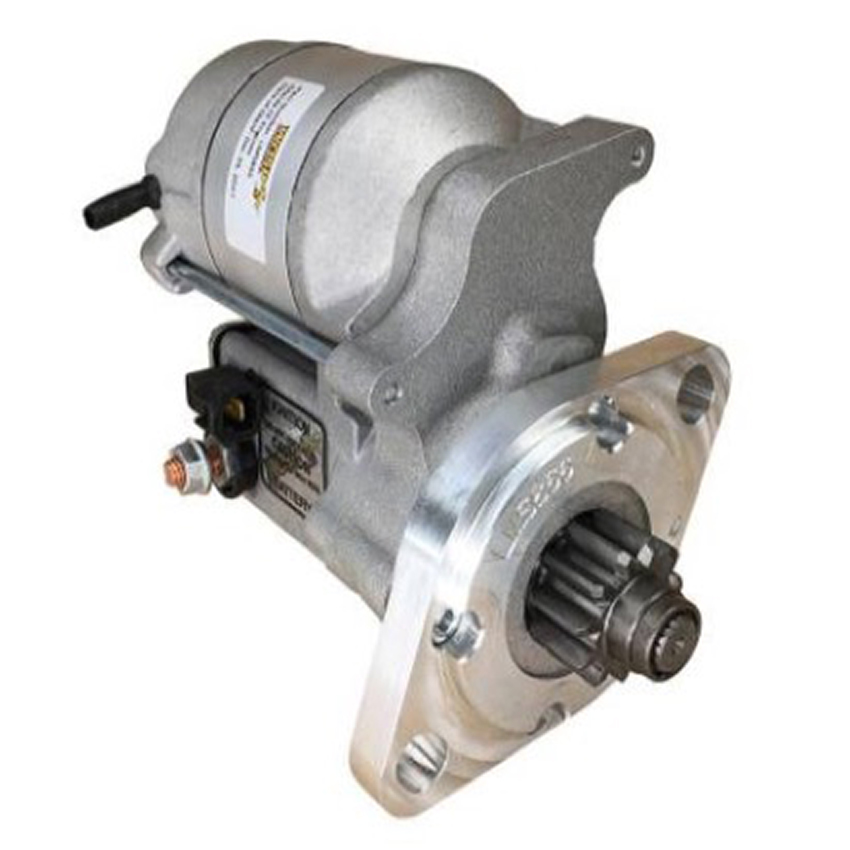

NEW 12V CW STARTER FITS LOMBARDINI LDW1303�LDW1503�000109419 000109420 333/H5787

Replaces Part Numbers & Specifications

BOSCH: 0-001-109-031 0-001-109-419 0-001-109-420 0001109031 000109419 000109420 0-001-218-161 0001218161
DIXIE: 260-20106
JCB: 333/H5787 333H5787
LESTER: 19785
LOMBARDINI: 58401910 5840191
LUCAS: LRS01975
WILSON: 91-15-7176 91157176

ITEM DESCRIPTION: STARTER
UNIT TYPE: DENSO LOMBARDINI
TYPE: OSGR
VOLTAGE: 12
ROTATION: CW
TEETH: 9
GEAR OD: 34MM
MOUNTING EAR 1: 11.0MM UNTHREADED
MOUNTING EAR 2: 11.0MM UNTHREADED
SPECIFICATIONS: BUILT FOR KOHLER/LOMBARDINI
SPECIFICATIONS: 4:1 RATIO
WEIGHT: 8.66 LBS / 3.94 KG

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.



LOMBARDINI ENGINE CHD2204
LOMBARDINI ENGINE CHD2204T
LOMBARDINI ENGINE LDW1303
LOMBARDINI ENGINE LDW1503
LOMBARDINI ENGINE LDW2004
LOMBARDINI ENGINE LDW2004T
KOHLER GENSET
