Product Type: Starter |
Replaces: 12-41-7-521-116 12417521116 0-001-107-423, 0-001-107-424 |
  • Volts: 12 |
  • Teeth On Drive: 9 |
  • Rotation: Clockwise |
  • Source: Aftermarket
Over 30,000 aftermarket & original parts
Open 24 Hours
8-6 EST SALE SUPPORT
English/Español/Call Us Today
Rare Electrical
Parts for all applications

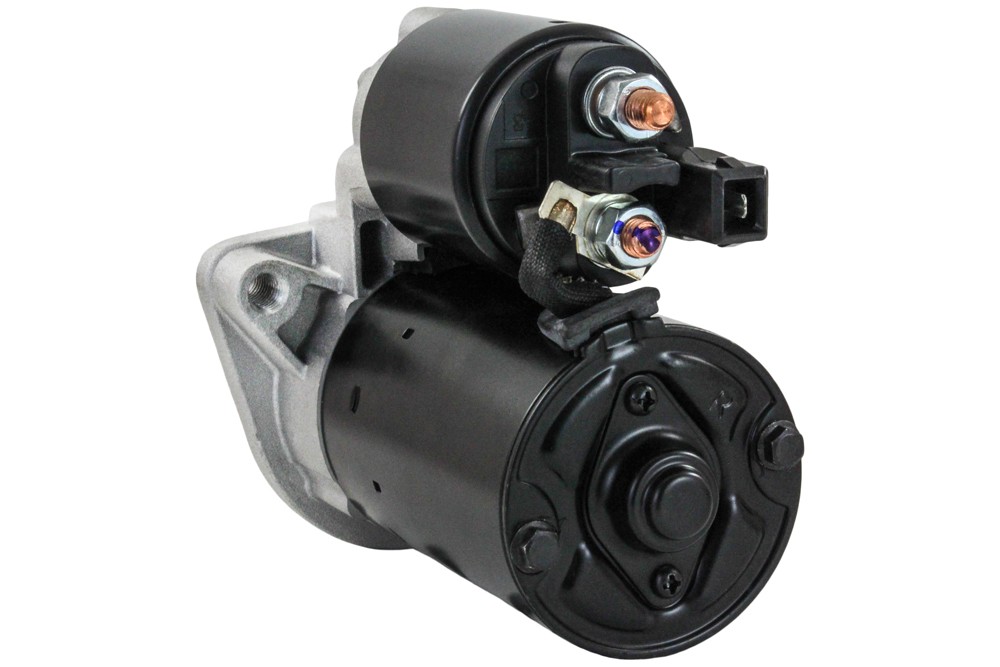

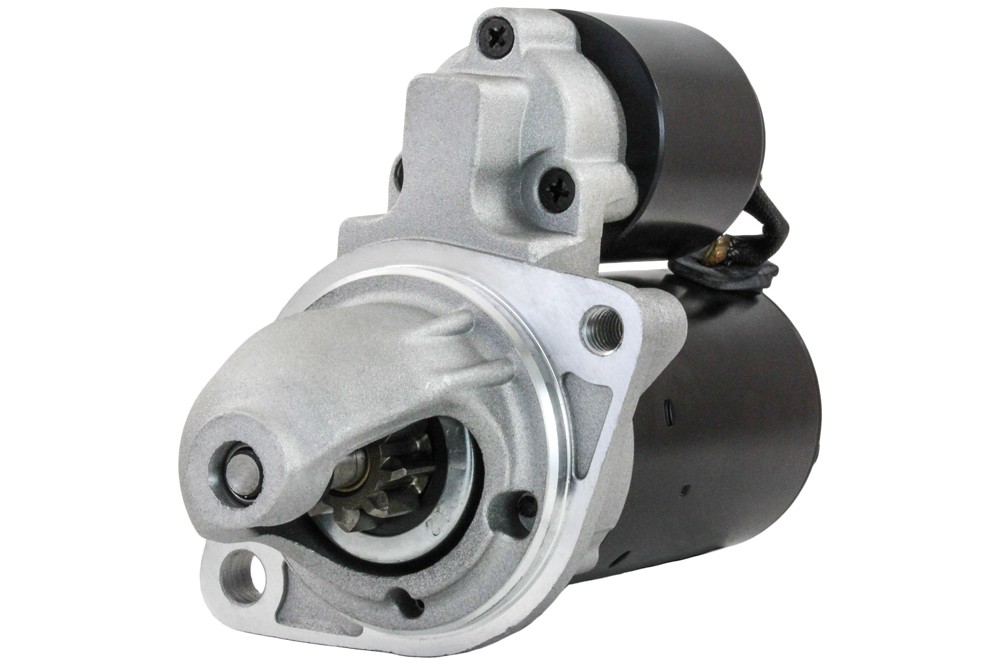

Starter 2007-2011 BMW 328i 335i 3.0L L6 328i xDrive 330xi 0-001-107-423

Replaces Part Numbers & Specifications

OEM PART NUMBERS:
• BMW: 12-41-7-521-116 / 12417521116 / 12-41-7-521-122 / 12417521122 / 12-41-7-521-123 / 12417521123
• BMW: 12-41-7-526-236 / 12417526236 / 12-41-7-594-292 / 12417594292 / 12-41-7-610-343 / 12417610343
• BMW: 12-41-2-354-701 / 12412354701 / 12-41-2-344-243 / 12412344243
• 0-001-107-423 / 0001107423 / 0-001-107-424 / 0001107424
• 0-001-107-527 / 0001107527 / 0-001-107-528 / 0001107528 / 0-986-021-500 / 0986021500
• 428000-1760 / 4280001760
• Lucas: LRS02298
• Marelli: 63521074230

SPECIFICATIONS:
• Type: PMGR (Permanent Magnet Gear Reduction)
• Voltage: 12V
• Power: 1.2kW / 1.61HP
• Rotation: CW (Clockwise)
• Teeth: 9
• Pinion OD: 28.7mm / 1.13in
• Mounting: (1) M10x1.50 Threaded + (1) 11.2mm Unthreaded
• Condition: New

BMW APPLICATIONS:
• 1-Series: 1M, 128i, 135i 3.0L L6 (2008-2011)
• 3-Series: 323i 2.5L, 325i/xi, 328i/xi/xDrive, 330Ci/i/xi, 335i/is/xi 3.0L L6 (2006-2011)
• 5-Series: 525i/xi, 528i/xi/xDrive, 530i/xi, 535i/xi/GT 3.0L L6 (2006-2011)
• 7-Series: 740i, 740Li 3.0L L6 (2011)
• X-Series: X3, X5, X6 3.0L L6 (2007-2011)
• Z4 3.0L L6 (2006-2011)
• Engines: N52B30, N52B25, N51B30 (NA) / N54B30 (Twin-Turbo) / N55B30 (Turbo)

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.



BMW 1-SERIES (E82/E88):
• 1 Series M Coupe 3.0L (2979cc) N54B30 Twin-Turbo L6 (2011)
• 128i 3.0L (2996cc) N52B30/N51B30 L6 (2008-2011)
• 135i 3.0L (2979cc) N54B30 Twin-Turbo L6 (2008-2010)
• 135i 3.0L (2979cc) N55B30 Turbo L6 (2011)

BMW 3-SERIES (E90/E91/E92/E93):
• 323i 2.5L (2497cc) N52B25 L6 (2007-2009)
• 325i 3.0L (2996cc) N52B30 L6 (2006)
• 325xi 3.0L (2996cc) N52B30 L6 AWD (2006)
• 328i 3.0L (2996cc) N52B30 L6 (2007-2011)
• 328i xDrive 3.0L (2996cc) N52B30 L6 AWD (2009-2011)
• 328xi 3.0L (2996cc) N52B30 L6 AWD (2007-2008)
• 330Ci 3.0L (2996cc) N52B30 L6 (2006)
• 330i 3.0L (2996cc) N52B30 L6 (2006)
• 330xi 3.0L (2996cc) N52B30 L6 AWD (2006)
• 335i 3.0L (2979cc) N54B30 Twin-Turbo L6 (2007-2011)
• 335is 3.0L (2979cc) N54B30 Twin-Turbo L6 (2011)
• 335xi 3.0L (2979cc) N54B30 Twin-Turbo L6 AWD (2007-2008)

BMW 5-SERIES (E60/E61/F07/F10):
• 525i 3.0L (2996cc) N52B30 L6 (2006-2007)
• 525xi 3.0L (2996cc) N52B30 L6 AWD (2006-2007)
• 528i 3.0L (2996cc) N52B30 L6 (2008-2011)
• 528i xDrive 3.0L (2996cc) N52B30 L6 AWD (2009-2010)
• 528xi 3.0L (2996cc) N52B30 L6 AWD (2008)
• 530i 3.0L (2996cc) N52B30 L6 (2006-2007)
• 530xi 3.0L (2996cc) N52B30 L6 AWD (2006-2007)
• 535i 3.0L (2979cc) N54B30 Twin-Turbo L6 (2008-2011)
• 535i GT 3.0L (2979cc) N55B30 Turbo L6 (2011)
• 535i GT xDrive 3.0L (2979cc) N55B30 Turbo L6 AWD (2011)
• 535xi 3.0L (2979cc) N54B30 Twin-Turbo L6 AWD (2008)

BMW 7-SERIES (F01/F02):
• 740i 3.0L (2979cc) N55B30 Turbo L6 (2011)
• 740Li 3.0L (2979cc) N55B30 Turbo L6 (2011)

BMW X-SERIES:
• X3 3.0L (2996cc) N52B30 L6 (2007-2010) (E83)
• X3 xDrive30i 3.0L N52B30 L6 (2011) (F25)
• X5 3.0L (2996cc) N52B30 L6 (2007-2010) (E70)
• X5 xDrive30i 3.0L N52B30 L6 (2011) (E70)
• X6 xDrive35i 3.0L (2979cc) N54B30 Twin-Turbo L6 (2008-2010) (E71)
• X6 xDrive35i 3.0L N55B30 Turbo L6 (2011) (E71)

BMW Z4 (E85/E89):
• Z4 3.0L (2996cc) N52B30 L6 (2006) (E85)
• Z4 sDrive30i 3.0L N52B30 L6 (2009-2011) (E89)
• Z4 sDrive35i 3.0L N54B30 Twin-Turbo L6 (2009-2011) (E89)
• Z4 sDrive35is 3.0L N54B30 Twin-Turbo L6 (2011) (E89)
