Dependable 350mm Thermocouple Groove Type For Gas Patio Heater
DESCRIPTION

Features:

* You will get a brand new and high quality Groove Type  Thermocouple!

* Made of high quality materials, high quality manufacturing process, sturdy and , excellent service life

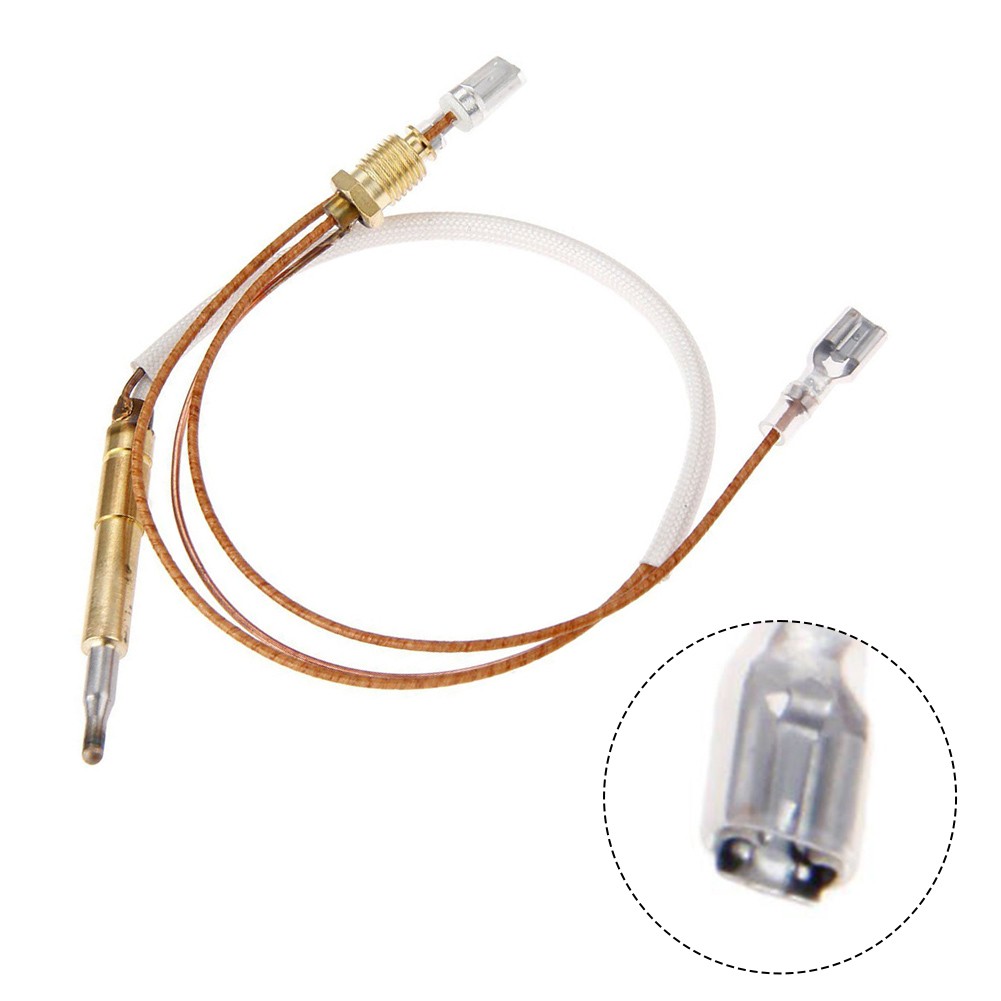

**4.8mm Flat terminal with anti-down switch
*Thermocouple head is Groove Type fixed on Bracket by clips
*Install steps:
1. install the thermocouple tip on a board and use two nuts to fix its location ；
2. Keep the tip about 5mm from the burner hole.
3. Fix the thermocouple nut M8 on the valve end tightly (Check if your valve end thread is 8mm before your buying)
4. Connect two flat terminals well with the current tilt switch terminals.
5. Turn on the gas and push your valve 5-10s till the thermocouple end is heated.
6. Release your hand and it work well. If failed, please check a. If your thermocouple is heated on flame b. If the thermocouple end is well connected with valve c. If the terminals connect tilt switch well.



Specifications:


Color: White Type 350mm Groove Type 4.8mm terminal
Length: Total length 350mm, Two wire 30cm and 20cm
Suitable for: gas Patio Heater
Usage: This thermocouple is used for outdoor patio heater.



Package Content:

1Pc x 350mm Groove Type  Thermocouple



Note:

1. Please check the size carefully before purchase.

2. Due to the difference of computer monitor, the color may be slightly different from the picture above. Thank you for your understanding.

3. Manual measurement, please allow 2-4mm error.

4. If you have any questions, please feel free to contact us, we will reply and help you solve it as soon as possible.
