Industrial Automation Semi-Enclosed 10.1 Inch Embedded Industrial AIO Touch PC



Features:

Product Description



System CPU Intel  Celeron  J1900
Processor Intel Baytrail serials
Hard Disk SMI 2244 128GB MSATA Solid State Drive
RAM DDR3  4GB 1333MHZ
Operating system Win 10
WiFi 300Mbps @ 400GI (Max.) wireless module, signal omnidirectional coverage 20~30 meters
Graphics card Intel CPU built-in graphics core
Audio Onboard Realtek ALC662 HD audio decoder controller
Network Onboard 1*Realtek RTL8111F Gigabit LAN

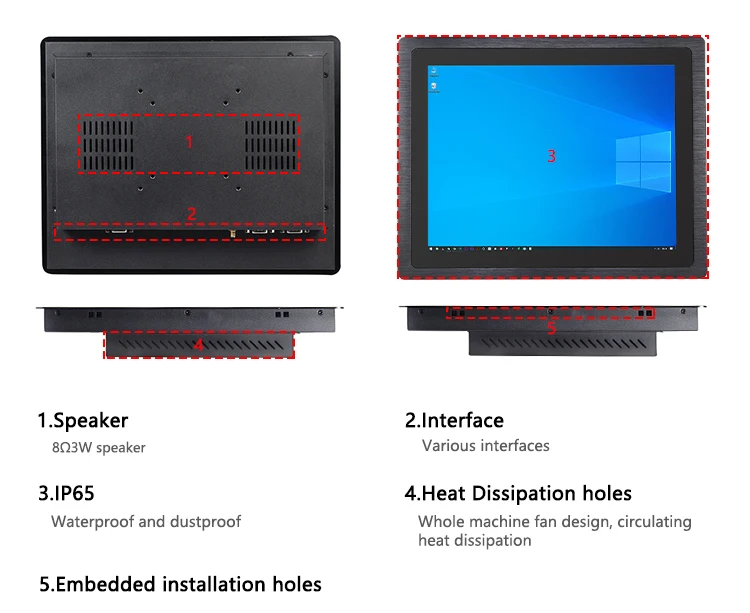

Built in Speaker 8  3W speaker

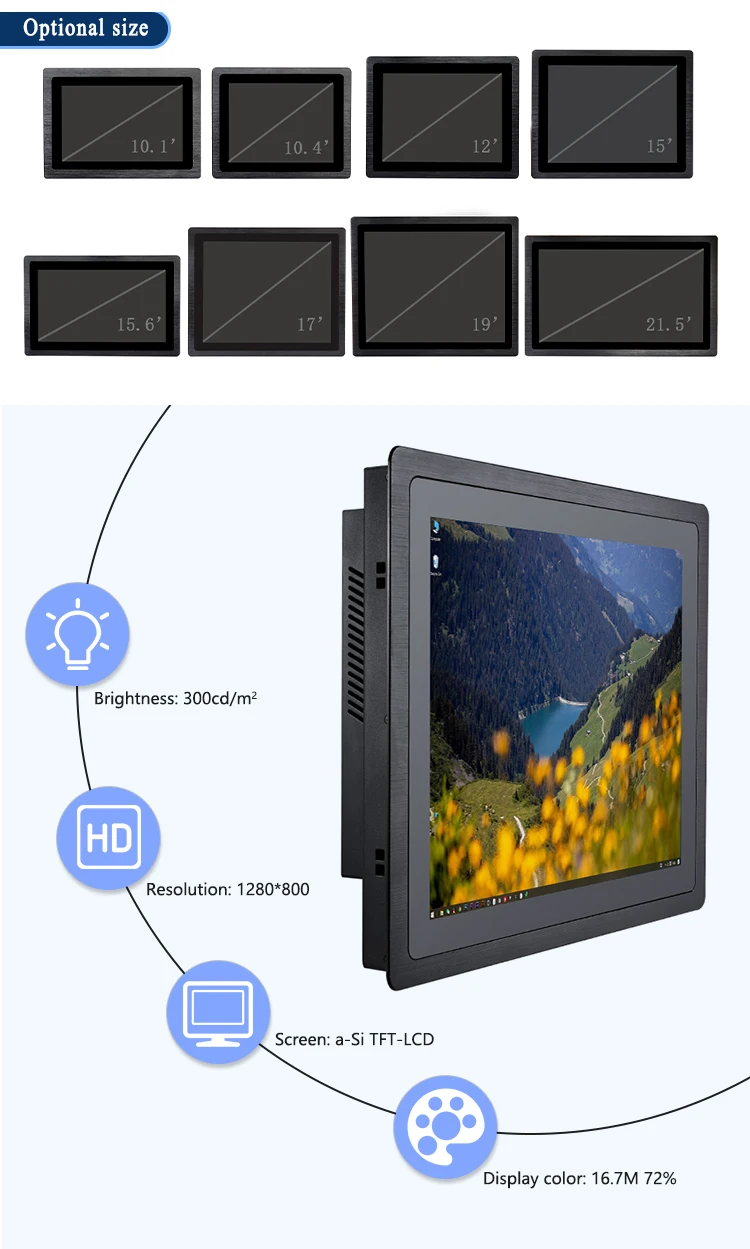

Display Size 10.1 inch
Resolution 1280* 800
Aspect ratio 4:3
Screen type a-Si  TFT-LCD
Grayscale response time 30(TYP. ) (Tr+Td) ms
Contrast ratio 800  :  1  (Typ. )  ( TM)
Pixel pitch 0. 1695  X  0. 1695
Backlight type WLED, 50 hours  with LED driver
Brightness [ cd/m2] 450  (Typ. )
Viewing angle 80/ 80/ 60/ 80  (Typ. ) (CR≥10)
Display color 16. 7M ,  72% (CIE1931)
Touch Touch type Capative touch
Single point life > 50 million times
Touch strength 15 40g
Surface hardness 6H
Glass type Chemically strengthened plexiglass

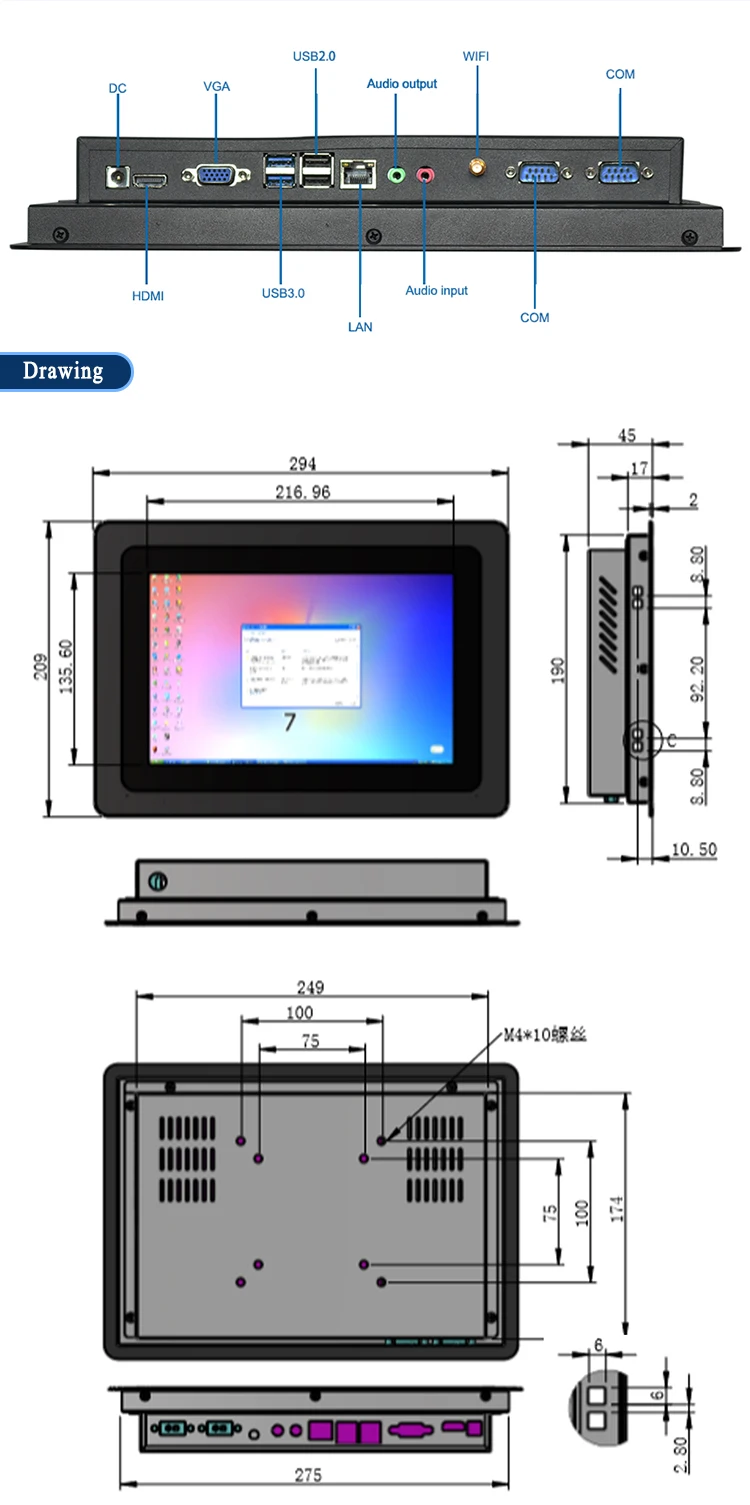

Interface USB 1*USB3.0, 3*USB2.0, (5*USB2.0 need to be extended)
Serial port 2*DB-9 RS-232 serial port (Male connector)
Extended display 15-pin standard VGA female port
HD-MI Standard HD-MI Type A port
Network Interface Onboard 1*Real t ek RTL8111F Gigabit LAN
Power connector 2. 5MM 12V 5A power port
Antenna 50MM omnidirectional 2.0dBi gain frequency range 2400 -2500MHz
Audio 1*3.5 brush LINE-OUT, 1*3. 5MM MIC-IN
Environment Operating temperature -10 ℃ ~60 ℃
Working humidity 20%~80%
Maximum power consumption ≤48W
Working current ≤4A
Protection level Front panel IP65 waterproof and anti-dust
Others Material Aluminum alloy
Color Black
Warranty 1 year
Packing List All in one tablet PC, Power cable, Adapter, warranty card, buckle accessories
