Product Description
| System | Dimension | 145.7mm*84mm*38mm | |
| CPU | RK3566 Quad-core Cortex-A55 up to 1.8GHz | ||
| System | Android 11 | ||
| RAM | 2G | ||
| Rom | 16G | ||
| Display | Display size | 5.5inch | |
| Resolution | 720 x 1280 | ||
| Touch Panel | 5 points capactive touch panel, IPS | ||
| Brightness | 300nit | ||
| Active area | 120.96(L)*68.04(W)mm | ||
| Network | WIFI | 802.11b/g/n | |
| Blue-tooth | BT 4.0 | ||
| Ethernet | 10M/100M | ||

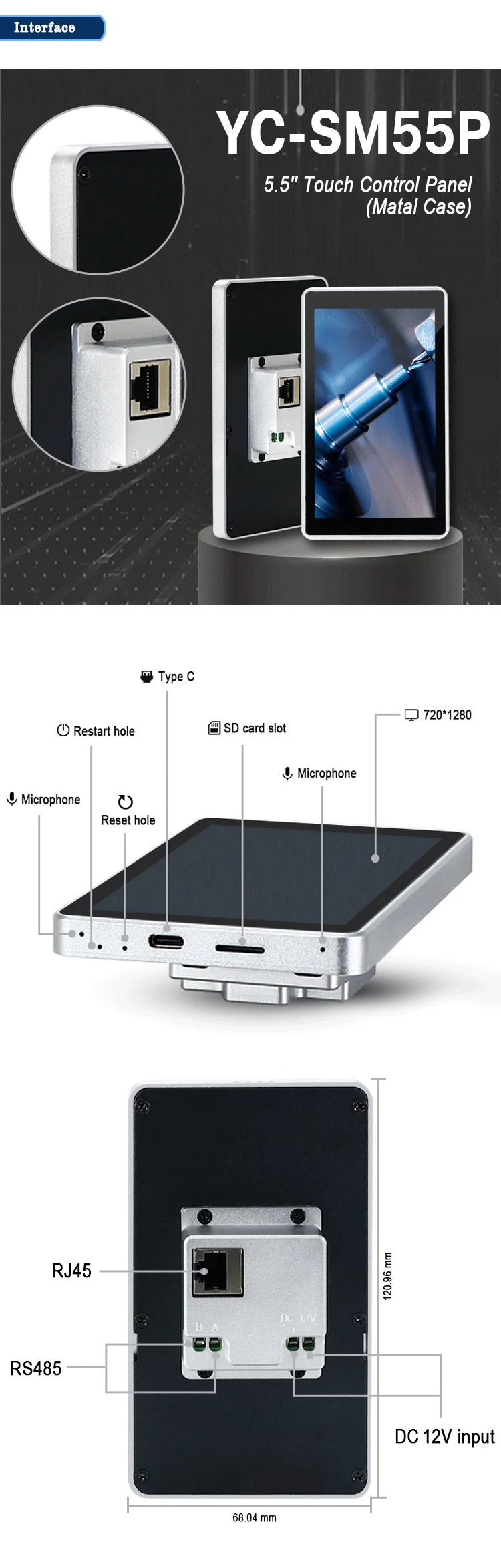

| I/O ports | RJ45 | Ethernet interface input (RJ-45 cable support POE function) | |
| TF Card | TF Card *1 | ||
| USB Type C | Type C USB | ||
| RS485 | RS485 A,B | ||
| Set | Built- in | ||
| Restart | Built- in | ||
| Power suply | DC 12V | ||
| Material | Metal case + Glass touch panel | Metal case | |
| Features | Microphone | 2* Mic Built- in | |
| Speaker | 1W | ||
| Media plays | Video | MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB | |
| Audio | MP3 / WMA / WAV / AAC / FLAC / OGG | ||
| Entertainment | Video / Movie / Music / FM online | ||
| Others | Camera | No camera | |
| Battery | NO | ||

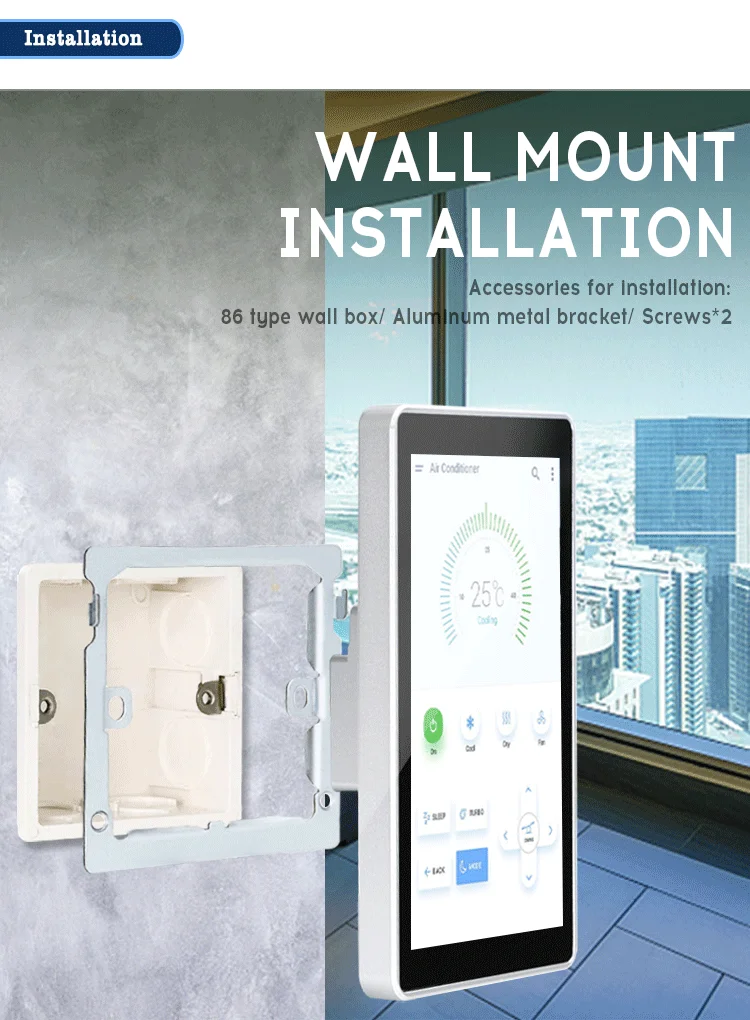

| Mount | wall mounted / in wall & embedded | ||
| Color | White | ||
| Power consumption | 2x10W MAX | ||
| Working temperature | .-5°~70° | ||
| Language | Support multi-languages | ||
| |
|||
| Remarks: | |||
| 1. The price will be available within 30 days & bulk will be confirmed as actual sample. | |||
| 2. The price will be adjusted according the different request on material and packing. | |||
| |
|||
| 3. The delivery time will around one week for sample and 15-25 days for bulk order, depends on order quantity and detail request. | |||
| 4. The price above not including freight cost. | |||
