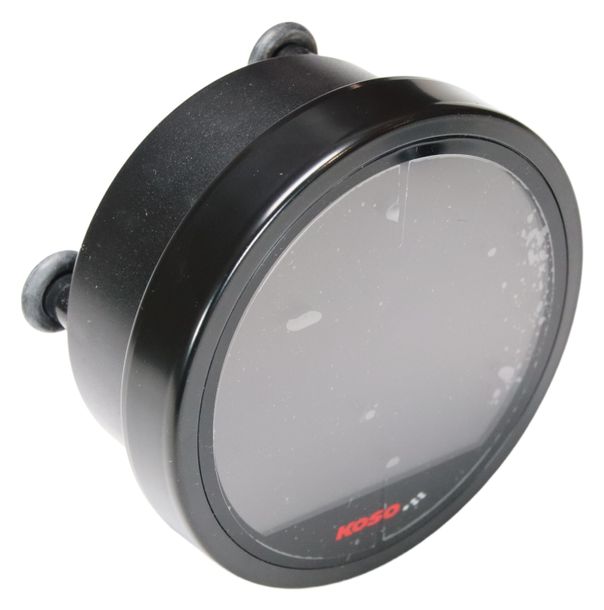

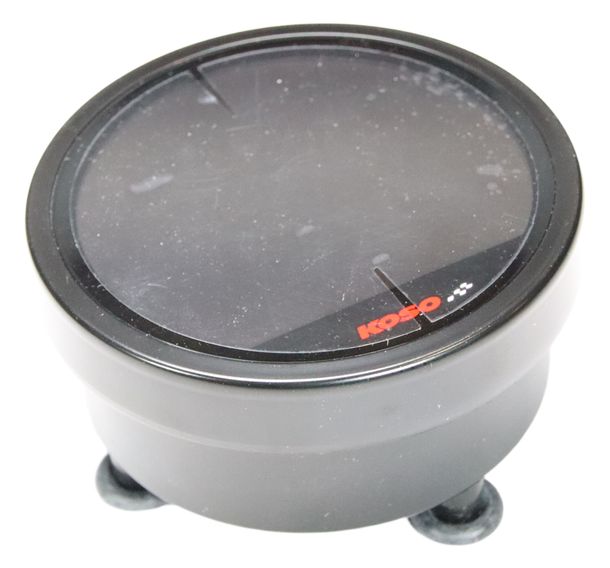

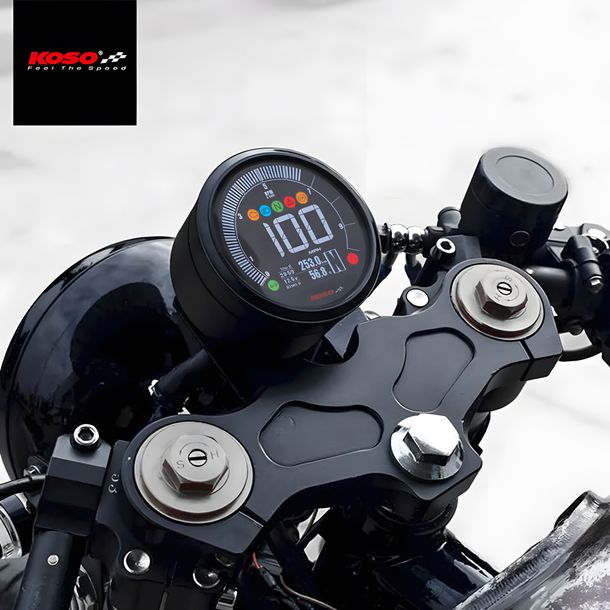

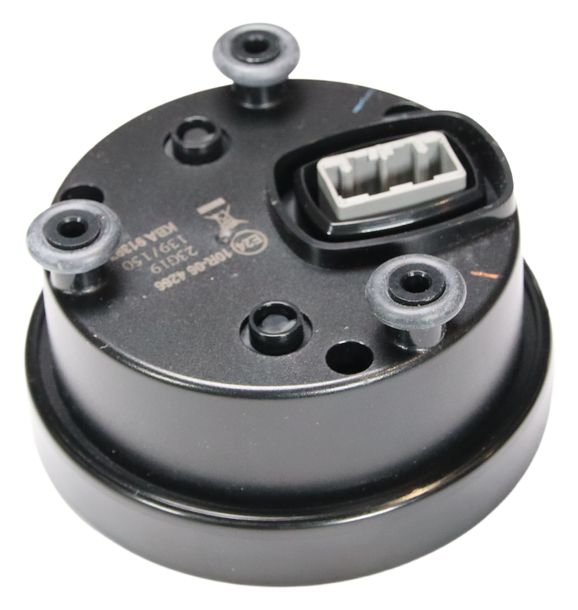

Speedometer Koso DL-04 unlimited
- Art. ID.: 1133341
- Art. No.: KO-BA077300
- Manufacturer: Koso
General
-
TypeAuxiliary instrument, Speedometer, Tachometer
Description
Specifications
(R = Range / U = Unit)
Tachometer
- R: 0 - 225MPH (0 - 360km/h) switchable
- U: 1MPH or km/h (alternating)
Total Mileage
- R: 0 - 99,999 Miles (km)
- U: 1 Mile (km)
Trip Mileage
- R: 0 - 9,999.9 Miles (km)
- U: 0.1 Miles (km)
Trip Meter O
- Range to oil change
- R: 0 - 9,999.9 Miles (km)
- U: 0.1 Miles (km)
Trip Meter A
- Range to service
- R: 0 - 9,999.9 Miles (km)
- U: 0.1 Miles (km)
Oil Change Interval
- R: 300 - 10,000 Miles (3,000 - 16,000km)
- U: 100 Miles (km)
- Value is automatically reduced
- Warning Range: The text turns red when the value is 0 Miles (km) or less.
Maximum Speed Warning
- R: 18 - 225MPH (30 - 360km/h)
- U: 1MPH or km/h (alternating)
Gear Indicator
- R: N, 1 - 6
Rev Counter
- R: 0 - 10,000 RPM / 0 - 15,000 RPM
Rev Warning Light
- R: 5,000 - 15,900 RPM
- U: 100 RPM
Temperature
- R: 32 - 482°F (0 - 250°C)
- U: 1°C (1°F)
Temperature Warning
- R: 140 - 482°F (60 - 250°C)
- U: 1°C (1°F)
Voltmeter
- R: 8.0 - 18.0V
Low Voltage Warning
- R: 8.0V - 12.5V
- U: 0.1V
Operating Hour Counter
- R: 0.0 - 9999.9 Hours | 0.1 Hours (6 Minutes)
Hour Counter 1 - 2
- R: 0.0 - 9999.9 Hours | 0.1 Hours (6 Minutes)
Low Oil Level Indicator A
- R: 0.0 - 9999.9 Hours | 0.1 Hours (6 Minutes)
Peak Value Recording
- Highest Speed | R: 0 - 360km/h (0-225MPH)
- Highest RPM | R: 0 - 15,000 RPM
- Highest Temperature | R: 0 - 250°C (32 - 482°F)
- Highest Voltage | R: 8.0 - 18V
- Highest Gear | R: N / 1 - 6
Clock
- R: 12H or 24H format
Backlight Brightness
- R: 1 - 5 (dimmest), 5 - 5 (brightest)
Voltage
- DC 12V
Temperature Range
- ‑10 - +60°C
Specifications
- JIS D 0203(S2)

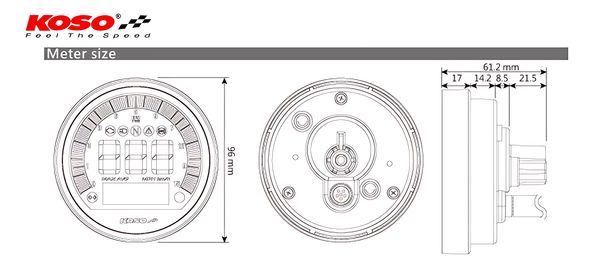

Size
- Diameter 96mm
Weight
- approx. 194.5g
Warning Lights
- Turn Signals (green)
- Engine Control Lights (yellow)
- High Beam (blue)
- Neutral (green)
- Warning Light (red)
- ABS (yellow)
- Rev Flash (red)
Attention: The model list is a universal list, please check for compatibility before purchase.
About the Manufacturer Koso
Koso has been shining in the motorized two-wheeled scene for over 30 years with its innovative high-tech products. Koso is driven by the development of novel technologies in all its products to create innovations in the market. Thanks to this continuous innovation, Koso consistently delivers technically advanced and versatile products to its customers.
From tachometers to rev counters to multifunctional meters and the necessary accessories, Koso has everything in stock. With a broad product range of electronic instruments for two-wheelers, Koso occupies an important position in the market.
Suitable for
Speedometer Koso DL-04 unlimited suitable for
This article is a universal product that can be used for many different types of vehicles.
Due to the wide variety of models and uses, it is therefore not possible to give an exact indication of use for a specific vehicle type. Therefore, please check carefully whether this item is compatible for your vehicle.
This applies especially to items such as batteries, lamps and engine oils. If you have any questions about the product, you can contact our customer support. We are happy to assist you.
