Check the plug, this is a 3 wire/3pin plug. Some models need a 4 wire/5 pin plug.

JMC/DATECH DS9238-12HBTL 12V Brushless DC Cooling Fan, 92x92x38mm Variable Speed Double Ball Bearing Fan, 3pin Dell connector, Thermal Control with Heat Sensor.

Compatible with DELL PN 6Y249 FAN, DELL PN J0531, Dell Dimension 8400, OptiPlex GX280, PowerEdge 1420SC, 420SC, Dimension 3000 4600 4700 8000

Check the plug, this is a 3 wire/3pin plug. Some models need a 4 wire/5 pin plug.

Features:
  • 12V Brushless DC Cooling Fan
  • Thermal Control with Heat Sensor
  • 92x92x38mm Variable Speed Double Ball Bearing
  • 3pin Dell connector( Fits in motherboard standard 3pin )

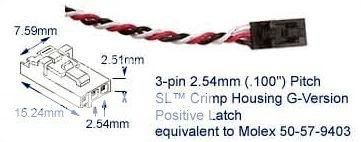

Proprietary 3 pin connector


Check the plug, this is a 3 wire/3pin plug. Some models need a 4 wire/5 pin plug.

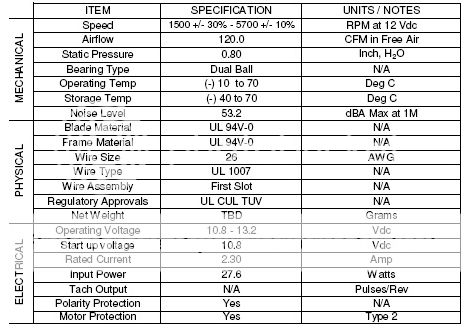

DELLOEM.jpg picture by gglaesemann
