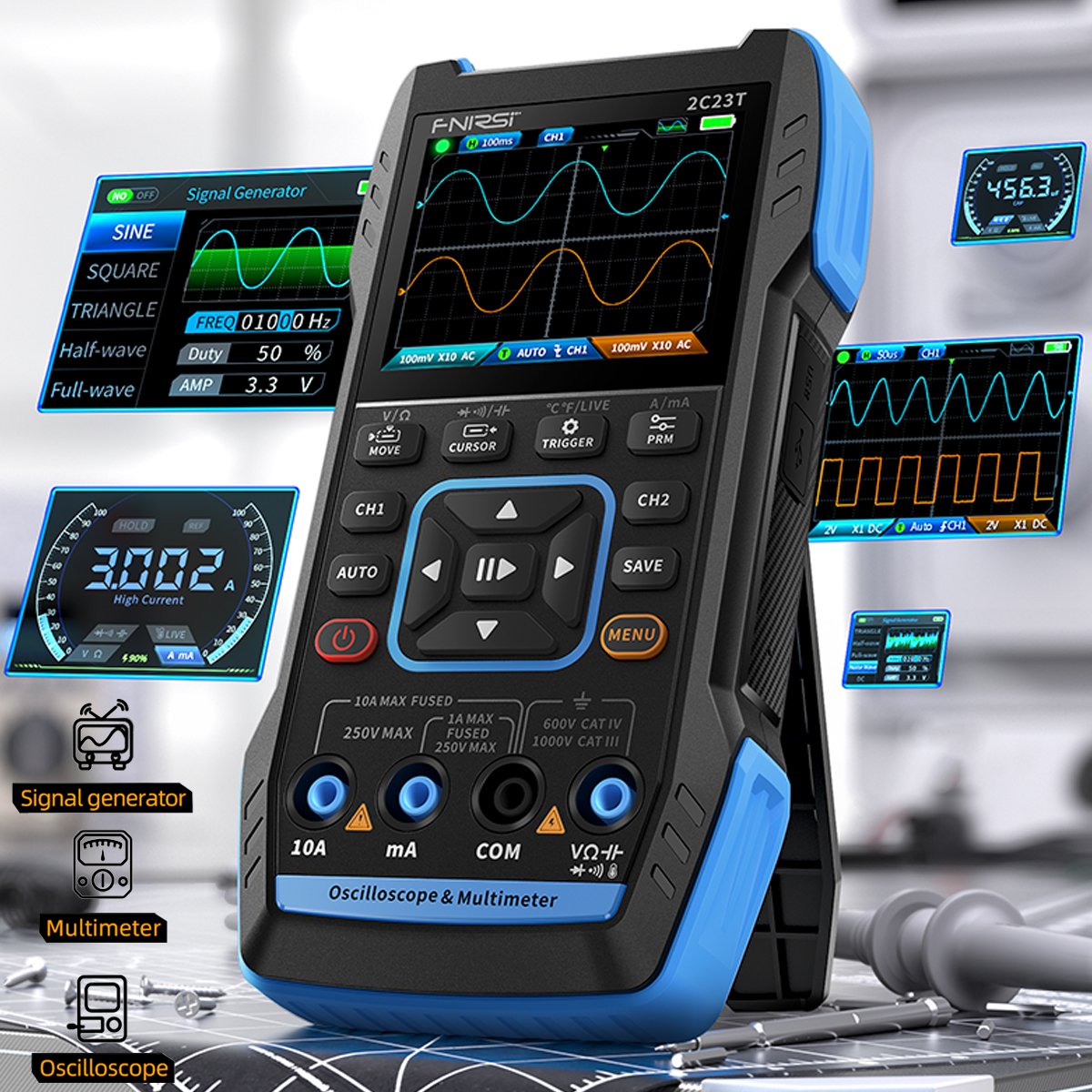

FNIRSI 2C23T Handheld Digital Oscilloscope Multimeter Function Signal Generator*
Features：

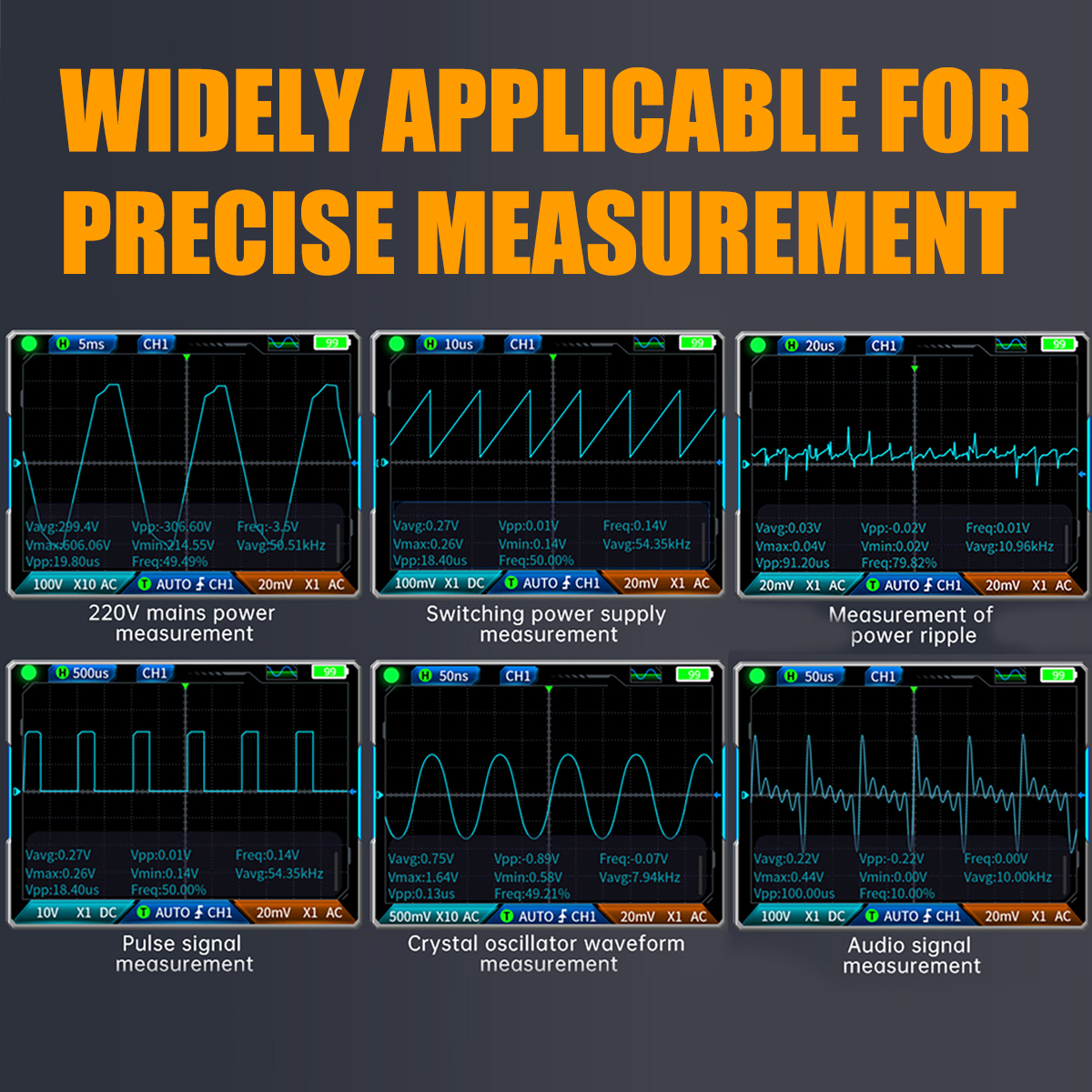

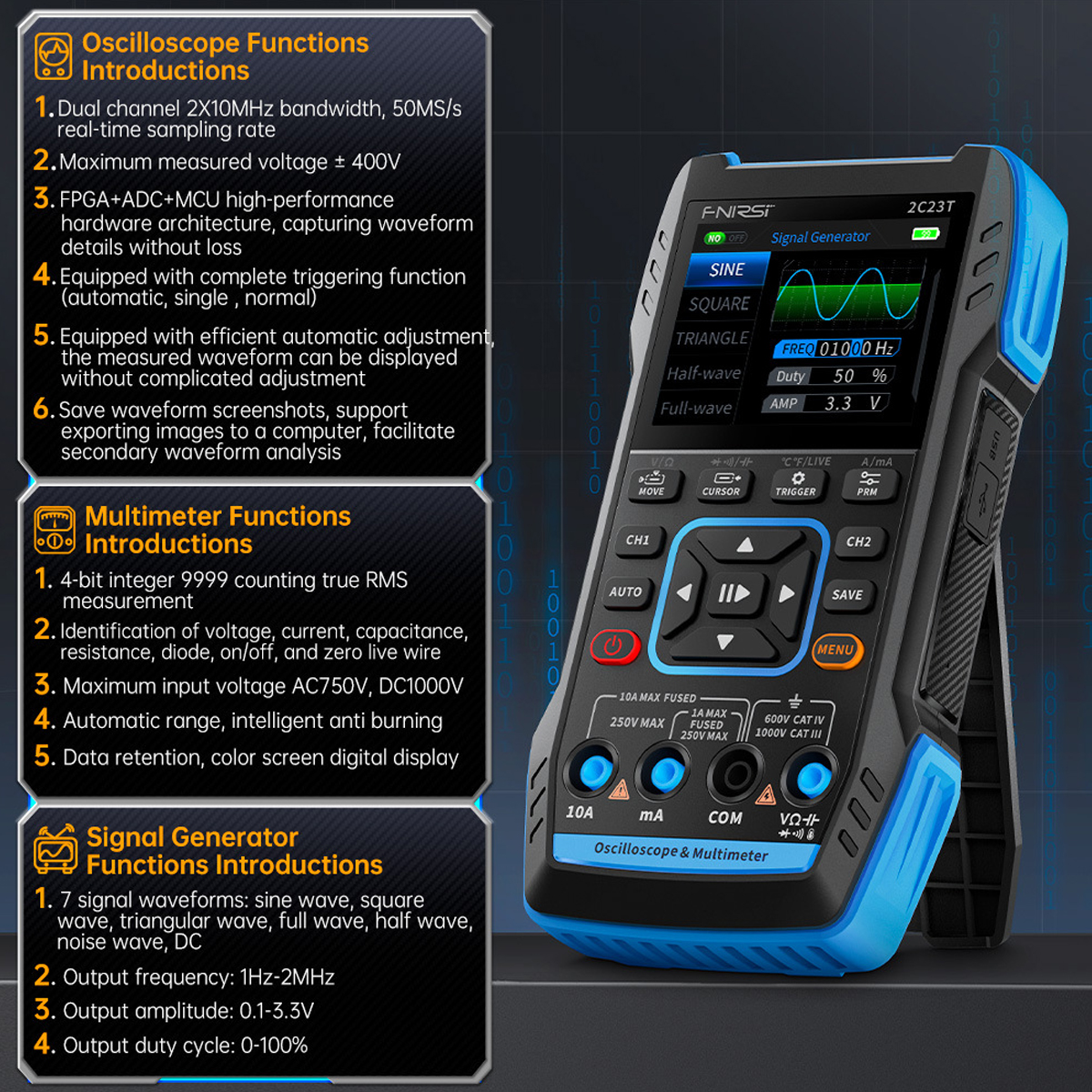

【Oscilloscope Mode】2 channel handheld oscilloscope, 10MHz bandwidth, real-time sampling rate 50MSa/s, record depth 32kb, maximum measurement voltage ±400V, automatic measurement function, trigger function auto/normal/single, 200mv/div-10v/div vertical sensitivity, support waveform image storage and export.

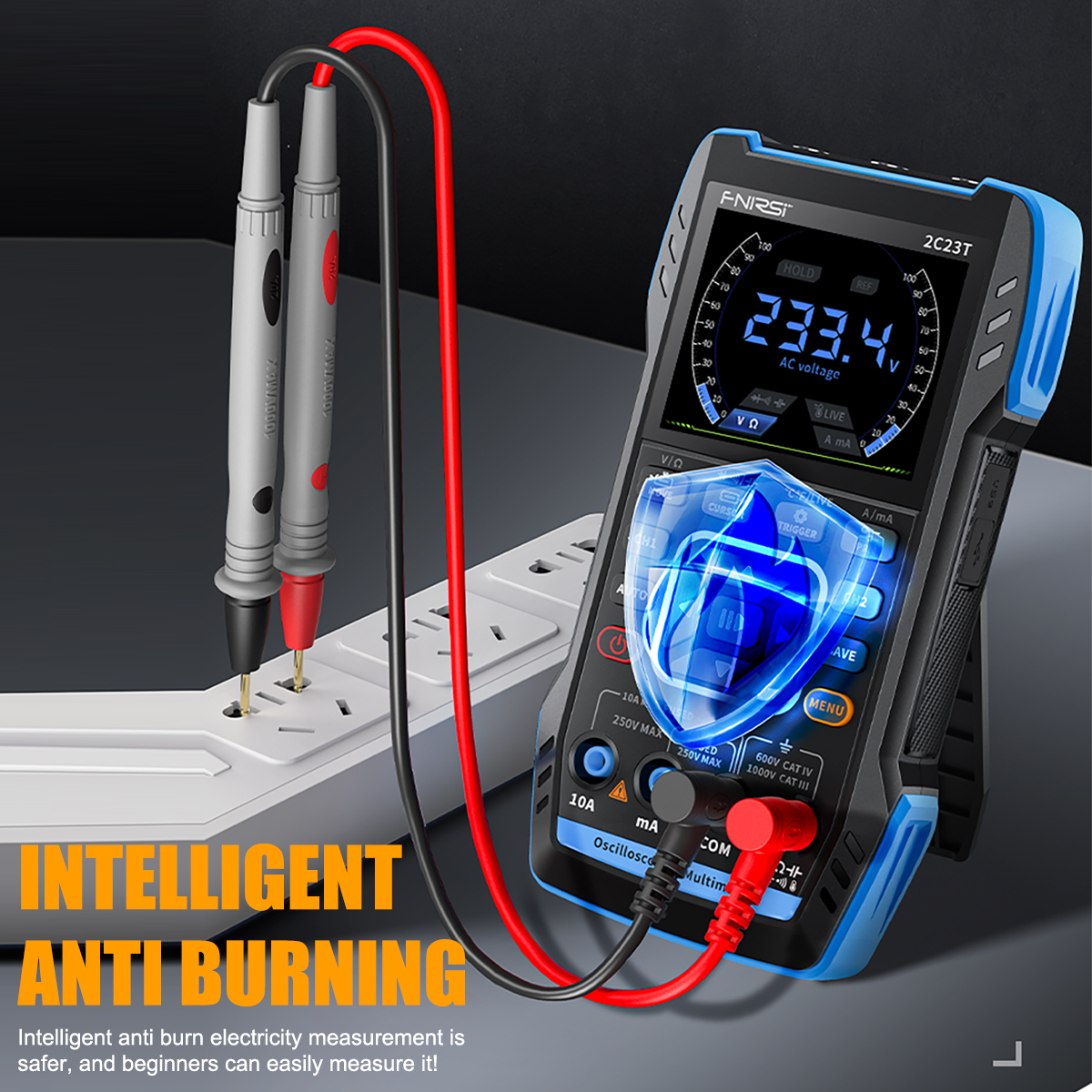

【Multimeter Mode】4-digit 10000 Counts. AC Voltage: 0-750V, DC Voltage: 0-999.9V, DC/AC Current: 0-9.999A, Resistance: 0-99.99MΩ, Capacitance: 0-99.99mF, Temperature: -55°C-1300°C/-67~2372℉, Diode, Continuity Measurement. An ideal multi-function meter for professionals, factories, schools, hobbyists or home use.

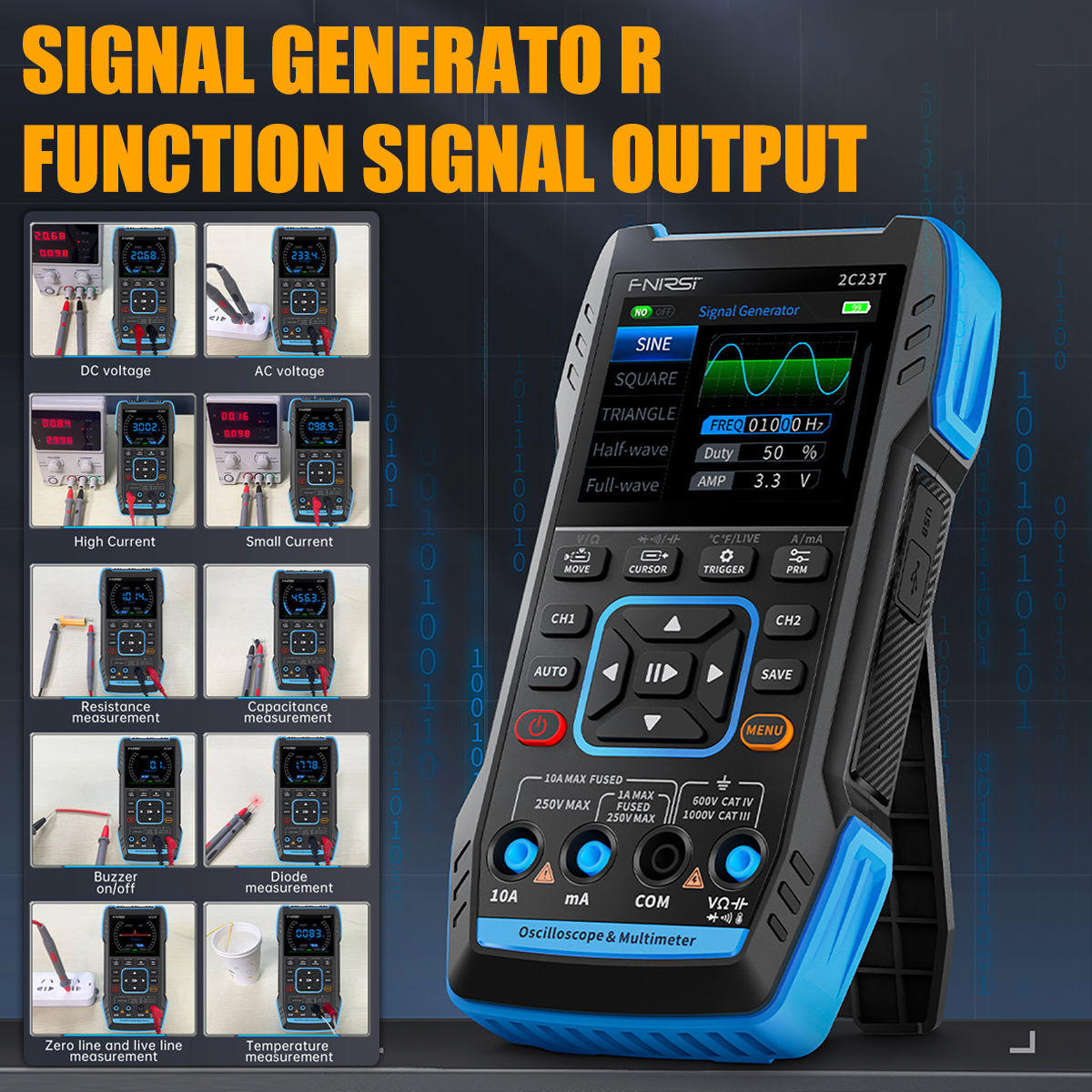

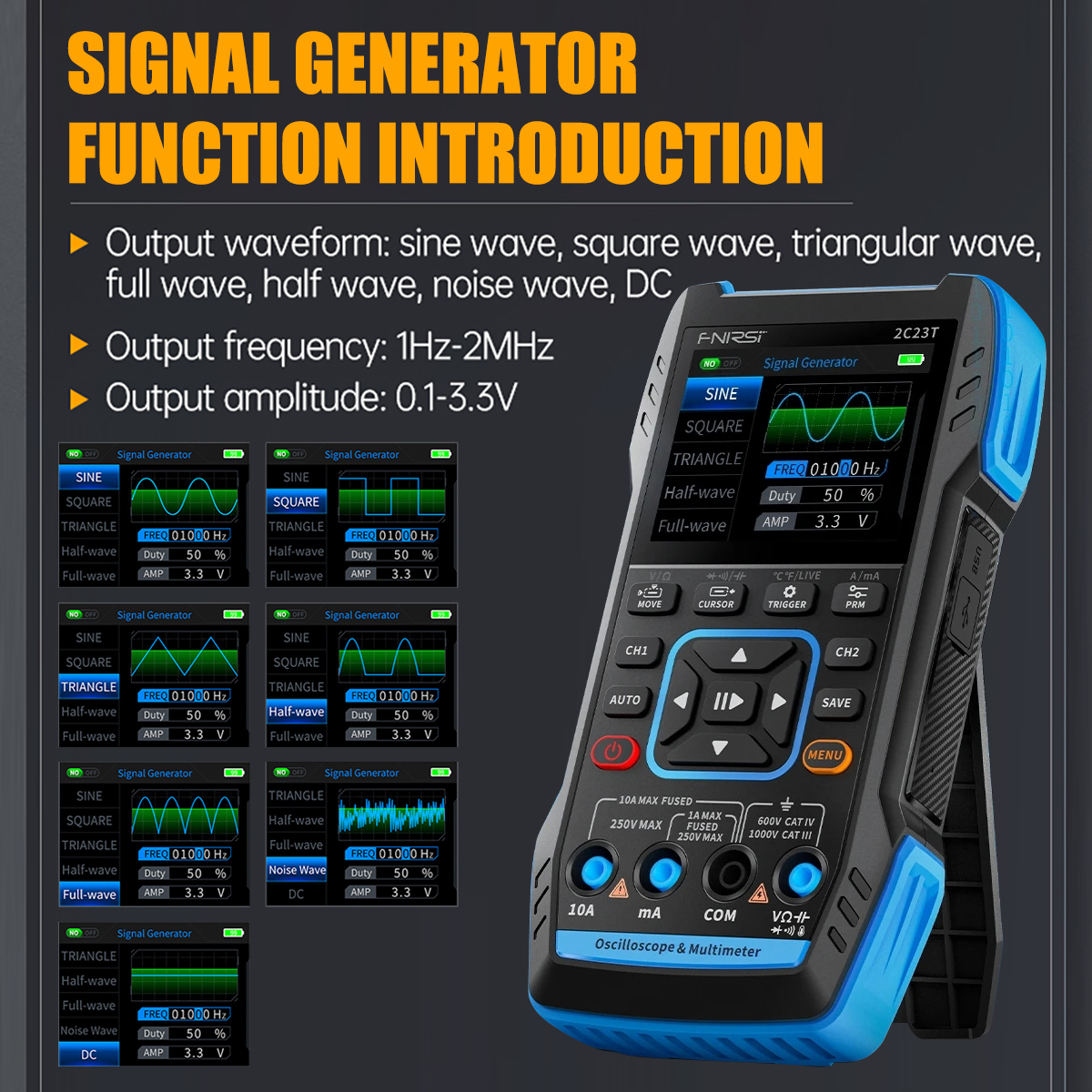

【Signal Generator】The maximum waveform output frequency can reach 2MHz and a step of 1Hz, and can output seven waveforms including sine, square, triangle, full, half, noise, and DC.

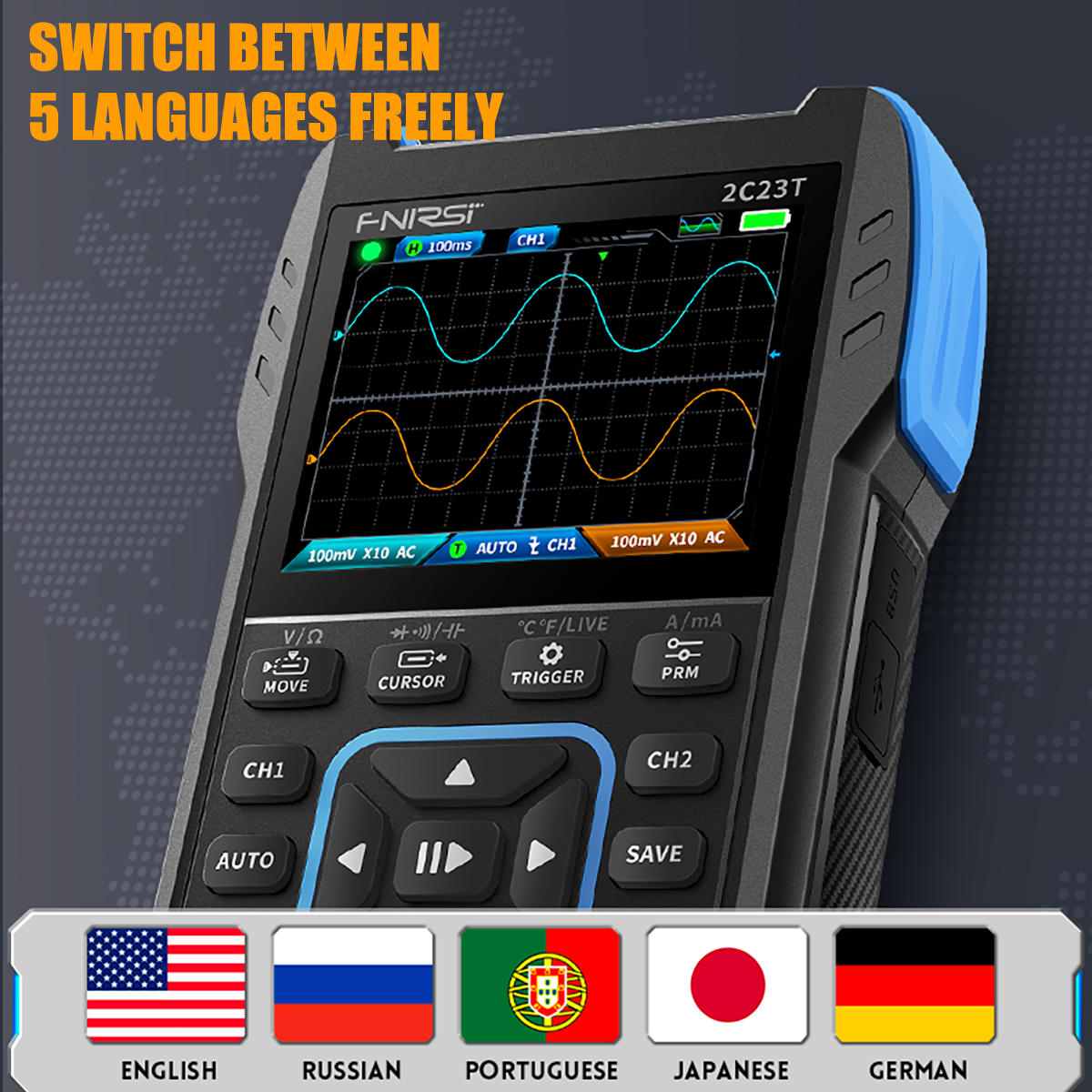

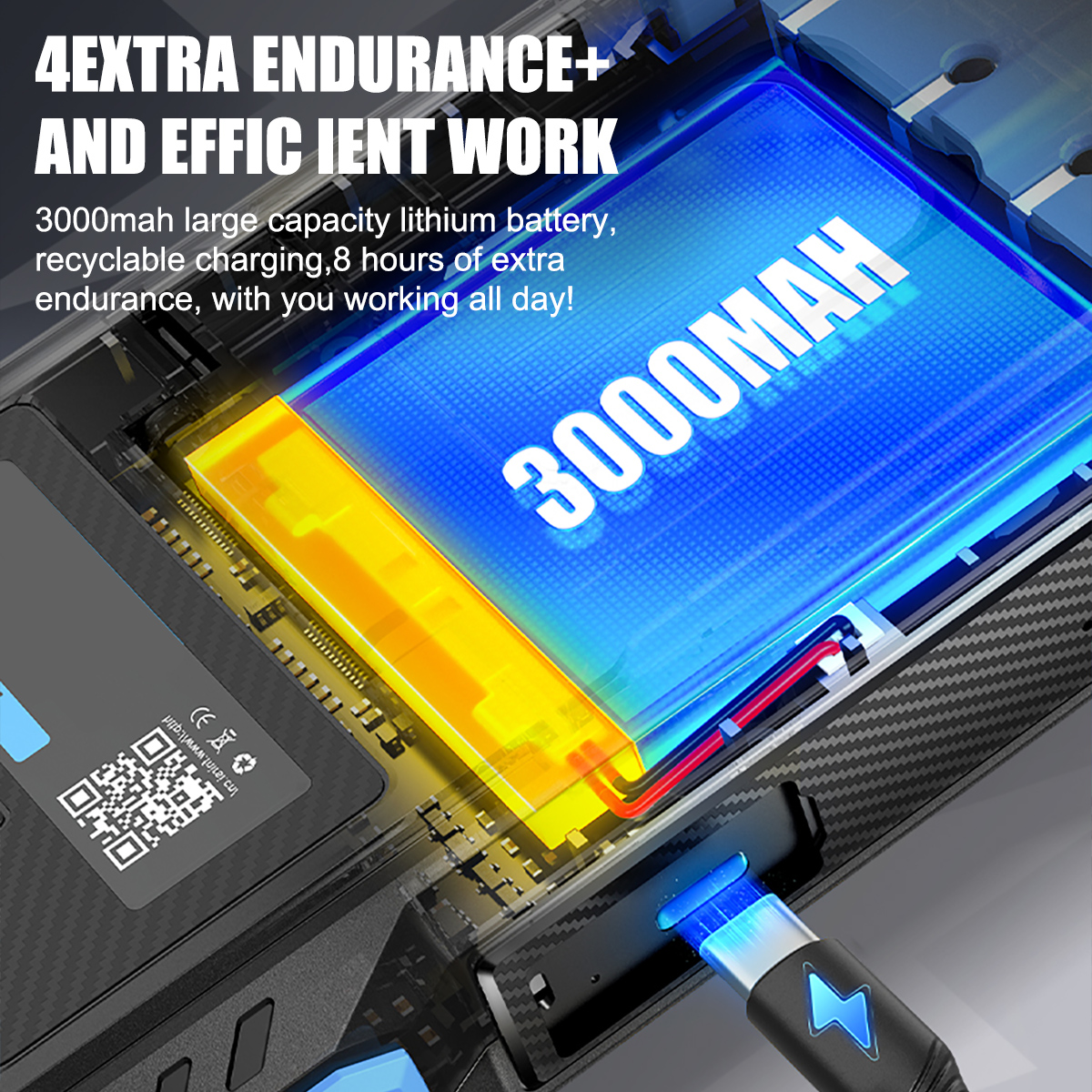

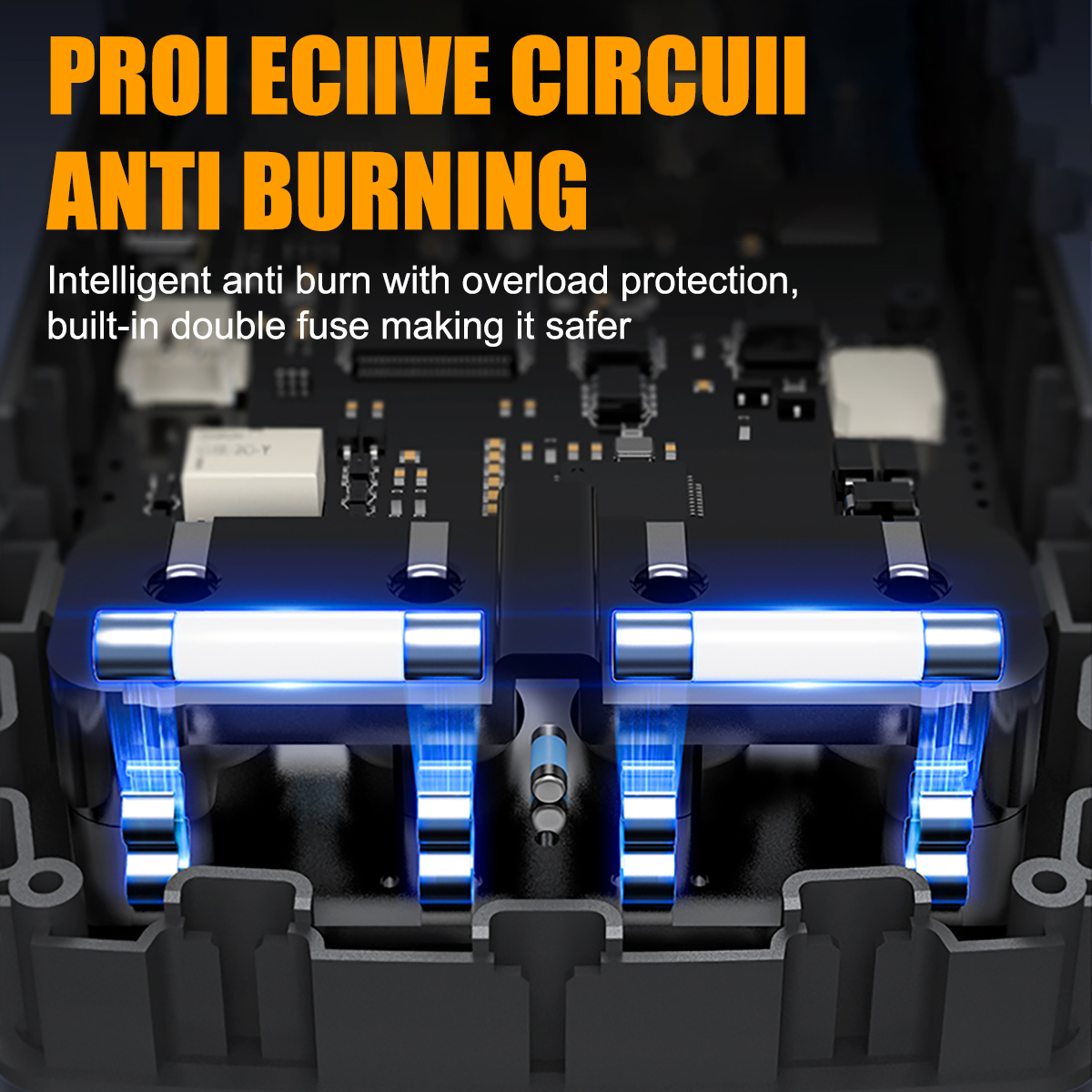

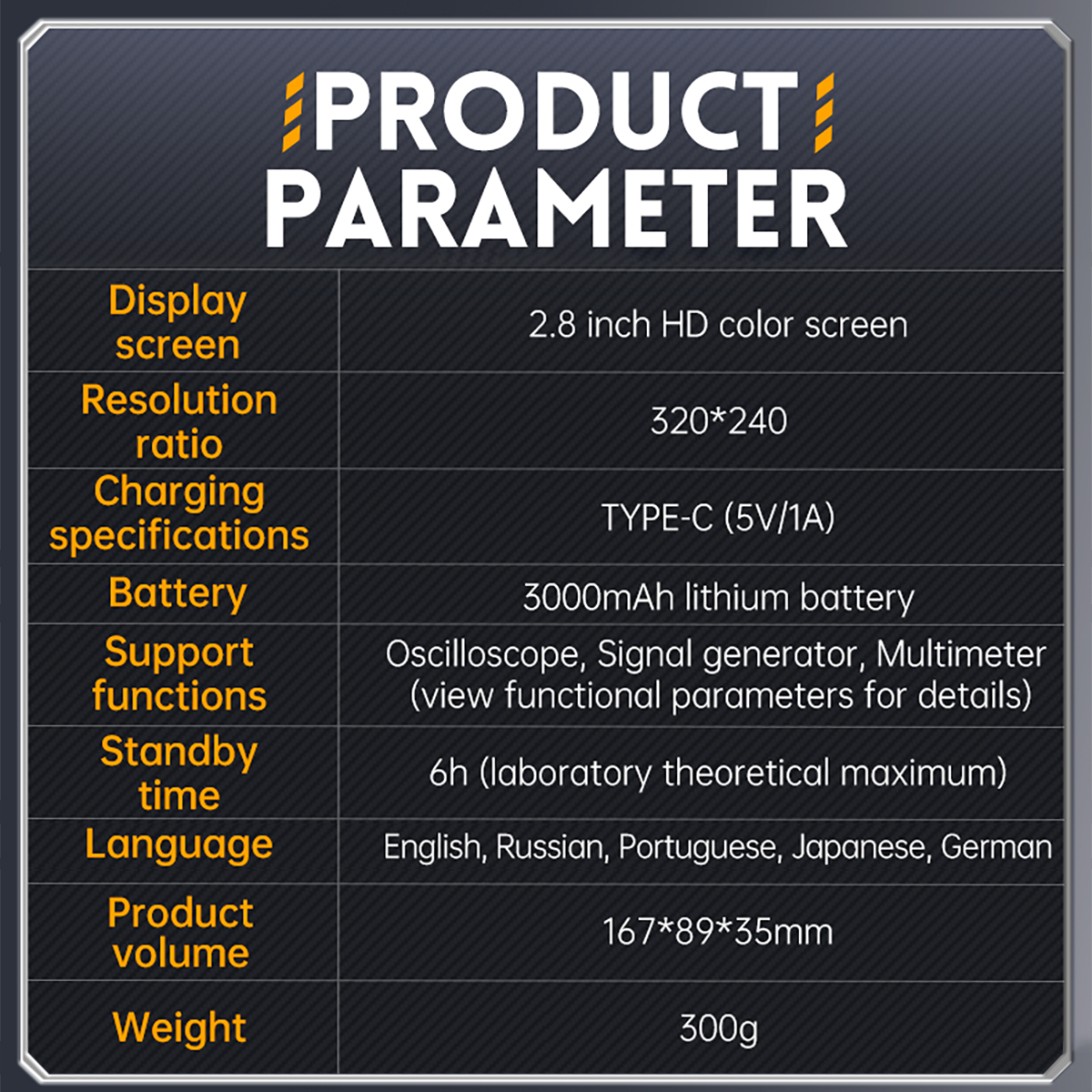

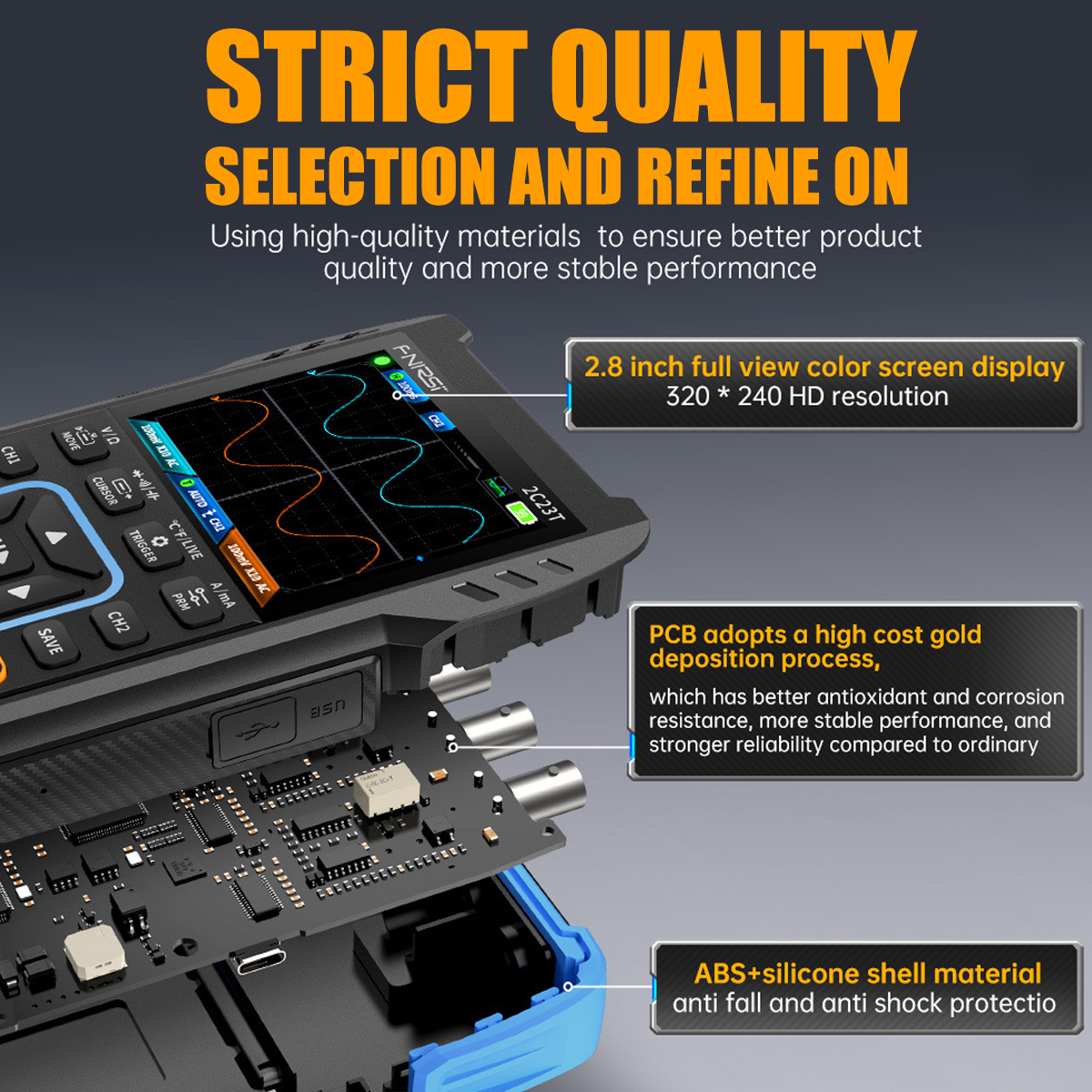

【Excellent Design】The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, built-in high-voltage protection module, adopts 2.8-inch 320*240 resolution HD LCD display, built-in 3000mAh rechargeable Li-ion battery, standby time up to 6H, Type-C interface supports 5V/1A power adapter charging.

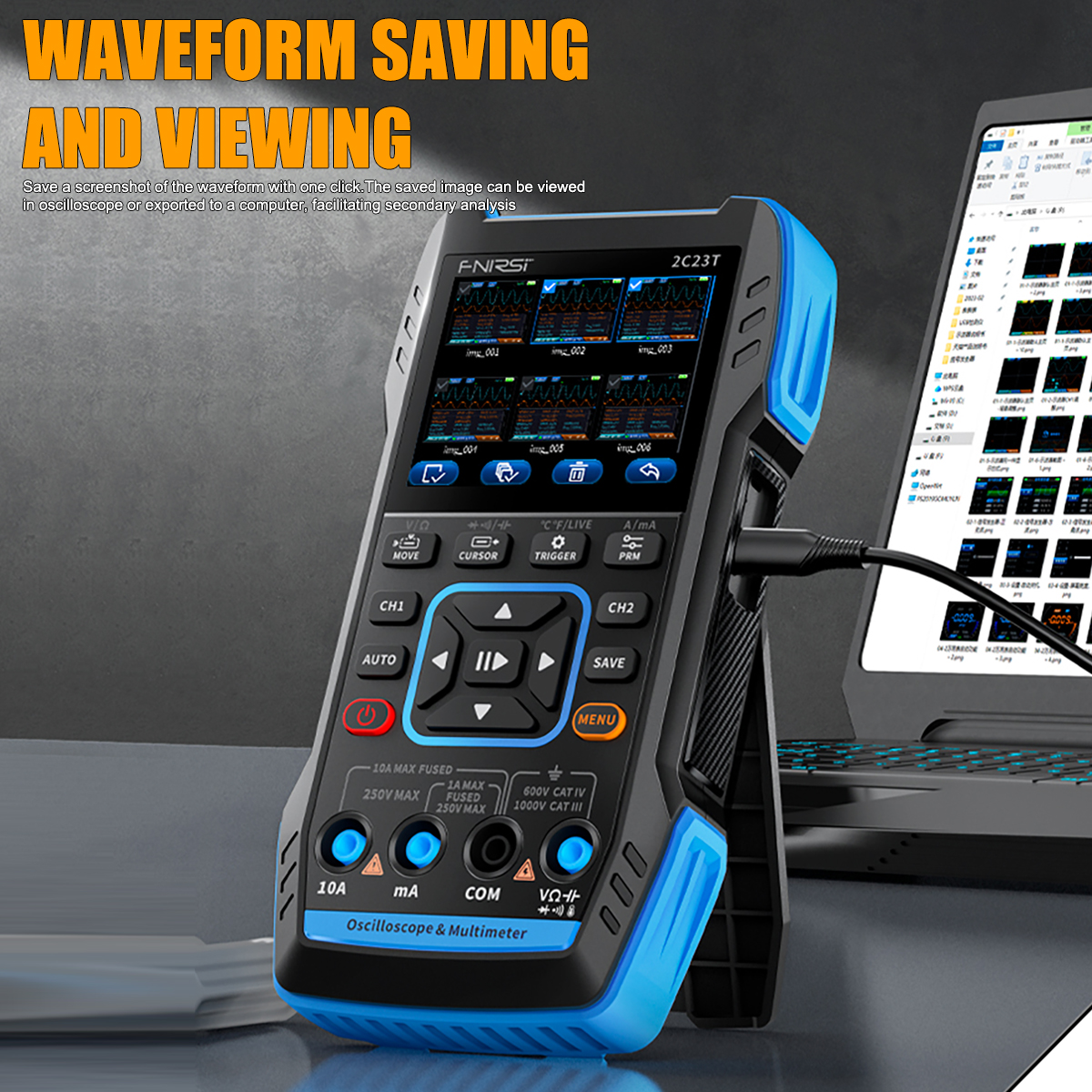

【Save function】one-click save, screening function. You can upload the saved image by connecting to PC via Type-C. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen.
Specification:

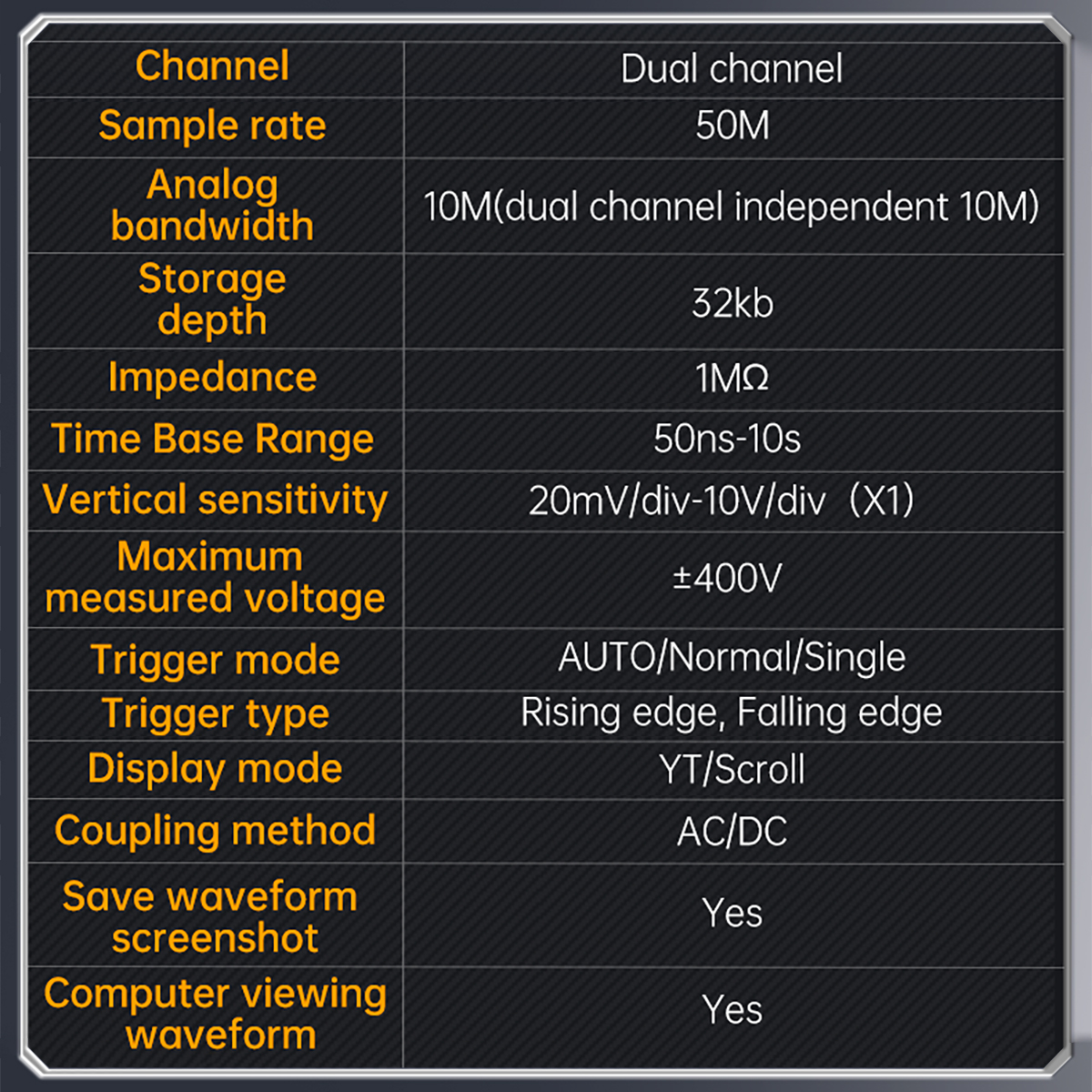

Oscilloscope

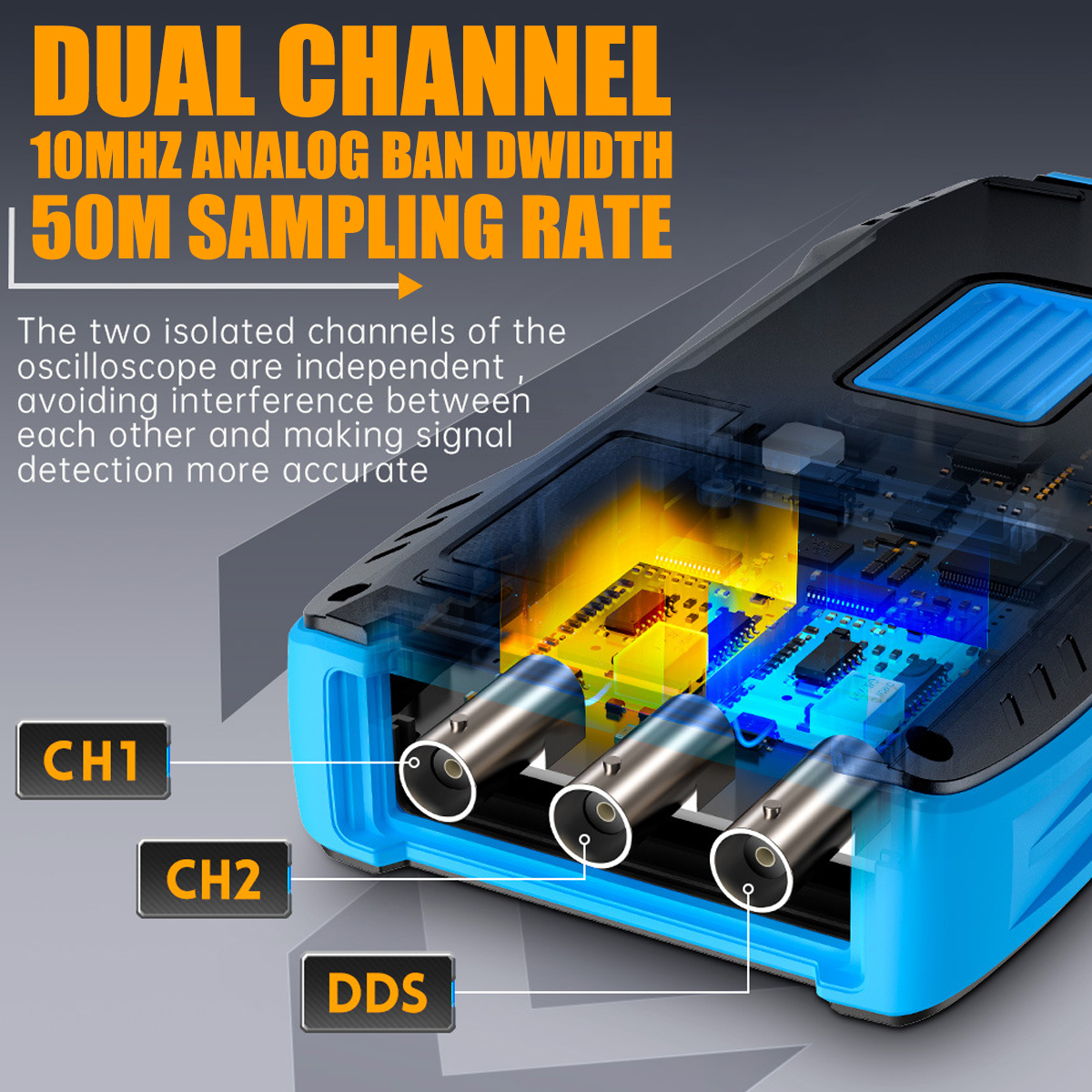

Channel：Dual channel
Sample rate：50M
Analog bandwidth：10M(dual channel independent 10M)
Storage depth：32kb
Impedance：1MΩ
Time Base Range：50ns-10s
Vertical sensitivity：20mV/div-10V/div（X1）
Maximum measured voltage：±400V
Trigger mode：AUTO/Normal/Single
Trigger type：Rising edge, Falling edge
Display mode：YT/Scroll
Coupling method：AC/DC
Save waveform screenshot：Yes
Export waveform images：Yes

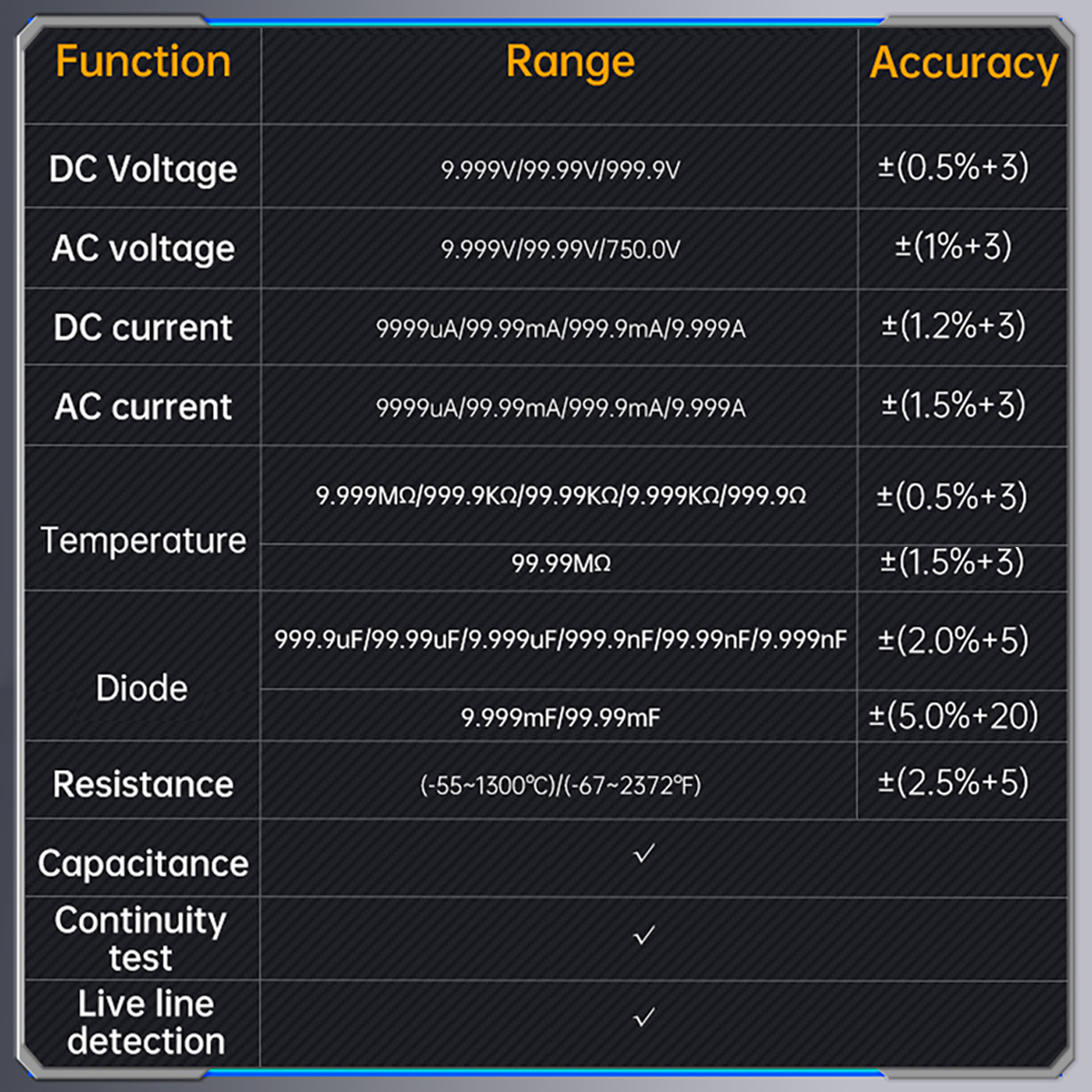

Multimeter
DC Voltage：9.999V~999.9V
AC voltage：9.999V~750.0V
DC current：9999uA~9.999A
AC current：9999uA~9.999A
Resistance：999.9Ω~99.99MΩ
Capacitance：9.999nF 99.99mF
Temperature：(-55~1300℃)/(-67~2372℉)
Diode：Yes
Continuity test：Yes
Live line detection：Yes
Function Signal Generator
Channel：Single channel
Frequency：1Hz-2MHz
Amplitude：0.1-3.3V

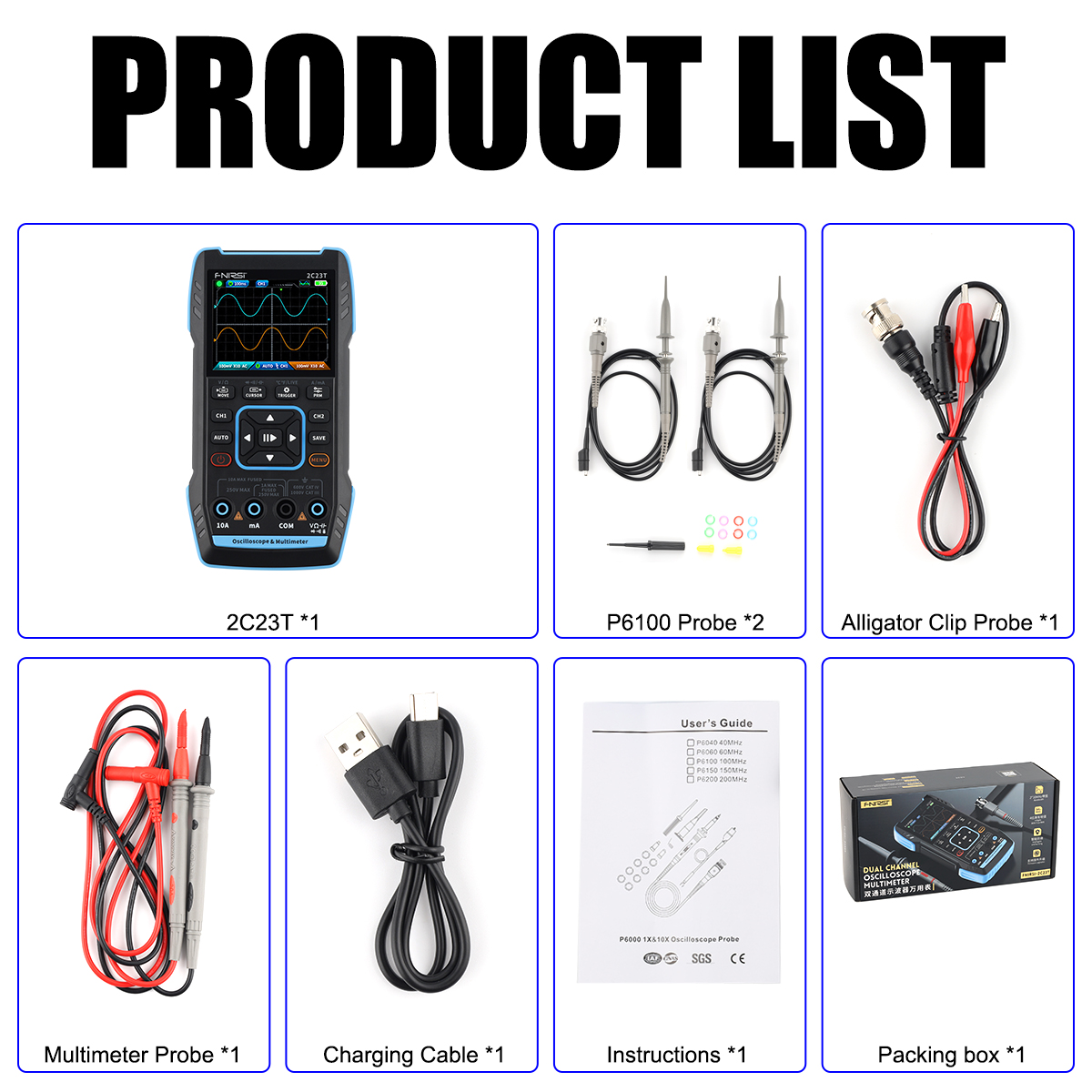

Package included：
2C23T *1
P6100 Probe *2
Crocodile clip probe *1
Multimeter Probe *1
Charging cable *1
User Manual *1
Packaging box *1
