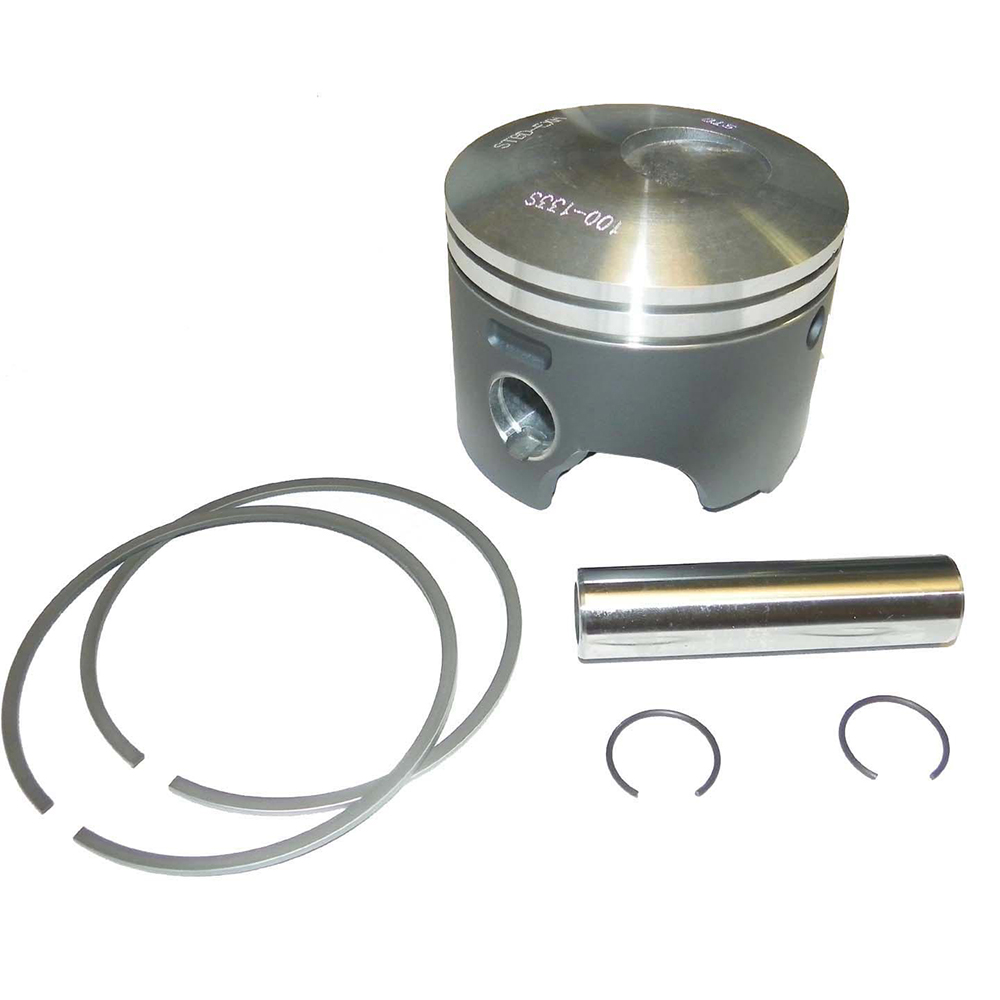

New STBD Piston Kit Standard 1993-1998 Johnson Evinrude V8 Looper 5006728

Replaces Part Numbers & Specifications

OEM CROSS-REFERENCE PART NUMBERS (STARBOARD SIDE):
• 5000813 (starboard standard piston)
• 5006728 (supersedes 5000813)
• 5000812 (port reference)
• 5006727
• 5000820 (ring set)
• 326764 (wrist pin)
• 326765 (circlip retainers)

SPECIFICATIONS:
• Type: Starboard Side Piston Kit with Ring Set, Wrist Pin, and Circlip Retainers
• Size: Standard
• Bore: 3.600" Standard
• Engine: V8 90-Degree Loop Charge 2-Stroke
• Horsepower: 250HP, 275HP, 300HP
• Side: Starboard (Right)
• Material: Cast Aluminum
• Kit Quantity: 1 Cylinder

COMPATIBILITY:
• 1993-1998 Johnson/Evinrude 250HP V8 Loop Charge
• 1993-1998 Johnson/Evinrude 275HP V8 Loop Charge
• 1993-1998 Johnson/Evinrude 300HP V8 Loop Charge
• Starboard side pistons only — requires matching port pistons for complete rebuild

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.



JOHNSON/EVINRUDE V8 LOOP CHARGE OUTBOARD ENGINES (1993-1998):

V8 90-DEGREE LOOP CHARGE MODELS:
• 250HP V8 Loop Charge (1993-1998)
• 275HP V8 Loop Charge (1993-1998)
• 300HP V8 Loop Charge (1993-1998)

ENGINE SPECIFICATIONS:
• Configuration: 90-Degree V8 Loop Charge
• Standard Bore: 3.600"
• Engine Type: 2-Stroke Loop Charge (Looper)
• Piston Side: Starboard (Right)

IMPORTANT NOTES:
• Port and starboard pistons are DIFFERENT — this is the STARBOARD side only
• Order matching port piston kit separately for complete rebuild
• V8 engines: order 4 port + 4 starboard pistons
• 3.600" bore — verify bore size matches your engine
• Verify OEM part number before ordering
