1. The shell is made by Gravity casting, have good structure,stable sealing performance
2. The oil cooler adopts a naked tube ( with no rolled fins on the surface) type heat transfer tube,have large cooling area and
nice cooling effect
3. The cooling pipe adopts high quality brass pipe and processed into finned radiating fin, has strong corrosion proof ability and
high intensity
4. 100% inspection before shipping, Make sure all the oil cooler is not leakage
5. The oil cooler is widely used in finishing, transport,working,special boats, Ocean large-power vessels and etc
Products Description
|
Item Name
|

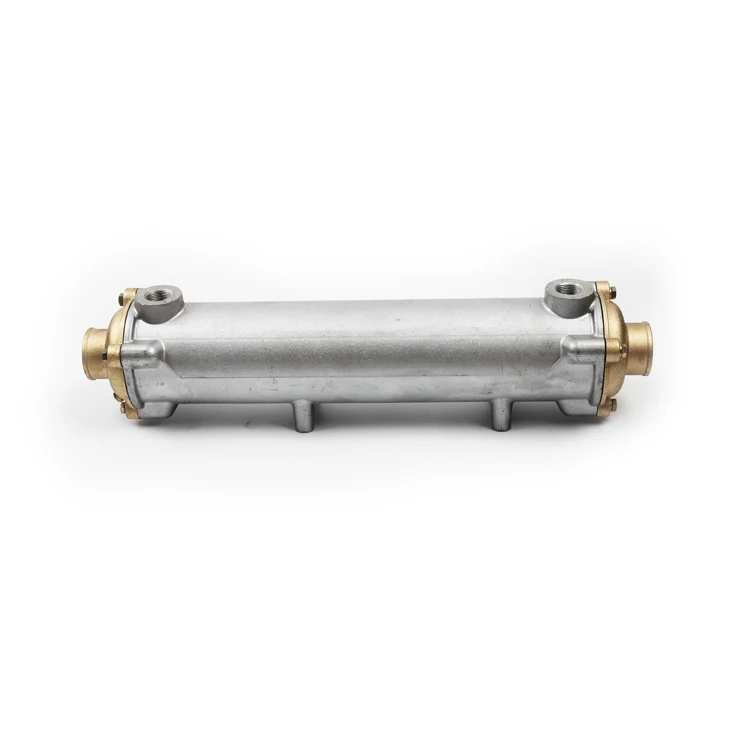

D300 Marine oil cooler
|
|
Model
|
DK7203, D300
|
|
MOQ
|
1 Pcs
|
|
Cooling surface
|
0.38㎡
|
|
Working medium
|
oil
|
|
Working oil temperature
|
75℃
|
|
Working oil pressure
|
1.3Mpa
|
|
Oil flow
|
1.8m³/h
|
|
Water temperature
|
32℃
|
|
Cooling water flow
|
2.6m³/h
|
|
Water pressure
|
0.2Mpa
|
|
Heat exchange capacity
|
8478W
|
Customized Service
1. Choose Material
● The Material of Marine oil cooler body ： Aluminum ，Iron
● The Material of end cover： Iron ， Brass
2. Choose the material and thickness of core
● Tin Brass Hsn70-1， 0.5mm, 0.6mm, 0.8mm ( In stock)
● Tin Brass Hsn70-1, 1mm, 1.2mm (need to customized, MOQ is 50 PCs)
● White Brass B10, 1mm ( need customized, MOQ is 50Pcs)
● Tin Brass Hsn70-1, 1mm, 1.2mm (need to customized, MOQ is 50 PCs)
● White Brass B10, 1mm ( need customized, MOQ is 50Pcs)
