T1-K use for Single Color LED Strip Light

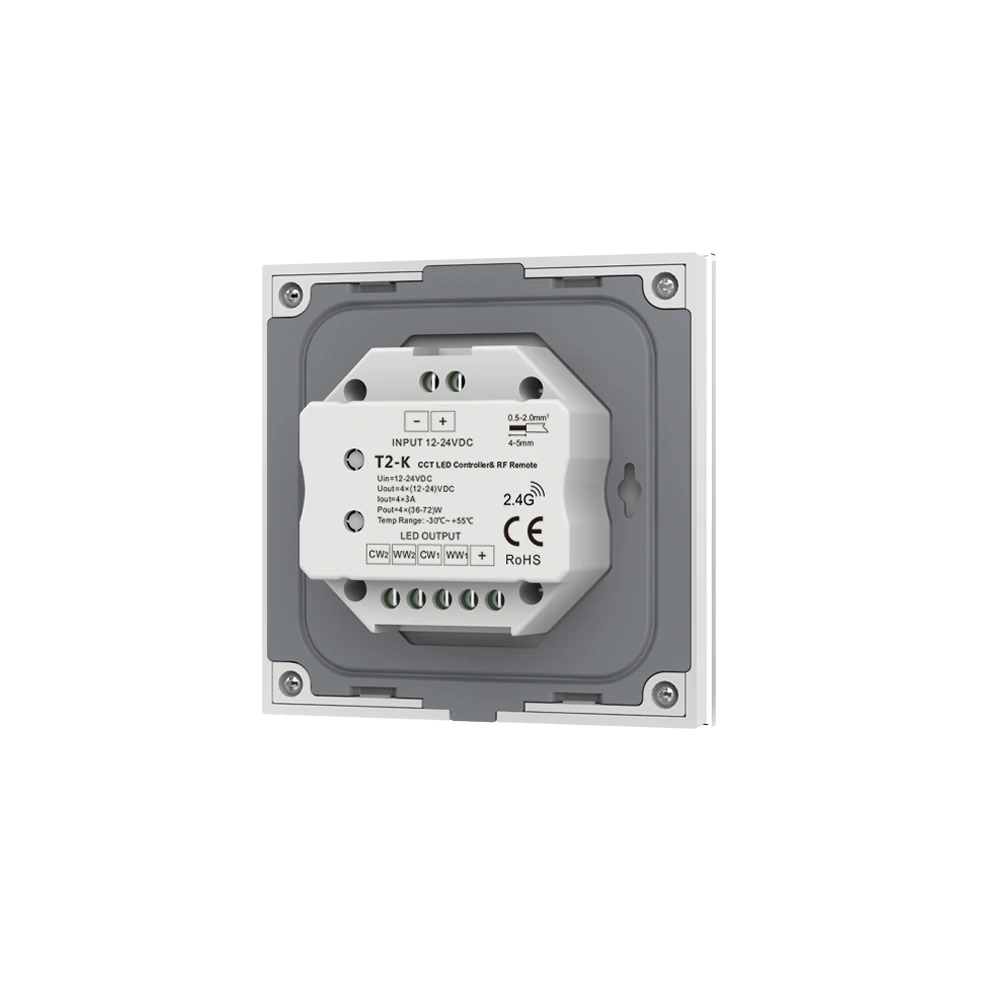

T2-K use for Dual White (WW+CW) LED Strip Light

T3-K use for RGB LED Strip Light





Work with 2.4G Remote:

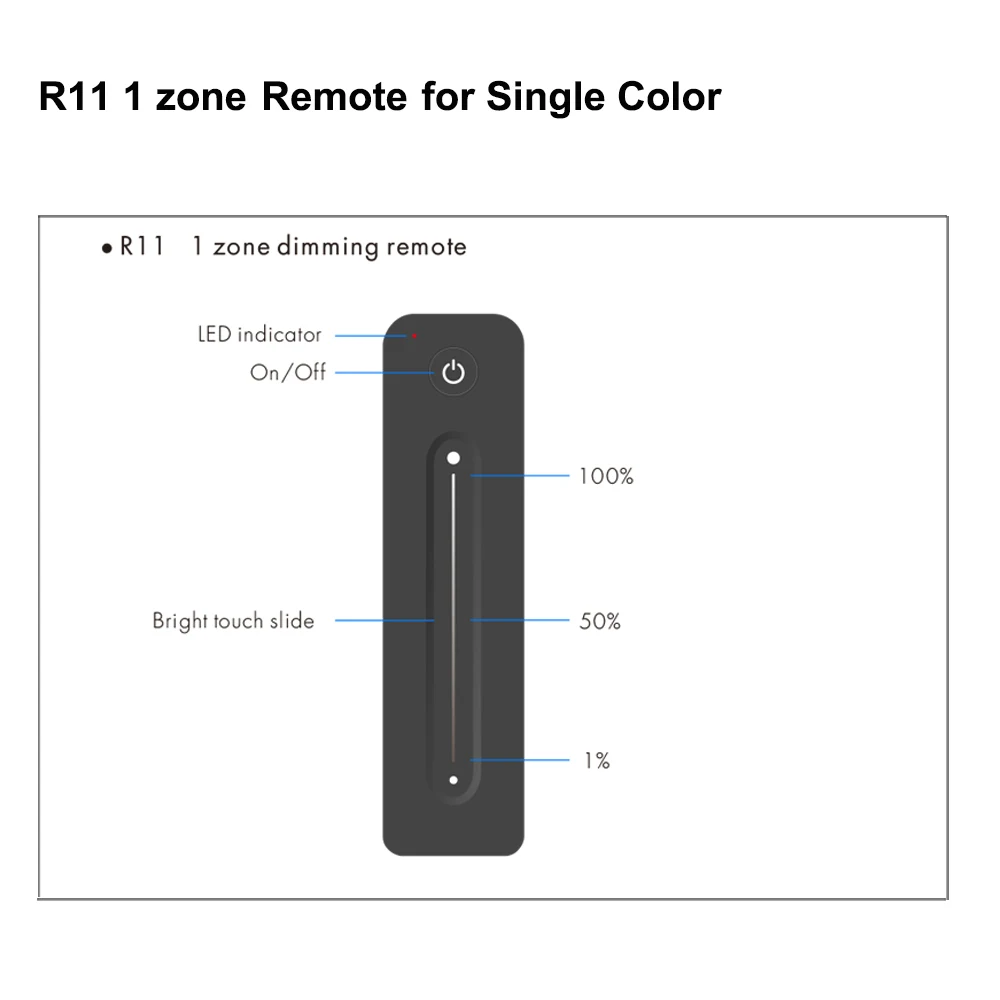

R11: 1-zone remote for single color led strip - (for T1-K)

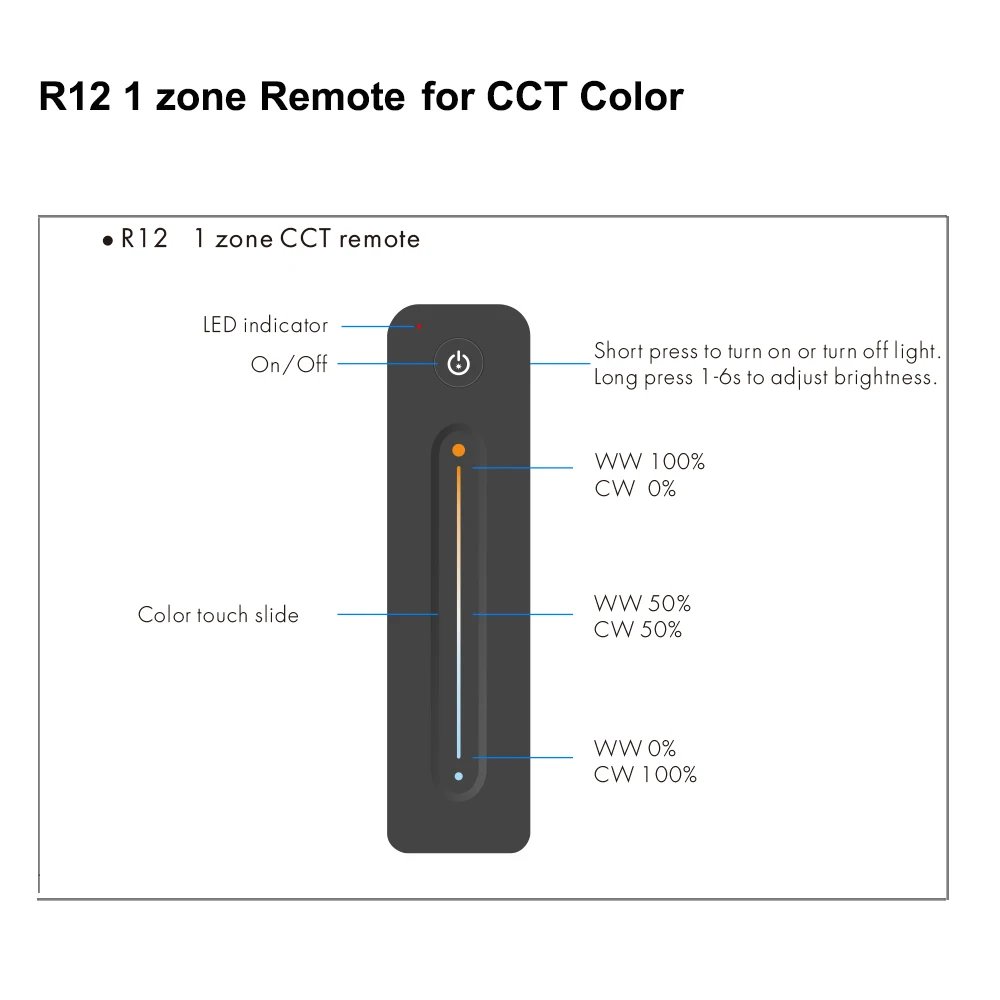

R12: 1-zone remote for CCT led strip - (for T2-K)

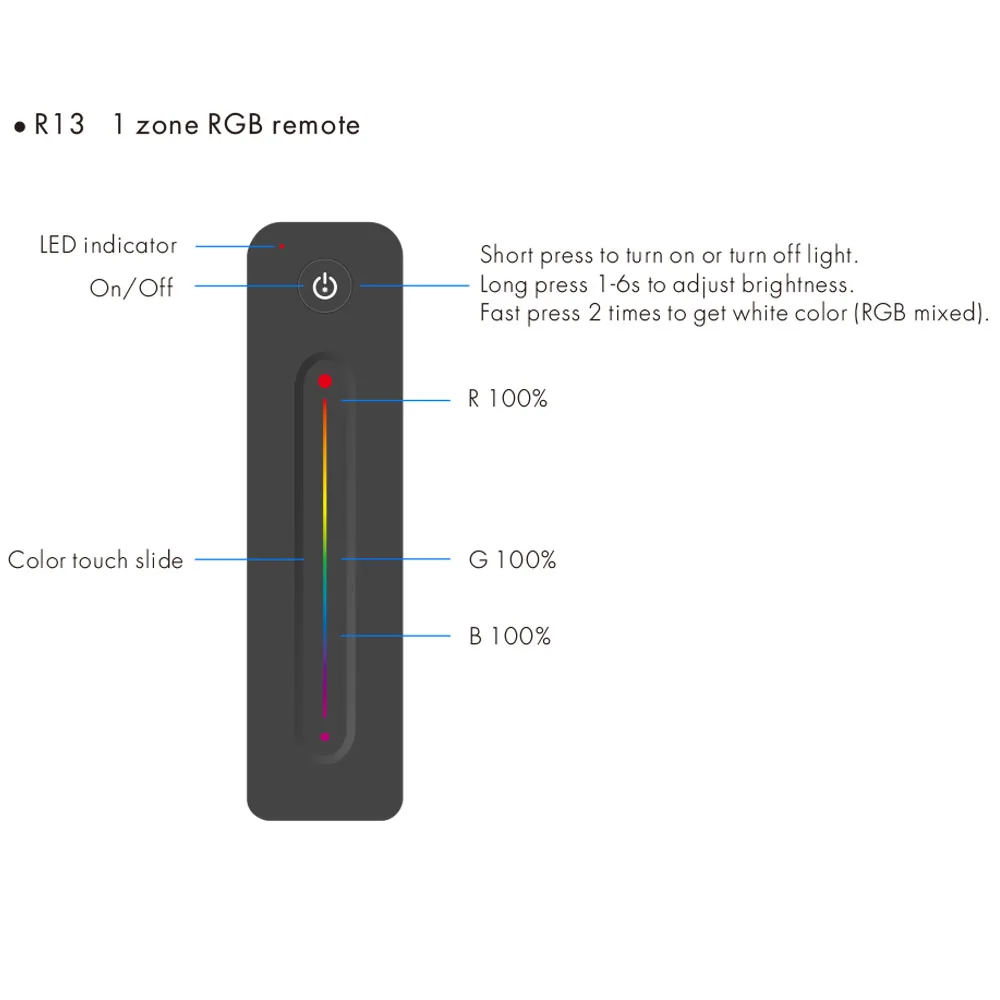

R13: 1-zone remote for RGB led strip - (for T3-K)

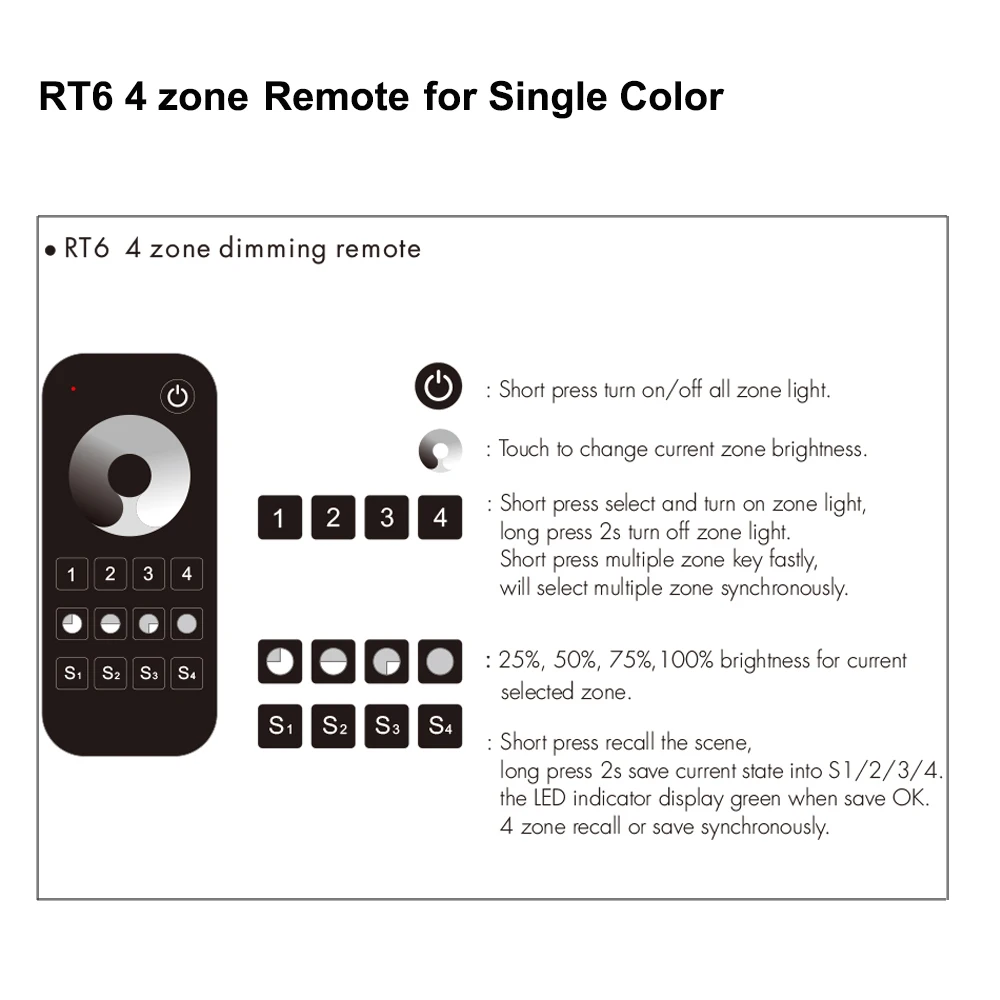

RT6: 4-zone remote for Single color led strip - (for T1-K)

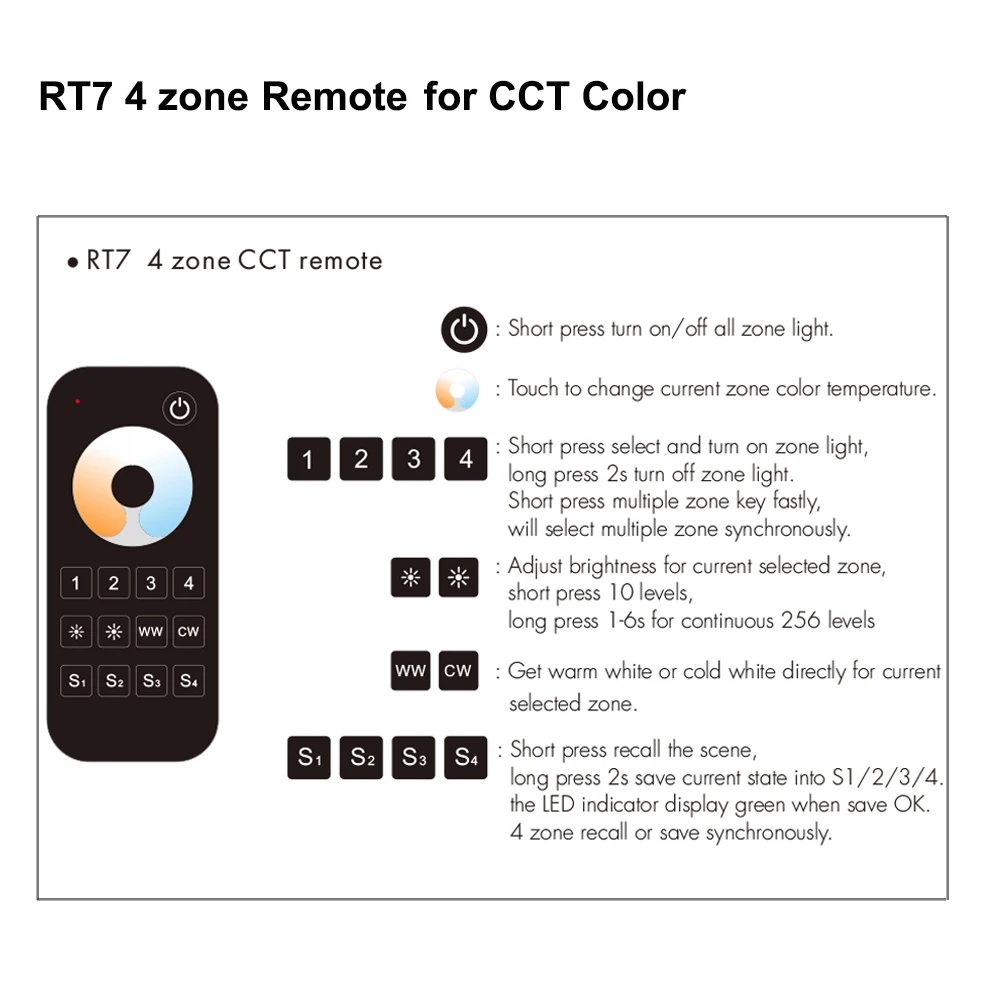

RT7: 4-zone remote for CCT led strip - (for T2-K)

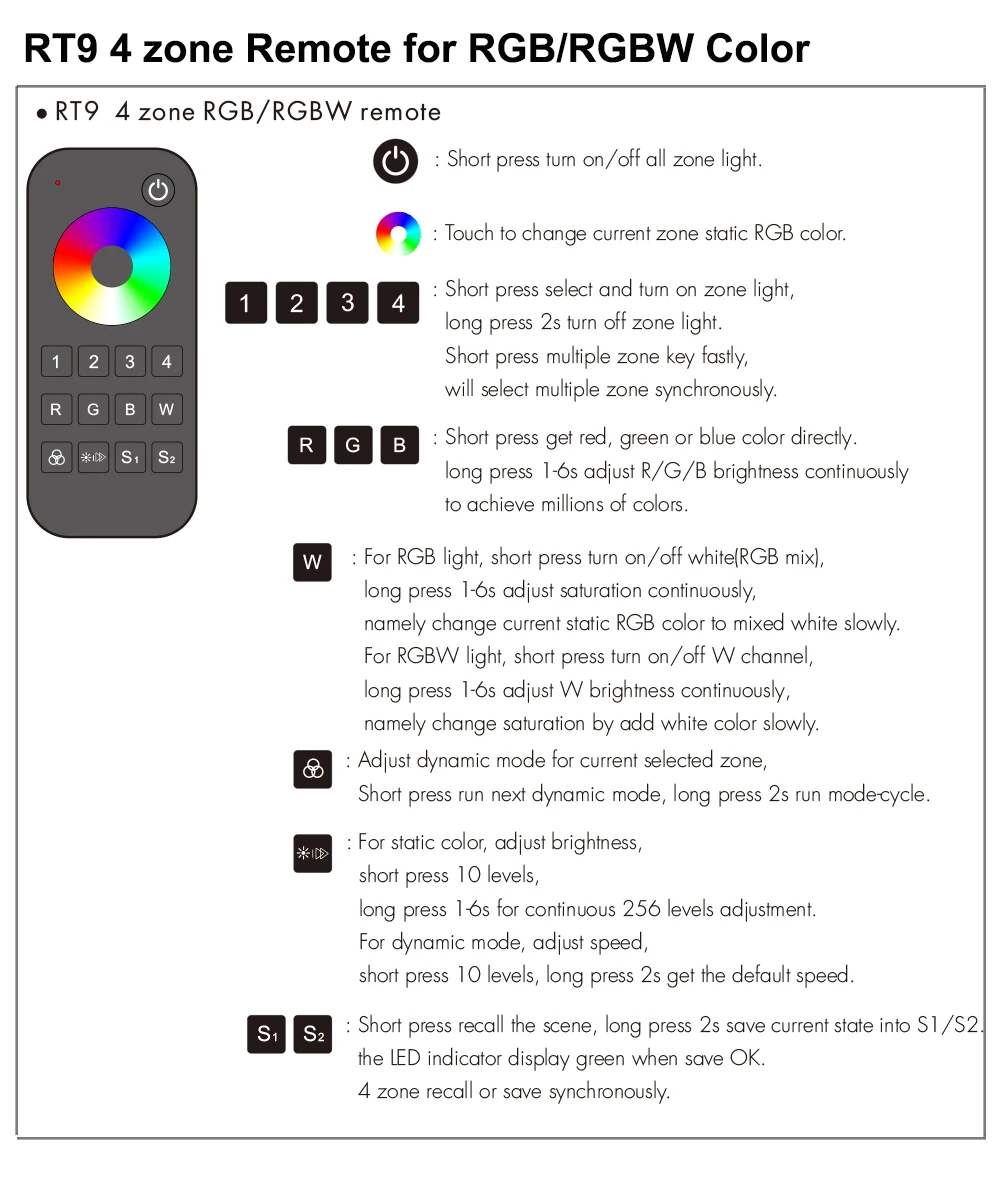

RT9: 4-zone remote for RGB led strip - (for T3-K)

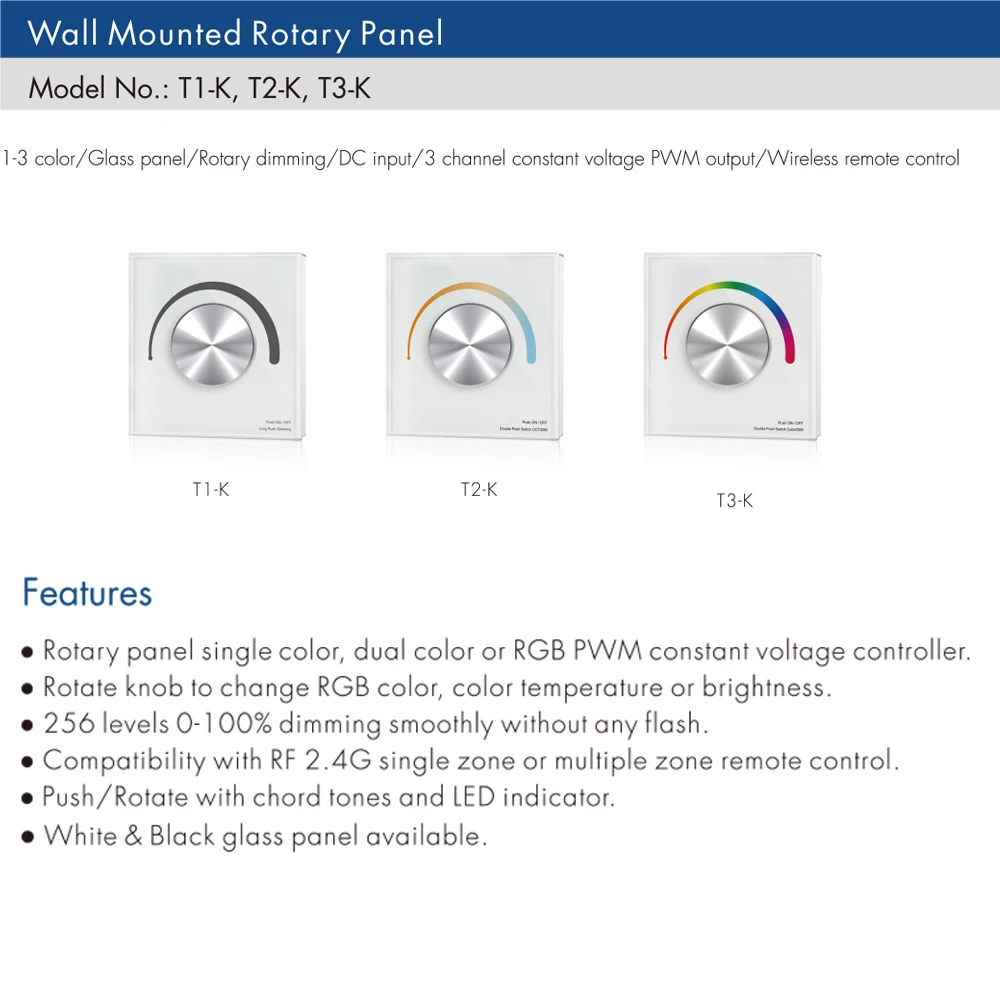

Description

- Rotary Panel Single Color,Dual color or RGB PWM constant controller.

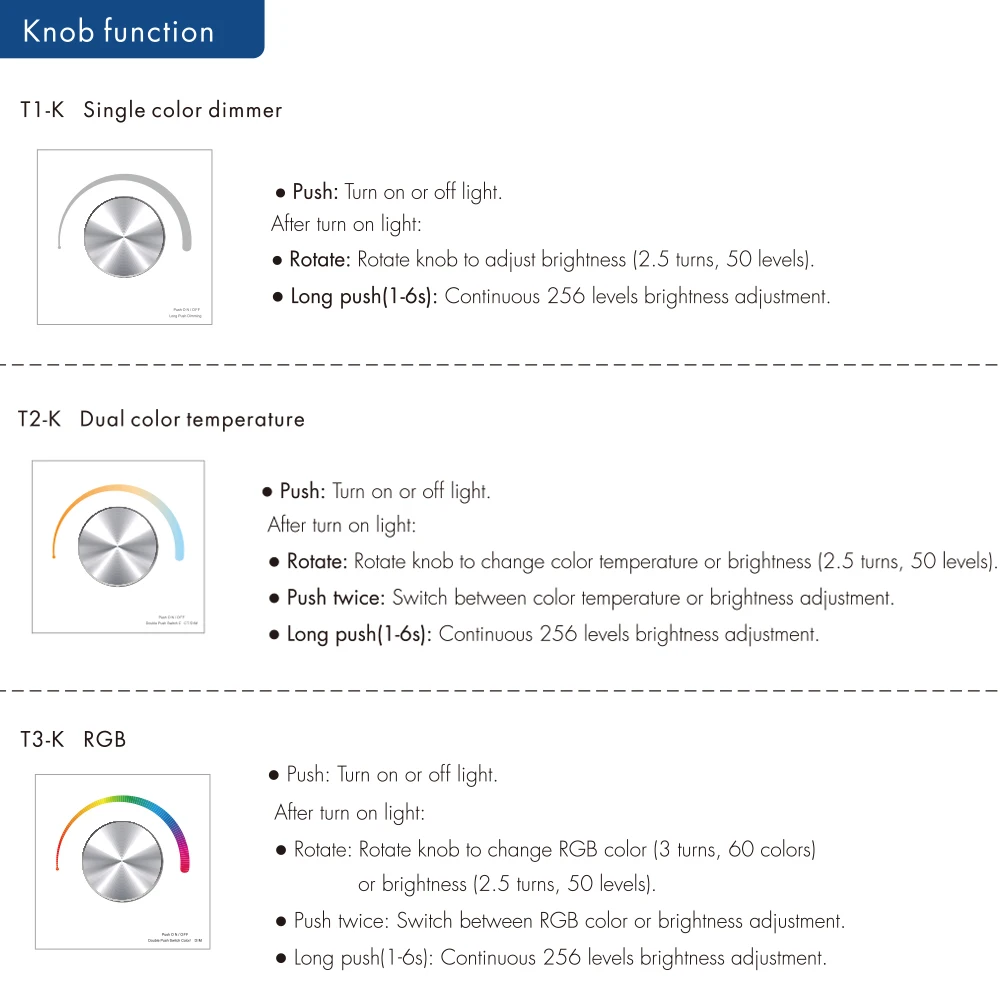

- Rotate knob to change RGB color,color temperature or brightness.
- 256 levels 0-100% dimming smoothly without any flash.

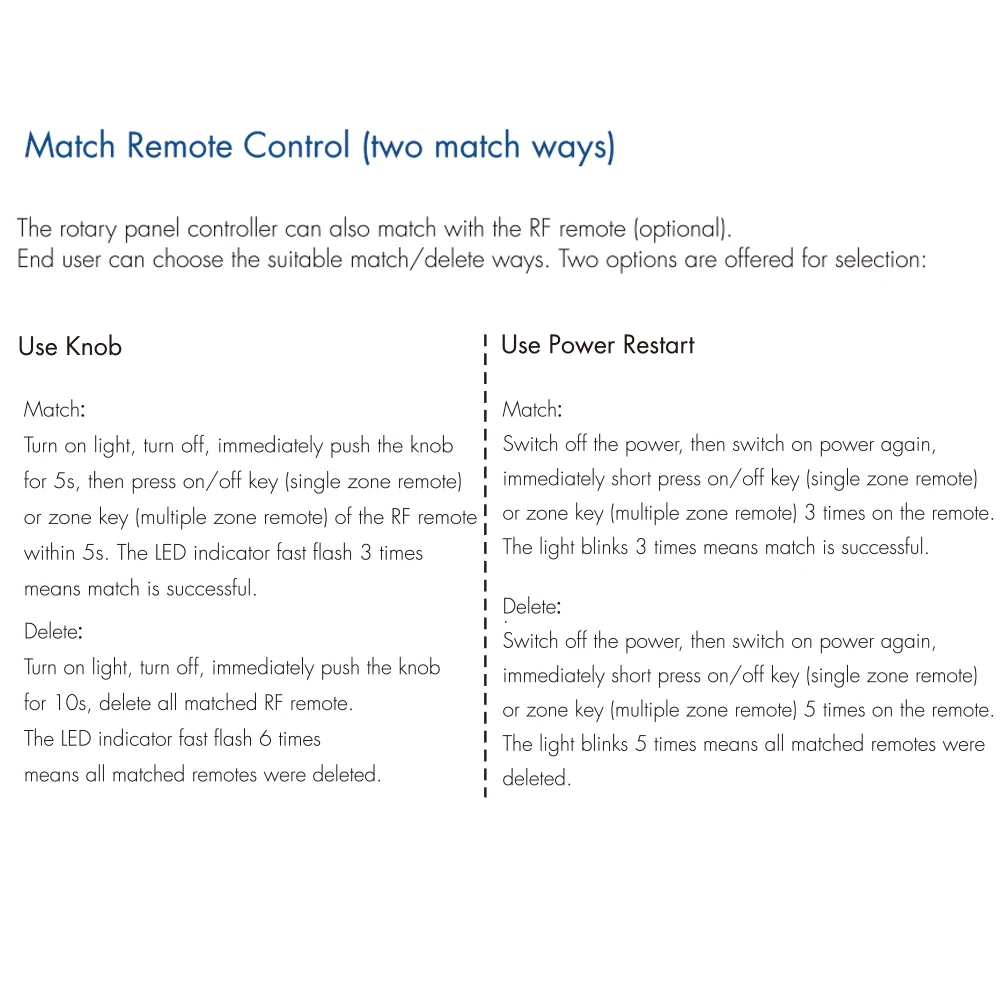

- Compatibility with RF 2.4G single zone or multiple zone remote control.
- Push/Rotate with chord tones and led indicator.
- White & Black Glass Panel Available.

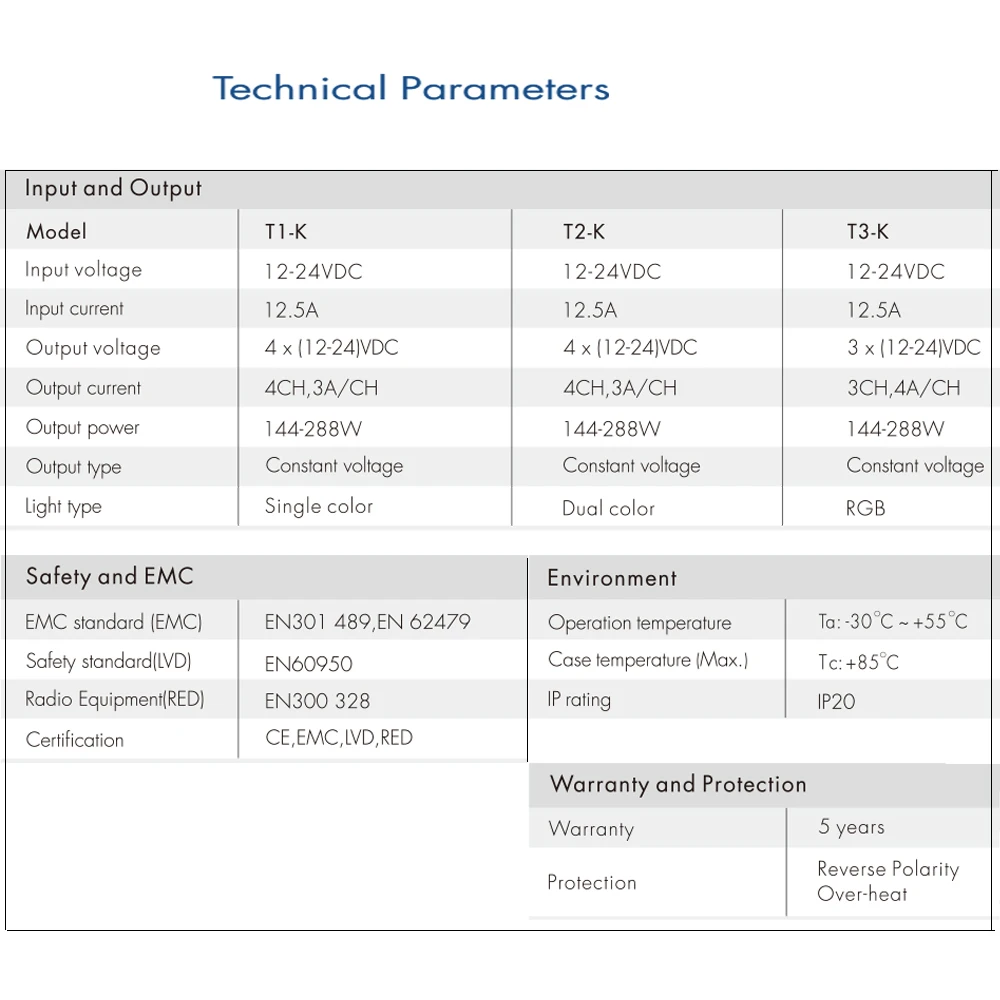

Technical Parameters:

● Input voltage: 12-24VDC

● Output type: constant voltage

● Output current: 4CH, 3A/CH , 3CH, 3A/CH for RGB

● Output power: 4x (12-24)VDC ; 3x (12-24)VDC

● Dimming range: 0-100%

● Remote distance: 30m
