Product Type: Starter |
Replaces: 0-001-368-085 3872D304 1092361 154011053 LRS1917 2873D304 |
  • Volts: 24 |
  • Teeth On Drive: 10 |
  • Rotation: Clockwise |
  • Source: Aftermarket
Over 30,000 aftermarket & original parts
Open 24 Hours
8-6 EST SALE SUPPORT
English/Español/Call Us Today

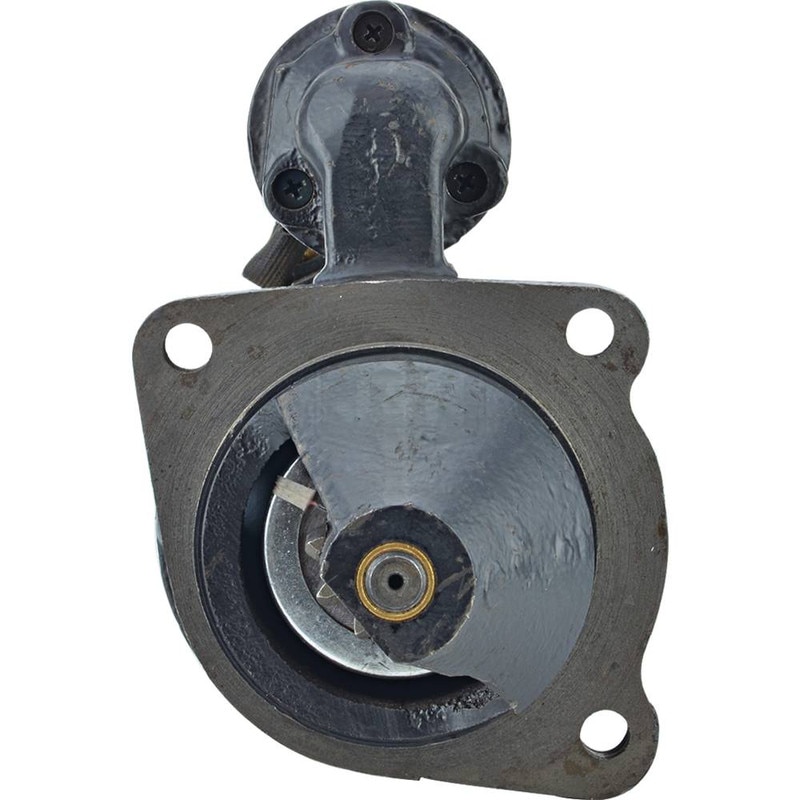

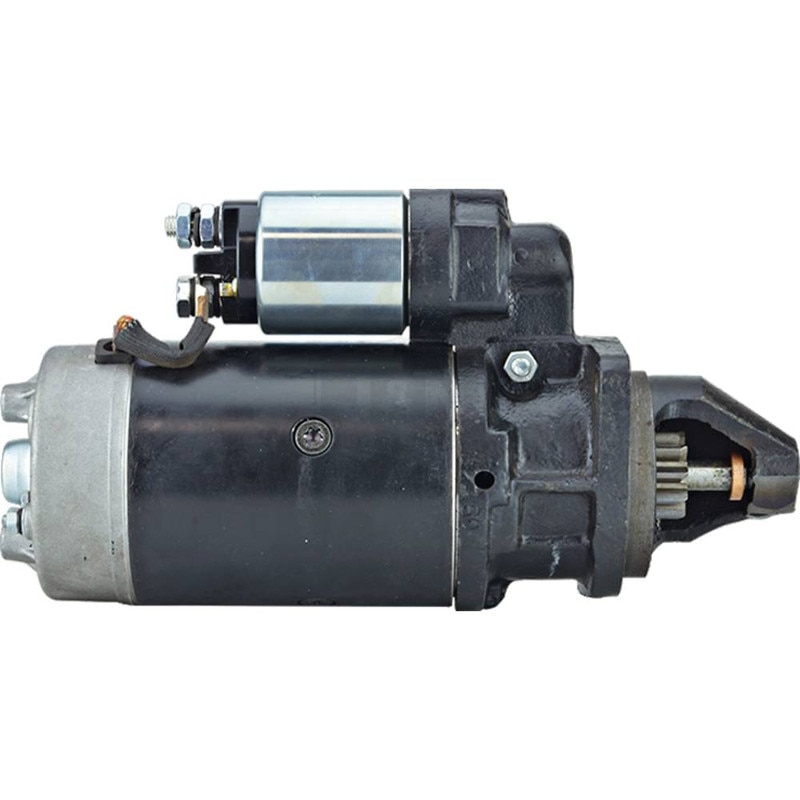

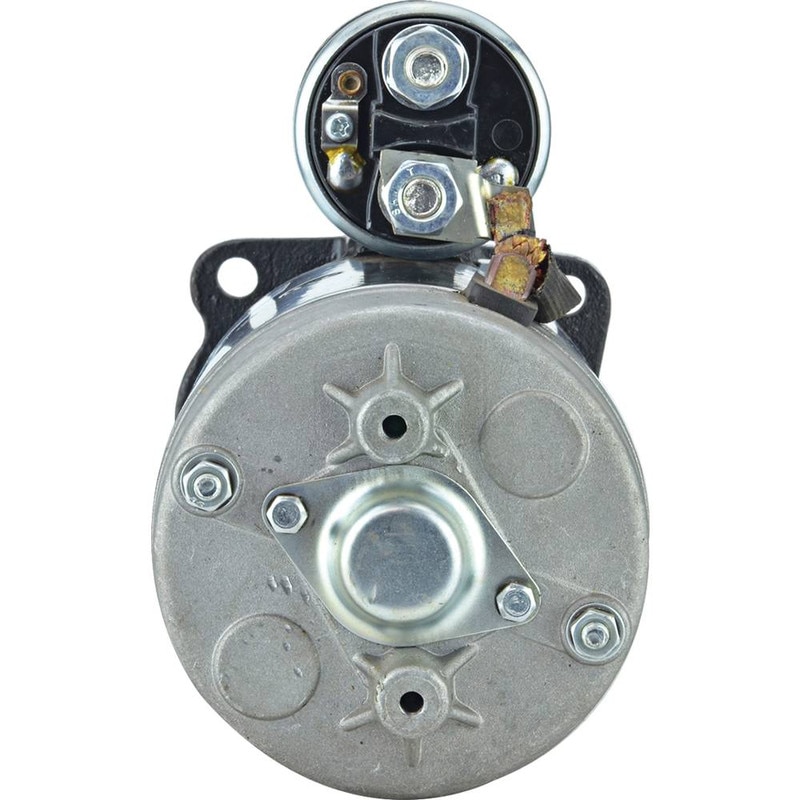

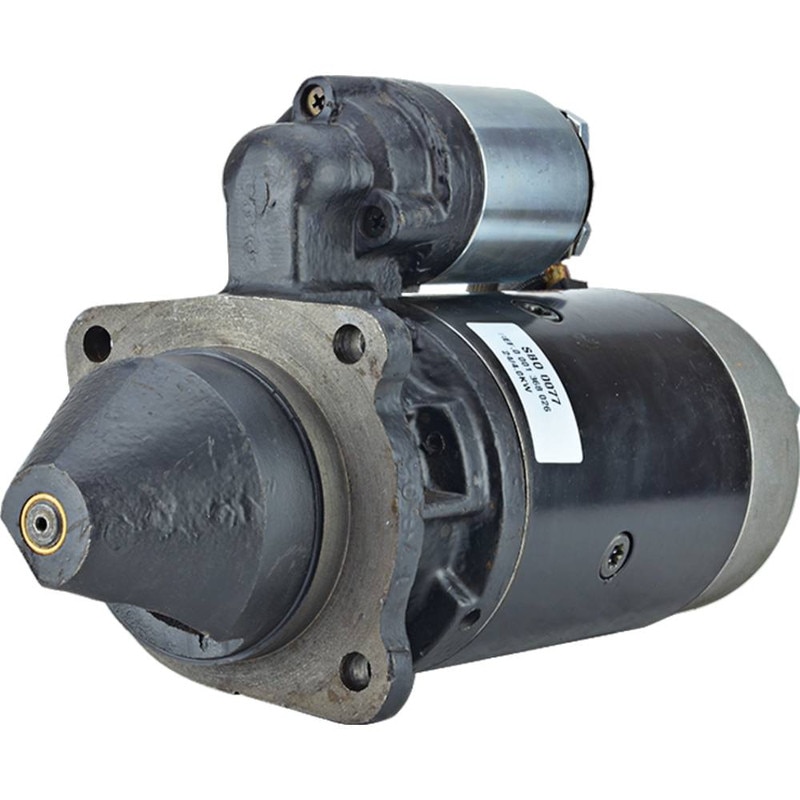

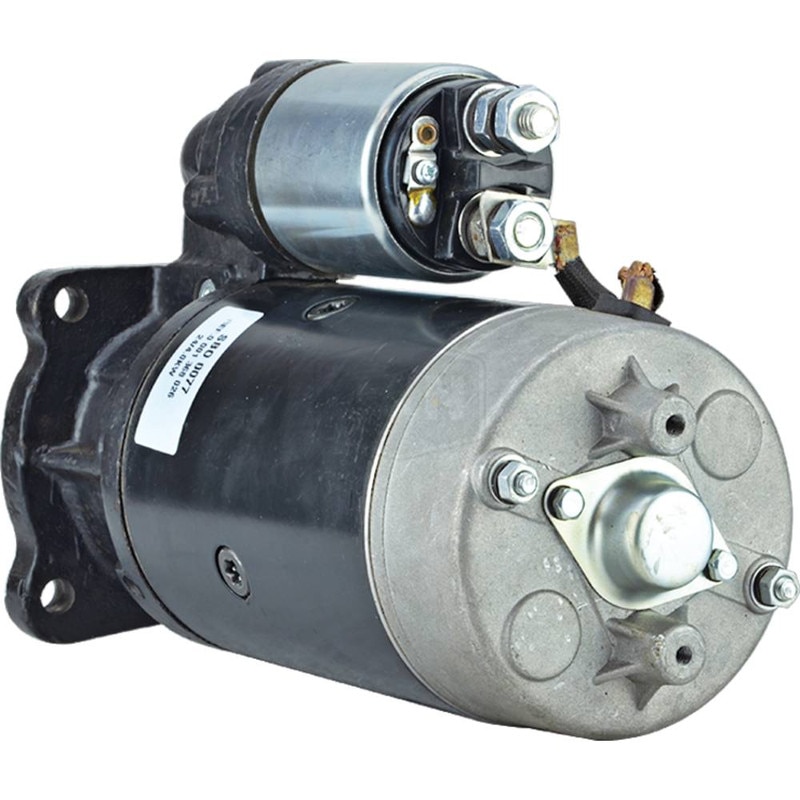

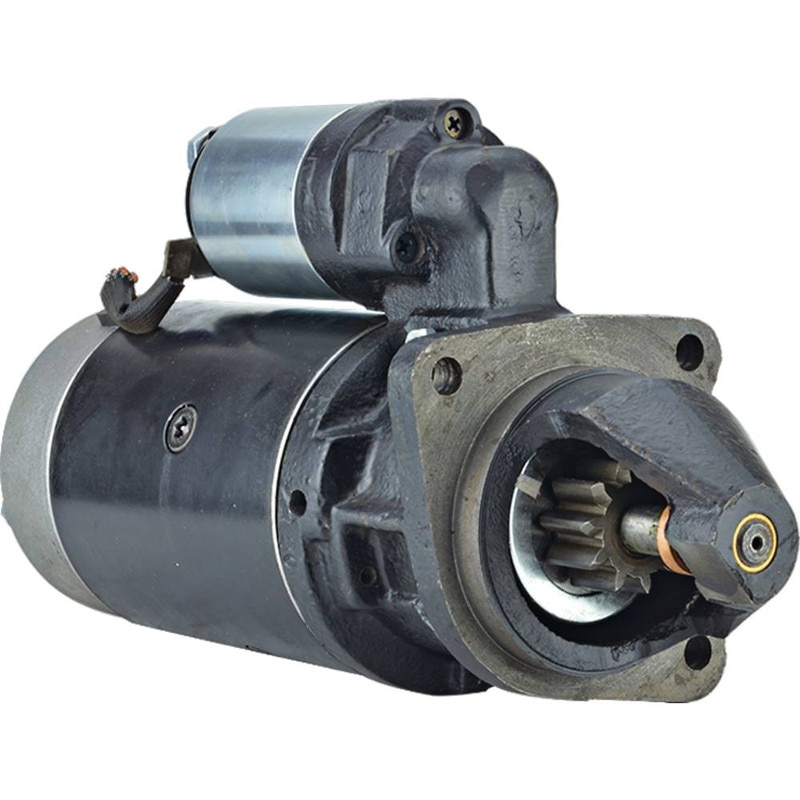

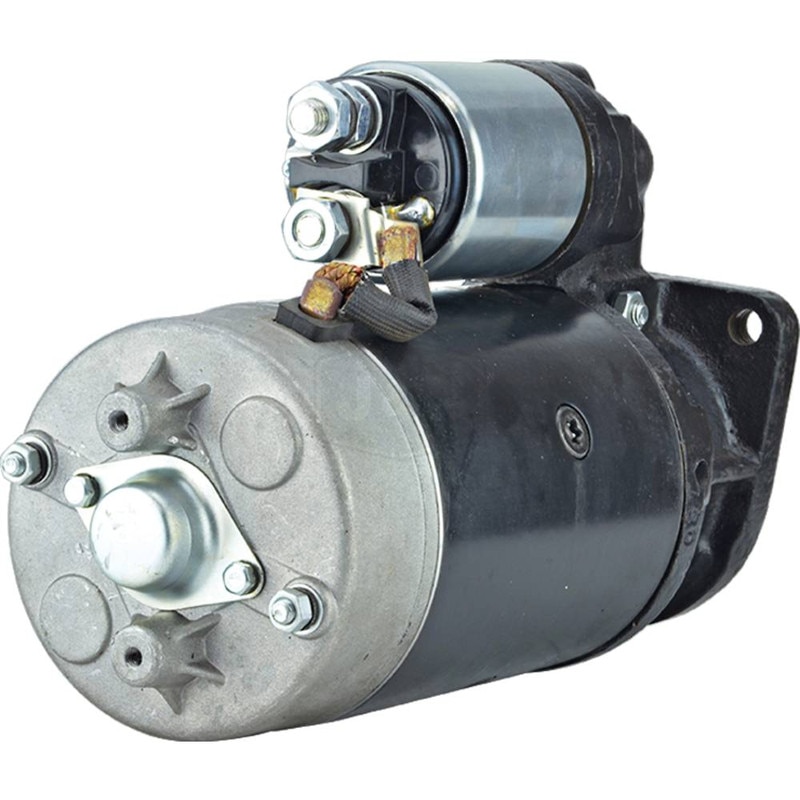

Starter Perkins 1004 1006 Engine 2873D304 3872D304 24V 4KW

Replaces Part Numbers & Specifications

BOSCH OEM PART NUMBERS:
• 0-001-368-085 (0001368085)

CATERPILLAR OEM PART NUMBERS:
• 1092361 (109-2361)
• 0R1903 (0R-1903)

PERKINS OEM PART NUMBERS:
• 2873D304
• 3872D304

IVECO PART NUMBER:
• 154011053

LUCAS PART NUMBERS:
• LRS1917 (LRS01917)
• 27462
• 27462A

DEUTZ/DENSO PART NUMBERS:
• QDJ2711Y
• 09032000099

DELCO PART NUMBER:
• 19024260

PRESTOLITE PART NUMBER:
• 860112Z

SPECIFICATIONS:
• Voltage: 24V
• Power Output: 4KW
• Rotation: CW (Clockwise)
• Starter Type: DD (Direct Drive) / OSGR
• Number of Teeth: 10
• Pinion/Gear OD: 38.2mm / 1.504 in
• Mounting: 3x 11mm ID Unthreaded
• Weight: 25 lbs

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.



VOLVO INDUSTRIAL EQUIPMENT:
• EC130C Excavator - TD40GDE Engine (1996)
• EC130C Excavator - TD40GDE Engine (1997)
• EC130C Excavator - TD40GDE Engine (1998)
• EW130C Excavator - TD40GDE Engine (1996)
• EW150C Excavator - TD40KEE Engine (1996)
• L50B Loader - TD40GFE Engine (1993)
• L50B Loader - TD40GFE Engine (1994)
• L50B Loader - TD40GFE Engine (1995)
• L50C Loader - TD40GFE Engine (1993-1996)
• L50C Loader - TD40KAE Engine (1996-2000)

CATERPILLAR EXCAVATORS:
• 307 Midi Excavator - Perkins 3054 (1994-1998)
• 312 Excavator - Perkins 3054 (1992-1996)
• 312B Excavator - Perkins 3054 (1996-2002)
• 312B L Excavator - Perkins 3054 (1996-2002)
• 312C Excavator - Perkins 3054 (2001+)
• 312C L Excavator - Perkins 3054 (2001+)
• 315 Excavator - Perkins 3054 (1994-1997)
• 315L Excavator - Perkins 3054 (1994-1997)
• 317 Excavator - Perkins 3054 (1995)
• 317N Excavator - Perkins 3054 (1995)
• M312 Wheeled Excavator - Perkins 3054 (1995-2002)
• M315 Wheeled Excavator - Perkins 3054 (1995-2002)
• M316C Wheeled Excavator - CAT 3056E (2002-2007)
• M318C Wheeled Excavator - CAT 3056E (2002-2007)
• M322C Wheeled Excavator - CAT 3056E (2002-2007)

CATERPILLAR PAVERS & EQUIPMENT:
• AP300C Asphalt Paver - Perkins 3054
• AP650B Asphalt Paver - Perkins 3054
• BG-225B Paver - Perkins 3054
• BG-225C Paver - Perkins 3054
• 554 Forwarder
• 574B Forwarder
• 550B Wheel Harvester
• 560B Wheel Harvester

BARBER GREENE EQUIPMENT:
• BG225C Paver - Perkins 3054
• BG230 Paver - Perkins 3054

DEUTZ CHINA APPLICATIONS:
• Deutz Shanghai TD226B6 Engine
• China Deutz TD226B6 Engine

PERKINS ENGINE APPLICATIONS:
• 3054 Engine
• 3054B Engine
• 3056 Engine
• 3056E Engine
• 1004-40 Engine
• 1004-42 Engine
• 1004-4T Engine
• 1006-6 Engine
• 1006-60 Engine
• 1006-6T Engine
• 1106C-E60TA Engine
