Airbrush Electronic Pressure Regulator LCD Digital Display

Features:
Made of high-quality ABS and metal materials, impact resistance, sturdy and durable, and long service life.
Simple to use, one-key operation, and the adjustment knob is easy to control.
1/4" inlet and outlet, quickly and easily for mounting and dismounting.
Pressure unit can be switched, it display data with units among PSI, Bar, Kpa, with measuring range of 0-160Psi, 0~11Bar, 0~1100Kpa.
If there is no operation, it will automatically shut down within 10s, saving energy and environmental protection.
LCD screen can display the measurement data intuitively and clearly.

Specifications:
Item Type: Pressure Gauge
Material: ABS+metal
Colour:red/yellow(Random Color)
Power supply: 1 * 3V CR2032 button battery
Measuring pressure range: 0-160Psi, 0~11Bar, 0~1100Kpa
Pressure unit: PSI, Bar, Kpa
Batter replaceable: yes
Air inlet/outlet: 1/4"
Color: As pictures shown
Size: app.60x60mm/2.36x2.36in
Quantity: 1pc



usage method:

1. Connect the pressure gauge to the lower air inlet of the spray gun, and place the gas regulating valve at the end of the gun in a fully open state;

2. Pull the trigger of the spray gun to put it in a deflated state, observe the reading of the air pressure gauge and rotate the adjustment valve of the air pressure gauge

Until the reading meets the requirements;

3. After adjusting the air pressure, it is recommended to conduct testing and trial spraying in a suitable place, observe the spraying pattern, and determine whether it meets the spraying requirements.

Note:
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!


Water separator:
Description:
1Pcs 1/4" In-line Air Oil Water Separator Filter Kit for Spray Air Compressor Tool
Specification:
Material: Aluminum alloy & PC & 100mesh copper filter
Color: Blue white
Size: 8.5*4cm
Inner diameter of inlet: 8mm
Calibre: 12 mm
Thread diameter: 1/4 inch
Filter fineness: 100 mesh
Working pressure: (1~9)kg/cm²
Max. Pressure: 9.9kg/cm²
Maximum pressure: 36 mpa
Features:
- Can directly connected to the spray guns to filter out dust and oil in air.Includes a condensation discharge valve.
- Connects to Standard 1/4" BSP Fitting Size Spray Guns, Air Tools and Hoses.
- Perfect for use with spray guns and small air consumption air tool.


The package contains:

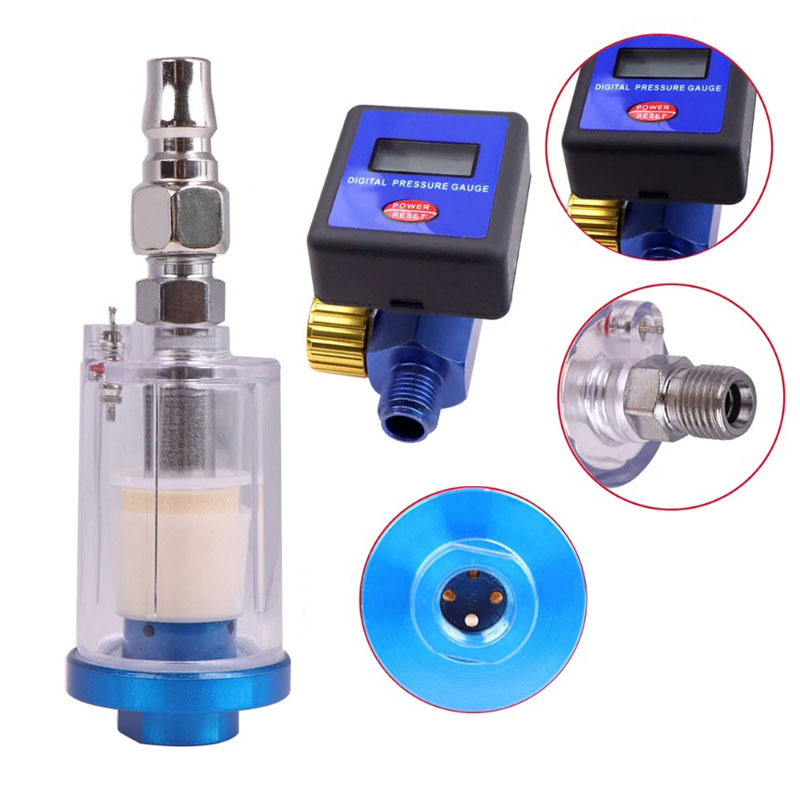

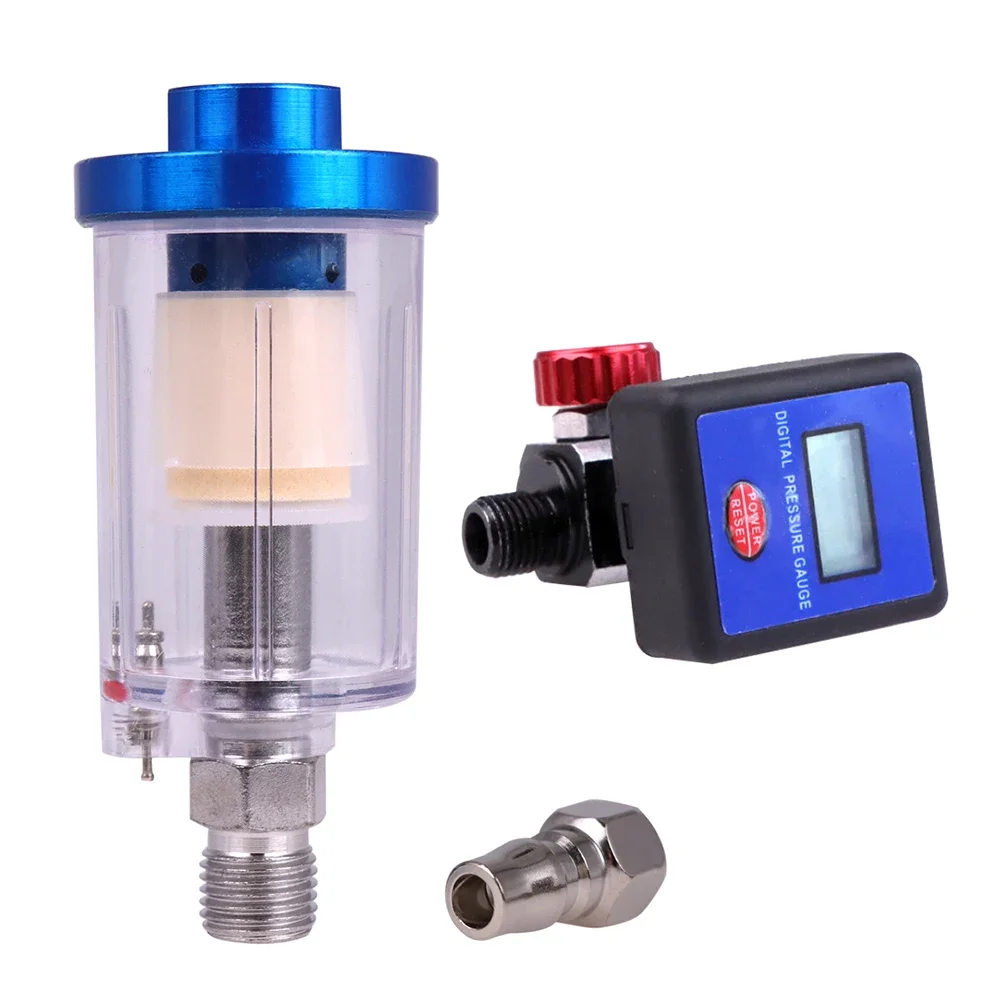

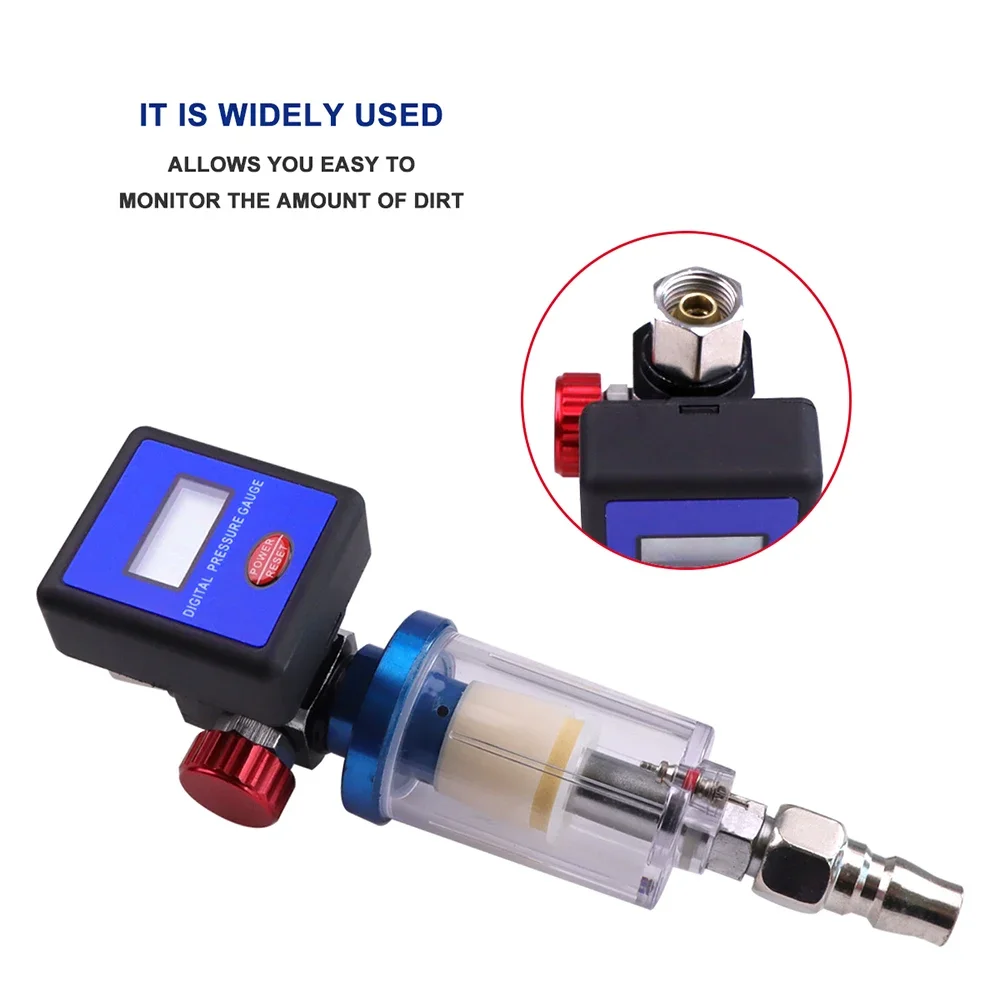

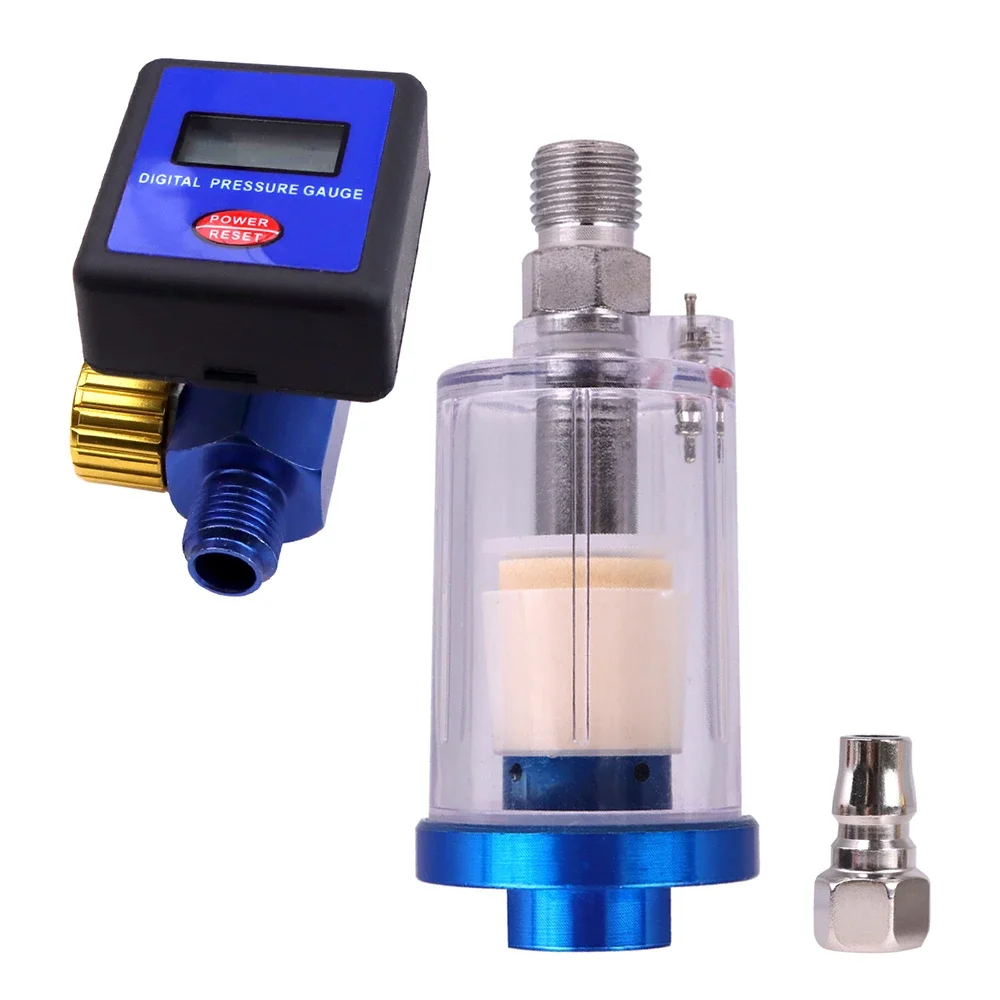

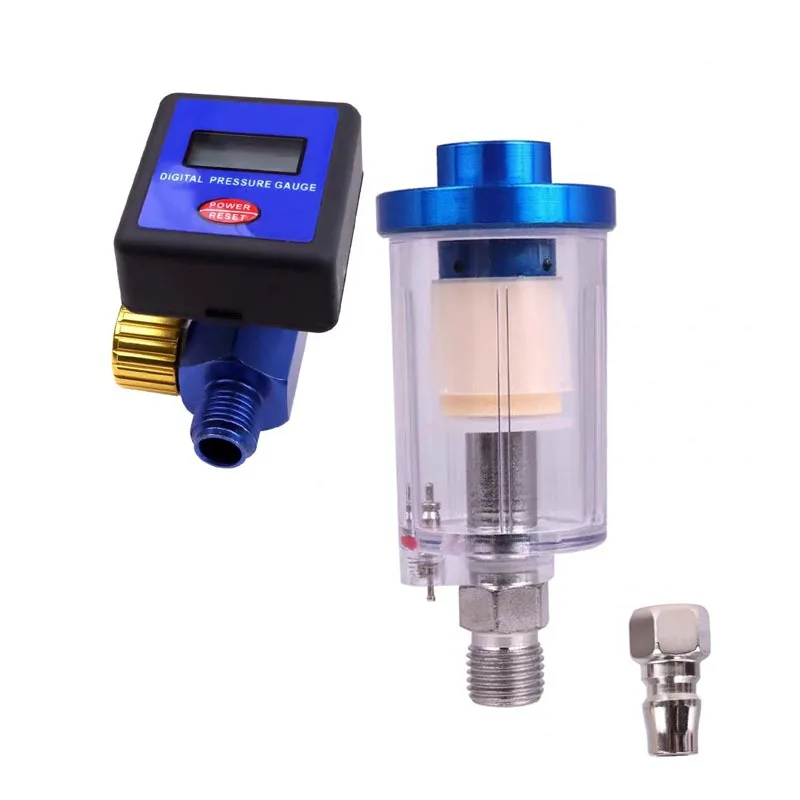

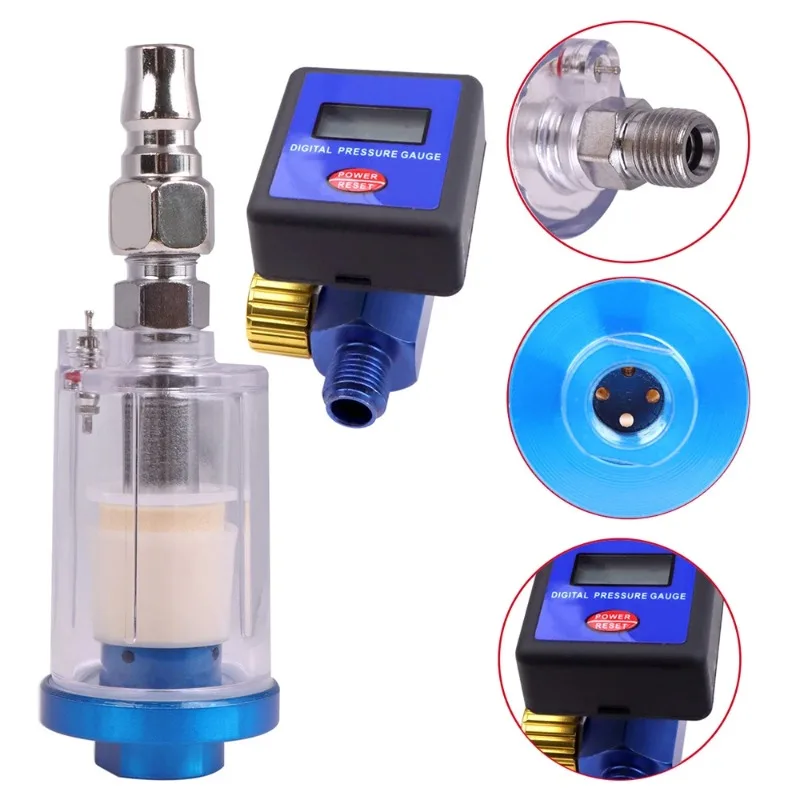

1pcs digital display barometer+1pcs oil-water separator+1pcs connector (one of JP/US/EU)

1pcs digital barometer

Note: Red and yellow caps are random when shipped

Features:
Made of high-quality ABS and metal materials, impact resistance, sturdy and durable, and long service life.
Simple to use, one-key operation, and the adjustment knob is easy to control.
1/4" inlet and outlet, quickly and easily for mounting and dismounting.
Pressure unit can be switched, it display data with units among PSI, Bar, Kpa, with measuring range of 0-160Psi, 0~11Bar, 0~1100Kpa.
If there is no operation, it will automatically shut down within 10s, saving energy and environmental protection.
LCD screen can display the measurement data intuitively and clearly.

Specifications:
Item Type: Pressure Gauge
Material: ABS+metal
Power supply: 1 * 3V CR2032 button battery
Measuring pressure range: 0-160Psi, 0~11Bar, 0~1100Kpa
Pressure unit: PSI, Bar, Kpa
Batter replaceable: yes
Air inlet/outlet: 1/4"
Color: As pictures shown
Size: app.60x60mm/2.36x2.36in
Quantity: 1pc

Note:
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x Air Pressure Gauge(other accessories demo in the picture is not included.)
