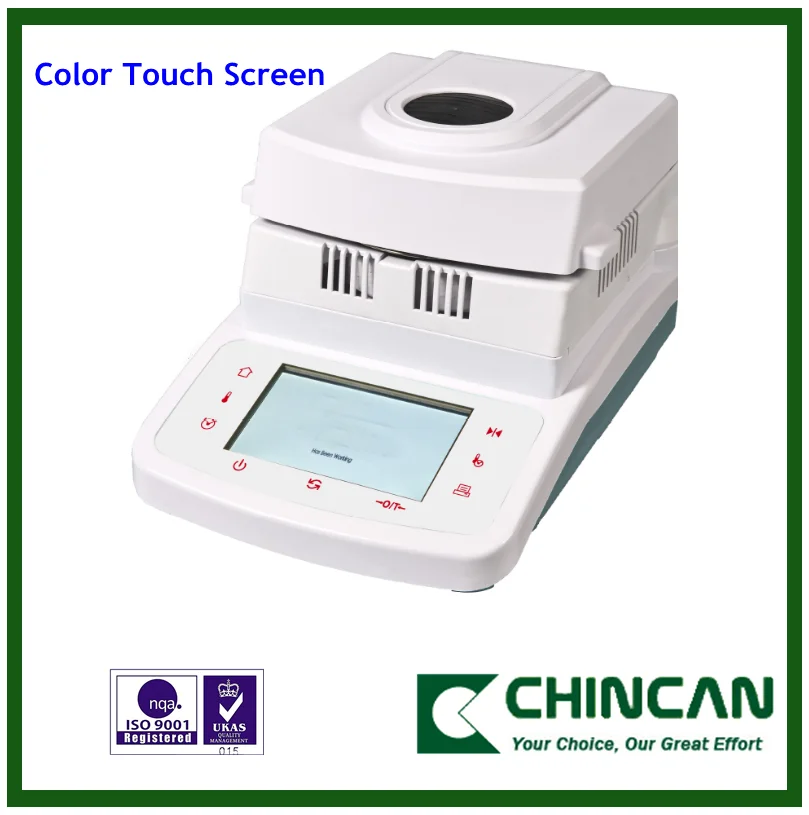

DHS16/DHS16A/DHS20A/LHS16 Halogen Moisture Analyzer
Summary
Our DHS series halogen moisture meter can be widely used in the industries which need quick method to determine the water content, such as in the labs of medicine, grain, feed, seeds, rapeseed, dehydrated vegetables, tobacco, chemicals, tea, food, meat, and textile, agriculture and forestry, paper making, rubber, plastics, textile and other industries and the requirements of determination of moisture in the process of production; at the same time it meets the needs of moisture content determination of the solid, particles, powder, colloid and liquid.
Features
1. Halogen moisture meter, easy to operate and test accurately, the part of display adopts
LCD color touch screen - make it more clear and bright.
2. On the screen can display the moisture content, samples of initial content and final content of
the samples, test time, temperature, initial and final value of the temperature and other data
respectively
3. It can connect with the computer and printer.
Specification
| Models |
DHS16 |
DHS16A |
DHS20A |
LHS16 (electromagnetic force) |
| Maximum capacity |
100g |
100 |
100 |
100g |
| Accuracy |
5mg |
2mg |
1mg |
5mg |
| Calibration method |
external calibration |
external calibration |
external calibration |
external calibration |
| Calibrated weights |
100g |
100g |
100g |
100g |
| Moisture range |
0.00~100% |
0.00~100% |
0.00~100% |
0.00~100% |
| Moisture calibration accuracy |
0.01% |
0.01% |
0.01% |
0.01% |
| Heating source |
halogen lamp |
halogen lamp |
halogen lamp |
halogen lamp |
| Heating temperature range |
room temperature~160℃ |
room temperature~160℃ |
room temperature~160℃ |
room temperature~160℃ |
| Temperature interval |
1℃ |
1℃ |
1℃ |
1℃ |
| Heating time range |
0min~99min |
0min~99min |
0min~99min |
0min~99min |
| display parameters |
9 kinds(Before-dryin weight, after-drying weight ,the method of ending, the remaining time of heating(min), heating temperature, driage, drying rate, moisture weight rate, moisture regain rate) |
9 kinds(Before-dryin weight, after-drying weight ,the method of ending, the remaining time of heating(min), heating temperature, driage, drying rate, moisture weight rate, moisture regain rate) |
9 kinds(Before-dryin weight, after-drying weight ,the method of ending, the remaining time of heating(min), heating temperature, driage, drying rate, moisture weight rate, moisture regain rate) |
9 kinds(Before-dryin weight,after-drying weight ,the method of ending, the remaining time of heating(min), heating temperature, driage, drying rate, moisture weight rate, moisture regain rate) |
| Pan size |
90mm |
90mm |
90mm |
90mm |
| package size(mm) |
370*330*215 |
370*330*215 |
370*330*215 |
370*330*215 |
| gross weight |
10kg |
10kg |
10kg |
10kg |
Packing Details: Standard export packing and neutral packing if needed, carton box, wooden case or upon request, packing carefully.
Shipping Method: Air / Sea / Express.
