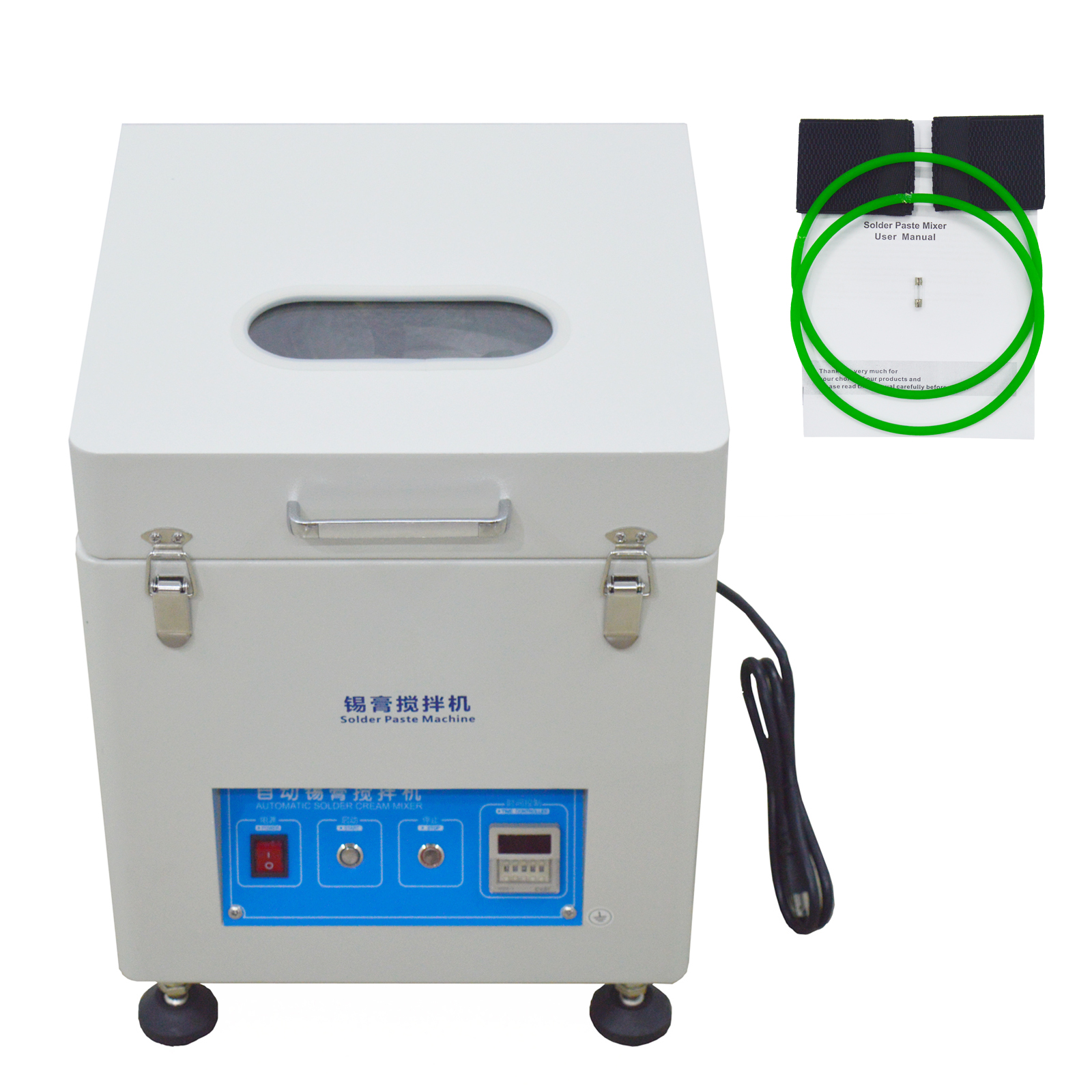

110V Automatic Solder Paste Mixer

PreAsion®

	ITEM DESCRIPTION
	The solder paste is placed at 45 degrees and rotates along the axis line. The solder paste will no longer adhere to the lid.
	This machine adopts time relay control, simple operation, high reliability.
	Stirring also removes bubbles.
	The stirring tank does not need to be opened during the stirring process, and the tin paste will not be oxidized or absorb moisture.
	Reasonable design of speed ratio, avoid impact of tin particles and temperature rise too much influence on the quality of tin paste.

Full automatic solder paste mixer is made use of the principle of planetary rotation and rotation stirring, there is no need to remove the ice and open the bottle of the solder paste in the stirring process, so greatly reduce the probability of oxidation and moisture of the solder paste. In a short time, the solid and liquid components of the solder paste can be fully stirred to achieve the same density. The old and new solder paste can be mixed and stirred, and the relatively active new solder paste can be obtained, which can show good thixotropy in the subsequent screen printing.

ITEM PARAMETERS

Voltage:	AC110V 50/60Hz
Motor power:	100W
Motor speed:	1350rpm
Revolution speed of stirring tank	400rpm
Rotation speed of stirring tank	300rpm
Timing range:	0.01S-99H99S
Maximum one-time processing capacity:	1000g(500g*2)
Specifications of solder paste pot that each fixture can hold:	500g solder paste pot

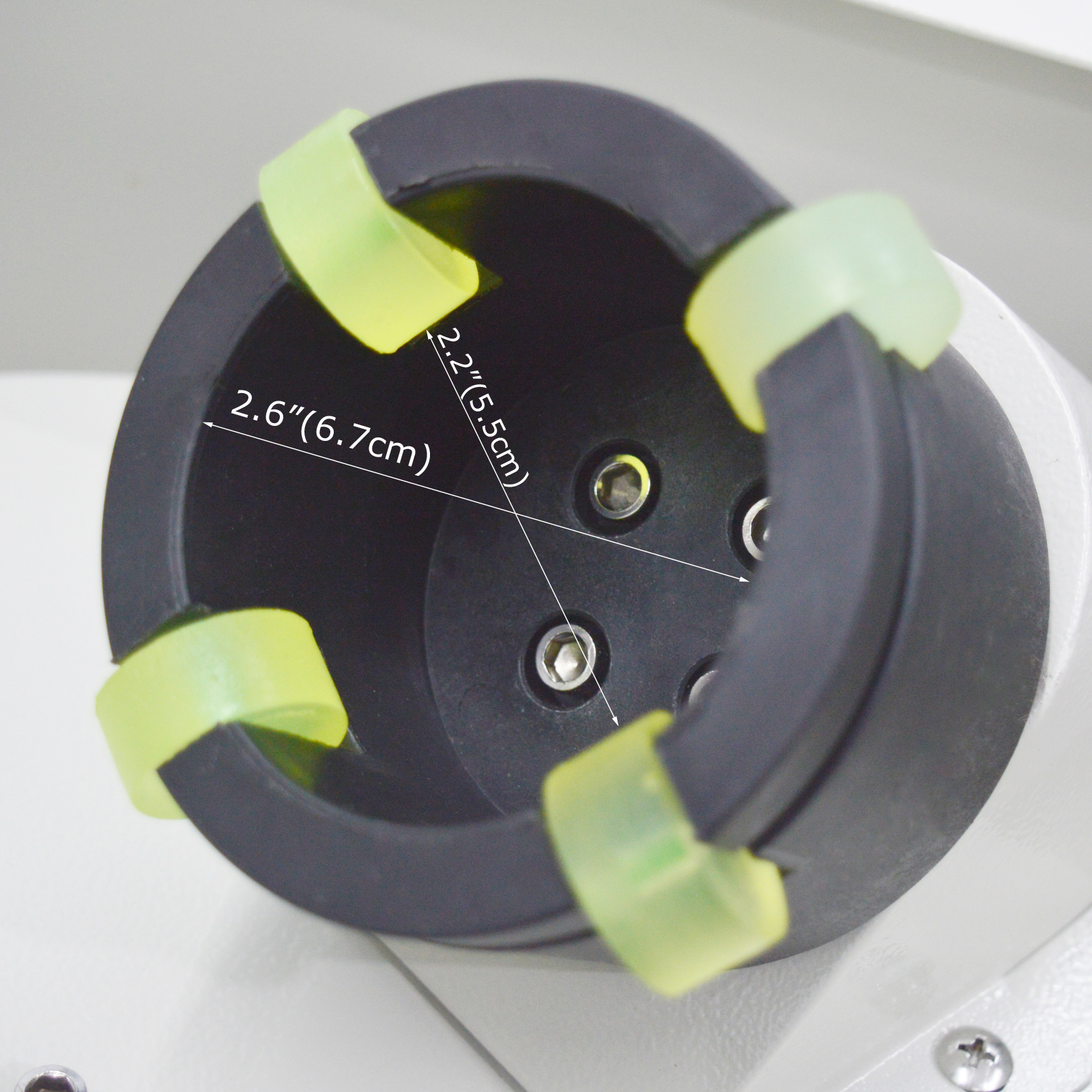

The diameter range in which a fixture can be clamped:	2.2"-2.6"(5.5cm-6.7cm)
Mixing material:	Tin paste, ink, glue, etc
Display mode:	LED digital display
Product size:	15.7"15.7"20.7"(40cm40cm52.5cm)
Net weight:	99lb(44.8kg)
If you need other specifications of the fixture, you can contact us to customize!!!

ITEM DETAILS

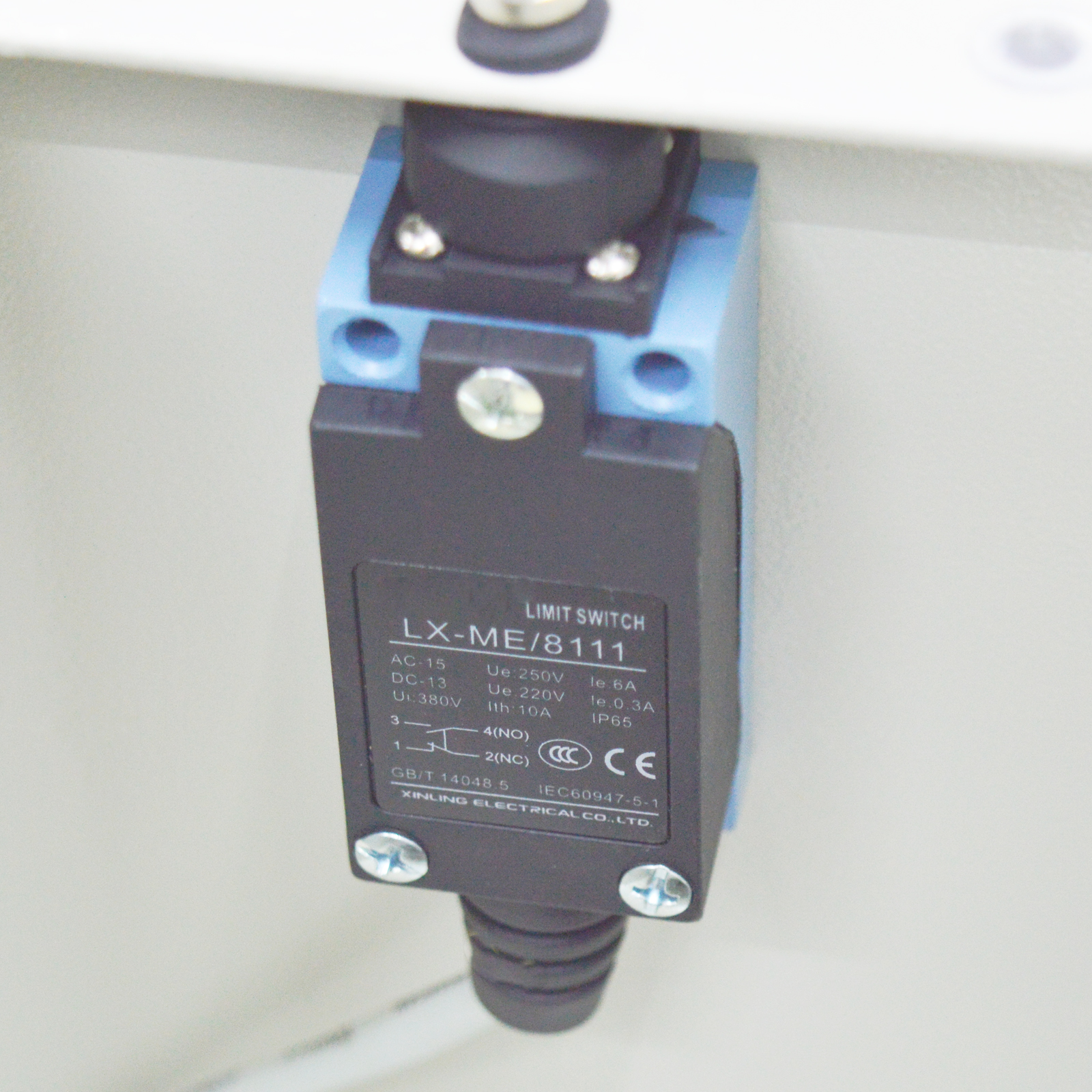

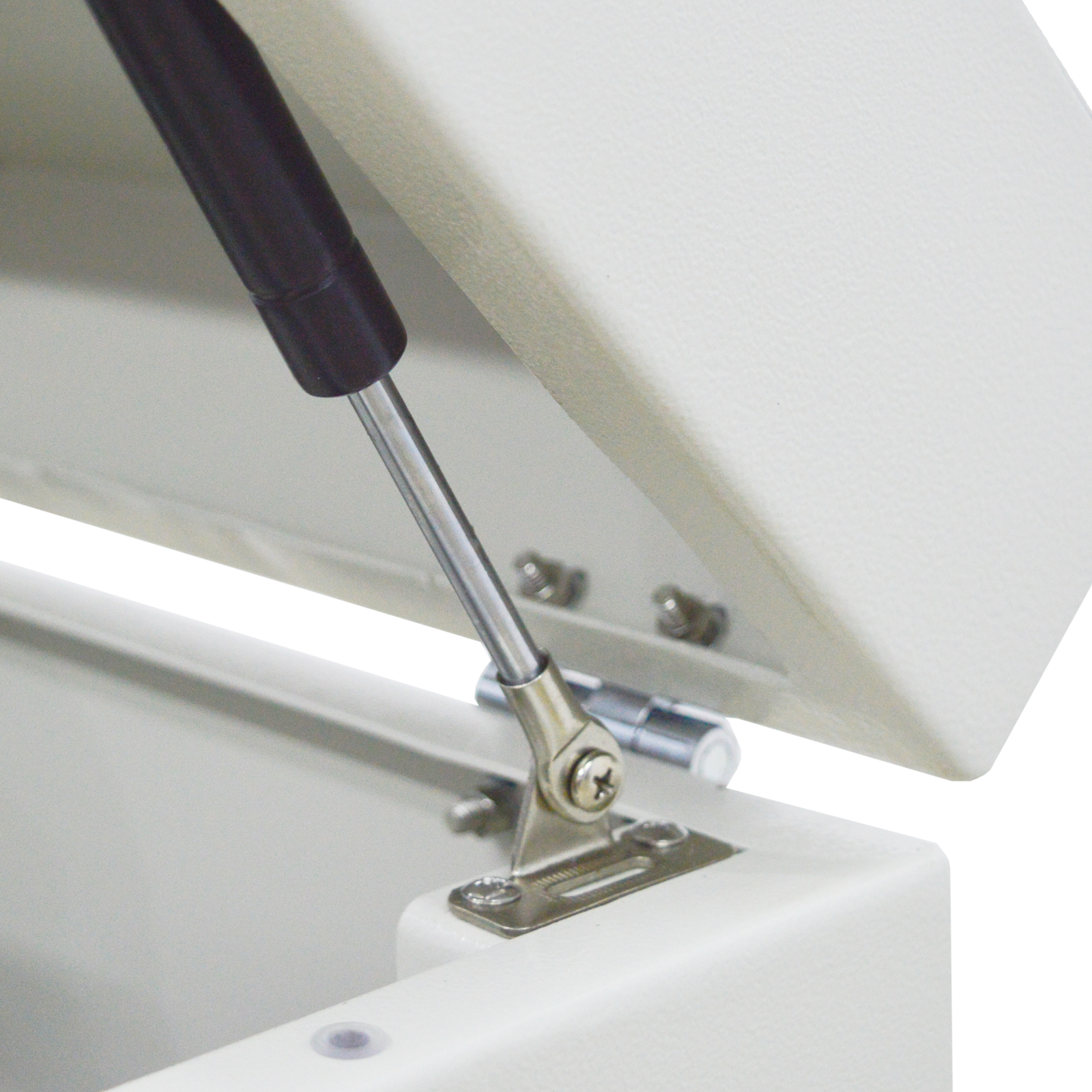

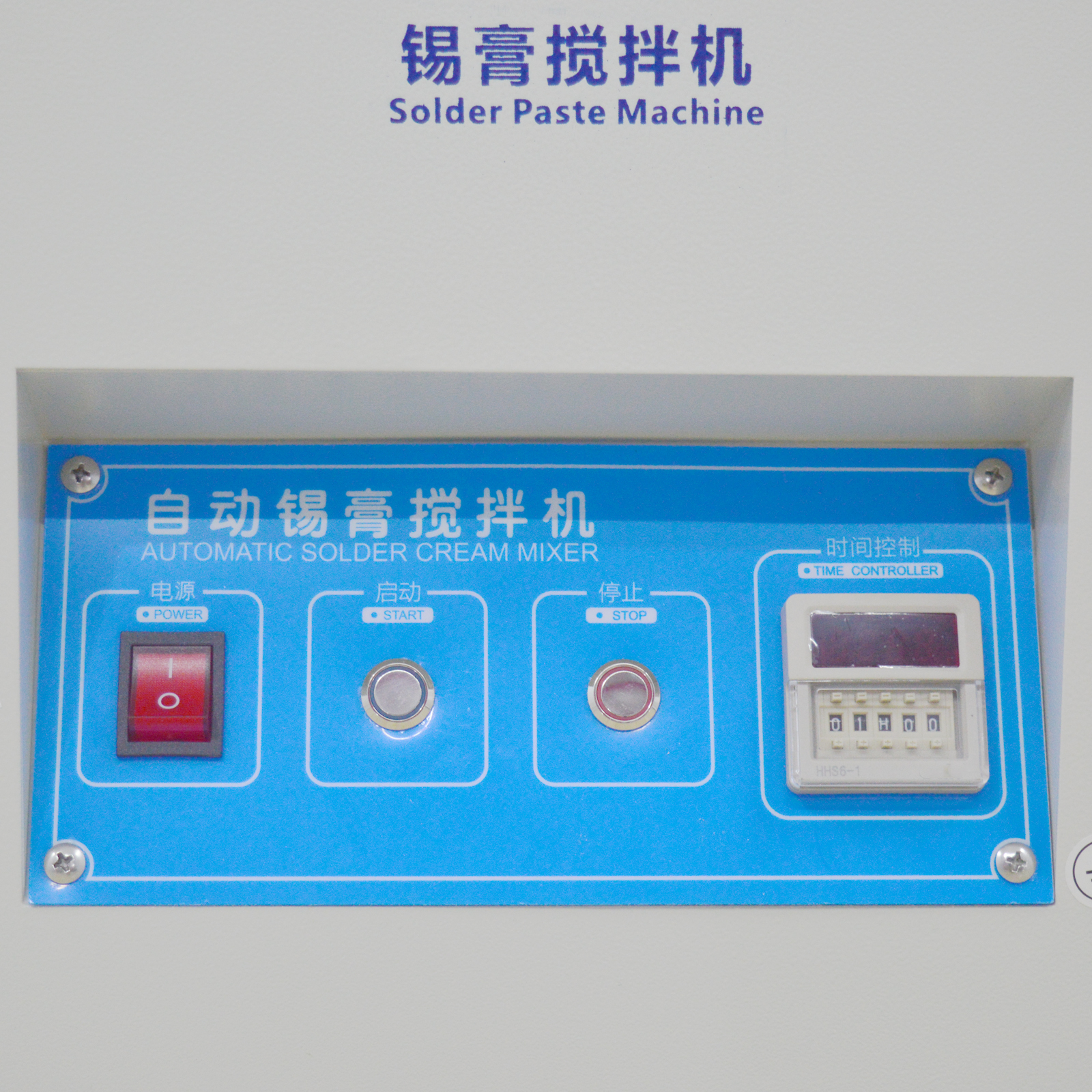

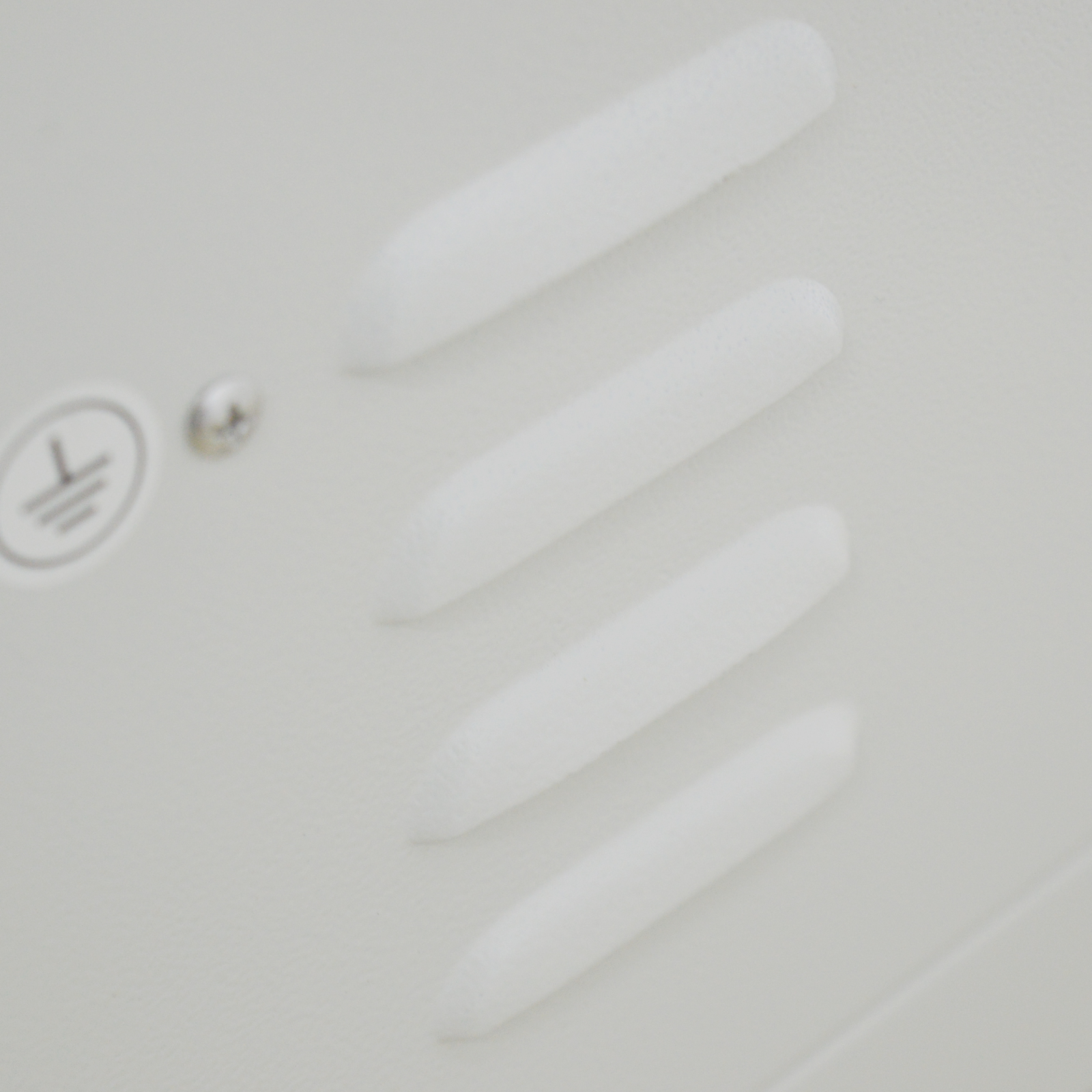

Control Panel	Push Switch	Support Bar	Aspirail
The control panel contains three functions: timing, start, and stop. The timing unit can be hour, minute, and second. The maximum timing time can be 99 hours.	There is a pushswitch on both sides of the machine, the lid must be fastened to normal operation of the machine, effectively avoid the potential harm to personal safety.	Hydraulic support rod can play a good supporting role on the lid, and can make the lid within a certain Angle to open and close at a certain Angle.prevent the lid from falling down.	There are 8 air vents on the back of the machine, which can discharge the heat generated in the process of stirring in time and protect the stable operation of the machine.

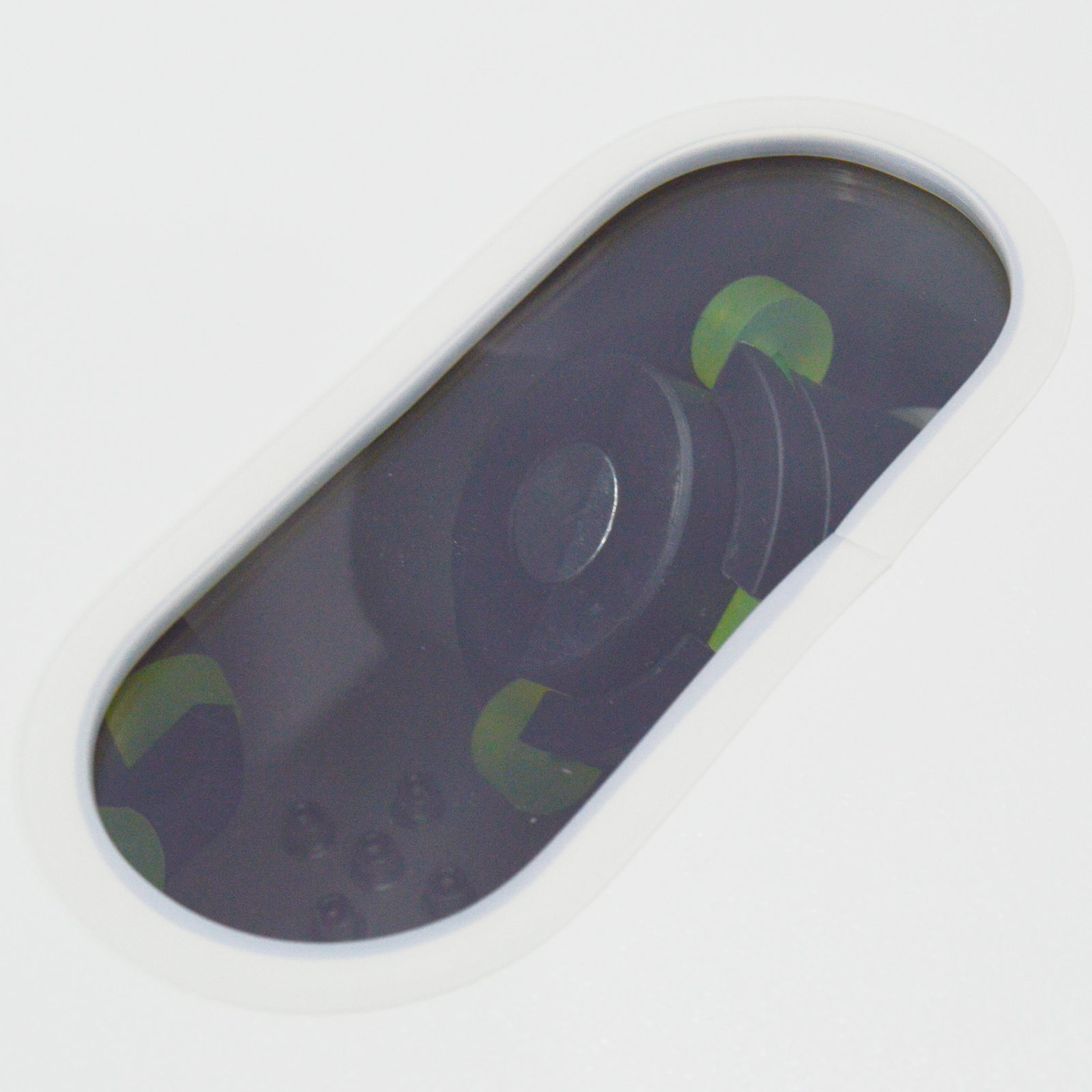

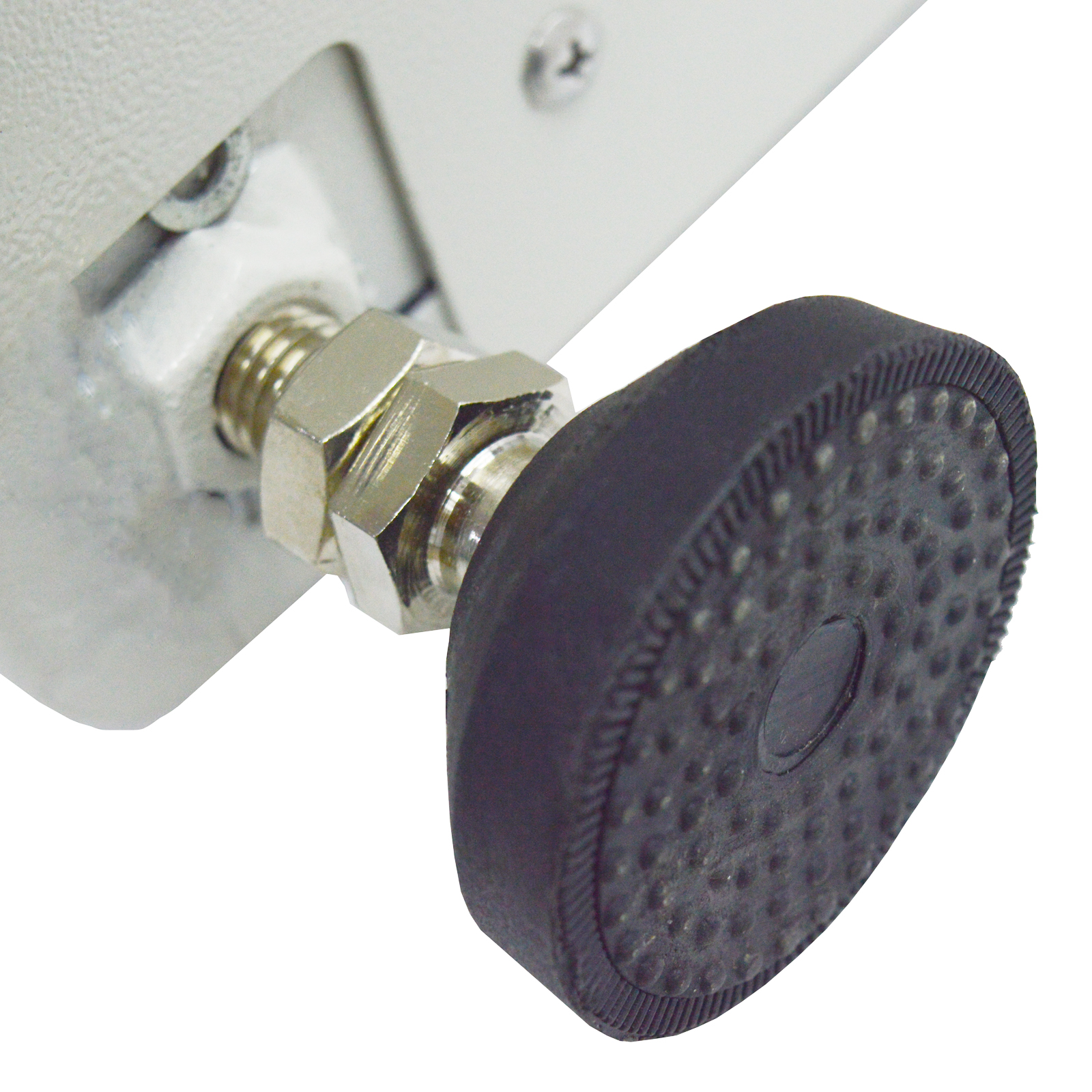

Visual Window	Supporting Leg	Stirring Spparatus	Stir Well
The machine has a transparent observation window, you can observe the stirring situation and the internal situation of the machine at any time.	The bottom of the machine has four rubber support legs, the particle design is wear-resistant and non-slip, and the height can be adjusted according to the work table, strong adaptability.	According to the principle of planetary imitation, the stirring can be more fully;Elastic clamping device, can be more firmly clamping mixing tank.	This machine can effectively mix tin particles and solder paste evenly.The solder paste will not be oxidized or hydrated, ensuring the softness and activity of the solder paste.

ITEM INCLUDED(051038)
Paste mixer 1 500g clump weight 1 The belt *2
The fuse 1 Lining 2 English instruction manual *1
