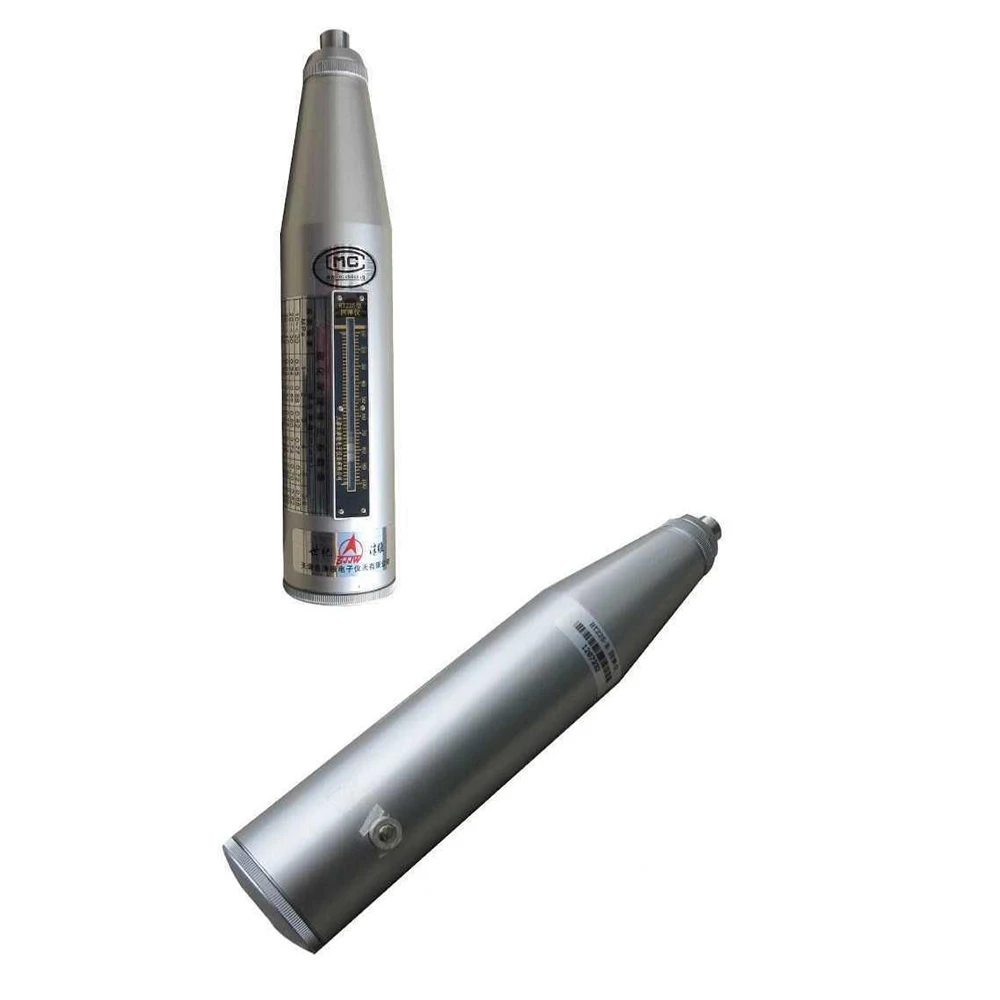

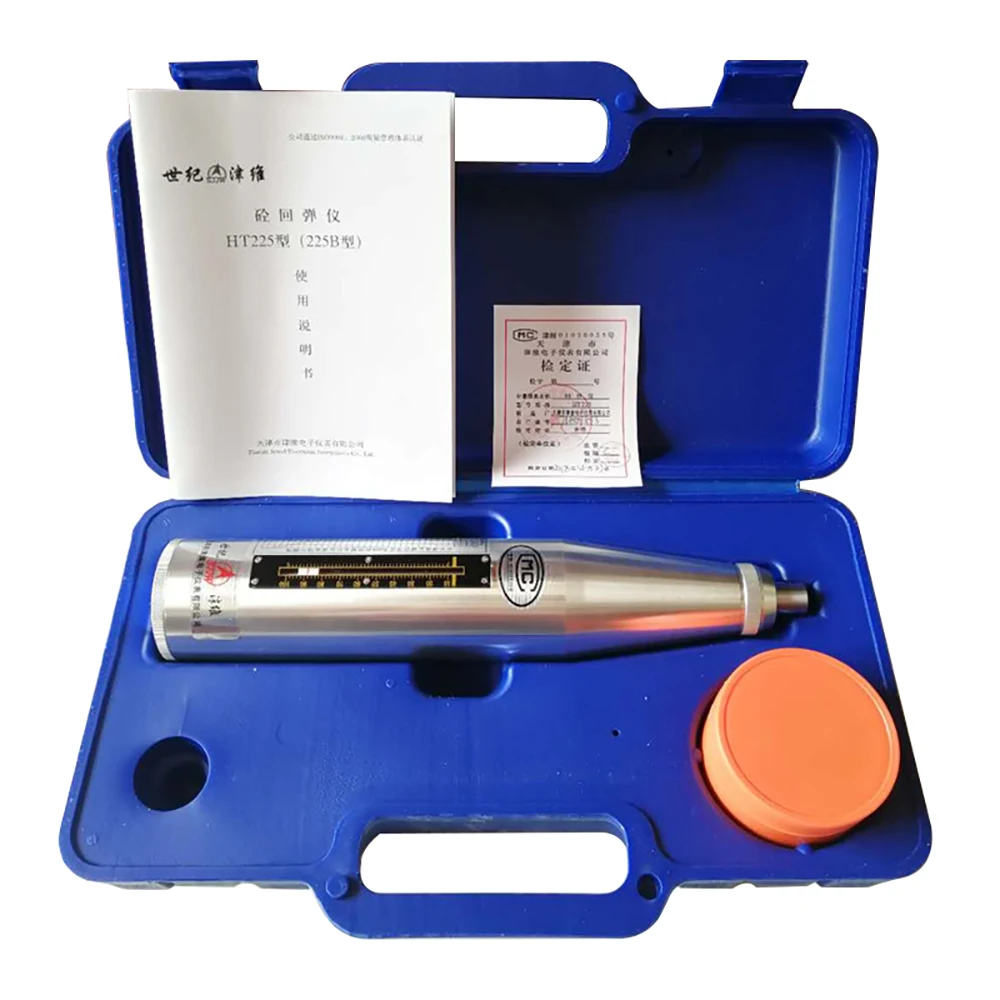

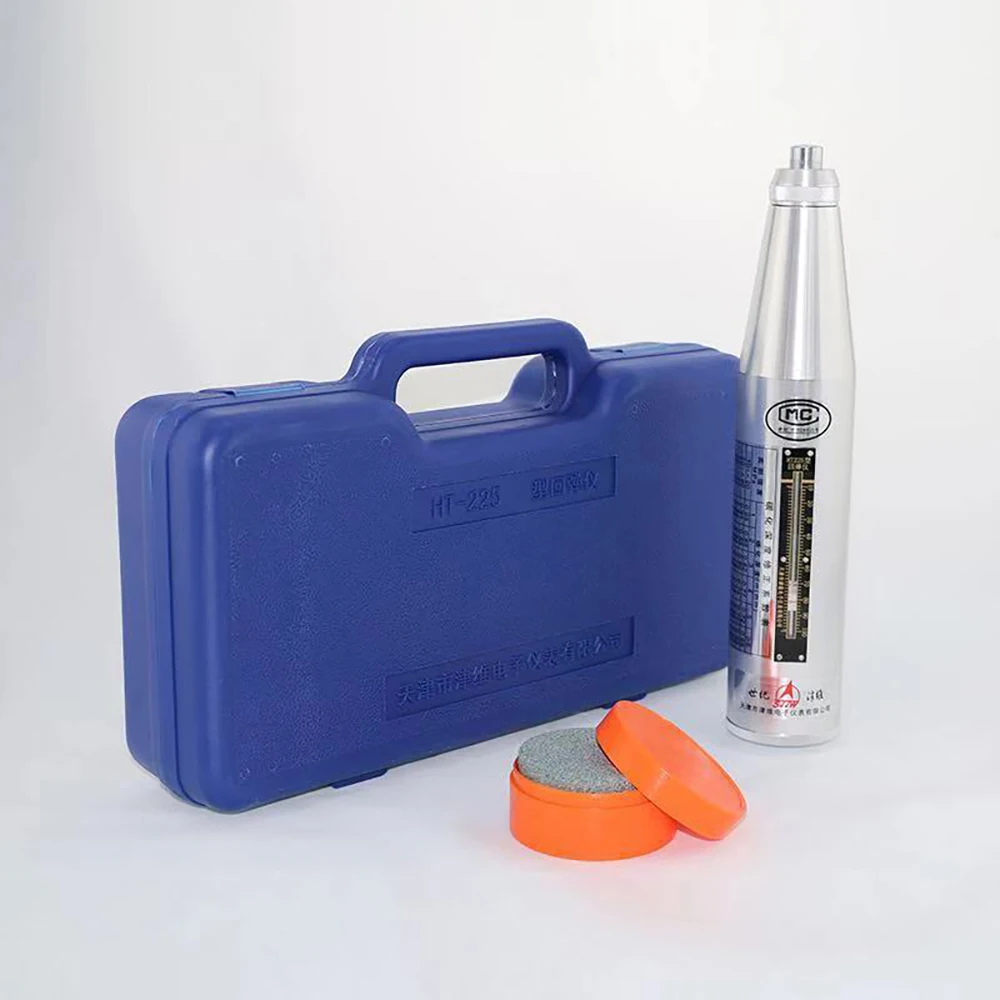

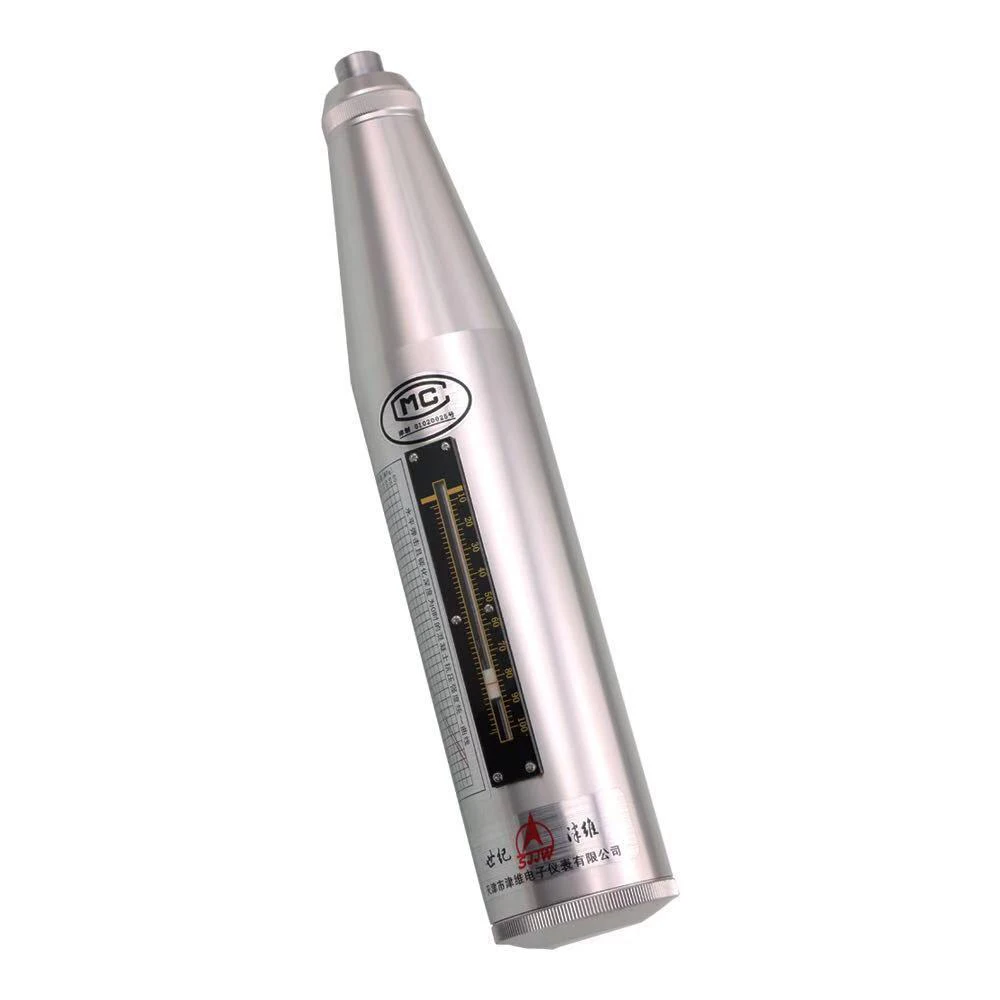

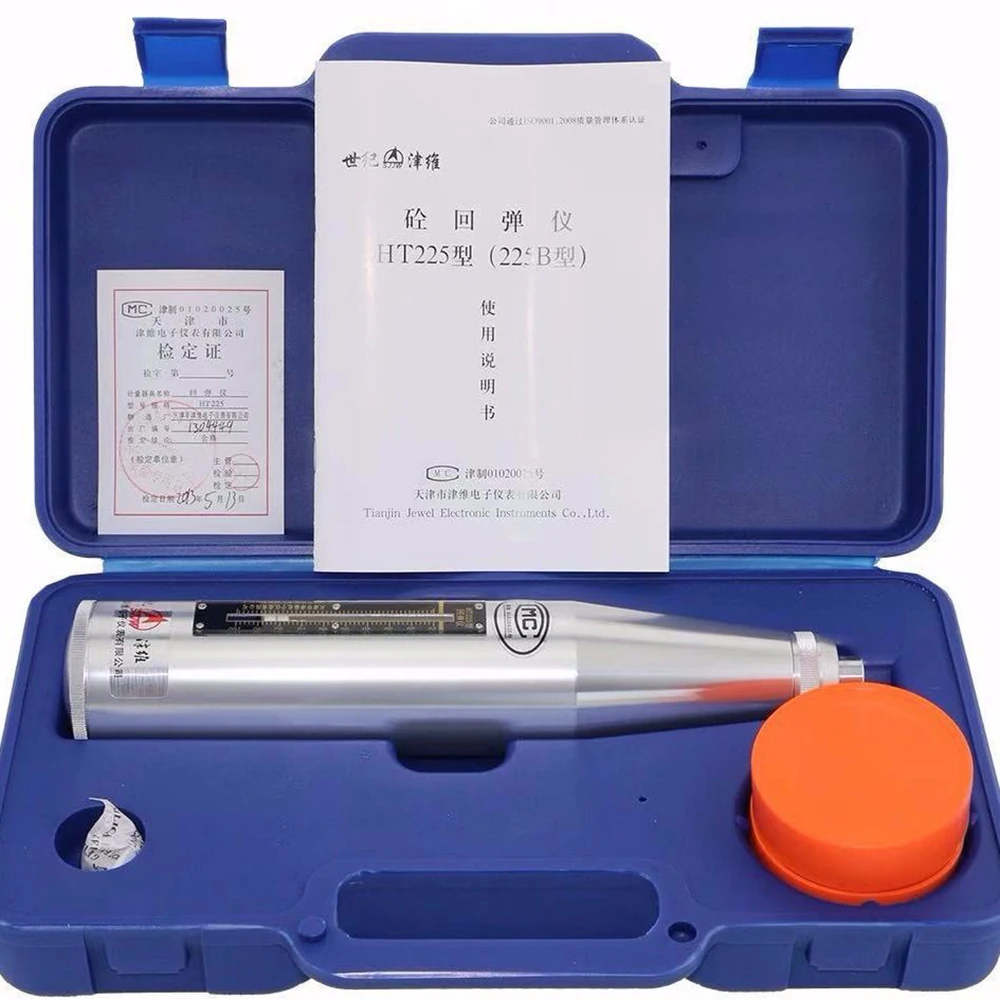

Concrete Rebound Test Hammer Portable Schmidt Hammer High Polymer Material Shell Resiliometer Testing Equipment



Purchase notice:



1. Any customs duties or import taxes during customs clearance must be paid by the buyer. If the buyer is unwilling to pay, we will not refund.

2. For countries that are difficult to pass through customs, please ensure that you have the ability to pass through customs. If the buyer fails to pass the customs and the customs deducts the package, we will not issue a refund.

3. If your address is a remote address, you need to pay an additional delivery service fee of $40.

4. We ship 220v by default. If the plugin cannot customize your local plugin, please use the plugin converter.





Features :



The test hammer submit to standard of GB/T9138-1988 and JJG817-93 and JGJ/T23-2011 and ASTM C 805. HT-225B concrete test hammer is applied to test the compressive strength of building concrete components, bridge and so oN



Trait:



1)Center rod is made from imported material, high accuracy and durable resistance.

2)The high polymer material in order to perfect protect instrument from damage and extend use life.

3)Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that the instrument is accurate. Compared with other suppliers in the line of business, the product is more accuracy, good quality, and best price and longer use life.



Parameter:



Model Number: HT-225B

Test range: 10~60Mpa

Standard impact energy: 2.207J(0.225Kgf.m)

Stroke of rebound hammer: 75mm

Friction of pointer slider: 0.5N~0.8N

Sphere radius of rebound pole SR: 25mm1mm

Average rebound value on steel anvil Rm: 80±2

Size: 54*278mm
