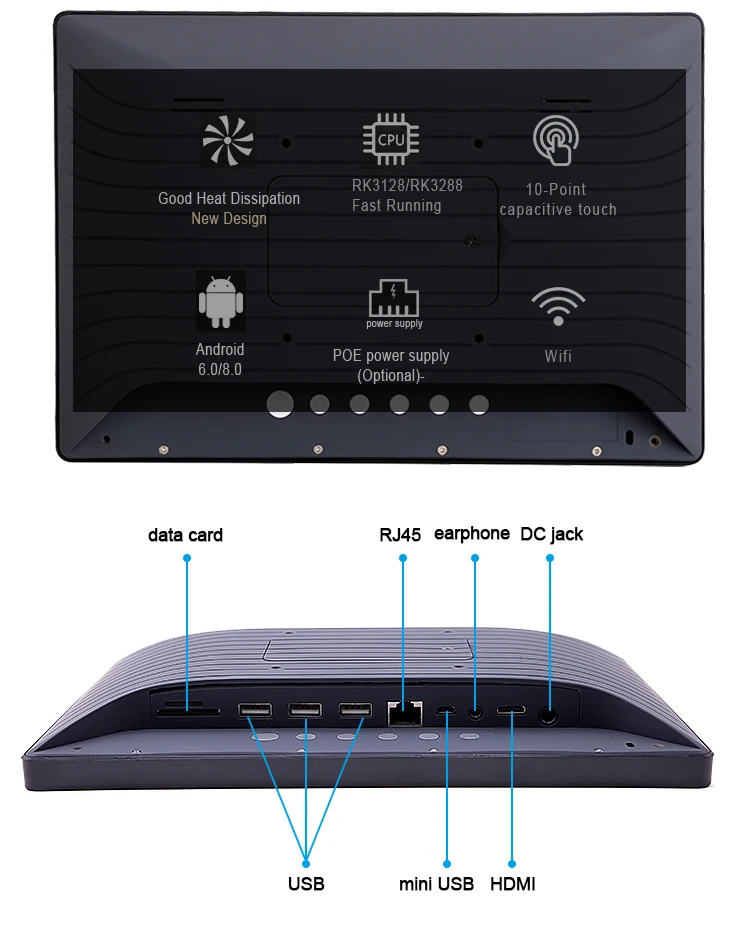

YC-1020NT 10 inch Smart home Iot Automatic Home controller panel Wallmount Tablet Android built in Battery
Main Fetures (3 different model option)
YC-1020NT-K16 : RK3128 1+8G Android 6.0 ,with POE/Battery .
YC-1020NT-YS: RK3399 4+16G Android 7.1 ,with POE option .
YC-1020NT-PW: MTK8735 2+16G Android 8.1 , With 4G SIM Card slot .
YC-1020NT-K16 Specification :
| System | CPU | RK3128 | ||||||||||
| RAM | 1GB | |||||||||||
| ROM | 8GB | |||||||||||
| System | android 6.0/7.1 | |||||||||||
| Dispaly | screen | 10.1 inch IPS touch screen | ||||||||||
| resolution | 1280*800 | |||||||||||
| Contrast | 1300 | |||||||||||
| Brightness | 300 cdm2 | |||||||||||
| Screen scale/Display area | 16:9 / Display area : 218*135mm | |||||||||||
| Internet | Ethernet | Support POE(POE is compliance with IEEE802.3at/af) | ||||||||||
| BT | BT 4.0 | |||||||||||
| RJ-45 x 1 | Standard | |||||||||||
| Battery | 5000mAh,Option | |||||||||||
| HDM-I | HDM-I | |||||||||||
| Multimedia | Video | MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 1080p | ||||||||||
| Audio | MP3/WMA/AAC etc. | |||||||||||
| Picture | jpeg, jpg | |||||||||||
| Other functions | Speaker | 2*1.5W | ||||||||||
| Cam'era | front 2.0mp | |||||||||||
| OSD Language | Multi language OSD operation | |||||||||||
| software support | QQ/Facebook/map/email/games and so on | |||||||||||
| Attachment | Adapter | 12V/2A | ||||||||||
| Color | Black /White | |||||||||||
| Desktop Bracket | Standard | |||||||||||
