PLEASE NOTE: These are engineered and designed to not cover the entire opening. The entire opening does not need protection. These are designed to protect radiators, and not hinder intake path. Testing showed there is no good way to secure a guard that extends all the way up into the top as it deflects under track conditions. These will protect the radiator from rocks and keep most debris like leaf's out.

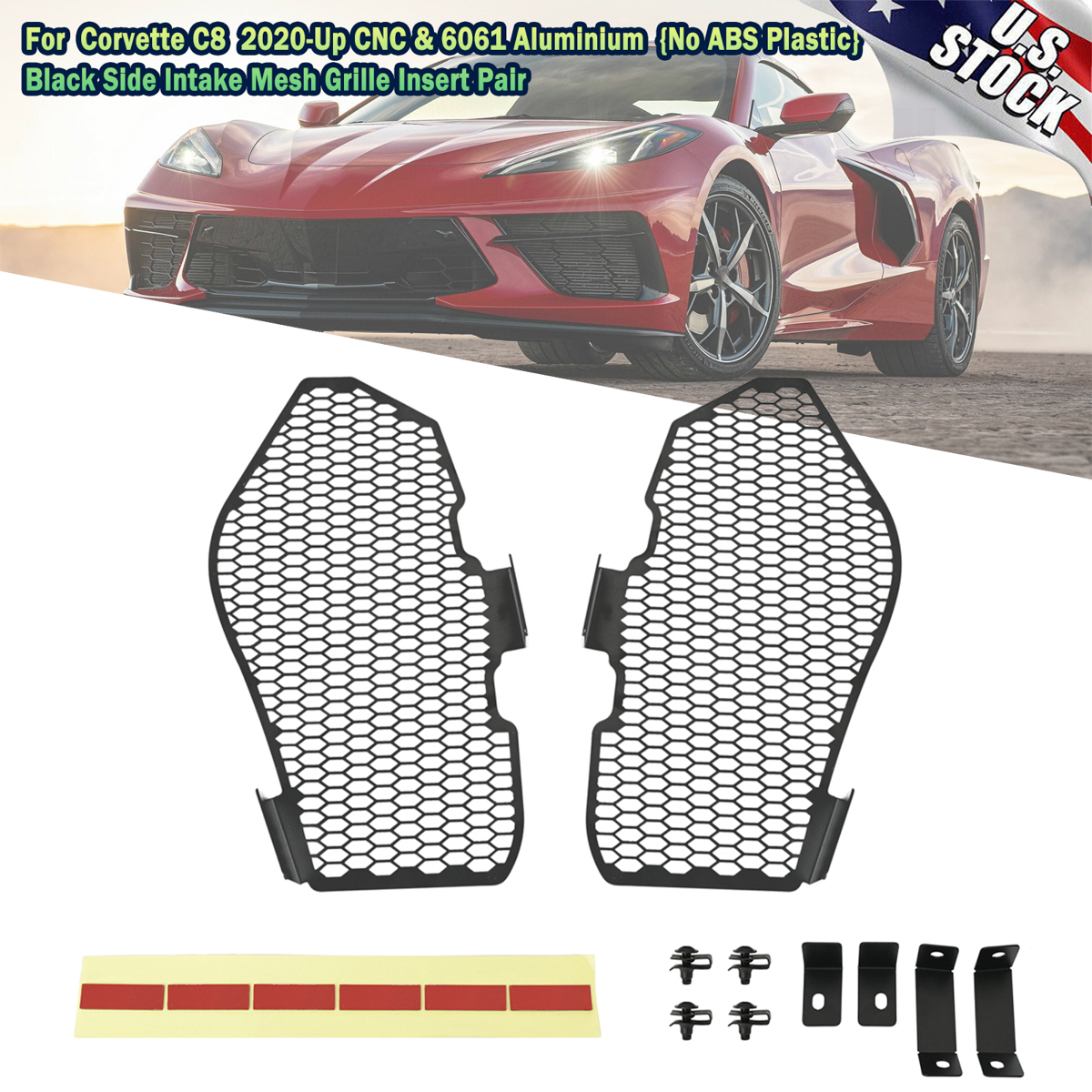

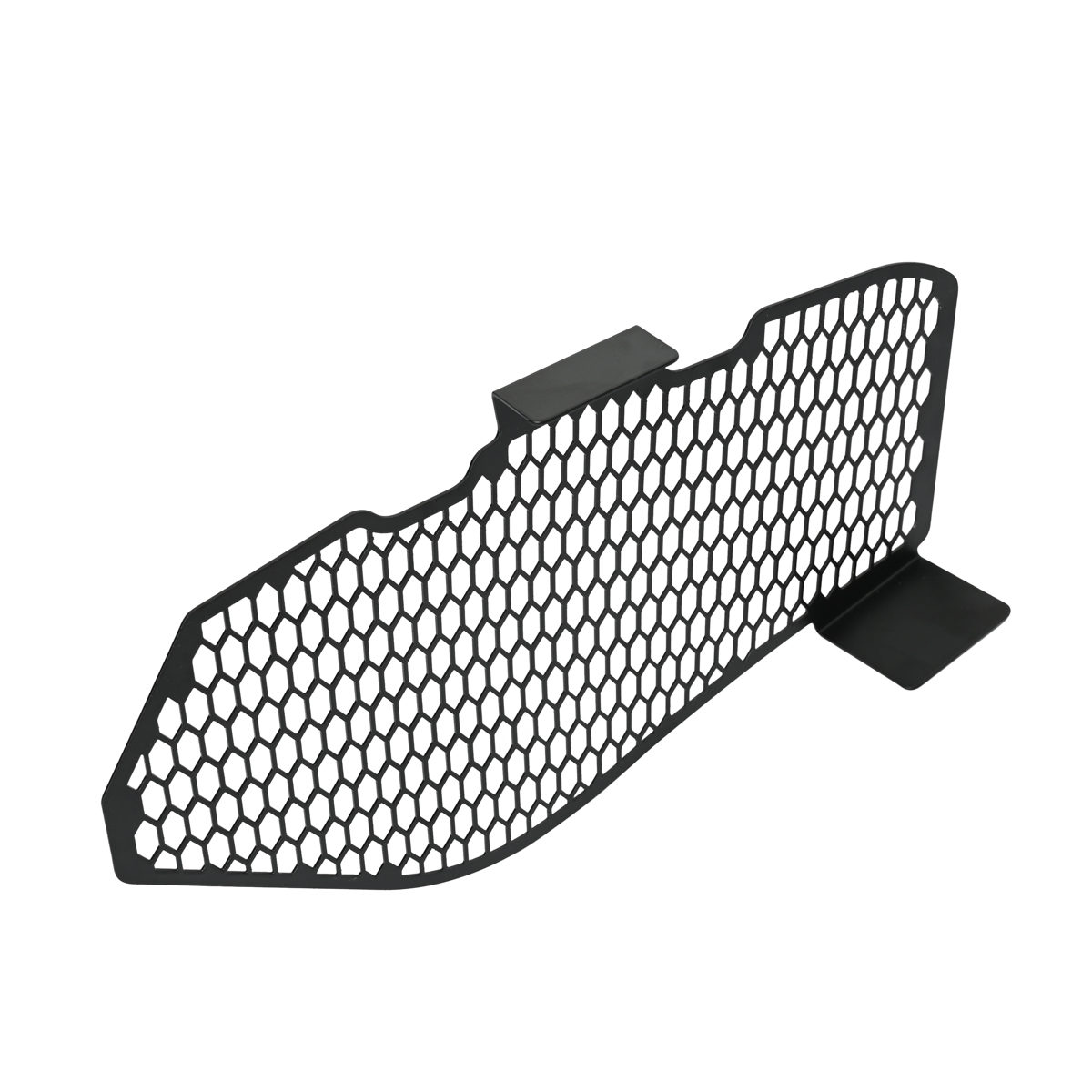

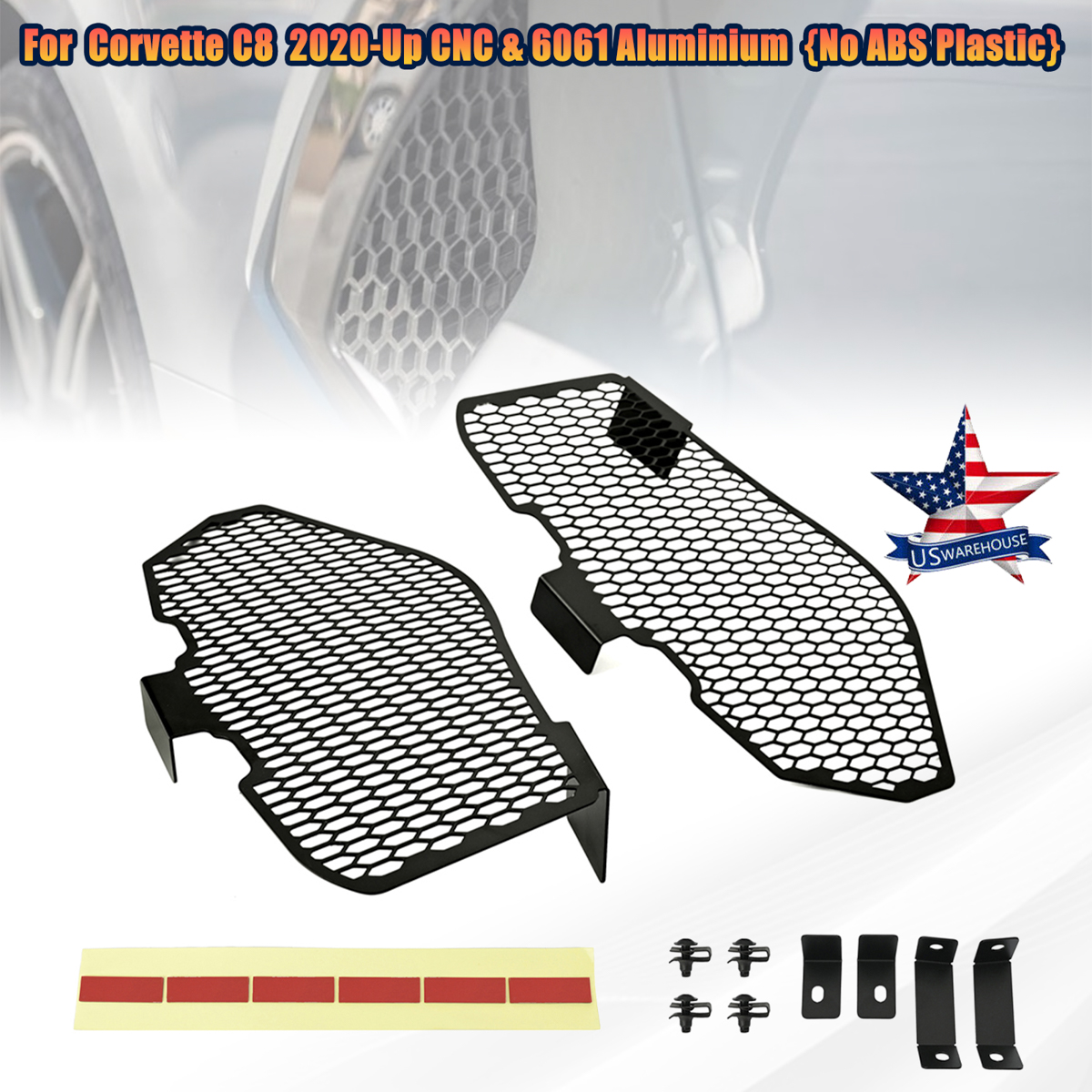

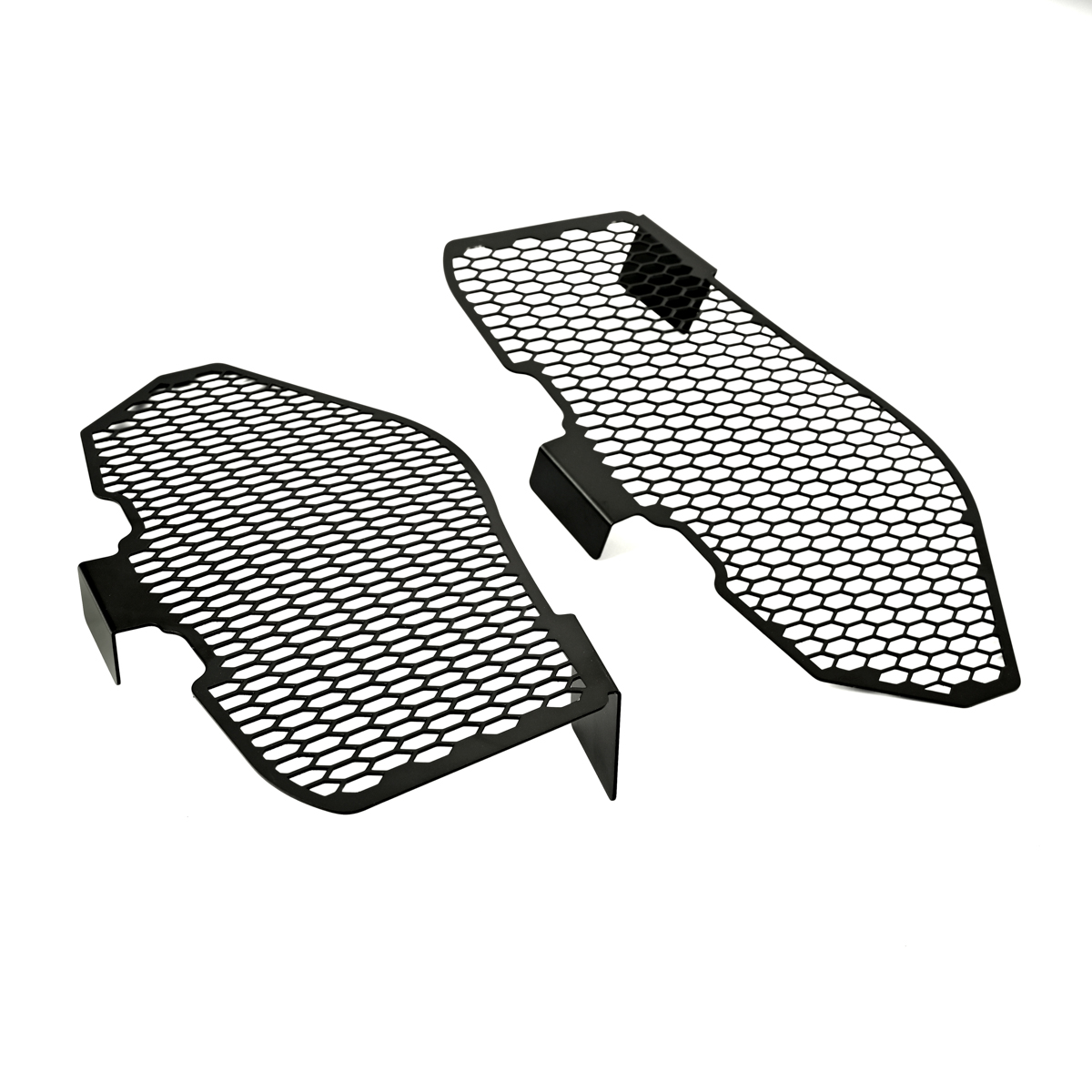

Product：Side Intake Mesh Grille Insert
Fitment：For Corvette C8 2020-Up （Does Not fit for Z06 & ZR1 models）
Color：Black
Material: CNC laser cut from aluminum and then powder coated in a black finish to blend in front of your inlets. We're the only ones out there who took the time to create this bolt in solution with a custom machined punch pattern to match the OEM style.
Features：

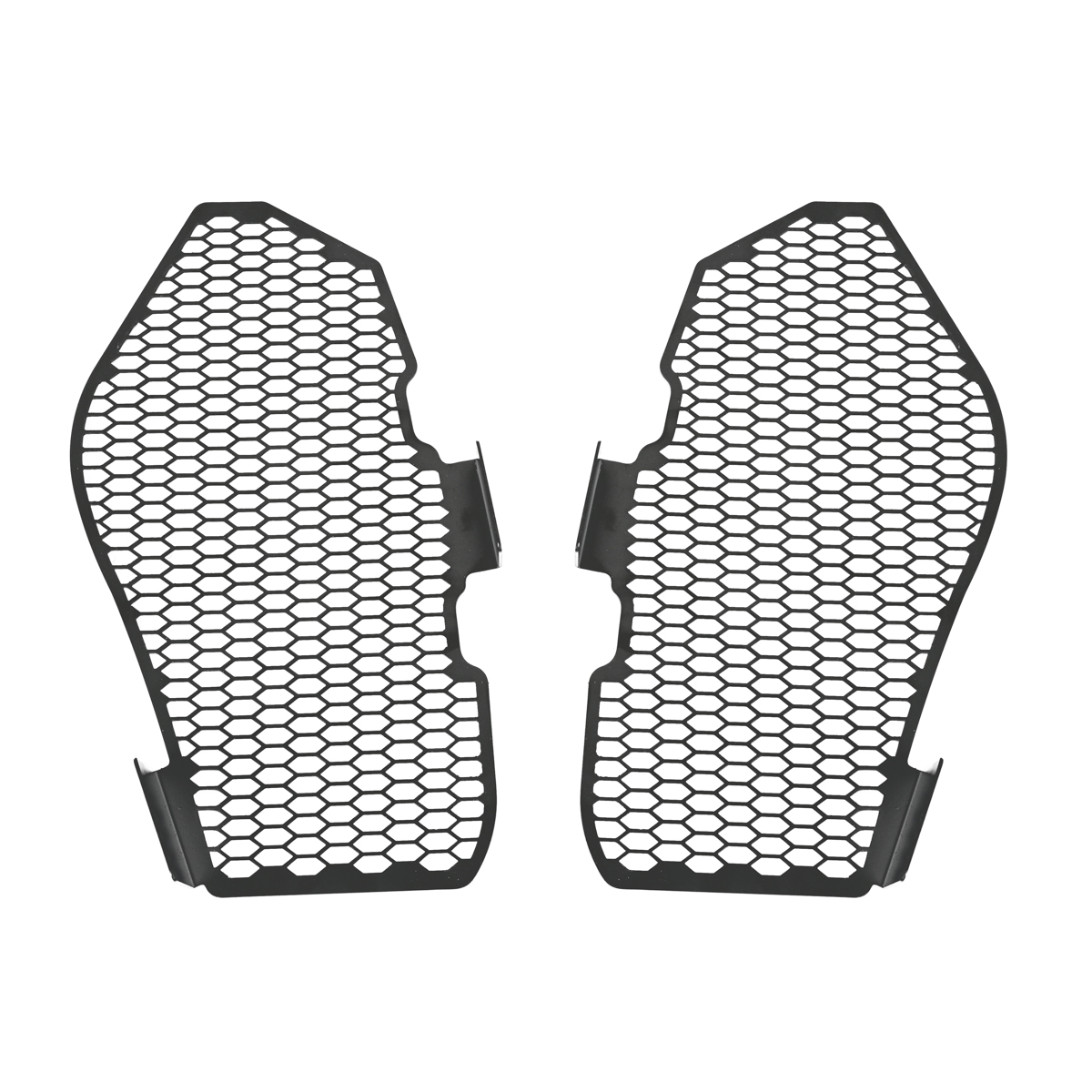

1. An OEM like side inlet guards solution! Protect your radiator and intake inlets from unwanted road debris and rocks! Includes drivers & passengers side.
2. Easy install with a bolt in OEM point to create a sturdy and OEM like grill guard that should have been there from the factory. These have been track and road tested to withstand whatever you throw at them, or what gets thrown at you.
OEM style design and look：

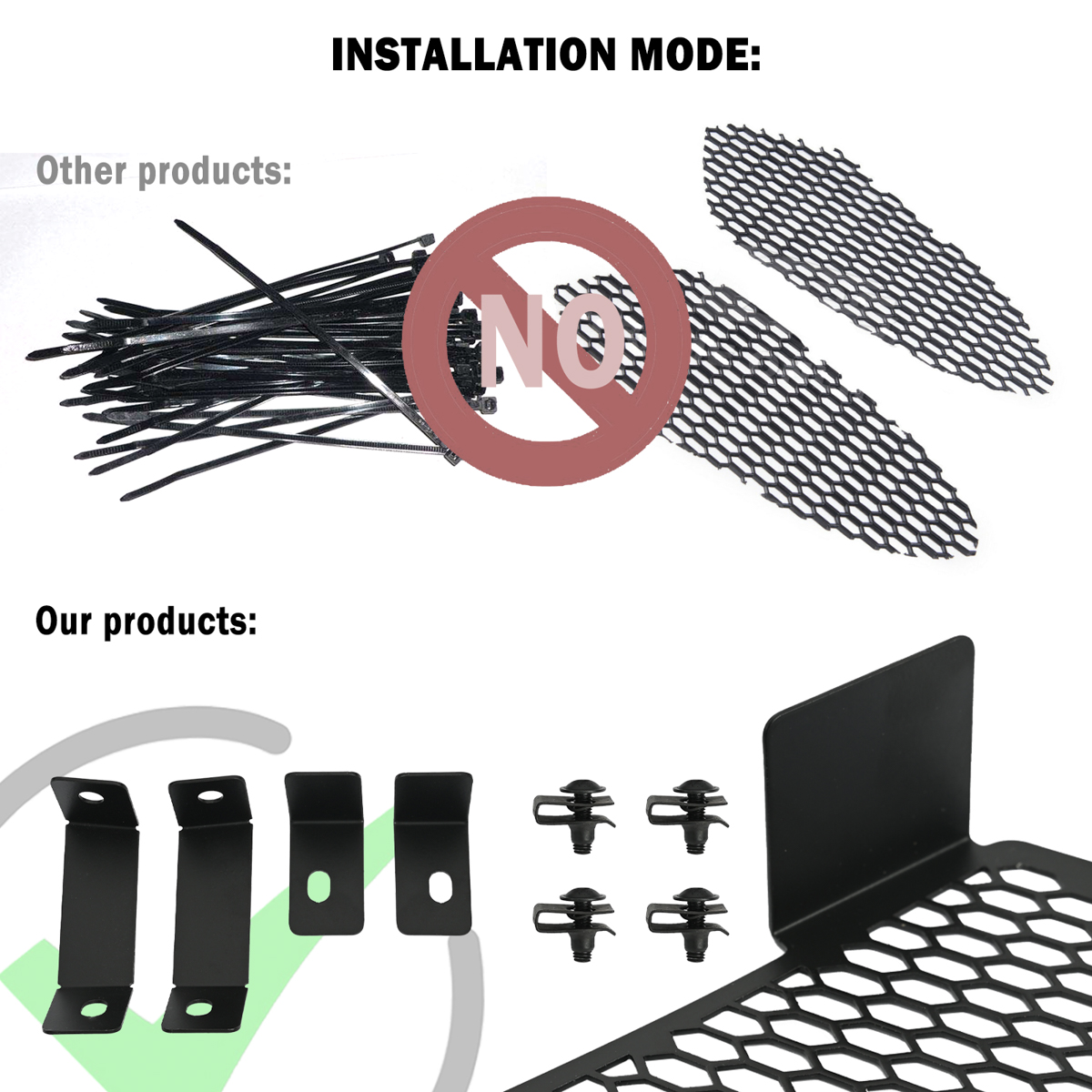

Uses OEM bolt in location - No cheesy zip ties.
CNC laser cut Aluminum (Not plastic, so it won't crack.)
Track tested and approved. Handles 180+ MPH. Does not impede airflow.
Durable powder coat finish.
Lifetime Warranty：
PLEASE NOTE: These are engineered and designed to not cover the entire opening. The entire opening does not need protection. These are designed to protect radiators, and not hinder intake path. Testing showed there is no good way to secure a guard that extends all the way up into the top as it deflects under track conditions. These will protect the radiator from rocks and keep most debris like leaf's out.

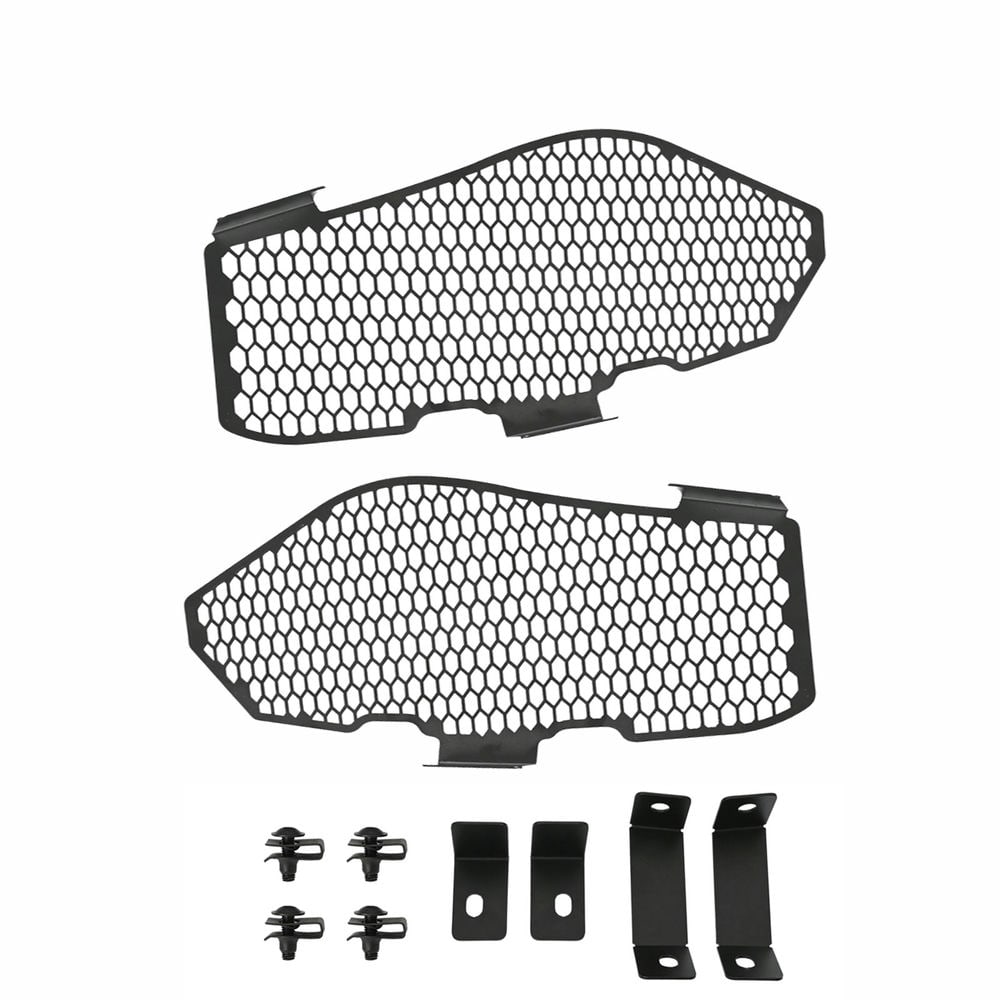

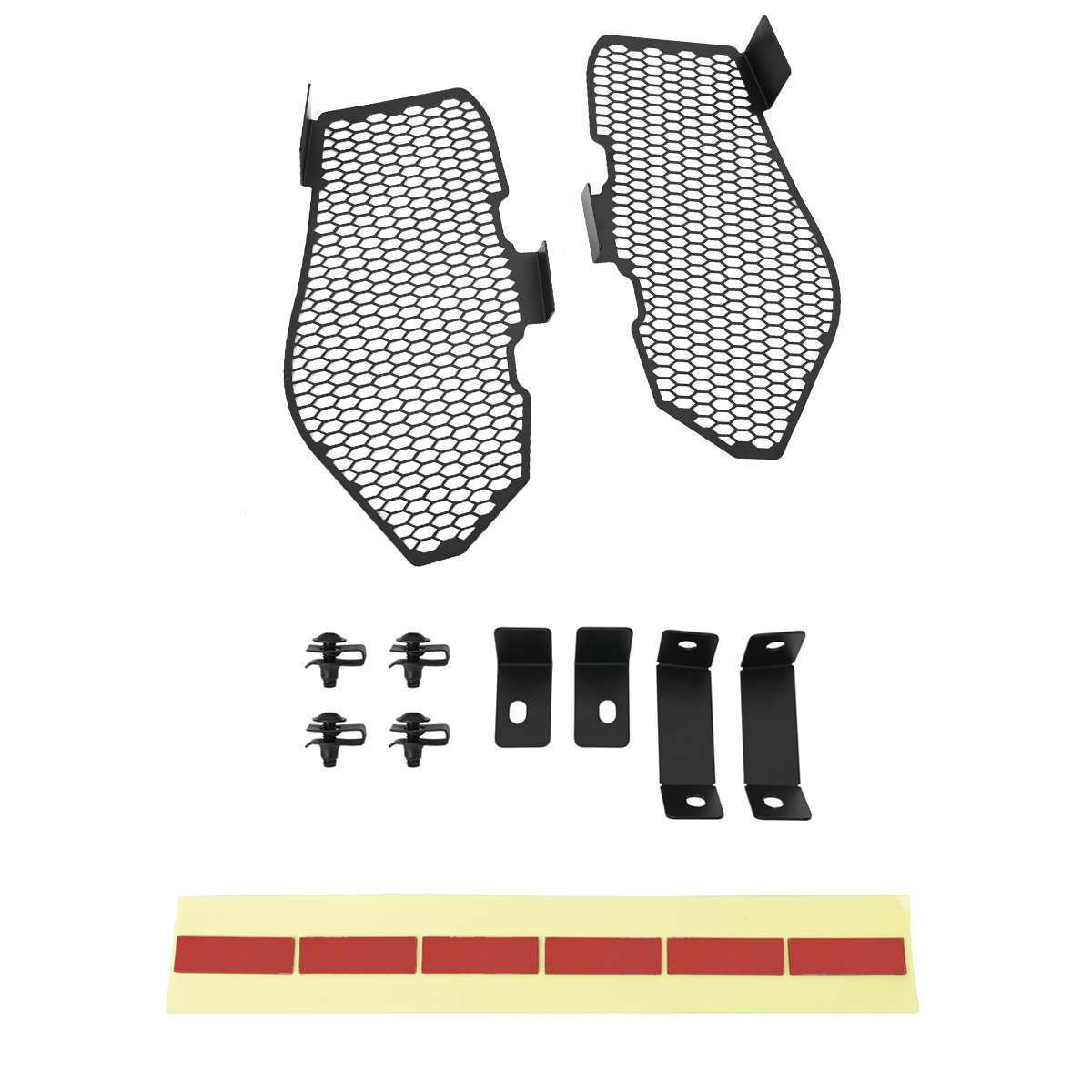

Package： 1 Pair Side Intake Mesh Grille Insert（with Accessories）
not included insturctions
Installation steps:

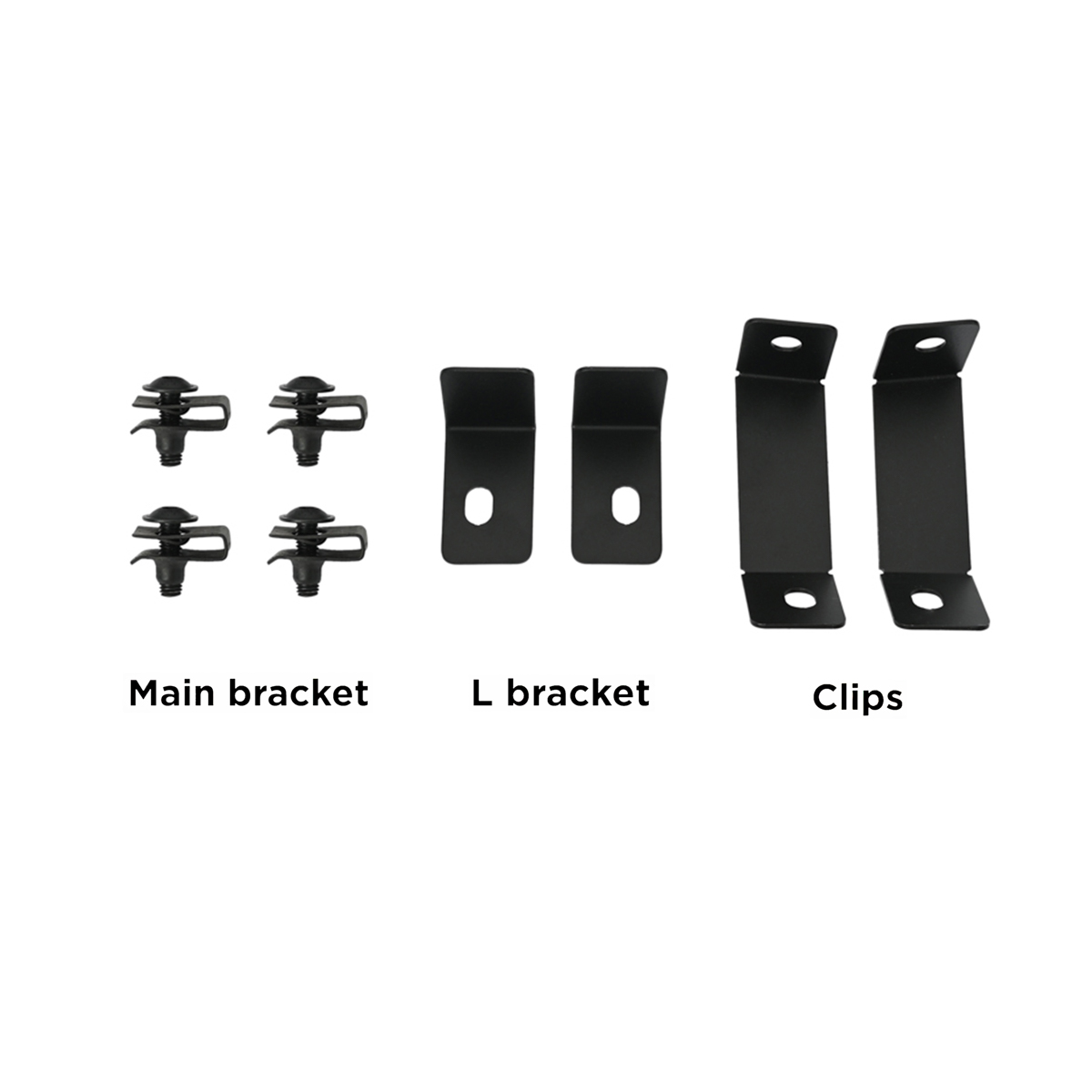

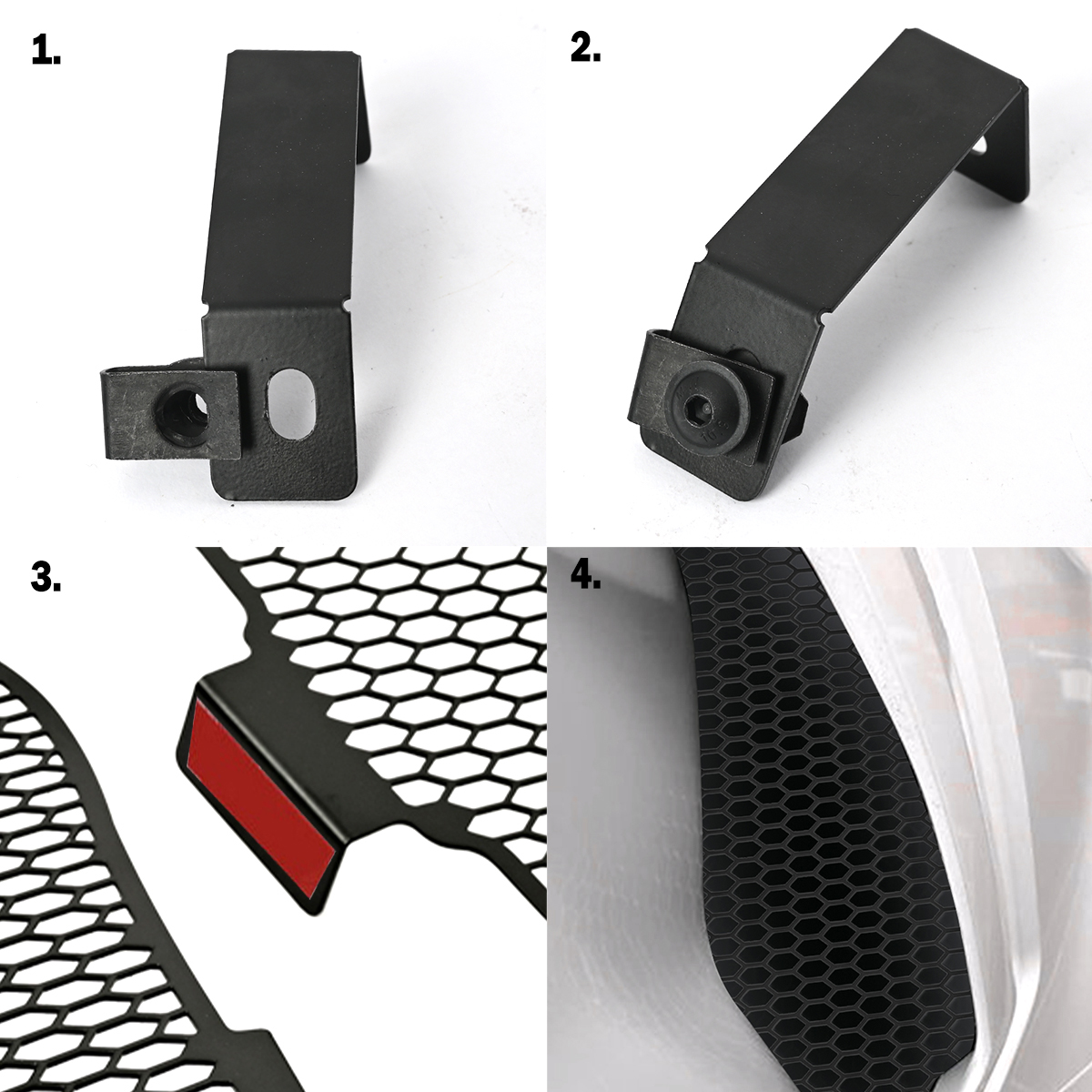

1.First you want to squeeze the clips in front of the hole and behind the hole for a tight fit then attach them to the main bracket and L bracket push in from the fat end on the brackets towards the smaller end.
2.Use a T-15 bit ratchet and extension to remove the T-15 screw from inside the lower portion of the vent.
3.Insert the T-15 screw into the back end of the main bracket, Clean off the inside of the vents with rubbing alcohol and a rag, Then install the main bracket back where the T-15 screw goes.
4.Add the tape to the L bracket and cut off the excess tape that hangs off the L bracket. Install the L bracket right in the area before the inner part of the vent curves upward hold firmly for 30 to 40 seconds.
5.Add the tape to the tabs on the grill, upper tab gets tape on the inside and lower tab gets tape on the outside and Please slightly bend the lower tab outward a little bit to ensure it attaches properly to the side wall when ready.
6.Install the grill with upper tab behind the inner panel try not to stick on till you adjust the grill properly and make sure the grill is in front of the brackets.
7.Set the two screws through the grill and into the brackets do not tighten all the way yet just kind of snug then apply pressure on top tab for 30 to 40 seconds. Then apply pressure to the lower slightly bent tab for 30 to 40 seconds then finally tighten your screws onto the grills and brackets with either a 3mm hex key or you can also use the T-15 ratchet bit to tighten them.
