Measurement parameters
|
|
|
|
|||
|
Parameters name
|
2 in 1 : Ultrasonic wind speed and wind direction
|
|
|
|||
|
Parameters
|
Measure range
|
Resolution
|
Accurancy
|
|||
|
Wind speed
|
0-60m/s
|
0.01m/s
|
±0.2m/s or ±0.02*V
|
|||
|
Wind direction
|
0-359°
|
1°
|
±3°
|
|||
|

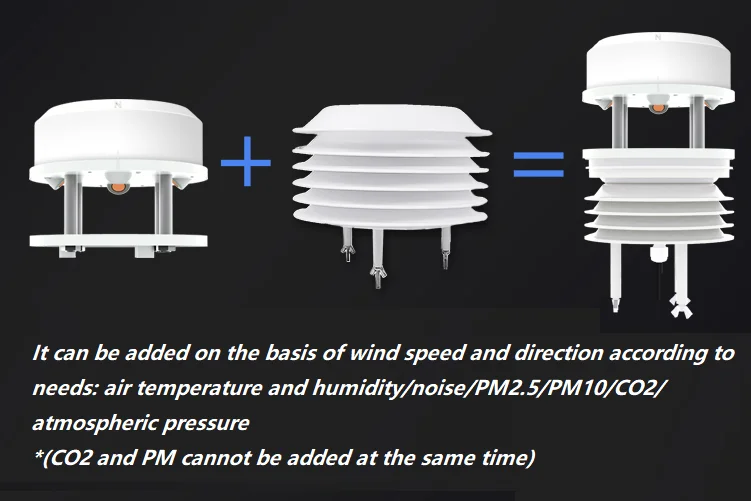

* Other customizable parameters
|
Air temperature, humidity, pressure, noise PM2.5/PM10/CO2
|
|
|
|||
|
Technical parameter
|
|
|
|
|||
|
Stability
|
Less than 1% during the life of the sensor
|
|
|
|||
|
Response time
|
Less than 10 seconds
|
|
|
|||
|
Working current
|
DC12V≤60ma (HCD6815) -DC12V≤180ma
|
|
|
|||
|
Power consumption
|
DC12V≤0.72W (HCD6815); DC12V≤2.16W
|
|
|
|||
|
Output
|
RS485, MODBUS communication protocol
|
|
|
|||
|

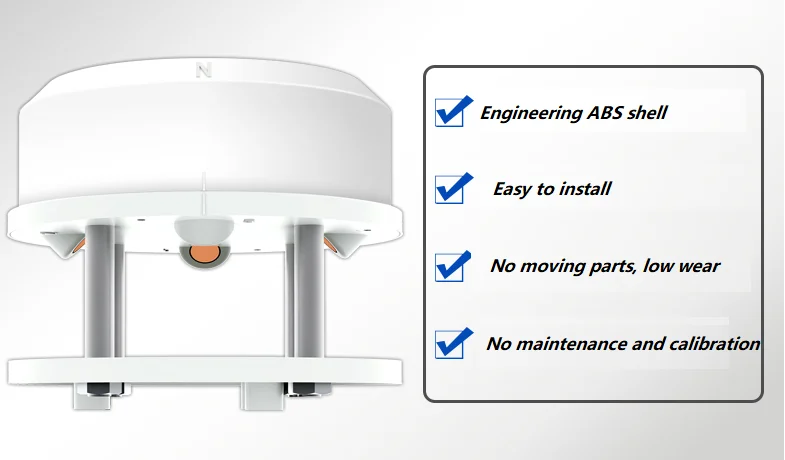

Housing material
|
ABS engineering plastics
|
|
|
|||
|
Working environment
|
Temperature -30 ～ 70 ℃, working humidity: 0-100%
|
|
|
|||
|
Storage conditions
|
-40 ~ 60 ℃
|
|
|
|||
|
Standard cable length
|
2 meters
|
|
|
|||
|
The farthest lead length
|
RS485 1000 meters
|
|
|
|||
|
Protection level
|
IP65
|
|
|
|||
|
Wireless transmission
|
|
|
|
|||
|
Wireless transmission
|
LORA / LORAWAN, GPRS, 4G,WIFI
|
|
|
|||
|
Mounting Accessories
|
|
|
|
|||
|
Stand pole
|
1.5 meters, 2 meters ,3 meters higth, the other higth can be customize
|
|
|
|||
|
Equiment case
|
Stainless steel waterproof
|
|
|
|||
|
Ground cage
|
Can supply the matched ground cage to burried in the ground
|
|
|
|||
|
Lightning rod
|
Optional(Used in thunderstorm places)
|
|
|
|||
|
LED display screen
|
Optional
|
|
|
|||
|
7 inch touch screen
|
Optional
|
|
|
|||
|
Surveillance cameras
|
Optional
|
|
|
|||
|
Solar power system
|
|
|
|
|||
|
Solar panels
|
Power can be customized
|
|
|
|||
|
Solar Controller
|
Can provide matched controller
|
|
|
|||
|

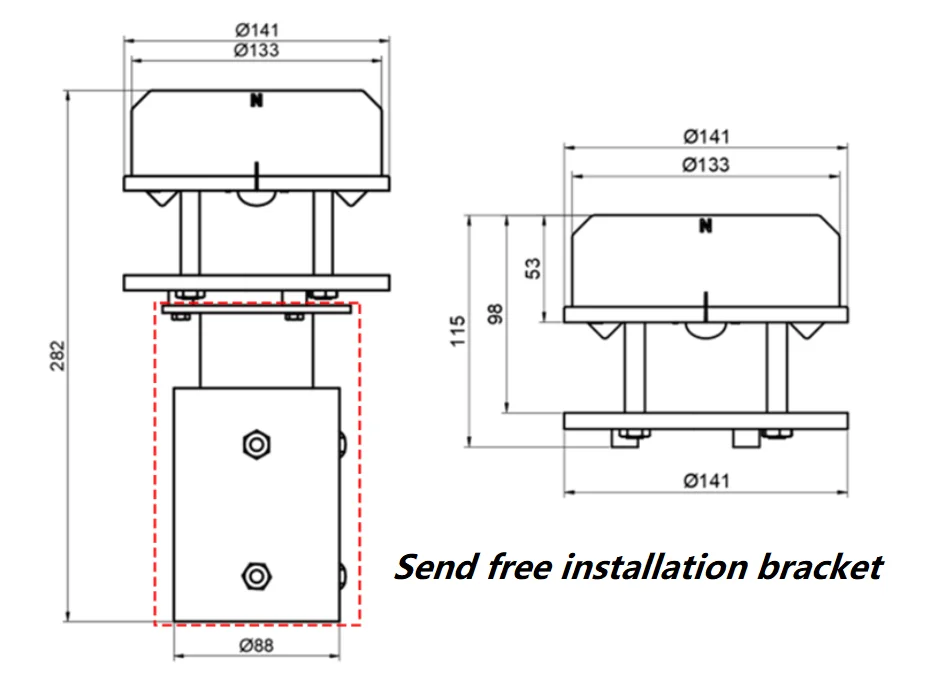

Mounting brackets
|
Can provide the matched bracket
|
|
|
|||
|
Cloud server and software
|
|
|
|
|||
|
Cloud server
|
If buy our wireless modules, send free
|
|
|
|||
|
Free software
|
See real time data and download the history data in excel
|
|
|
|||
