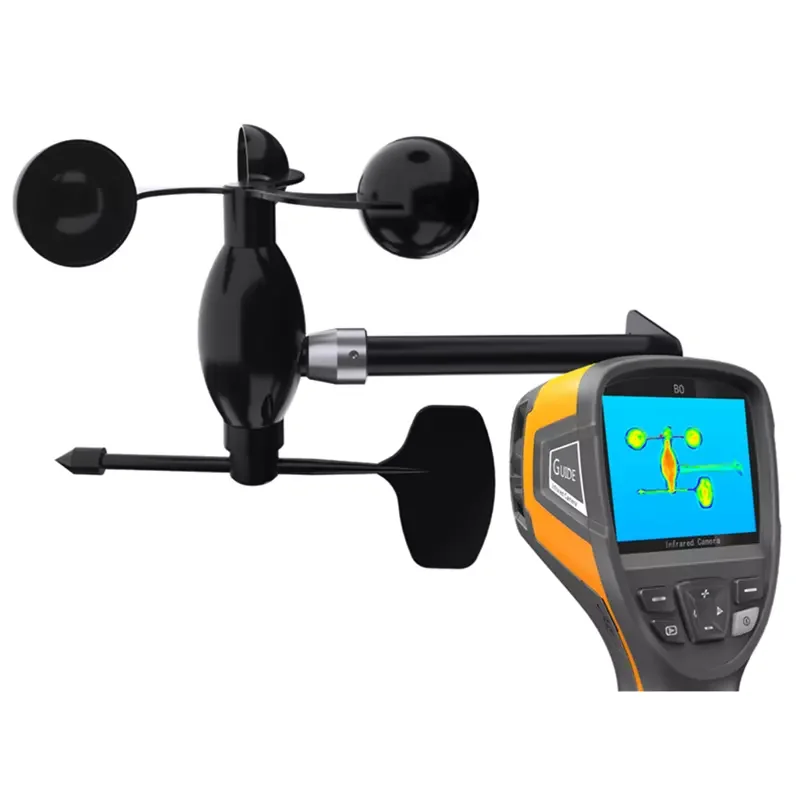

The two weather stations on the left are not ultrasonic wind speed and direction sensor pictures, only as material comparison reference.
Product Description
|
Measurement parameters
|
|
|
|
|||
|
Parameters name
|
2 in 1 : Ultrasonic wind speed and wind direction sensor
|
|
|
|||
|
Parameters
|
Measure range
|
Resolution
|
Accurancy
|
|||
|
Wind speed
|
0-40m/s
|
0.01m/s
|
±（0.5+0.05V）M/S
|
|||
|
Wind direction
|
0-359.9°
|
0.1°
|
±5°
|
|||
|
* Other customizable parameters
|
Air temperature, humidity, pressure, noise PM2.5/PM10/CO2,Radar rainfall
|
|
|
|||
|
Technical parameter
|
|
|
|
|||
|
Stability
|
Less than 1% during the life of the sensor
|
|
|
|||
|
Response time
|
Less than 10 seconds
|
|
|
|||
|
Working current
|
DC12V≤60ma
|
|
|
|||
|
Power consumption
|
DC12V≤0.72W
|
|
|
|||
|
Output
|
RS485/RS232/SDI12,MODBUS communication protocol
|
|
|
|||
|
Housing material
|
ASA
|
|
|
|||
|
Working environment
|
Temperature -30 ～ 70 ℃, working humidity: 0-100%
|
|
|
|||
|
Storage conditions
|
-40 ~ 60 ℃
|
|
|
|||
|
Standard cable length
|
3 meters
|
|
|
|||
|
The farthest lead length
|
RS485 1000 meters
|
|
|
|||
|
Protection level
|
IP65
|
|
|
|||
|
Wireless transmission
|
|
|
|
|||
|
Wireless transmission
|
LORA / LORAWAN, GPRS, 4G,WIFI
|
|
|
|||
|
Mounting Accessories
|
|
|
|
|||
|
Stand pole
|
1.5 meters, 2 meters ,3 meters higth, the other higth can be customize
|
|
|
|||
|
Equiment case
|
Stainless steel waterproof
|
|
|
|||
|
Ground cage
|
Can supply the matched ground cage to burried in the ground
|
|
|
|||
|
Lightning rod
|
Optional(Used in thunderstorm places)
|
|
|
|||
|
LED display screen
|
Optional
|
|
|
|||
|
7 inch touch screen
|
Optional
|
|
|
|||
|
Surveillance cameras
|
Optional
|
|
|
|||
|
Solar power system
|
|
|
|
|||
|
Solar panels
|
Power can be customized
|
|
|
|||
|
Solar Controller
|
Can provide matched controller
|
|
|
|||
|
Mounting brackets
|
Can provide the matched bracket
|
|
|
|||
|
Free cloud server and software
|
|
|
|
|||
|
Cloud server
|
If buy our wireless modules, send free
|
|
|
|||
|
Free software
|
See real time data and download the history data in excel
|
|
|
|||
Normal service life more than 10 years
ASA Engineering Plastics Resistance to ultraviolet radiation It can be used outdoors for more than 10 years

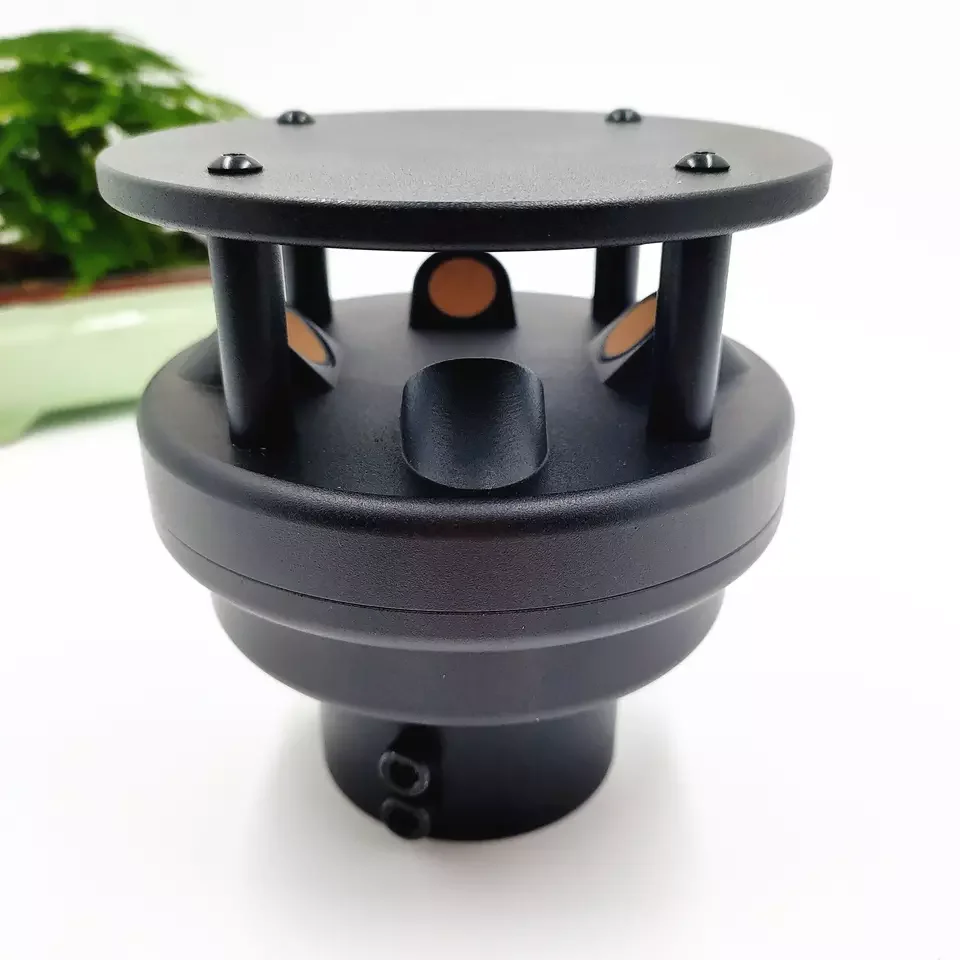

The ultrasonic probe is installed on the upper plate surface, which can not be interfered by rain and snow, and the measurement accuracy is more accurate
Detailed Images

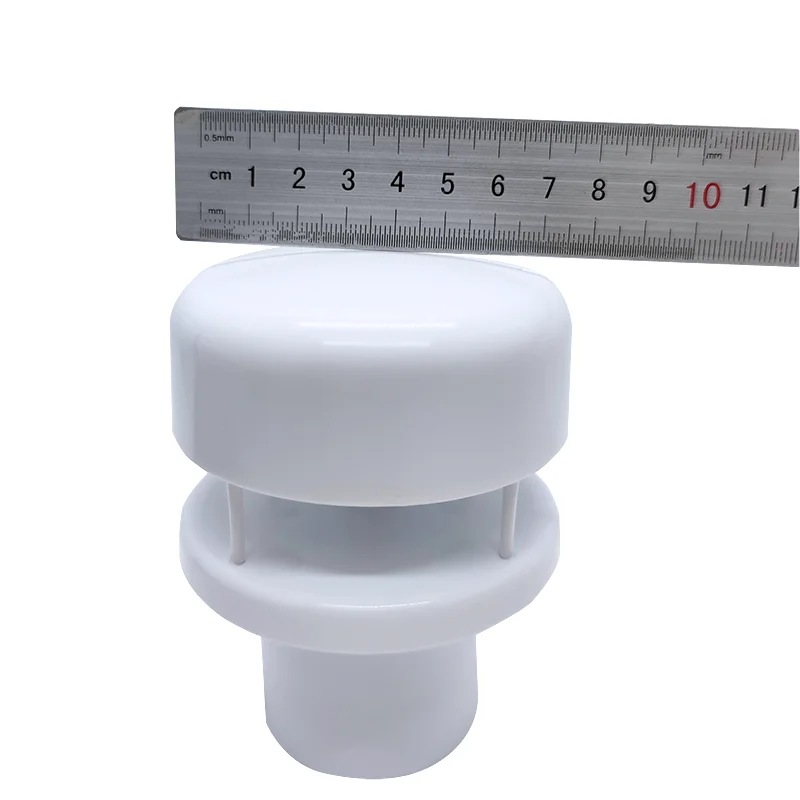

Small size,
It is more advantageous to monitor wind speed and direction
in narrow spaces such as pipelines and small tunnels.
• Miniaturized
• Output RS485/RS232/SDI12 (Optional) • Low power consumption
• Ultrasonic principle, no moving parts • Easy installation
• low cost
Compared with the traditional mechanical anemometer, it has the characteristics of small wear, long service life and fast corresponding speed.

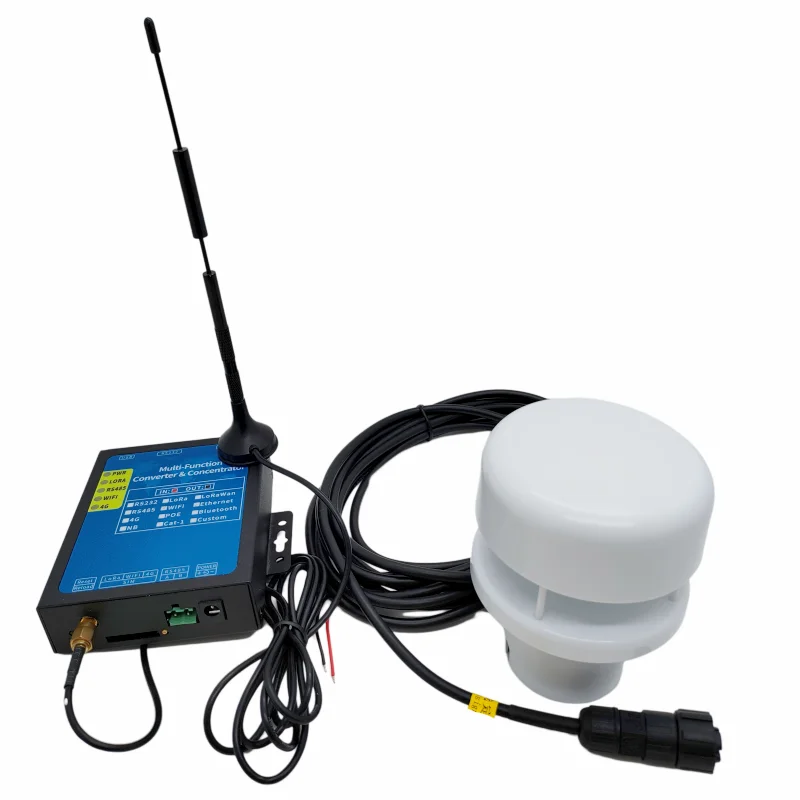

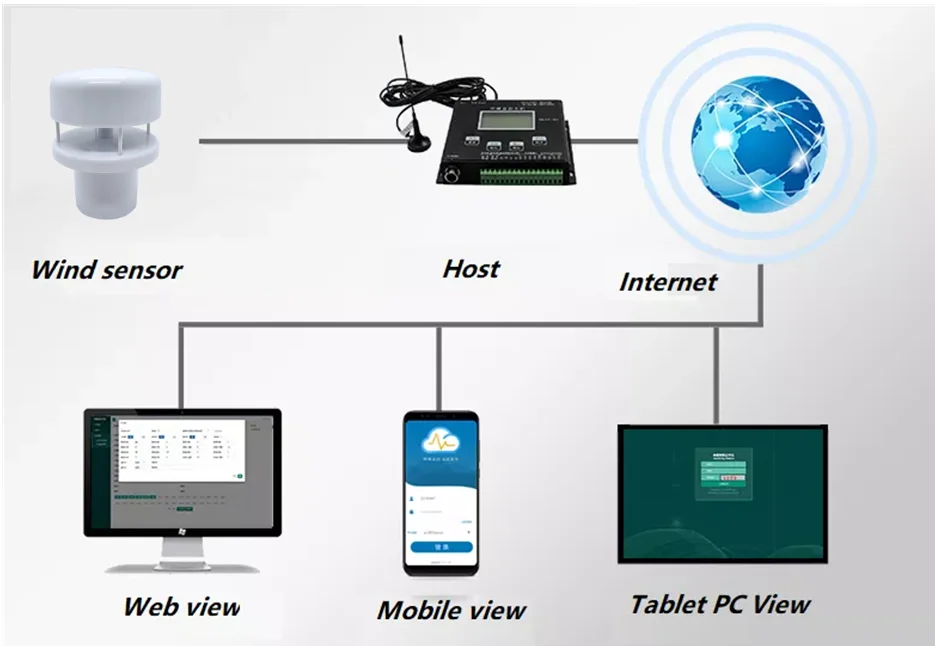

It can be RS485 output and we can also supply the all kinds wireless module GPRS, 4G, WIFI , LORA , LORAWAN and also the matched server and software to see the real time data in the PC end
Applications
Installation
Can be applied to various harsh environments
