Introduction of Water level sensor

GLT500 series submersible level sensors provide continuous liquid level measurement by sensing the hydrostatic pressure produced by the height of liquid above the sensor.

The GLT500 has a slim 27-mm diameter housing and a ported bullet nose cap for protection of the sensor diaphragm,and standard IP68 proof. The shielded cable with atmospheric vent tube. 316 stainless steel non-fouling protective housing, and providing a 4-20 mA and others output signal such as RS485, 0-5V and so on.





Function

 It can be compatible with PLC, panel meters, data loggers, and other electronic equipment, with temperature function(OEM).
The PU cable can measure di'esel fuel, and the PTFE cable can measure gasoline.
 Application:
 It is widely use'd in sewage, river and lakes treatment as well as water\oil tanks ,channel, large rivers, l reservoirs and coastline monitoring.
 Certification:
 CE certification.
 RoHs certification
 Explosion proof certification

Specifications



Measurement Range  0...1…200mH2O
Pressure type
Gauge   Absolute
accuracy ±0.25%F.S,    ±0.5%F.S
Stability   0.2%F.S
Material Probe:stainless steel          Housing:304/316L /Titanium   alloy
Signal output 4~20mA      0/1~5VDC    0~10VDC   0.5-4.5VDC    RS485   80mv
Power supply 12~36VDC     5VDC
protection IP68
Compensation temperature
 -10~70℃







Detailed Image



Application





Accessories you may need

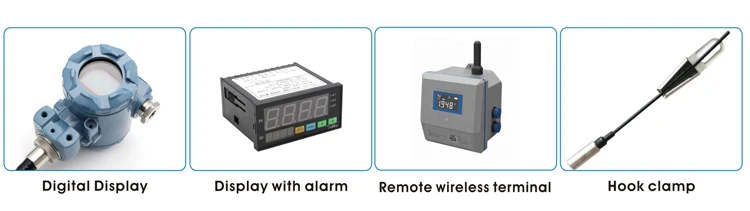

 Accessories include a remote wireless terminal , 2800 explosion proof display,GPY118 display controller and a hook clamp for cable fixing.

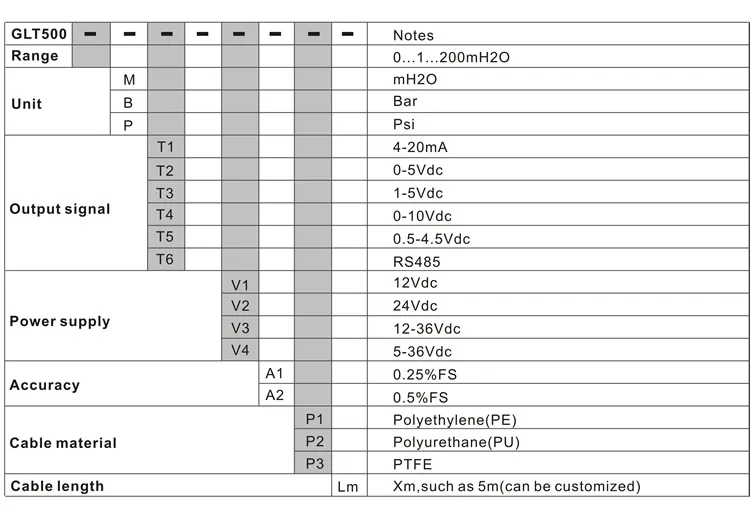

Ordering Guide





Successful Case



Customer Feedback

Certification







Package&Shipping

  Multiple Packaging Protection: Professional packaging material and rigorous packaging operation

  Multiple Transportation way: Express(Fedex, DHL, TNT, EMS, UPS etc.), air and shipping for your choose



Service standards: we are committed to providing a high quality,and responsive services to all clients
The fastest reply: detailed informations, specific model and price of products will be provided quickly after receiving your inquiry.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
Excellent package: each unit has individual box and all boxes are packed in standard packages.
OEM available
