Product Description
|
product name
|
Evaporation sensor
|
|
Principle
|
Weighing principle
|
|
Powered by
|
DC12～24V
|
|
Technology
|
Pressure Sensor
|
|
Output signal
|
Voltage signal (0～2V, 0～5V, 0～10V)
|
|
|
4～20mA (current loop)
|
|
|
RS485 (standard Modbus-RTU protocol)
|
|
Install
|
Horizontal installation, the base is fixed with cement
|
|
Wireless module
|
GPRS/4G/WIFI/LORA /LORAWAN
|
|
Precision
|
±0.1mm
|
|
Inner barrel diameter
|
200mm (Equivalent evaporation surface 200mm)
|
|
Outer barrel diameter
|
215mm
|
|
Barrel height
|
80mm
|
|
Weight
|
2.2kg
|
|
Material
|
304 stainless steel
|
|
Measuring range
|
0～75mm
|
|
Ambient temperature
|
－30℃～80℃
|
|
Warranty
|
1 year
|
Details Images

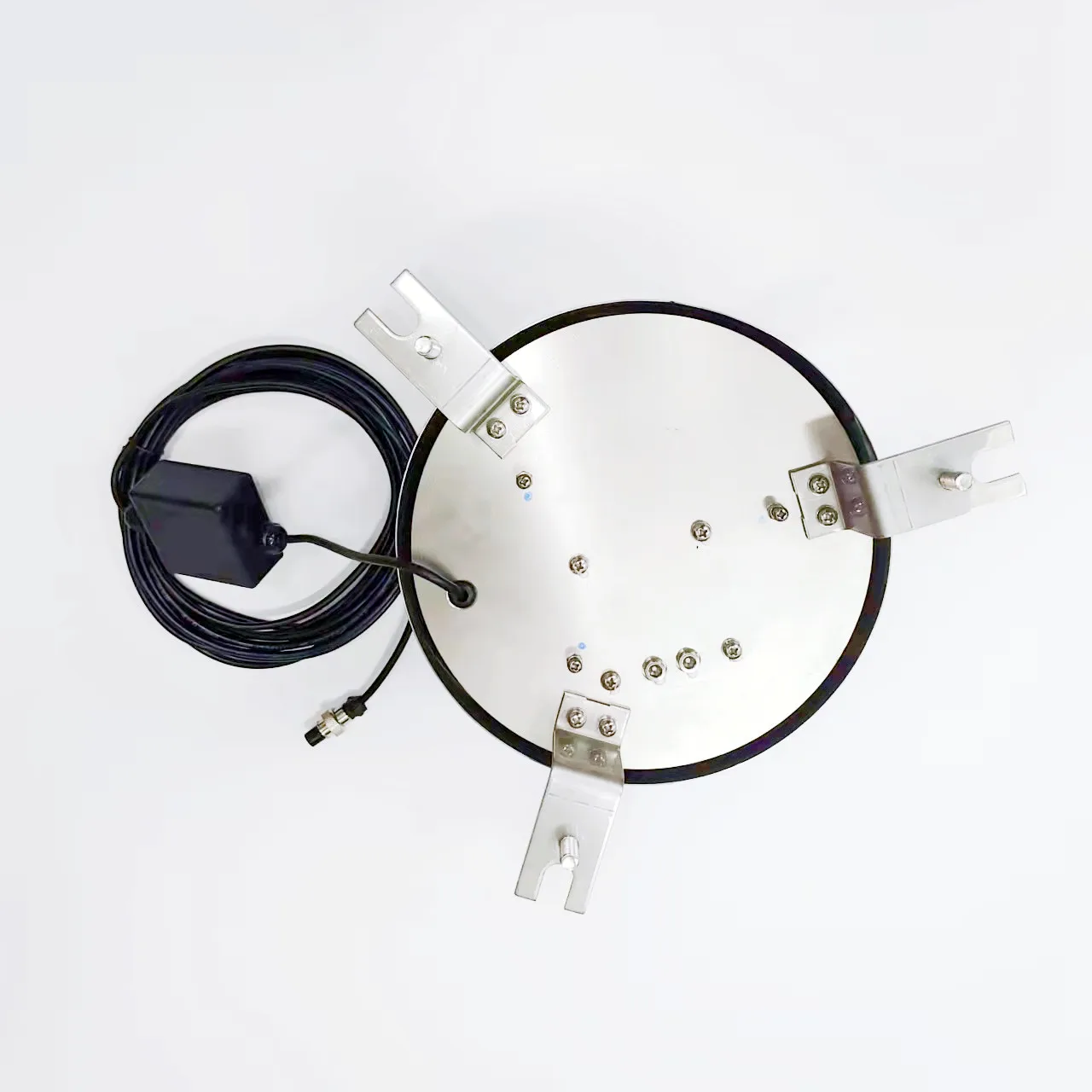

There is a high-precision pressure sensor at the bottom. It uses a high-precision weighing principle to measure the weight of the liquid in the evaporating dish, and then calculate the height of the liquid level.

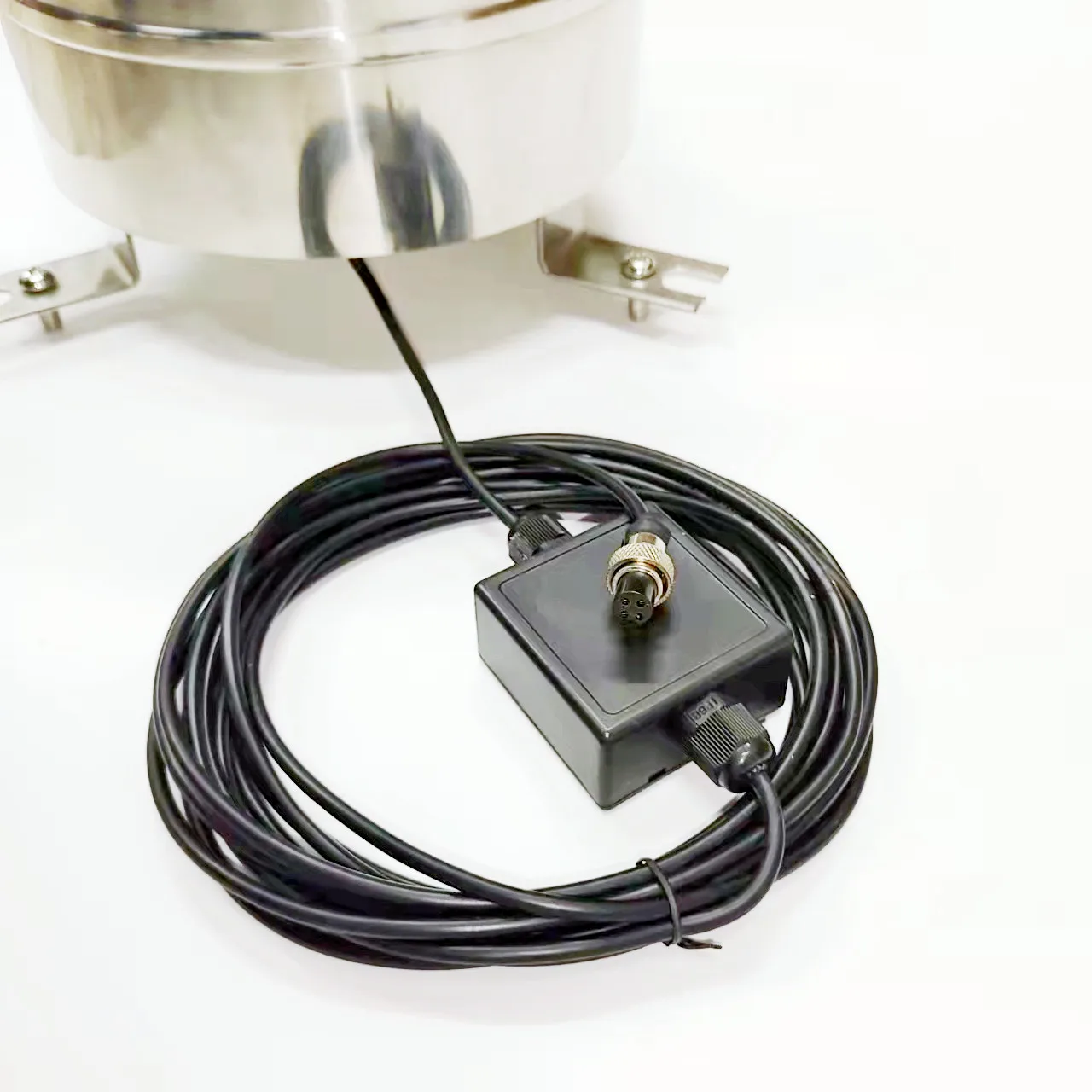

Voltage signal (0～2V, 0～5V, 0～10V) 4～20mA (current loop) RS485 (standard Modbus-RTU protocol)

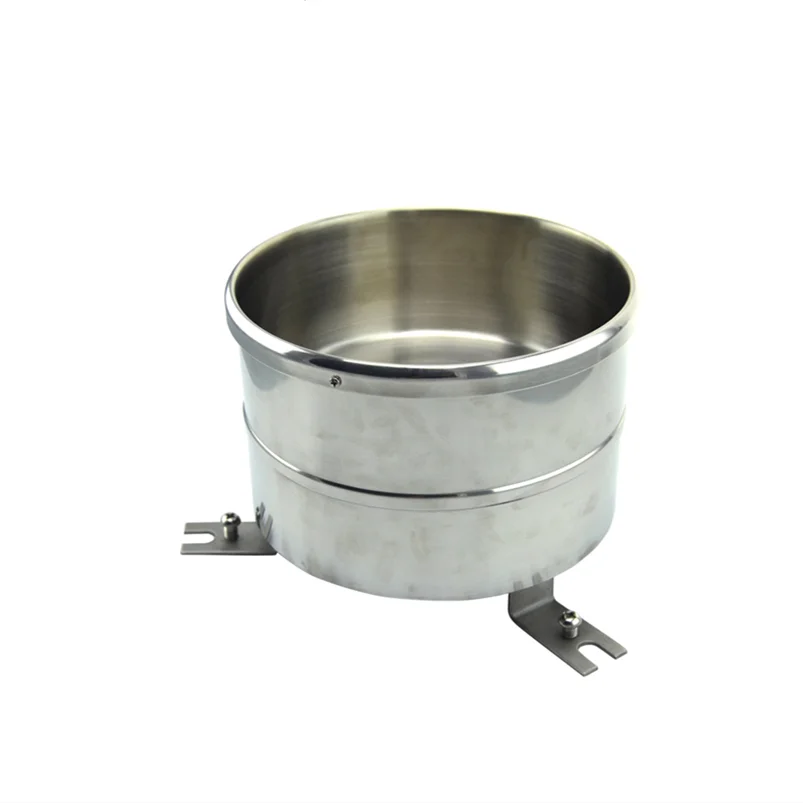

Product Size
Inner barrel diameter: 200mm (equivalent to 200mm evaporation surface) Outer barrel diameter: 215mm Bucket height: 80mm
Can connect to wireless GPRS/4G/WIFI/LORA /LORAWAN
