Product Description
Parameters name

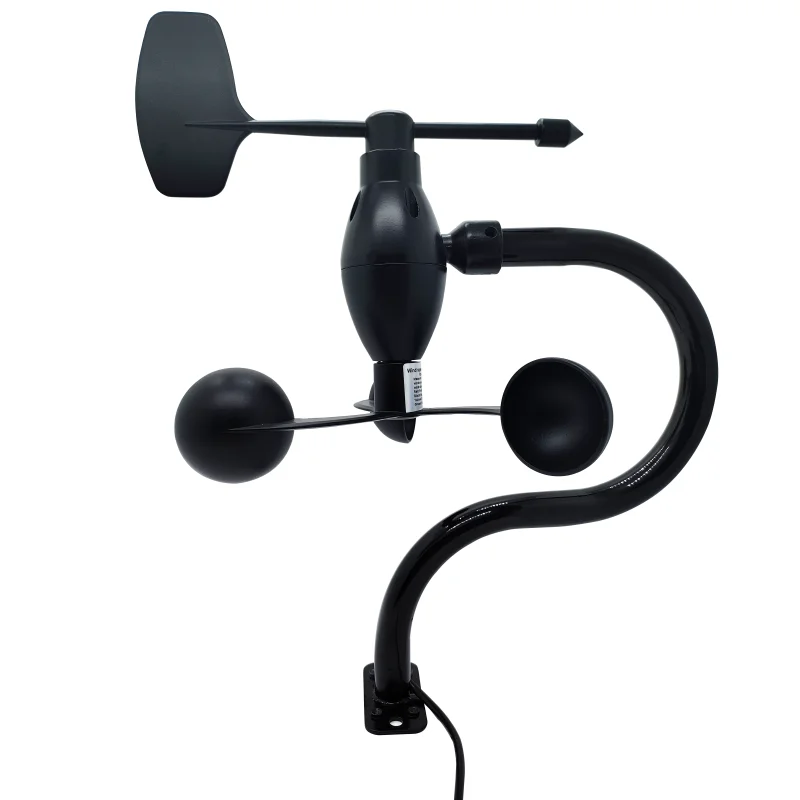

Wind speed and direction 2 in 1 sensor
Parameters
Measure range
Resolution
Accurancy
Wind speed
0~60m/s
(Other customizable)
0.3m/s
±(0.3+0.03V)m/s, V means speed
Wind direction
Measure range
Resolution
Accurancy
0-359°
1°
±(0.3+0.03V)m/s, V means speed
Material
Cast aluminium
Features
Heating function optional
Features
Anti-electromagnetic interference, self-lubricating bearing, low resistance, high precision
Technical parameter
Start speed
≤0. 3m/s
Response time
Less than 1 second
Stable time
Less than 1 second
Output
RS485, 0-5V, 0-10V, 4-20mA
Power supply
5~24V
Working environment
Temperature -30 ～ 70 ℃, working humidity: 0-100%
Storage conditions
-30℃～70℃
Standard cable length
2 meters
The farthest lead length
RS485 1000 meters
Protection level
IP65
Wireless transmission
LORA/LORAWAN(868MHZ,915MHZ,434MHZ)/GPRS/4G/WIFI
Cloud services and software
We have supporting cloud services and software, which you can view in real time on your mobile phone or computer

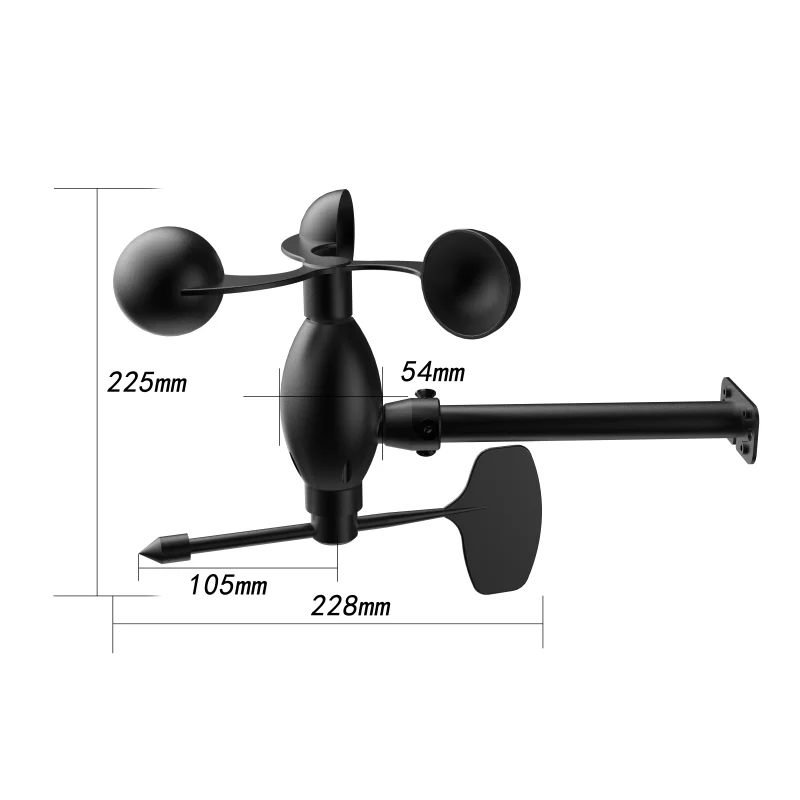

Detailed Images

Feature
1. Adopt integrated design, small size and convenient installation.
2. High measurement accuracy, fast response speed and good interchangeability. 3. Realize low cost, low price and high performance. 4. High data transmission efficiency and reliable performance to ensure normal work. 5. The power supply has wide application range, good linearity of data information and long signal transmission distance.




Advantage 1

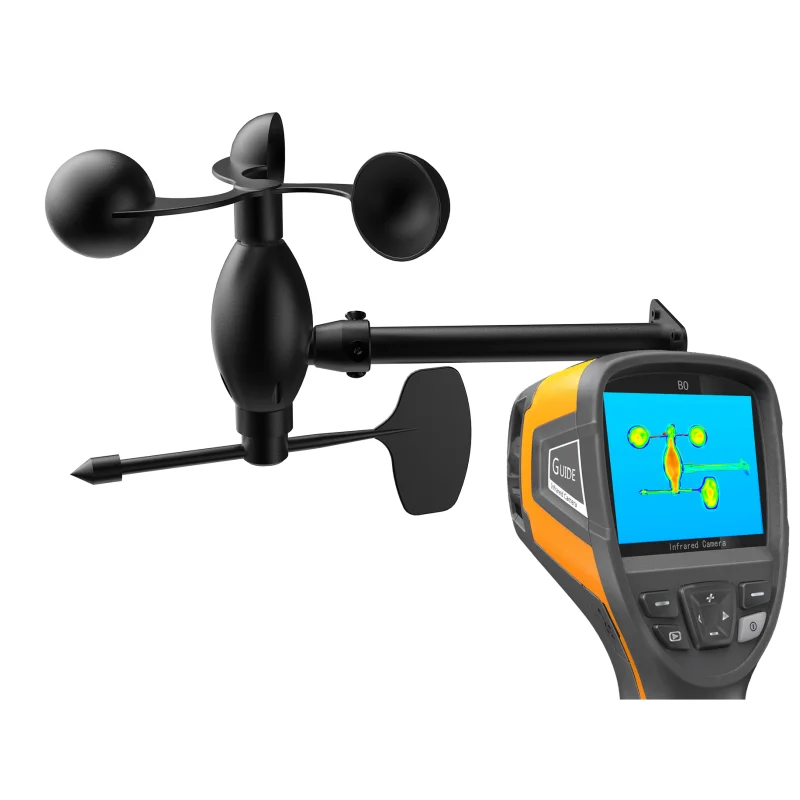

There is a built-in heating device, which will automatically melt in case of ice and snow, without affecting the measurement of parameters.





Advantage 2
The circuit PCB adopts military grade A-grade materials, which ensures the stability of measurement parameters and electrical performance; Can ensure that the host can work normally in the range of-30 ℃ ~ 75 ℃ and humidity 5% ~ 95% RH (no condensation).





Features 3

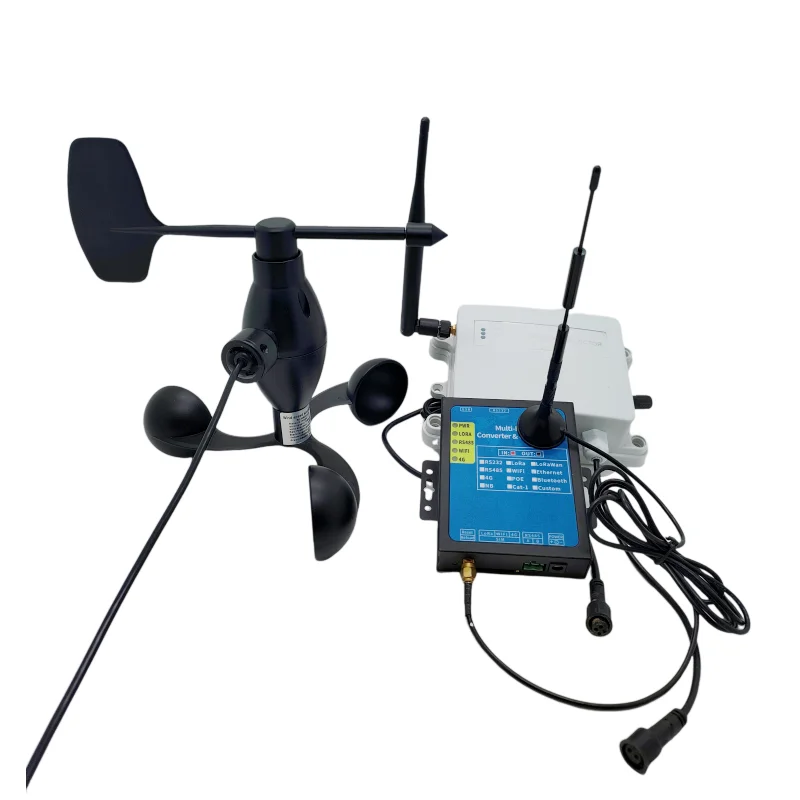

It can be 0-5V,0-10V,4-20mA, RS485 output and we can also supply the all kinds wireless module GPRS, 4G, WIFI , LORA , LORAWAN and also the matched server and software to see the real time data in the PC end






Features 4
We can provide supporting cloud servers and software to view data in real time on computers and mobile phones.



Application

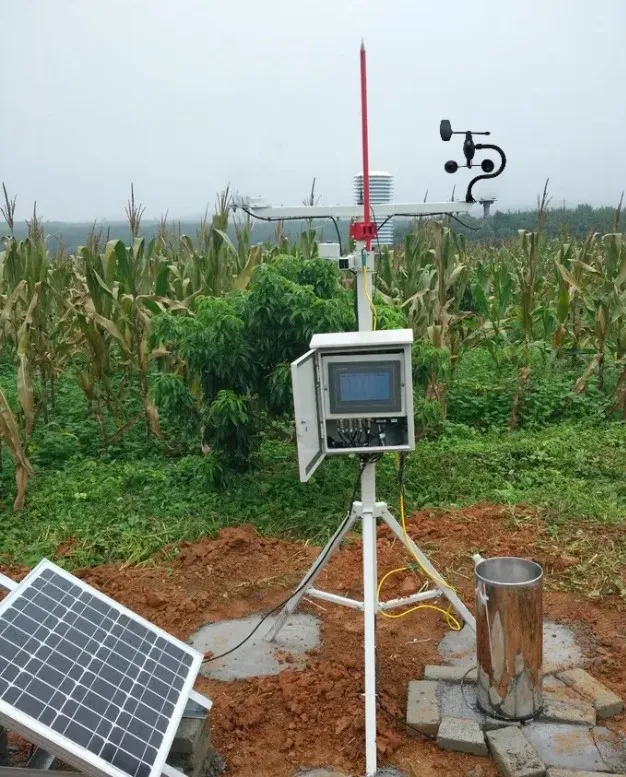

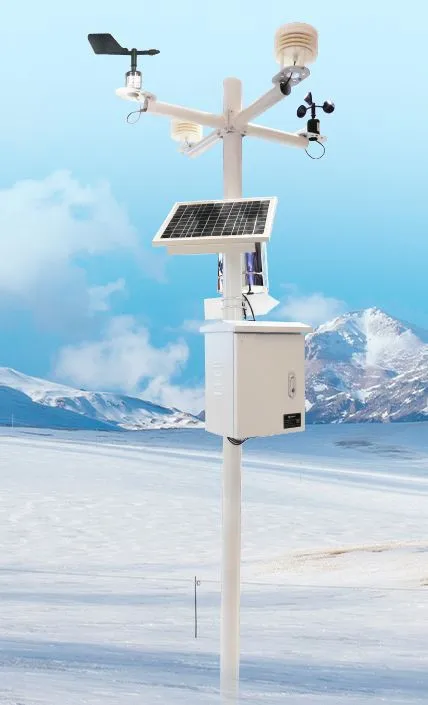

This product is widely used in construction machinery, railway, port, wharf, power plant, meteorology, ropeway, environment, greenhouse, agriculture,breeding and other fields for measuring wind speed and direction.

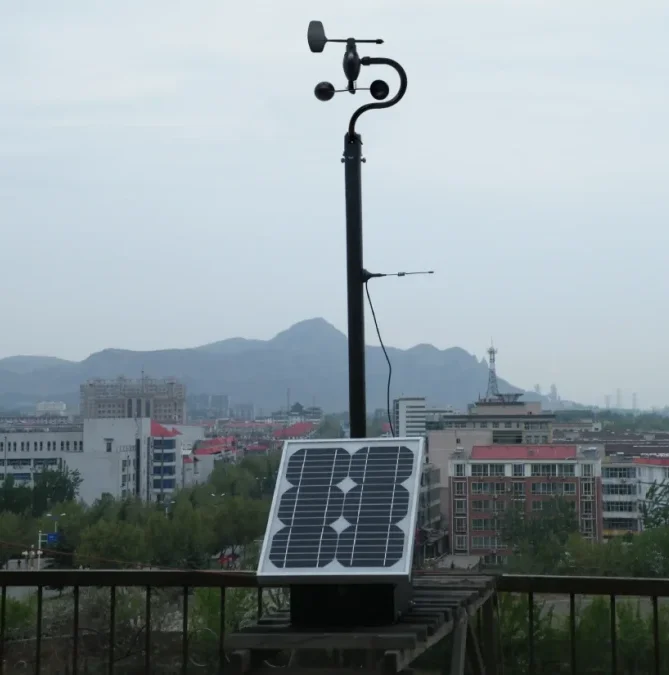

Product Install

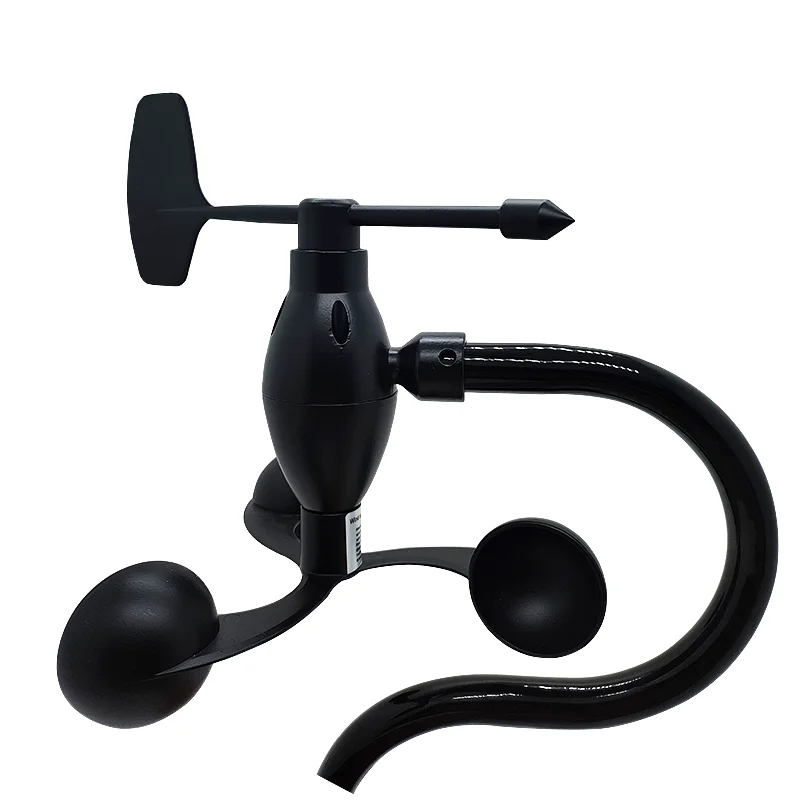

We can provide three kinds of mounting brackets, you can choose according to your actual needs
