Product Description
Specification
|
WiFi 3D Binocular Passenger People Footfall Counter
|
|
|
|
Model
|
E-CCD20
|
|
|
Visual Field
|
Horizontal 100°，Vertical 70°
|
|
|
Output frame rate
|
640*400@25fps
|
|
|
Accuracy
|
≥98%
|
|
|
Height range
|
2.2~6.0m
|
|
|
Coverage
|
1.2~5.5m
|
|
|
Filtration height
|
0.5~1.2m
|
|
|
power
|
3.2W~3.6W
|
|
|
Power supply mode
|
POE（802.3af/at）/DC-12V/ Support width voltage :9V-30V
|
|
|

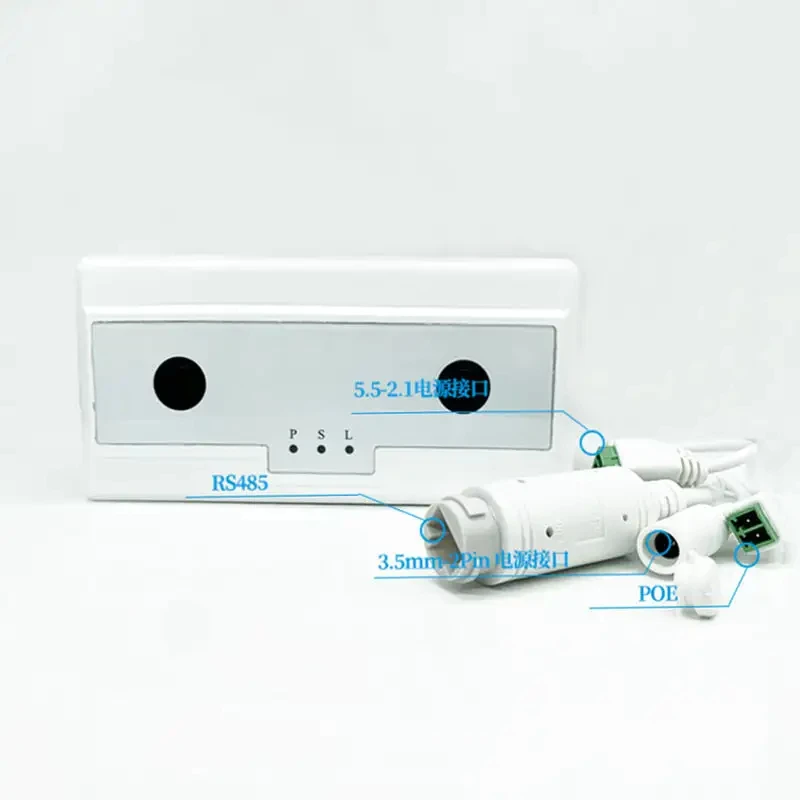

Communication mode
|
RJ45/RS-485/WIFI
|
|
|
IP Addressing
|
Statics IP / DHCP
|
|
|
Offline cache
|
90days
|
|
|
Data upload method
|
HTTP POST/HTTPS POST
|
|
|
Data expansion interface / signal
|
RS-485interfaceX1/6V~24V IO(input\output optional)X1
|
|
|
work temperature
|
-20°C~45°C
|
|
|
Work humidity
|
20~80 %
|
|
|
Storage temperature
|
-20°C~50°C
|
|
|
Storage humidity
|
20~80 %
|
|
|

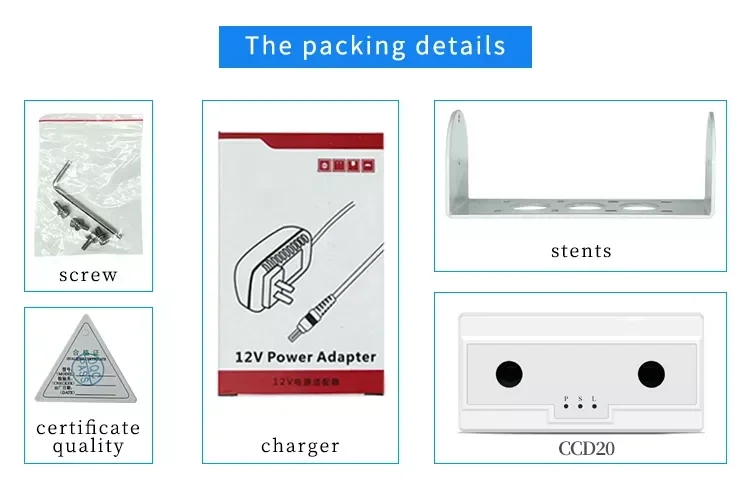

Standard accessories
|
screwx4、Mounting bracketx1、IO interface x1、RS-485interfacex1、inner hexagon spanner x1、RJ45protective case x1、 Power adapter
(European / British / national standard optional)x1、certificatex1、instructionsx1、warranty card x1 |
|
|
Options
|

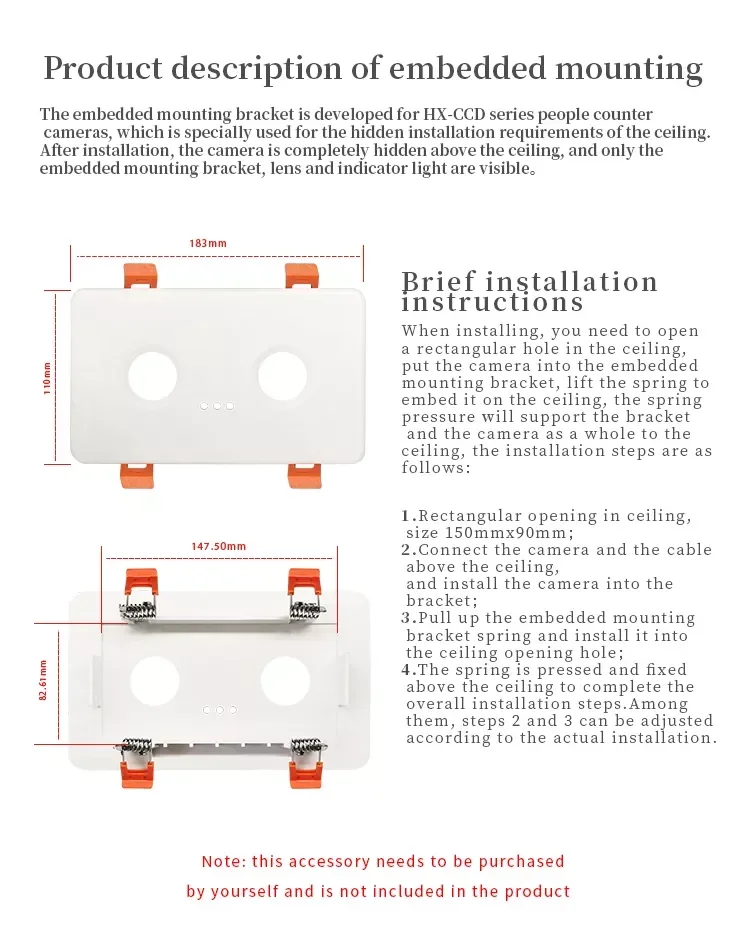

Embedded mounting bracket
|
|
|

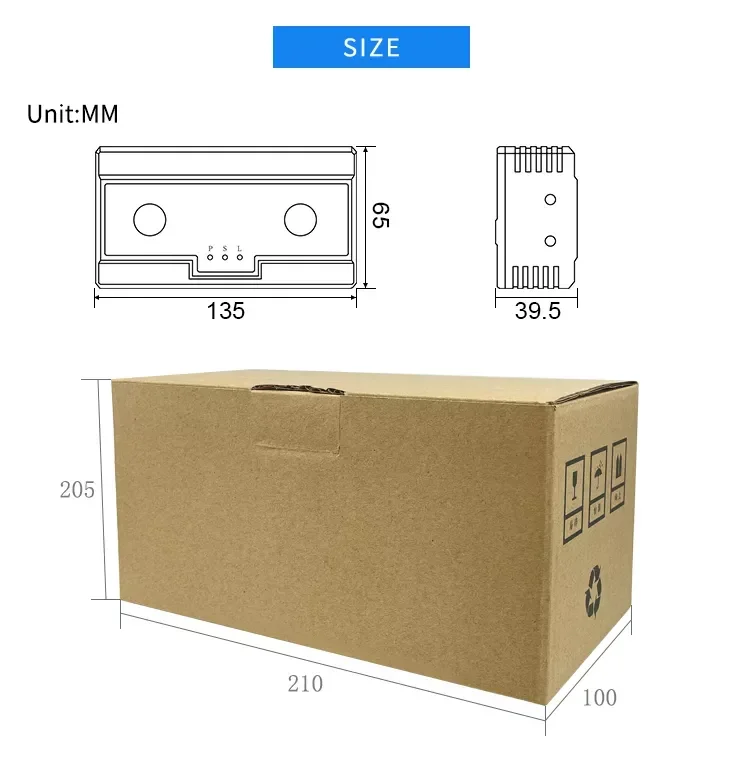

Product specification
|
Size(mm)143x 70 x 40、Net weight (g):390/set
|
|
|
Package specification
|
size(mm):240 x110x95、weight(g):224/set ( Including accessories )
|
|
|
Outer box specification
|
size(mm):490x490x250( The whole box can hold 20 sets )、Net weight(g)：1030/box
|
|
|

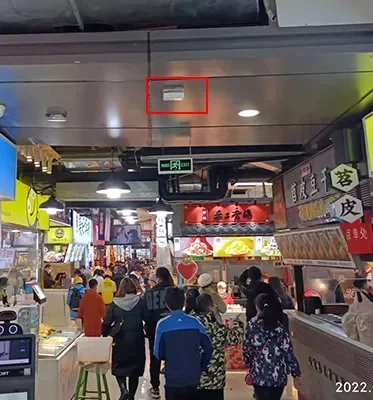

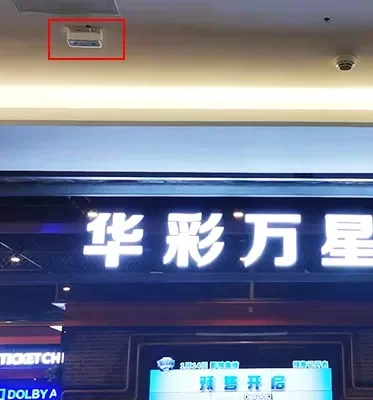

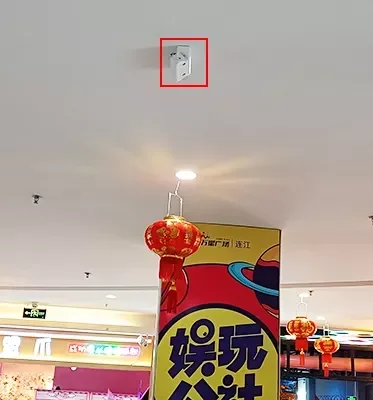

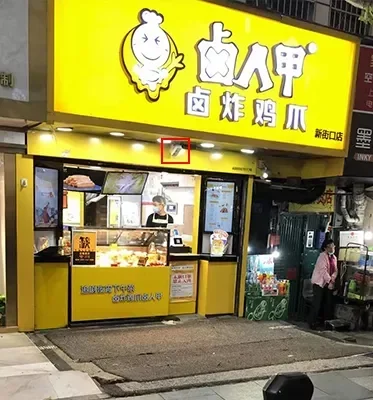

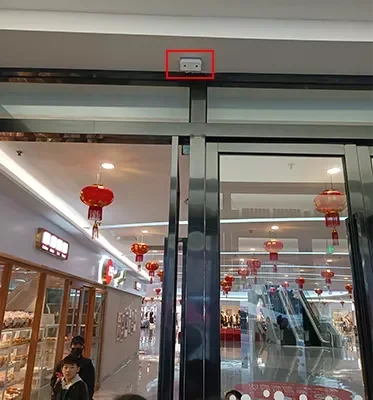

Installation
|
Top sticking / Ceiling installation / embedded / inclined installation
|
|

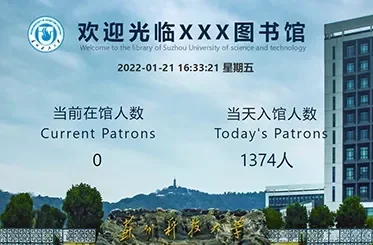

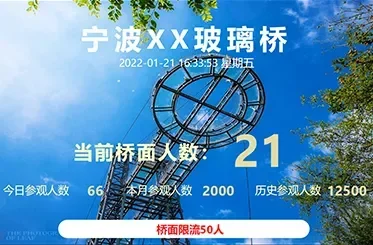

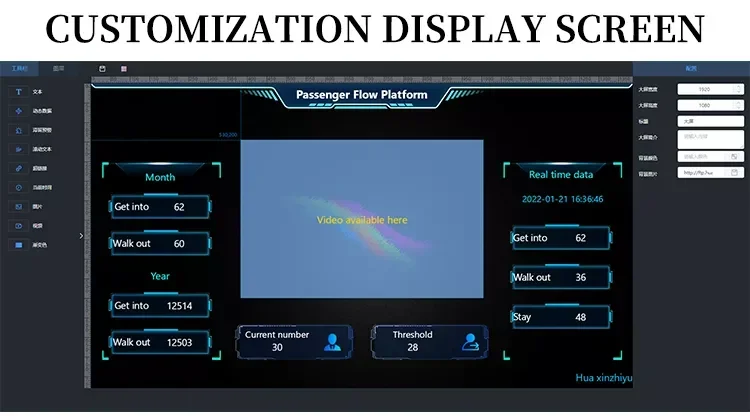

Passenger flow control，screen display
Know the passenger flow information in the area, warning of excessive number of people, more quickly to do personnel control，Provide customized large screen display service, if you need to customize, please contact us.

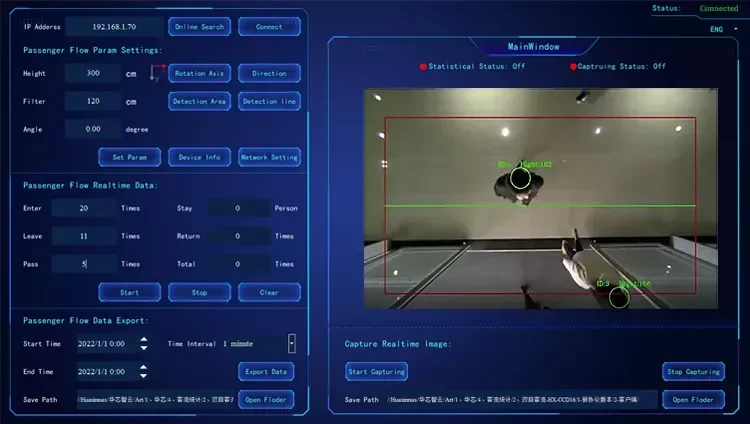

Device configuration debugging
On the same network segment, enter the debugging interface through the website we provided. It can link corresponding device to view passenger flow data in real-time, can view device information, modify device settings, installation height, filter height,rotation angle, detection direction, network parameters,etc., and also display the number of people enter/leave/pass through/stay on in real-time. It can also export a set time of the passenger flow data.
Platform

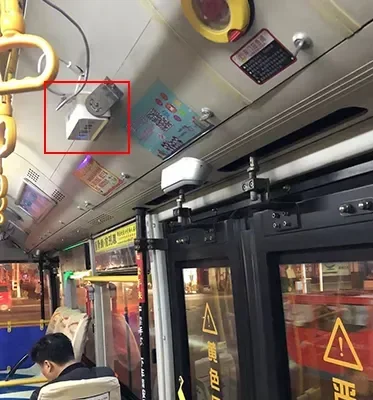

Installation
Tilt installed
The filter height of each device is 0.5m, and the installation height is 2.2~6M. It can be installed at 45° tilt and has a large field Angle of 100°

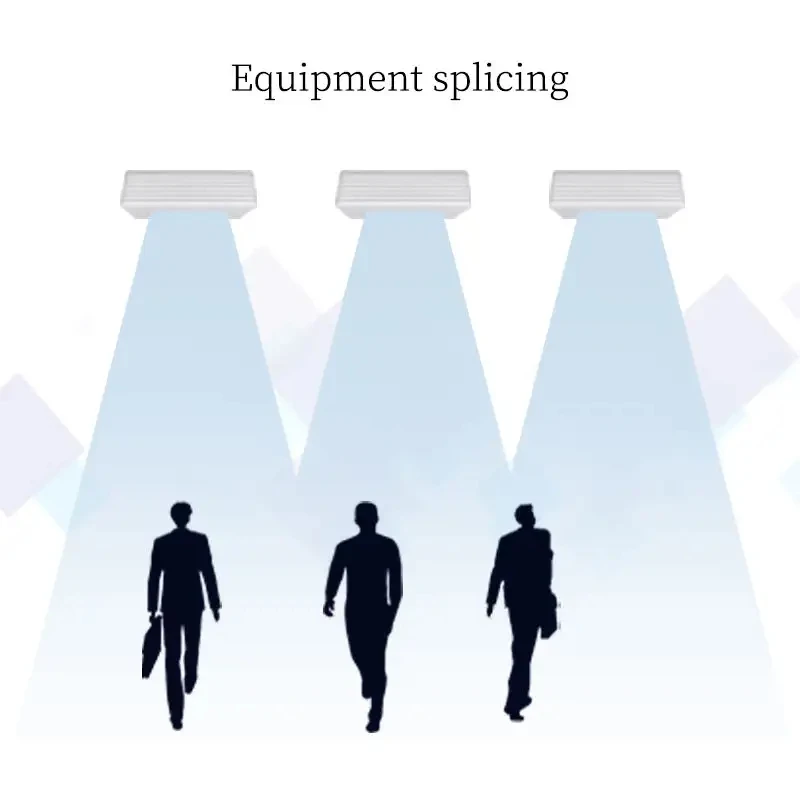

Multiple device can be spliced
Support 6 devices spliced, the Max covering range is 30M(3-4 devices are recommended), a complete video picture can be formed after multiple device spliced.
IP65 waterproof
It has passed IP65 waterproof certification
