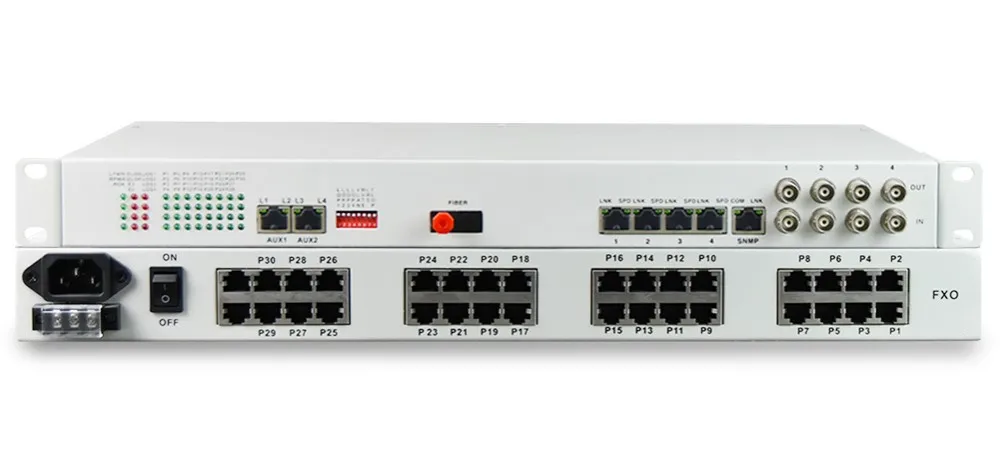

30 channel voice over ethernet fxo fxs multiplexer PCM multiplexer
|
|
|
||
|
Power
|
Power supply: AC180V ~ 260V;DC –48V;DC +24V
Power consumption: ≤10W |
|
|
||
|

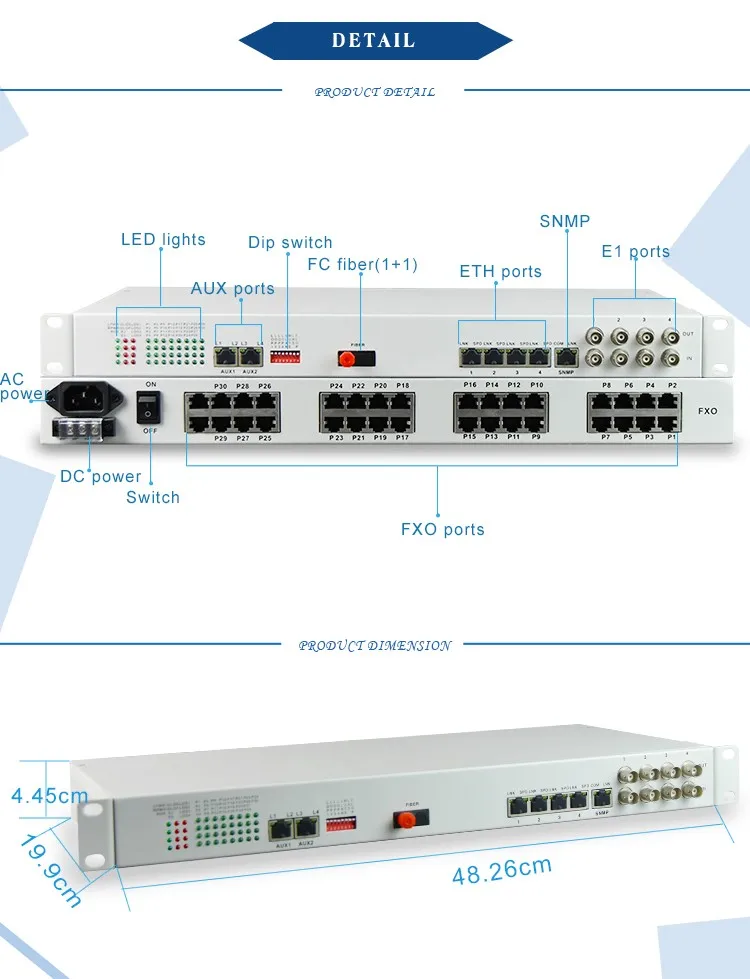

Dimension
|
Product Size: 274X193X84mm(WXDXH)
|
|
|
||
Parameters
|
FXS Phone Interface
|
|
|
|
|||
|
Ring voltage:
|
75V
|
|
|
|||
|
Ring frequency:
|
25HZ
|
|
|
|||
|
Two-line Impedance:
|
600 Ohm (pick up)
|
|
|
|||
|
Return loss:
|
40 dB
|
|
|
|||
|
FXO Switch Interface
|
|
|
|
|||
|
Ring voltage:
|
35V
|
|
|
|||
|
Ring frequency:
|
17HZ-60HZ
|
|
|
|||
|
Two-line Impedance:
|
600 Ohm (pick up)
|
|
|
|||
|
Return loss:
|
40 dB
|
|
|
|||
|
Working environment
|
|
|
|
|||
|
Working temperature:
|
-10°C ~ 50°C
|
|
|
|||
|
Working Humidity:
|
5%~95 % (no condensation)
|
|
|
|||
|
Storage temperature:
|
-40°C ~ 80°C
|
|
|
|||
|
Storage Humidity:
|
5%~95 % (no condensation)
|
|
|
|||

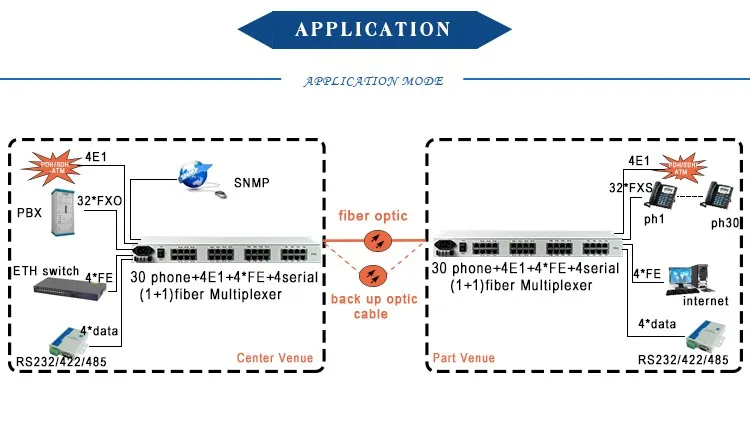

Application
