All in one GPS Combo MDVR Semi Truck Dash Cam'era System for fleet tracking and fleet management

Keying benefit for drivers and fleet management:

Nationwide GPS 4G Tracking
Max 2TB HDD video storage
Reduce traffic accidents and potential hazards
4CH cam'era 100% CCTV
Web PC computer Ipad Access
Android / iOS Application
Location via SMS
Multiple Vehicle Tracking
Customized Fencing Fuel Monitoring
Mileage Reporting,Speed Analysis
Driver Performance Analysis

Keying FEATURES of China 4 way GPS WIFI 4G Mobile DVR For Vehicles

1.Built-in high performance Hisilicon chipsets, coded with H.264 standard, high compression rate and image quality

2.4CH AV Inputs with AHD 1080p/720P/960H/D1/CIF optional, 1CH synchronized AV output, 1CH VGA output,1CH HDMI output 3.4CH local recording with 1080p resolution in real time Power: 1.Professional In-Vehicle power design,8-32V DC Wide Voltage Range 2.Multi protection circuits like under-voltage, short, reversed plug-in

3.Smart power management system, shutdown under low voltage, low consumption Data Storage: 1.Special file management system to encrypt and protect the data 2.Proprietary technology to detect the bad track of the hard drive which can make sure the continuity of video and long service life of the hard drive 3.Built-in ultra capacitor, avoid data loss and sd card damage caused by sudden outage

4.Support 2.5 inch HDD/SSD, maximum 2TB 5.Support SD card storage, maximum 256GB Transmission Interface: 1.Support 3G/4G transmission, LTE/HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA 2.Support GPS/BD optional, high sensitivity, fast positioning 3.Support wireless download by WiFi, 802.11b/g/n, 2.4GHz

4CH Hard Disk MDVR 4 channel 720P AHD DVR 4CH HDD Bus DVR Video Recorder For Autobus School Bus Airport Shuttle Passenger Vehicles DVR h.264

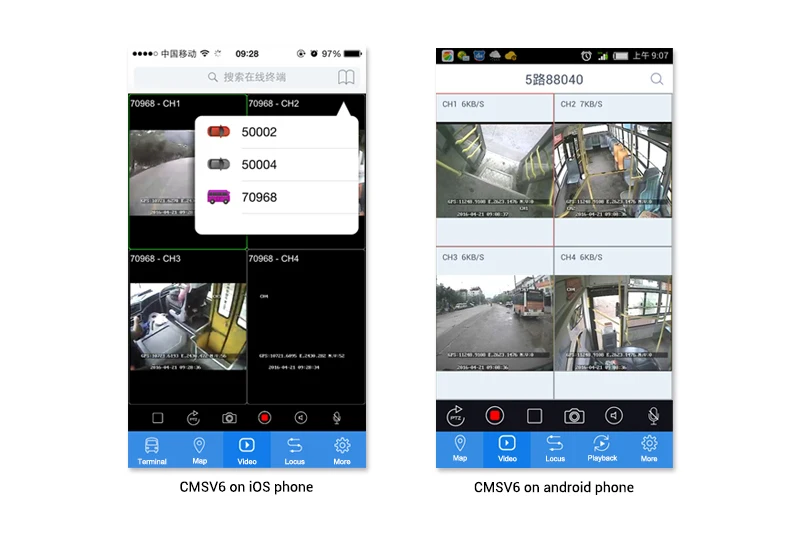

online real time checking your semi trucks on smart phone APP as following

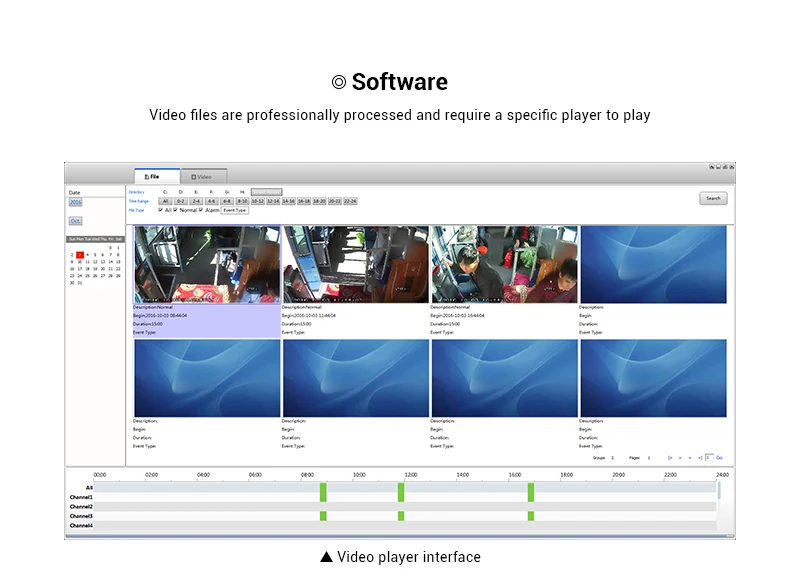

online checking on your PC computer

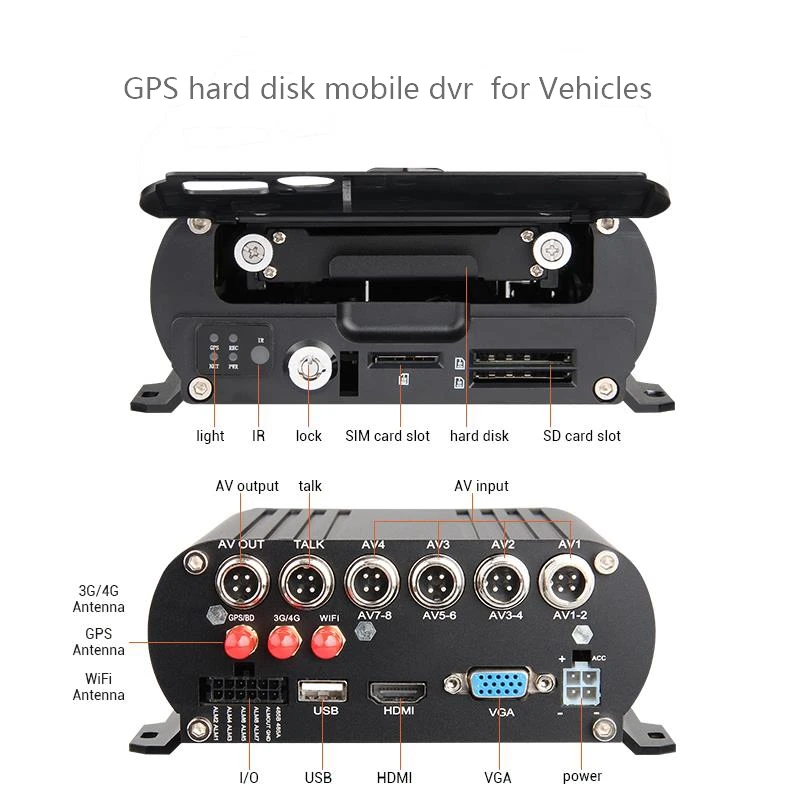

Technical Specification of hard disk mobile dvr

Name	Sub-Item	Specifications
Recording Sub-System	Video Channel	4Channel video + 4Channel Audio recording synchronously;
	Resolution	Support 4720P (1280720),4D1(704576),4HD1(704288), 4CIF(352288);Each channel is individually adjustable.
	Image Quality	0-7 levels, 0 is the highest level.
	OSD	Overlays information such as date time and vehicle ID
	Loop Rec	Support SD card loop recording, loop cover previous video
	Record Mode	Timed recording, alarm trigger recording and manual recording
	Preview	Support 1 channel and 4 channels preview. Support enlarge video image when alarm trigger and video rear view trigger;
	Disk overwritten	Space pre-allocated Support disks overwritten function.
Playback System	Video Search	Search video files anytime per day, type(n/a)
	Playback	Support 1 to 4 channels playback.
		Support forward and backward play at the speed of: x2 ,x4,x8,x16.
		Support alarm spot search and time search.
GUI	Graphical User Interface	Setup system parameters with the remote control.
Alarm	Input	4channels electrical level alarm input for optional
	Input	Alarm linkage recording\Active request the intercom\One-key phone calling functions,etc.
	Output	Max support 2ch level output
Optional functions	GPS Positioning	Built-in GPS/BD module: can sync record GPS information, trace replay.
	PTZ Control	Support Pelco-D protocol 485 PTZ remote/local control, preset.
	Serial Expand	Support LED Advertisement Panel\Oil Sensor\POS\Bus Station Broadcaster\Car O'BD,ect.external devices.
	G-Sensor	G-sensor, Record vehicle real-time status.
	TTS Voice Broadcast	Support TTS voice broadcast function.
	Network	Can expand WIFI module,support 801.2b/g/n, 801.2a/c
	Network	Built-in EVDO/WCDMA/TD-LTE/FDD-LTE,etc, 3G/4G module.
Others	ON/OFF	System delay-time power on/off;
Others	File System	DVR special file recording System Technology,Exclusive car record file system,space pre-allocate,4ch single file Record,cyclic covering;To avoid the storage of the media causes file fragments, with high reliability and high stability;

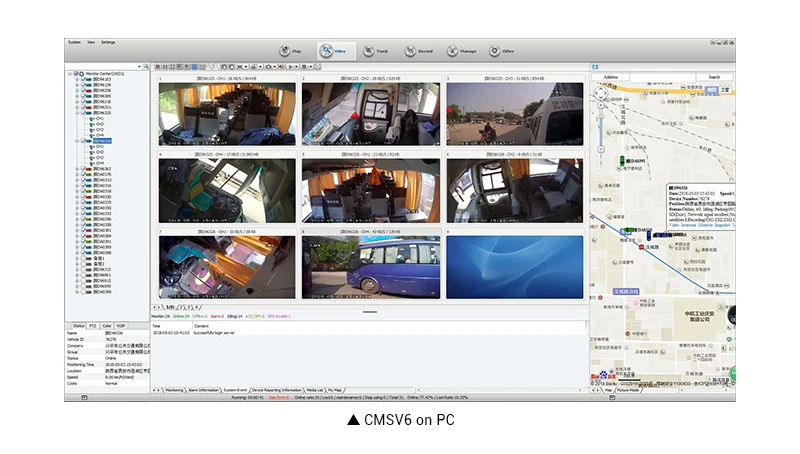

Customer management software on computer

Product Application
1, 4CH GPS WIFI Mobile DVR Can work with 18 wheeler truck, commercial truck, box truck, Semi Truck, lorry truck, Pickup trucks, heavy duty truck produced by Man, DAF, Ford, Dodge Ram, To'yota, GMC, Nissan Frontier, Freightliner truck, Kenworth trucks, Peterbilt trucks, International trucks, Vo'lvo truck, Mack trucks etc.

2, hard Disk GPS MDVR can apply for Ford F-Series F-150, F-250, F-350,Chevrolet Silverado, Ram Pickup, GMC Sierra, To'yota Tacoma, To'yota RAV4 etc

3, 4ch Vehicle MDVR can work for Bus, Passenger Vehicles, Airport Shuttle, School Bus, Autobus, Tourist Vehicles etc

4, 4 cam'era mobile dvr are used widely on 2021 kenworth t370, ford f250 heavy duty, dodge ram 4500 heavy duty, 2021 freightliner Cascadia, scania truck r580, man truck tgx 2020 2021, new daf xf 2022, tata ace mega xl, vo'lvo semi truck vnl 860
