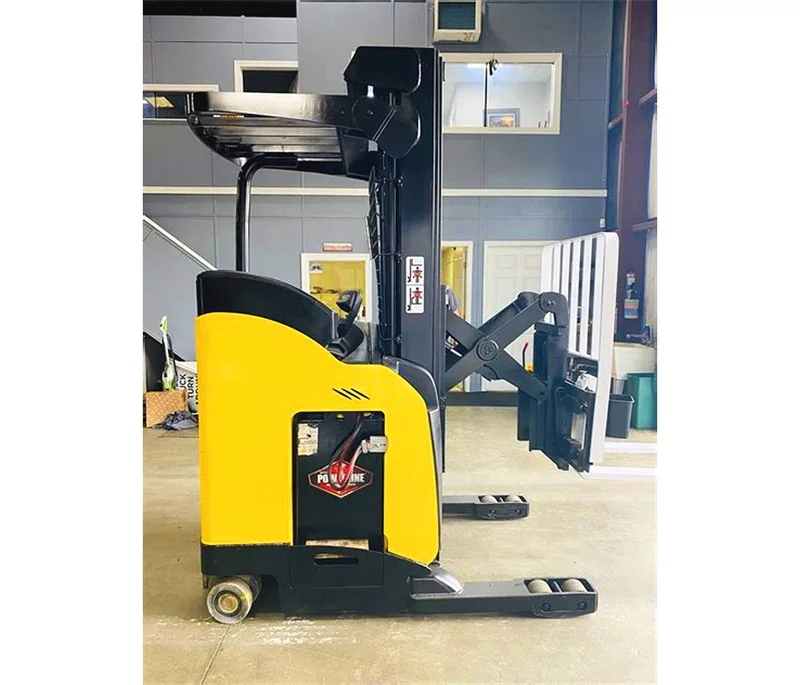

Forklift reach truck camera for forklift blind spot and fork monitoring

wired forklift rearview system reach truck camera forklift Camera IP69 waterproof Monitor kits for Linde / Toyota / hangcha

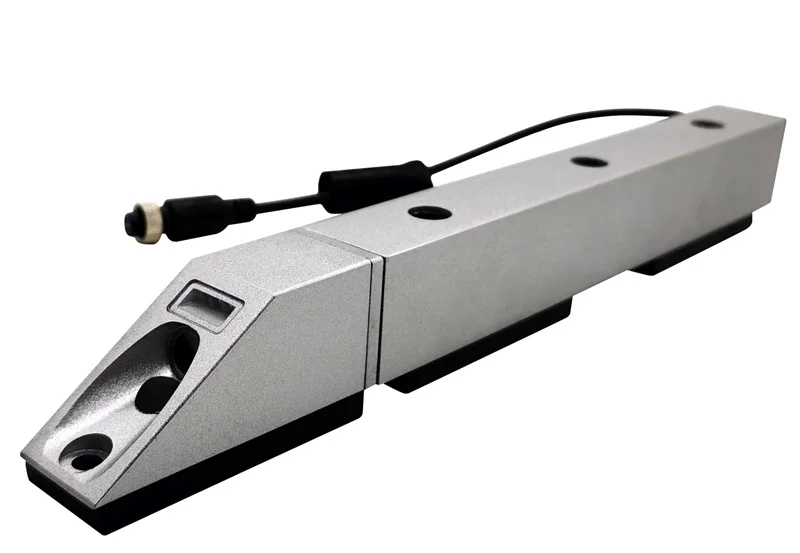

Product Features of wired AHD Forklift Fork Camera



1. Use 1/2.9 CMOS 2MP 1080P sensor with good night vision and Support product and camera customization

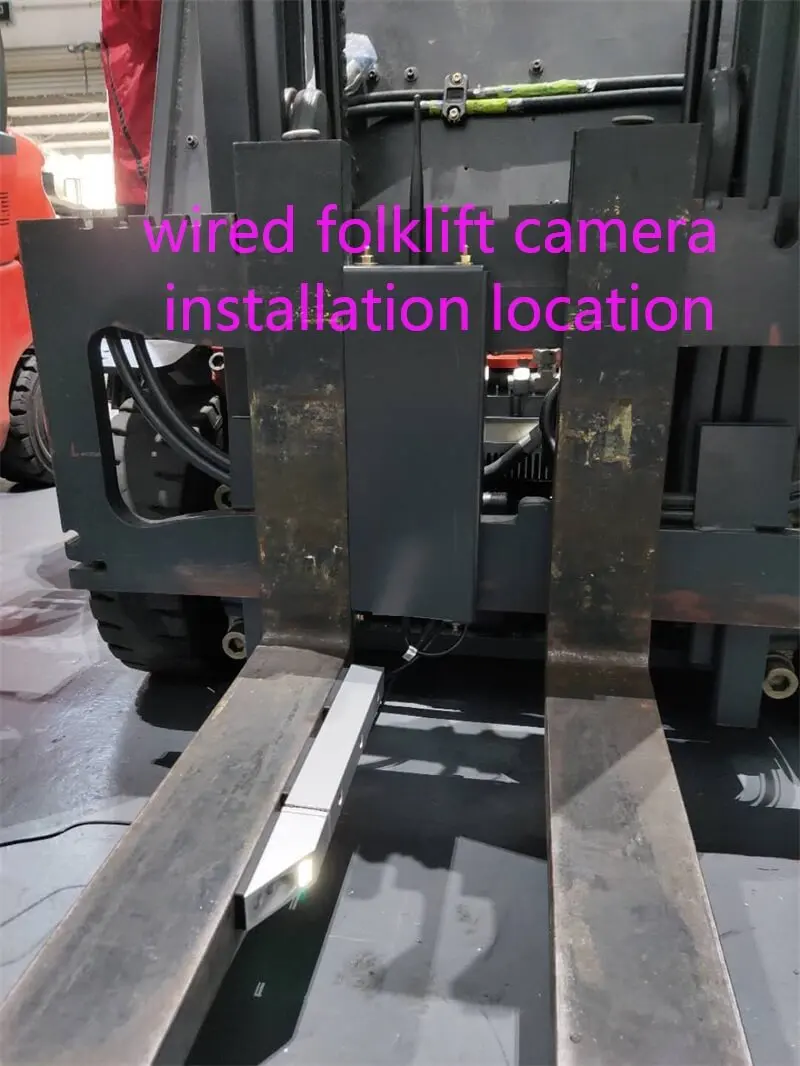

2. Support mirror image switching, DIY installation



3. Support line switching



4. IP69K Waterproof and Dustproof



5. up to 70 degree High temperature resistant strong magnetic tailpipe adsorption



Dust-proof:      Prevent the monitor from being damaged by dust and stone and sand

Anti-corrosion Prevent the monitor from being damaged by salty water

Anti-vibration Passed 10G_ vibration test

Multiple Display  Dual Split/Quad Split

Application: Crane, tractor, Agricultural vehicle, Ship boats



Technical Specification



Product name



Ip69k Forklift Truck Camera



Product Material



Aluminium Alloy



Image Device



1/2.9 CMOS



TV System



NTSC/PAL



Effective Pixels



1920(H)*1080(V)/1280(H)*720(V)



Sensing Area



5.376mm*3.024mm



Sync.



System Internal



Resolution



1080P/720P



Minimum Illumination



0.1 Lux (day), 0 Lux (with IR)



Microphone



NO



IR LED Qty



white light 4 PCS



Video Output



1.0 Vp-p/75 Ohm



Scanning System



interlace



AGC



AUTO



Signal to noise ratio



Better than 38dB



White balance



AUTO



Gamma Consumption



0.5



Electronic Shutter



AUTO



Backlight Compensation



AUTO



Power Supply



DC12V



Lens



6mm



Lens Angle



60°(D)52°(V)



Current Drain



50±5mA/12V



Operating Temperature



-20℃-70℃,RH 95% MAX



Storage Temperature



-30℃-80℃,RH 95% MAX



Product Net Weight



0.49kgs







Product Name

Car waterproof monitor, Shock Resistant, WaterProof

Screen

7 inch IPS screen

Display mode

16:9

Resolution

1024*600 HD

Video/Audio input

Two way video input

Screen Brightness

500-650cd/m2

View Angel

Hor. L(70°) R(70°)   Ver. UP(70°)  DOWN(70°)

System

NTSC/PAL AUTO

Power supply

DC12V~36V

Work temperature

-20℃ ~ +70℃

Contrast/color/brightness

Adjustable

Remote Function Control

 Yes

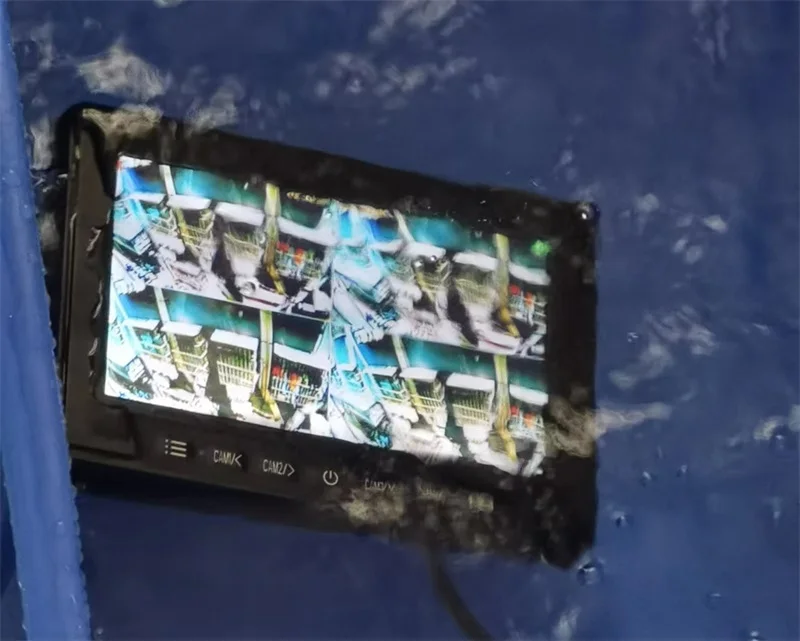

Waterproof Class

IP69K Certified



Product Application:

This classical 4.3’’ foldable car monitor with rearview Camera can work and apply for RV, Motorhome, SUV, Caravan, Camper, Pickup Trucks, Small Cars, Benz, Honda, Kia, GM Cars
