Description:

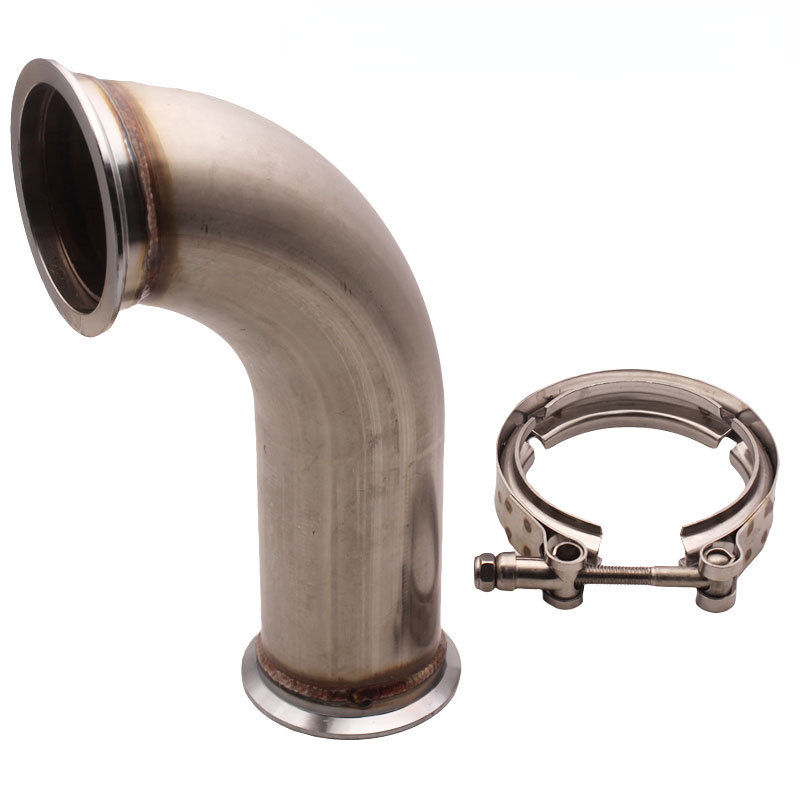

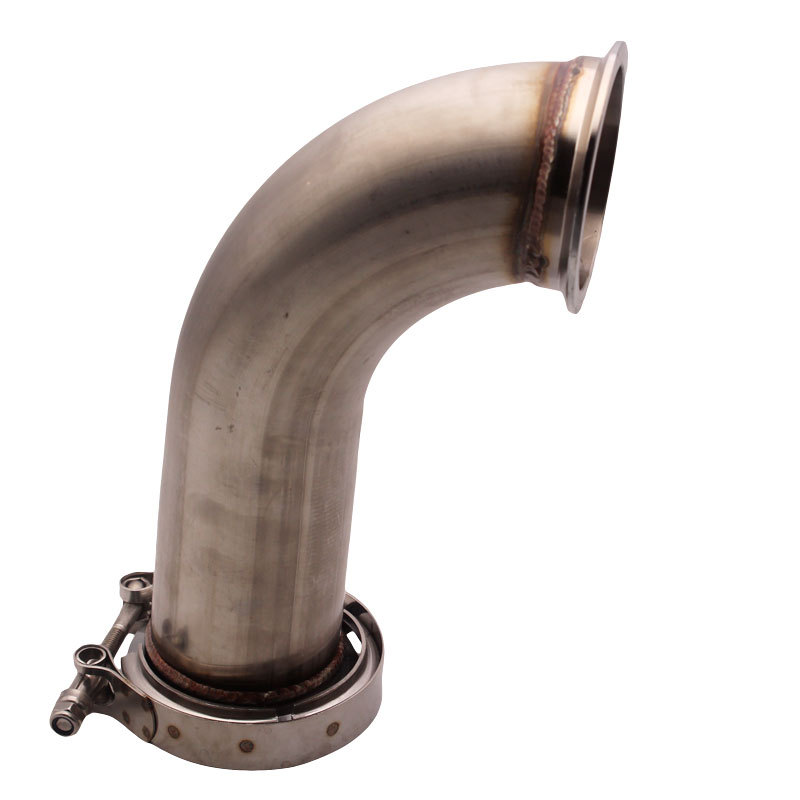

Modular V-Band Pipe 90 Degree (Short Leg) 90 Degree Stainless mandrel bent module with V band flanges on both ends. 0" Leg and 6" leg, 3" Center line Radius. 1 V-band clamp included.
1. To the top of the pipe, it's 10-7/8". To the top of the flange, it's 11.25"
2. distance of the bent 5.75"
3. 6.5" total length for long side.
4. distance from v-band to back of pipe on the zero leg 4.5"
5. V band flange spec: outer dia. 95mm/3.75" and inner dia. 75mm/3.0"
6. V band flange spec: 3.0" inlet with 3.75" outlet (contact us if you would need different v band flange)
Package included:
3" 90 Degree Garrett V-Band with clamp Pipe
All items are Brand New unless stated otherwise on the listing.We sell DIY (Do It Yourself) Items with a few exceptions.
We take no responsibility in teaching you how to install.Professional installation is strongly recommended.
Note:
1. (IMPORTANT) No Instructions Included. Professional Installation Is Highly Recommended!
2. Please check the size measurement chart carefully before making payment.
3. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
4. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
