Product Description
Product Highlight

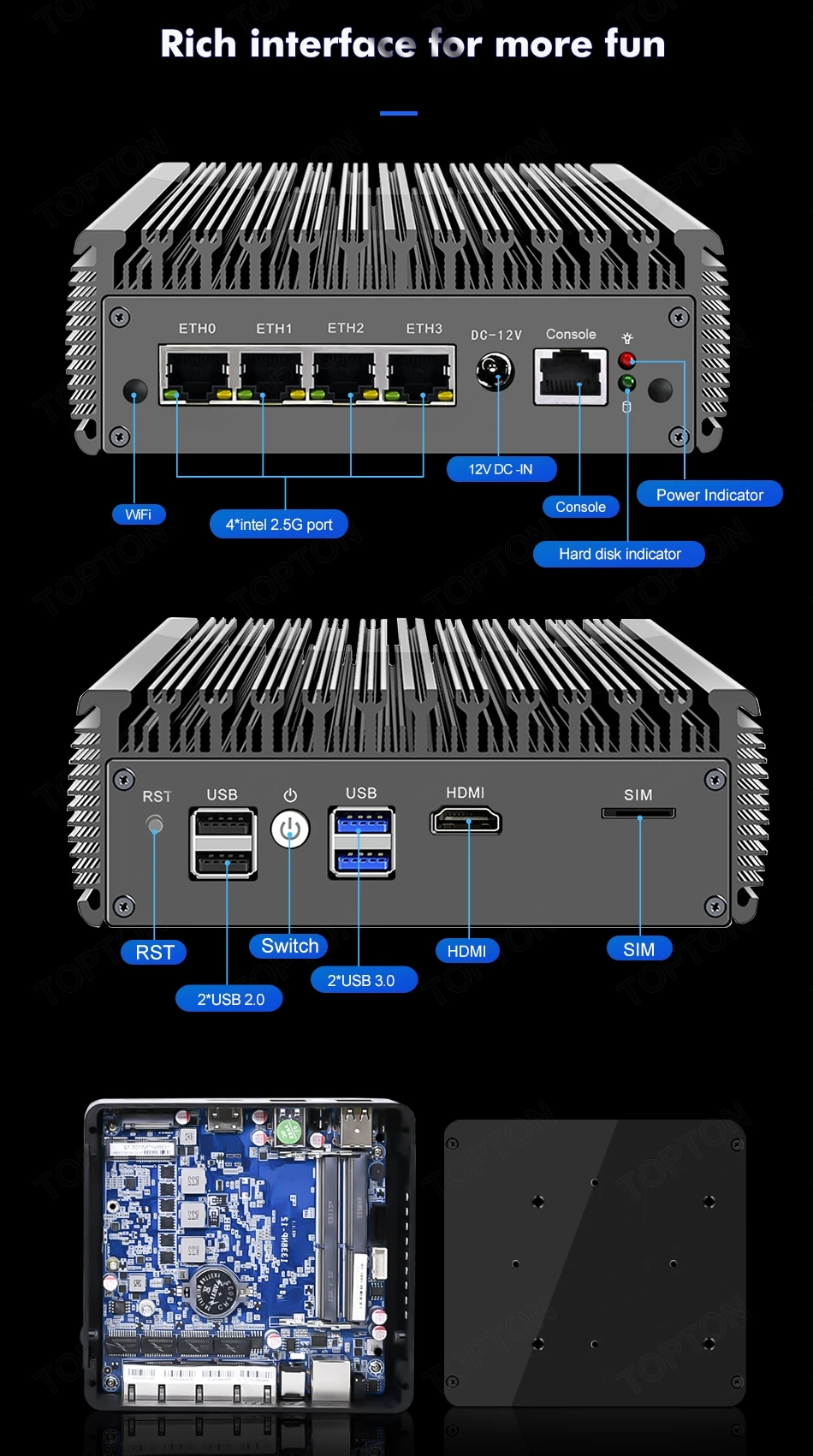

-4xIntel i225-V B3 2.5G RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xRJ45 COM console.
-2xDDR4 SODIMM non-ecc ram slot, max support 64GB.

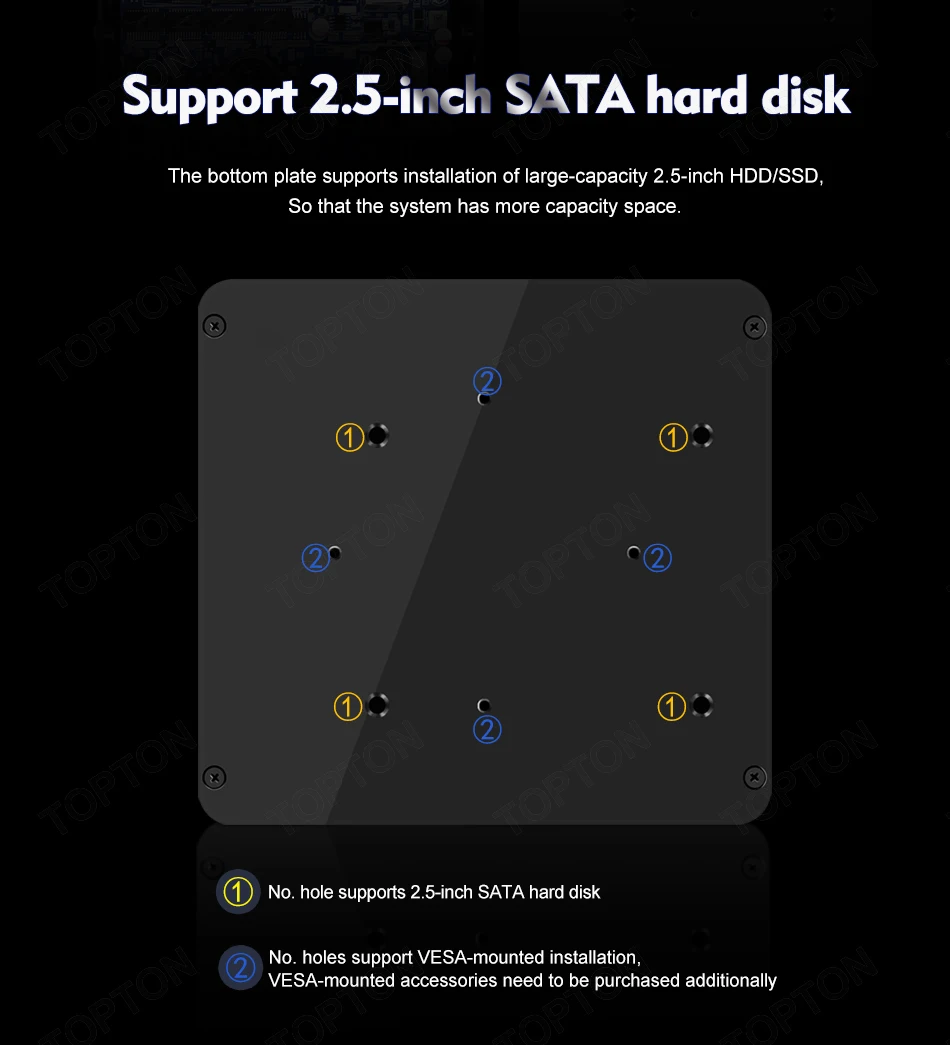

-Support two storage: 1xM.2 2280 NVMe/PCIE3.0x2 SSD+1x2.5''SATA SSD/HDD.
-1xHDMI2.0 support 4K@60Hz UHD video display.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

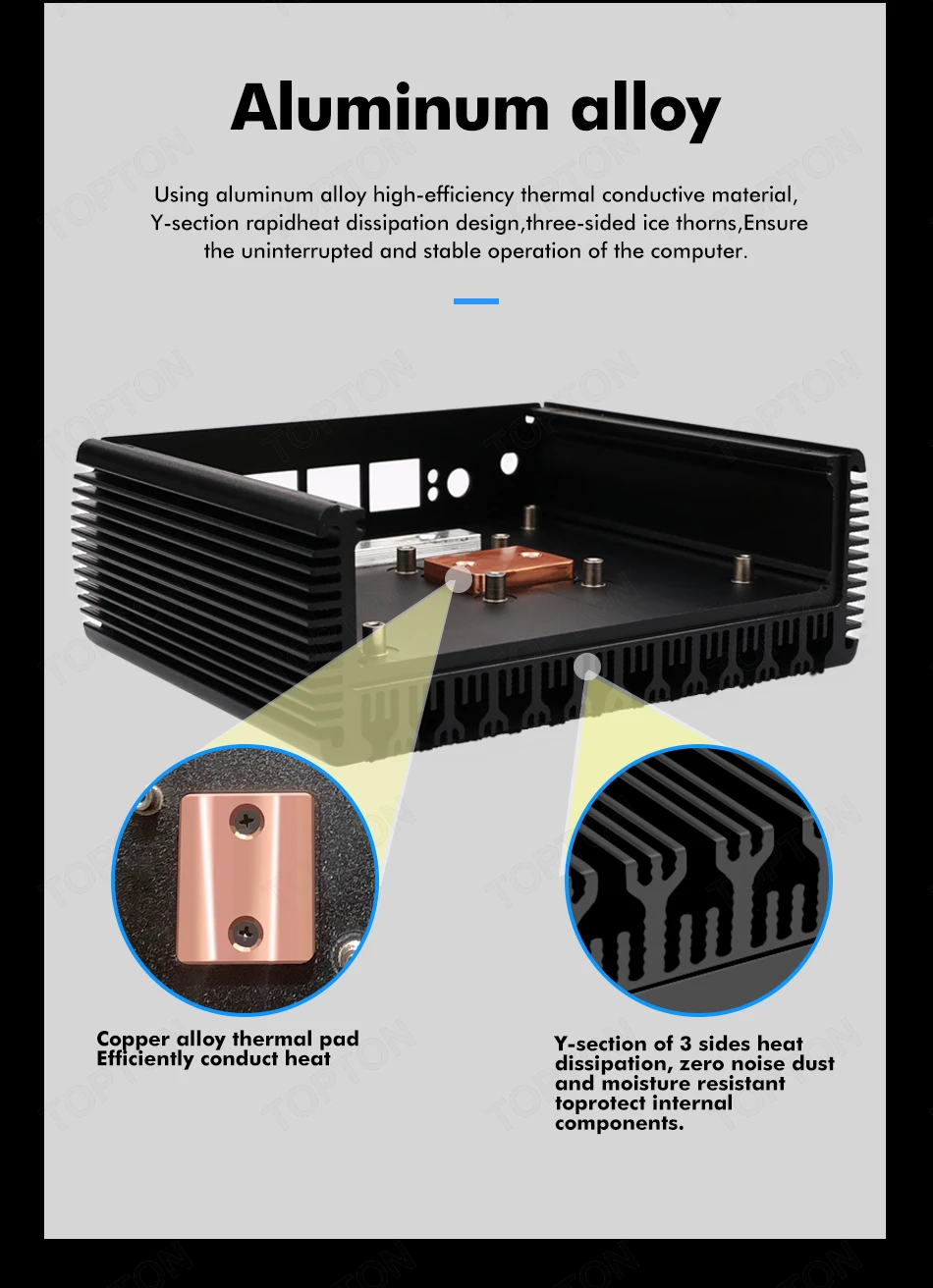

-Full Aluminum Alloy high quality solid-built shell with three-sided ice thorns, excellent cooling performance;
-Fanless system without cooling fan, noiselessness, work as long as 7x24 hours.

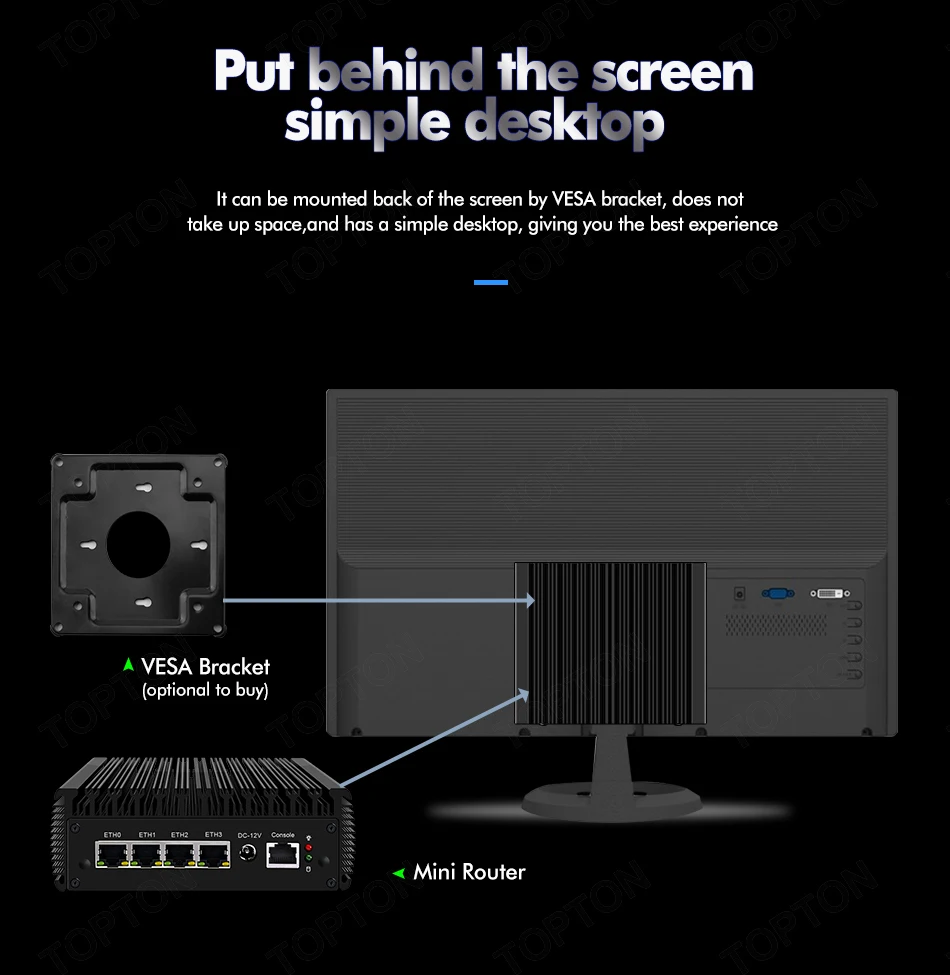

-Low consumption TDP only 10W and can be mounted back of monitor by VESA bracket(optional).
-2xDDR4 SODIMM non-ecc ram slot, max support 64GB.
-Support two storage: 1xM.2 2280 NVMe/PCIE3.0x2 SSD+1x2.5''SATA SSD/HDD.
-1xHDMI2.0 support 4K@60Hz UHD video display.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/3G/4G(3 choose 1) connection.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.
-Full Aluminum Alloy high quality solid-built shell with three-sided ice thorns, excellent cooling performance;
-Fanless system without cooling fan, noiselessness, work as long as 7x24 hours.
-Low consumption TDP only 10W and can be mounted back of monitor by VESA bracket(optional).

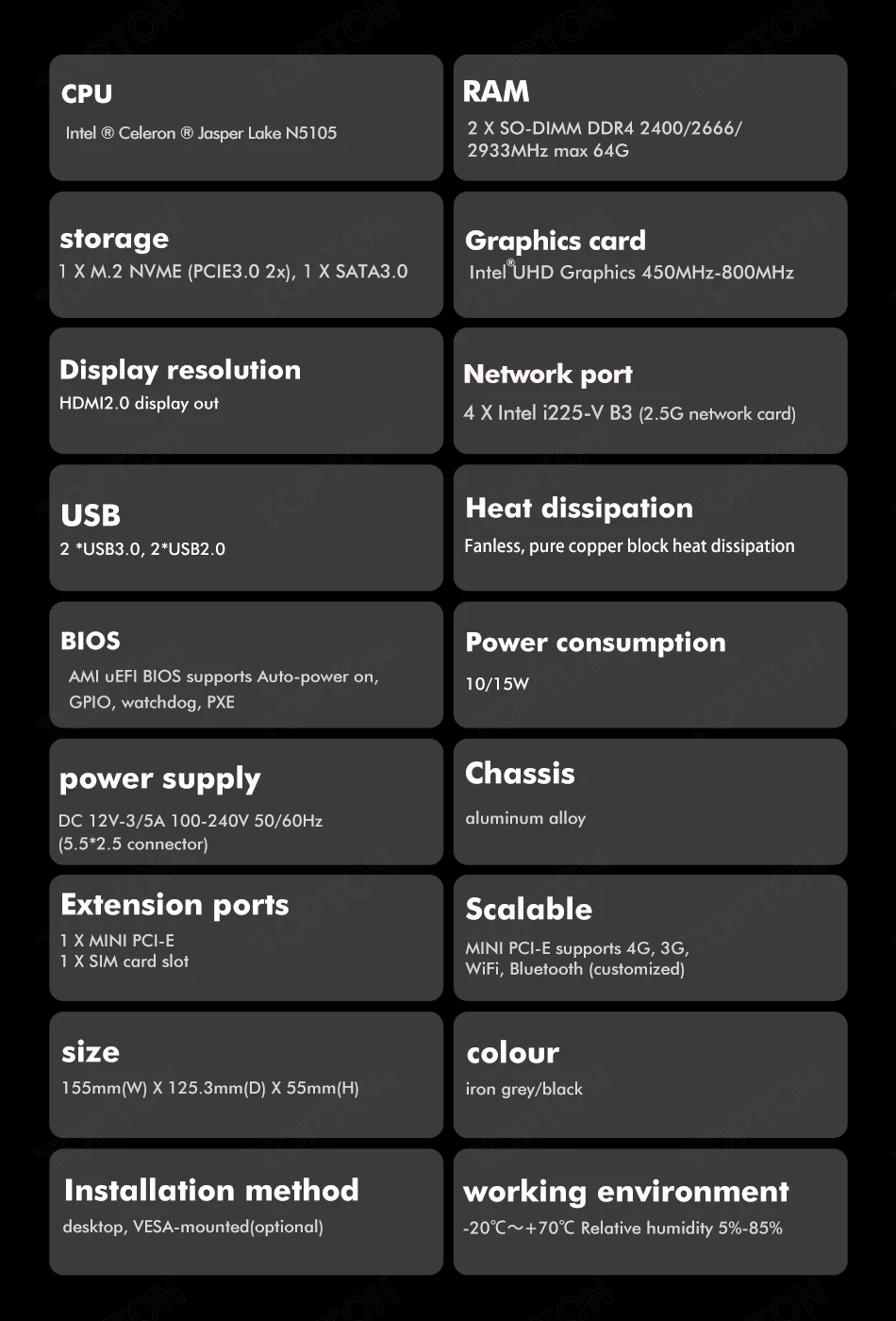

Specification
|
Video Card
|
InteI UHD Graphics 450-800MHz
|
|
CPU
|
Cele-ron N5105
|
|
Operating System:
|
Window 10/8, Linx, Ubunt
|
|
Netwok Ethernet:
|
4*i225-V3 2.5G LAN
|
|
WIFI
|
1*MPCIE WiFi/3G/4G slot, optional
|
|
RAM
|
2*DDR4 None-ECC SODIMM Ram
|
|
Storage
|
1xM.2 2280 NVMe/PCIE3.0x2 SSD+1x2.5''SATA SSD/HDD
|
|
Dimension
|
155*125*53MM
|
|
Processor Main Frequency:
|
2.0GHz up to 2.9GHz
|
|
Application:
|
Industrial, education, business, home theater, projects
|
