Description:

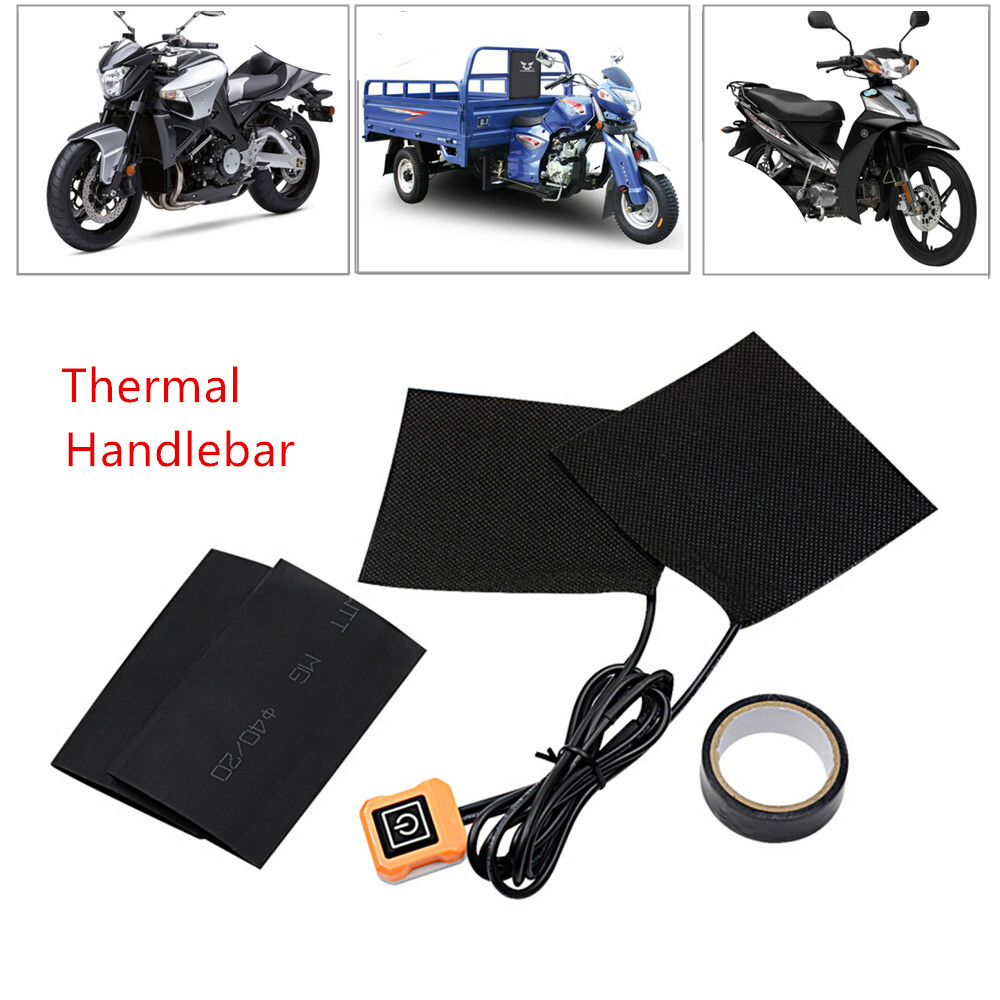

• Product Name: 2019 intelligent temperature control three-speed electric handle

• Product gross weight: 90g

• Product line length: 120cm

• Package size: 13*13*4cm

• Product material: (heating sheet) composite fiber heating wire + black non-woven fabric, (L bracket) stainless steel

• Input voltage: DC12V

• Product power: 20-30W or so

• Handle temperature: low temperature 40 °, medium temperature 50 °, high temperature 60 °

• Product accessories: heat shrinkable sleeve *2, rear view mirror bracket *1 cable tie *3, insulating tape *1, 3M glue *1

• Installation method: 3M adhesive is fixed, L bracket is fixed


Operation Instructions:

• Power on: Red light blue light green light flashes once and then goes out

• Standby: red light breathing flashing state, temperature reaches the highest automatically turns into blue light mid-range and automatically shuts down after 2 hours

• Working status: The indicator light is always on (high-end: the red light is always on, the mid-range: the blue light is always on, the low level, the green light is always on)

• Long press the key for 3 seconds: enter standby or shut down

• Click to open the key: switch the gear position

How to use the switch:

• Press and hold for 3 seconds to turn on the light. When the temperature reaches a certain temperature, it will automatically turn blue. Press it lightly to change the temperature of the blue light to medium temperature. Press twice to turn green. The temperature is The lowest, press three times for the red three high temperature, long press for 3 seconds to shut down, standby for 2 hours automatically shut down, no longer have to worry about the power consumption.

Product advantage:

• using the latest composite fiber heating wire, waterproof and flame retardant, more uniform and stable heat, more comfortable to the touch

• Built-in intelligent temperature control chip, three-speed adjustable temperature, intelligent temperature control is safer

• 10 seconds of hot heat, large heating area

• The product has increased the standby mode. After switching to the standby state, the electric handle will automatically thermostat to 50 degrees, and automatically shut down after two hours. No longer have to worry about exhausting the battery of the motorcycle because of forgetting the switch.

Product wiring method:

• Receive the motorcycle electric door lock (behind the key) line, the red line is connected to the electric door lock positive output line, the black line is connected to any negative pole or grounding on the car. [This method is applicable, do not want to use Standby but easy to forget the switch off the rider]

• Receive the positive and negative position of the battery, red to the positive pole of the battery [+], black to the negative pole of the battery [-] because this electric handle increases the function of standby automatic shutdown, even if you receive the battery, forget to turn off the switch, just turn on When you are in standby mode, you don't have to worry about running out of batteries (recommended in standby mode, please turn it on earlier)

Tips:

• When wiring, red is connected to the positive pole, and if the black is connected to the negative pole, the switch will burn off, but the handle will heat up. Therefore, when wiring, please make sure the positive and negative terminals are connected to prevent burning.
